Avr Sound Mode Card (Denon/Marantz)

meowmoo · February 18, 2023, 3:13pm

Hi there,

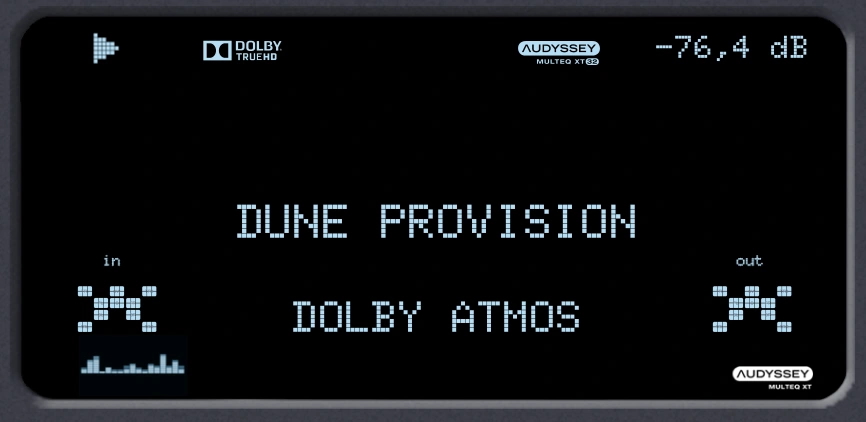

I start to working on a Soundmod card, to make it look like in the Denon Andriod App
this is what I got.

Here are the png files
https://drive.google.com/drive/folders/17EltSyQXJcT2tf0ecwwmzefzBMy_WbDc?usp=share_link

First we need a sensor to get the Sound mode from the avr

- platform: template
    sensors:
      denon_sound_mode_raw:
        unique_id: denon_output
        value_template: "{{ state_attr('media_player.denon_avr_x3600h', 'sound_mode_raw') }}"

now we can use this info in a picture card

type: picture-entity
entity: sensor.denon_sound_mode_raw
show_state: false
show_name: false
name: output
tap_action:
  action: call-service
  service: media_player.select_sound_mode
  service_data:
    entity_id: media_player.denon_avr_x3600h
    sound_mode: AUTO
image: /local/avr/off.jpg
state_image:
  Stereo: /local/avr/2.1.png
  Multi Ch Stereo: /local/avr/7.1.4.png
  Dolby Audio - Dolby Digital Plus: /local/avr/5.1.png
  Dolby Audio - DD+ + DSur: local/avr/7.1.4.png
  Dolby Audio - DD+ + Neural:X: /local/avr/7.1.4.png
  Dolby Audio - Dolby Surround: /local/avr/5.1.png
  Dolby Audio - DD + DSur: local/avr/7.1.4.png
  Dolby Audio - DD + Neural:X: /local/avr/7.1.4.png
  Dolby Audio - Dolby Digital: /local/avr/5.1.png
  Dolby Audio - Dolby TrueHD: /local/avr/7.1.png
  Dolby Audio - TrueHD + Neural:X: /local/avr/7.1.4.png
  Dolby Audio - TrueHD + Dsur: /local/avr/7.1.4.png
  Dolby Atmos: /local/avr/7.1.4.png
  DTS Neural:X: /local/avr/7.1.4.png
  DTS Surround: /local/avr/7.1.png
  DTS + Dsur: /local/avr/7.1.4.png
  DTS + Neural:X: /local/avr/7.1.4.png
  DTS:X MSTR: /local/avr/7.1.4.png
  DTS-HD MSTR: /local/avr/7.1.png
  DTS-HD + Neural:X: /local/avr/7.1.4.png
  DTS-HD + DSur: /local/avr/7.1.4.png
  Multi Ch In 7.1: /local/avr/7.1.png
  Multi In + DSur: /local/avr/7.1.4.png
  Multi In + Neural:X: /local/avr/7.1.4.png

or we use custom button card GitHub - custom-cards/button-card: ❇️ Lovelace button-card for home assistant

type: custom:button-card
entity: sensor.denon_sound_mode_raw
show_name: false
show_state: false
name: sound mode
styles:
  card:
    - height: 200px
size: 100%
tap_action:
  action: call-service
  service: media_player.select_sound_mode
  service_data:
    entity_id: media_player.denon_avr_x3600h
    sound_mode: AUTO
show_entity_picture: true
entity_picture: >-
        [[[ if (entity.state == "Stereo") return "/local/avr/2.1.png"; else if
        (entity.state == "Multi CH Stereo") return "/local/avr/7.1.4.png"; else if
        (entity.state == "Dolby Audio - Dolby Digital Plus") return
        "/local/avr/5.1.png"; else if (entity.state == "Dolby Audio - DD+ + DSur")
        return "local/avr/7.1.4.png"; else if (entity.state == "Dolby Audio - DD+
        + Neural:X") return "/local/avr/7.1.4.png"; else if (entity.state ==
        "Dolby Audio - Dolby Surround") return "/local/avr/5.1.png"; else if
        (entity.state == "Dolby Audio - DD + DSur") return "/local/avr/7.1.4.png";
        else if (entity.state == "Dolby Audio - DD + Neural:X") return
        "/local/avr/7.1.4.png"; else if (entity.state == "Dolby Audio - Dolby
        Digital") return "/local/avr/5.1.png"; else if (entity.state == "Dolby
        Audio - Dolby TrueHD") return "/local/avr/7.1.png"; else if (entity.state
        == "Dolby Audio - TrueHD + Neural:X") return "/local/avr/7.1.4.png"; else
        if (entity.state == "Dolby Audio - TrueHD + Dsur") return
        "/local/avr/7.1.4.png"; else if (entity.state == "Dolby Atmos") return
        "/local/avr/7.1.4.png"; else if (entity.state == "DTS Neural:X") return
        "/local/avr/7.1.4.png"; else if (entity.state == "DTS Surround") return
        "/local/avr/7.1.png"; else if (entity.state == "DTS + Dsur") return
        "/local/avr/7.1.4.png"; else if (entity.state == "DTS + Neural:X") return
        "/local/avr/7.1.4.png"; else if (entity.state == "DTS:X MSTR") return
        "/local/avr/7.1.4.png"; else if (entity.state == "DTS-HD MSTR") return
        "/local/avr/7.1.png"; else if (entity.state == "DTS-HD + Neural:X") return
        "/local/avr/7.1.4.png"; else if (entity.state == "DTS-HD + DSur") return
        "/local/avr/7.1.4.png"; else if (entity.state == "Multi Ch In 7.1") return
        "/local/avr/7.1.png"; else if (entity.state == "Multi In + DSur") return
        "/local/avr/7.1.4.png"; else if (entity.state == "Multi In + Neural:X") return "/local/avr/7.1.4.png";
        return '/local/avr/off.jpg' ]]]

BebeMischa · February 18, 2023, 4:26pm

Hi,

first many thanks for working on this. Looks good and helps.

Well, I struggle to get it working. Even on the same Denon, as you have, I only get this:

afbeelding

No colors for active speakers at all.

Using the picture card method.

Any idea?

Edit:

I found it. Accidentally selected the HEOS player instead of the main AVR Yes, I do shame…

BebeMischa · February 18, 2023, 4:43pm

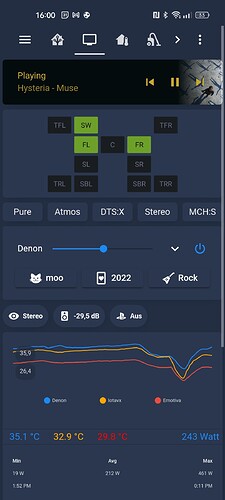

So, now it works, I have one more question:

Can you, please, share the card yaml for this?

afbeelding

meowmoo · February 18, 2023, 5:54pm

The 5 Buttons

type: horizontal-stack
cards:
  - type: custom:button-card
    name: Pure
    color: Auto
    color_type: card
    default_color: rgb(255, 233, 155)
    label: null
    styles:
      card:
        - height: 30px
      name:
        - font-size: 14px
    show_icon: false
    tap_action:
      action: call-service
      service: media_player.select_sound_mode
      service_data:
        entity_id: media_player.denon_avr_x3600h
        sound_mode: MUSIC
  - type: custom:button-card
    name: Atmos
    color: Auto
    color_type: card
    default_color: rgb(255, 233, 155)
    label: null
    styles:
      card:
        - height: 30px
      name:
        - font-size: 14px
    show_icon: false
    tap_action:
      action: call-service
      service: media_player.select_sound_mode
      service_data:
        entity_id: media_player.denon_avr_x3600h
        sound_mode: MOVIE
  - type: custom:button-card
    name: DTS:X
    color: Auto
    color_type: card
    default_color: rgb(255, 233, 155)
    label: null
    styles:
      card:
        - height: 30px
      name:
        - font-size: 14px
    show_icon: false
    tap_action:
      action: call-service
      service: media_player.select_sound_mode
      service_data:
        entity_id: media_player.denon_avr_x3600h
        sound_mode: GAME
  - type: custom:button-card
    name: Stereo
    color: Auto
    color_type: card
    default_color: rgb(255, 233, 155)
    label: null
    styles:
      card:
        - height: 30px
      name:
        - font-size: 14px
    show_icon: false
    tap_action:
      action: call-service
      service: media_player.select_sound_mode
      service_data:
        entity_id: media_player.denon_avr_x3600h
        sound_mode: STEREO
  - type: custom:button-card
    name: MCH:S
    color: Auto
    color_type: card
    default_color: rgb(255, 233, 155)
    label: null
    styles:
      card:
        - height: 30px
      name:
        - font-size: 14px
    show_icon: false
    tap_action:
      action: call-service
      service: media_player.select_sound_mode
      service_data:
        entity_id: media_player.denon_avr_x3600h
        sound_mode: MCH STEREO

mini media player

type: custom:mini-media-player
entity: media_player.denon_avr_x3600h
source: icon
sound_mode: icon
volume_stateless: false
idle_view: when_standby
hide:
  icon: true
  name: false
  volume: false
  source: false
  power: false
  power_state: false
  sound_mode: true
  progress: false
  info: false
  controls: true
  next: false
  prev: false
  play_pause: false
  volume_level: true
  mute: true
shortcuts:
  label: Playlist
  columns: 5
  column_height: 5
  buttons:
    - name: moo
      icon: mdi:cat
      type: service
      id: spotcast.start
      data:
        device_name: Denon AVR-X3600H
        uri: spotify:playlist:0MsXDA6rziRarCYOVg66Pd
        random_song: true
    - name: 2022
      icon: mdi:cards-playing-heart-outline
      type: service
      id: spotcast.start
      data:
        device_name: Denon AVR-X3600H
        uri: spotify:playlist:37i9dQZF1F0sijgNaJdgit
        random_song: true
    - name: Rock
      icon: mdi:guitar-electric
      type: service
      id: spotcast.start
      data:
        device_name: Denon AVR-X3600H
        uri: spotify:playlist:37i9dQZF1DX4vth7idTQch
        random_song: true
info: short
group: false
artwork: material
volume_step: '1'
name: 'Denon '

Chips

type: custom:mushroom-chips-card
chips:
  - type: entity
    entity: sensor.denon_sound_mode_raw
  - type: entity
    entity: sensor.denon_db_volume
    use_entity_picture: true
  - type: conditional
    conditions:
      - entity: switch.ps5_power
        state: 'off'
    chip:
      type: entity
      entity: switch.ps5_power
      tap_action:
        action: call-service
        service: switch.toggle
        data: {}
        target:
          entity_id: switch.ps5_power
  - type: conditional
    conditions:
      - entity: switch.ps5_power
        state: 'on'
    chip:
      type: entity
      entity: sensor.ps5_play_time
      content_info: state
      icon: mdi:sony-playstation
      use_entity_picture: true
      name: Playtime

volume sensor, gos into the config

compensation:
  media_player_db_volume:
    source: media_player.denon_avr_x3600h
    unique_id: denon_db_volume
    attribute: volume_level
    unit_of_measurement: dB
    data_points:
      - [0, -80.0]
      - [0.8, 0.0]

BebeMischa · February 18, 2023, 6:00pm

Briliant!

Final question:

Where can I buy you a beer?

BebeMischa · February 18, 2023, 6:56pm

So, this is, what I have now. I’m very happy!

Still wish, this would be finished by someone, works only half …

complex1 · February 19, 2023, 11:21am

I have the Denon AVR-X1600H and l want to try out this AVR Sound Card.
My knowledge about HA is not so good, so I want to ask where and how can I store the png files.
I guess I need the File Editor, but then what… what is the next step to take?
Please advise.

santiniuk · February 19, 2023, 2:52pm

Just tinkering with this myself. I have the AVR-X2200W which it seems to work on.
I just changed all reference to the model number of mine.
The files need to go into
www folder. Create a folder in www called avr and copy the files into this.
You can use the file editor to do all of this.

complex1 · February 19, 2023, 3:08pm

@santiniuk Thank you.
Just a moment ago, I have found the solution under “Hosting Files”

niraviry · October 26, 2024, 4:22pm

Hi. Great job but there is a problem while using a TV with ARC/eARC. The sound_mode_raw outputs some states that are not realy sound modes like Direct. Under direct for instance, you can get few actual sound modes like stereo or others. The tested state shoud be checked against the input while using ARC. In this case, the TV determines the sound mode.

voyagers21 · November 24, 2024, 1:29pm

hello, for the db volume, do you need to create another sensor?
or do you just copy the compensation into the config file?
because it doesn’t work for me.
