Hi, very new adopter here, I have looked at so many youTubes (they all make this look so easy). This is my first project, so go easy. (i dont really understand uart, let alone anything else at the MOMENT)

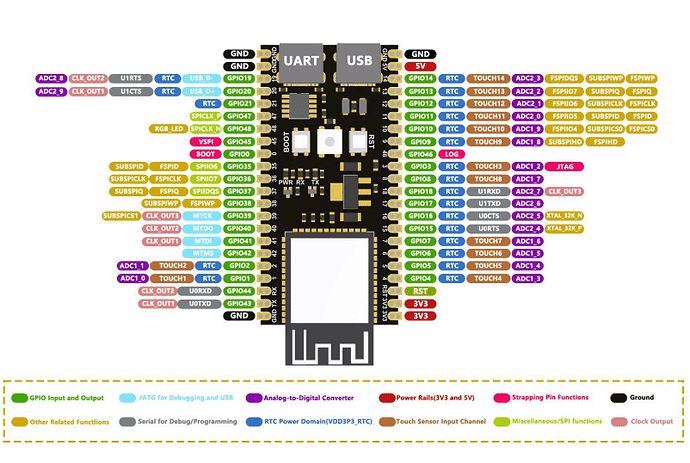

ESP32-S3-DevKitC-1 connection to LD2410c only works if i use 3v out on the esp32 board?
If i use the 5v like everybody says to do i get Warning [ld2410:596]: “Max command length exceeded; ignoring”.
I believe if I’m connected to the 3v, its using Bluetooth to connect the LD2410C not the uart pins? Is this right? Very confusing.
This is my Yaml ( sorry stuck everything on there out of desperation).
esphome:
name: officeble
friendly_name: OfficeBLE
esp32:
board: esp32-s3-devkitc-1
framework:
type: esp-idf
# Enable logging
logger:
# Enable Home Assistant API
api:
encryption:
key: "redacted"
ota:
- platform: esphome
password: "redacted"
wifi:
ssid: !secret wifi_ssid
password: !secret wifi_password
# Enable fallback hotspot (captive portal) in case wifi connection fails
ap:
ssid: "Officeble Fallback Hotspot"
password: "ih99rgvDHKr2"
esp32_ble_tracker:
scan_parameters:
interval: 1100ms
window: 1100ms
active: true
bluetooth_proxy:
active: True
web_server:
captive_portal:
uart:
id: uart_1
tx_pin: GPIO17
rx_pin: GPIO18
baud_rate: 256000
parity: NONE
stop_bits: 1
ld2410:
uart_id: uart_1
binary_sensor:
- platform: ld2410
has_target:
name: Presence
has_moving_target:
name: Moving Target
has_still_target:
name: Still Target
out_pin_presence_status:
name: Out pin presence status
sensor:
- platform: ld2410
light:
name: Light
moving_distance:
name: Moving Distance
still_distance:
name: Still Distance
moving_energy:
name: Move Energy
still_energy:
name: Still Energy
detection_distance:
name: Detection Distance
g0:
move_energy:
name: G0 move energy
still_energy:
name: G0 still energy
g1:
move_energy:
name: G1 move energy
still_energy:
name: G1 still energy
g2:
move_energy:
name: G2 move energy
still_energy:
name: G2 still energy
g3:
move_energy:
name: G3 move energy
still_energy:
name: G3 still energy
g4:
move_energy:
name: G4 move energy
still_energy:
name: G4 still energy
g5:
move_energy:
name: G5 move energy
still_energy:
name: G5 still energy
g6:
move_energy:
name: G6 move energy
still_energy:
name: G6 still energy
g7:
move_energy:
name: G7 move energy
still_energy:
name: G7 still energy
g8:
move_energy:
name: G8 move energy
still_energy:
name: G8 still energy
text_sensor:
- platform: ld2410
version:
name: "LD2410 Firmware Version"
mac_address:
name: "LD2410 MAC Address"
switch:
- platform: ld2410
engineering_mode:
name: Engineering mode
bluetooth:
name: Control bluetooth
number:
- platform: ld2410
timeout:
name: Timeout
light_threshold:
name: Light threshold
max_move_distance_gate:
name: Max move distance gate
max_still_distance_gate:
name: Max still distance gate
g0:
move_threshold:
name: G0 move threshold
still_threshold:
name: G0 still threshold
g1:
move_threshold:
name: G1 move threshold
still_threshold:
name: G1 still threshold
g2:
move_threshold:
name: G2 move threshold
still_threshold:
name: G2 still threshold
g3:
move_threshold:
name: G3 move threshold
still_threshold:
name: G3 still threshold
g4:
move_threshold:
name: G4 move threshold
still_threshold:
name: G4 still threshold
g5:
move_threshold:
name: G5 move threshold
still_threshold:
name: G5 still threshold
g6:
move_threshold:
name: G6 move threshold
still_threshold:
name: G6 still threshold
g7:
move_threshold:
name: G7 move threshold
still_threshold:
name: G7 still threshold
g8:
move_threshold:
name: G8 move threshold
still_threshold:
name: G8 still threshold
button:
- platform: ld2410
factory_reset:
name: Factory reset
restart:
name: Restart
query_params:
name: Query params
What I’m trying to do is make a Bluetooth room presence sensor for bermuda that has mmwave as well.
I think this is working but i hear the Bluetooth on the LD2410C can be flakey, so i would like it to run from the esp32. Does that make sense?
What am i doing wrong? Do i need to define both u0txd pin 43 and u0rxd pin 44 as well as the u1txd and u1rxd? I assume the 5v pin on the esp32 is output?
Can any of you geniuses help me, any help will do, to point me in the right direction.

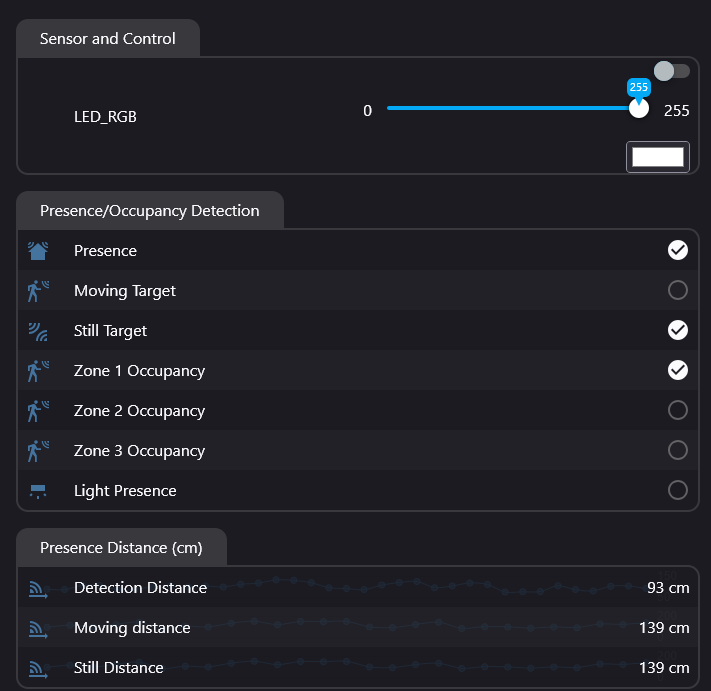

UPDATE: Actually everything seems to be working as i wanted, i just turned Bluetooth off on the LD2410c…still detecting. I would still like to understand why its not working from the 5V (like everybody seems to suggest in tutorials) . I seemed to have, fluked, my first project lol
Its hard to tell if “knockoff board” or not on amazon.
