Board with ESP8266, MCP23017 and 16 x SSR

Share your Projects!
1

Hi,
I wanted to share my latest project. This is a board with 16 SSRs, ESP8266 module and MCP23017 chip. Therefore, it can be controlled by WIFI or I2C. Home Assistant and ESPHome work beautifully with MCP23017. Integration takes 3 minutes :slight_smile:
Details of this project, all source files and a step-by-step guide can be found here:


SS4H-SSR big
SS4H-SSR big3550×2686 609 KB
facebook1
facebook15188×2988 1.38 MB

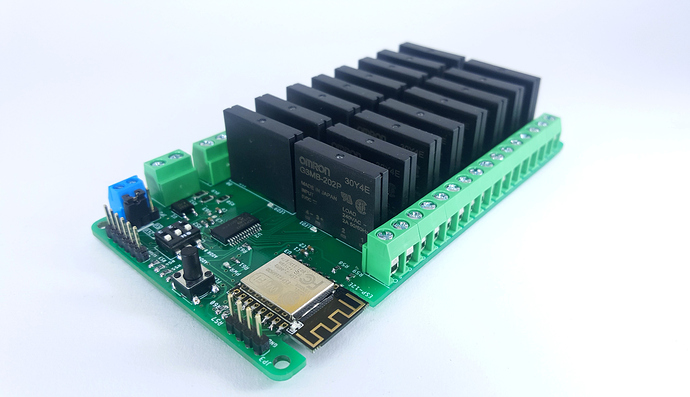

facebook2
facebook25131×2988 1.27 MB
4 Likes
2

Great project and website that you have there.
I’m looking for something similar, but with a LAN cable connection.

3

Perhaps a remix with an esp32 and https://esphome.io/components/ethernet.html

1 Like
4

It’s actually a great idea! I didn’t think to use LAN for communication but I like this idea very much :slight_smile:

1 Like
5

There are also POE esp32 boards, making a neat solution.
