Bosch Universal Switch II - BHI-US -- Blueprint Project

Configuration Blueprints
1

As i didnt find any Blueprint for this device, I tried to create my own.
With a lot of help from KI

blueprint:
  name: Bosch Universal Switch II - BHI-US
  description: >
    Work in Progress
  domain: automation
  input:
    mqtt_device:
      name: Zigbee2MQTT Name
      description: Devicename Zigbee2MQTT
      selector:
        device:
          filter:
            - integration: mqtt
              manufacturer: Bosch
    base_topic:
      name: Zigbee2MQTT Base mqtt topic
      description: Default zigbee2mqtt
      default: zigbee2mqtt
    button_top_left_selection:
      name: Top left Button
      collapsed: true
      input:
        button_top_left_short:
          name: Top left short press
          default: []
          selector:
            action: {}
        led_top_left_short_color:
          name: Top left short press - color
          default: "Off"
          selector:
            select:
              options:
                - "Off"
                - "Red"
                - "Green"
                - "Blue"
                - "White"
        led_top_left_short_mode:
          name: Top left short press - mode
          default: "Solid"
          selector:
            select:
              options:
                - "Solid"
                - "Flash"
                - "Pulse"
        button_top_left_long:
          name: Top left long press
          default: []
          selector:
            action: {}
        led_top_left_long_color:
          name: Top left long press - color
          default: "Off"
          selector:
            select:
              options:
                - "Off"
                - "Red"
                - "Green"
                - "Blue"
                - "White"
        led_top_left_long_mode:
          name: Top left long press - mode
          default: "Solid"
          selector:
            select:
              options:
                - "Solid"
                - "Flash"
                - "Pulse"

trigger_variables:
  base_topic: !input base_topic
  mqtt_device: !input mqtt_device
trigger:
  - platform: mqtt
    domain: mqtt
    device_id: !input mqtt_device
    type: action
    subtype: button_top_left_shortpress
    discovery_id: "{{ base_topic }}/action"
    id: top_left_short

  - platform: device
    domain: mqtt
    device_id: !input mqtt_device
    type: action
    subtype: button_top_left_longpress
    discovery_id: "{{ base_topic }}/action"
    id: top_left_long

action:
  - choose:
      - conditions: "{{ trigger.id == 'top_left_short' }}"
        sequence:
          - !input button_top_left_short
          - variables:
              led_color: !input led_top_left_short_color
              led_mode: !input led_top_left_short_mode
              led_payload: >-
                {% set color_map = {
                  'Red': ('ff','00','00'),
                  'Green': ('00','ff','00'),
                  'Blue': ('00','00','ff'),
                  'White': ('ff','ff','ff'),
                  'Off': ('00','00','00') } %}
                {% set r,g,b = color_map.get(led_color, ('00','00','00')) %}
                {% set mode_code = {'Solid':'01','Flash':'02','Pulse':'03'}.get(led_mode, '00') %}
                { r }{ g }{ b }000{ mode_code }{ r }{ g }{ b }0{ mode_code }
          - if: "{{ led_color != 'Off' }}"
            then:
              - action: mqtt.publish
                data:
                  topic: "{{ base_topic }}/set"
                  payload: >-
                    {{
                      "config_led_top_left_press": "{{ led_payload }}"
                    }}
              - delay: "00:00:05"
              - action: mqtt.publish
                data:
                  topic: "{{ base_topic }}/set"
                  payload: >-
                    {{
                      "config_led_top_left_press": "000000000000000000"
                    }}
      - conditions: "{{ trigger.id == 'top_left_long' }}"
        sequence:
          - !input button_top_left_long
          - variables:
              led_color: !input led_top_left_long_color
              led_mode: !input led_top_left_long_mode
              led_payload: >-
                {% set color_map = {
                  'Red': ('ff','00','00'),
                  'Green': ('00','ff','00'),
                  'Blue': ('00','00','ff'),
                  'White': ('ff','ff','ff'),
                  'Off': ('00','00','00') } %}
                {% set r,g,b = color_map.get(led_color, ('00','00','00')) %}
                {% set mode_code = {'Solid':'01','Flash':'02','Pulse':'03'}.get(led_mode, '00') %}
                { r }{ g }{ b }000{ mode_code }{ r }{ g }{ b }0{ mode_code }
          - if: "{{ led_color != 'Off' }}"
            then:
              - action: mqtt.publish
                data:
                  topic: "{{ base_topic }}/set"
                  payload: >-
                    {{
                      "config_led_top_left_longpress": "{{ led_payload }}"
                    }}
              - delay: "00:00:05"
              - action: mqtt.publish
                data:
                  topic: "{{ base_topic }}/set"
                  payload: >-
                    {{
                      "config_led_top_left_longpress": "000000000000000000"
                    }}
mode: single

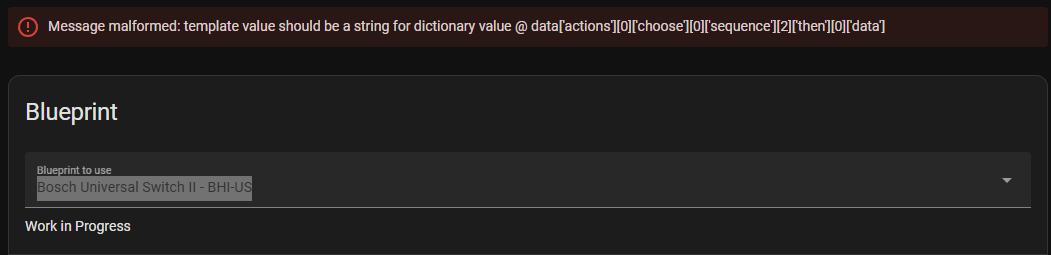

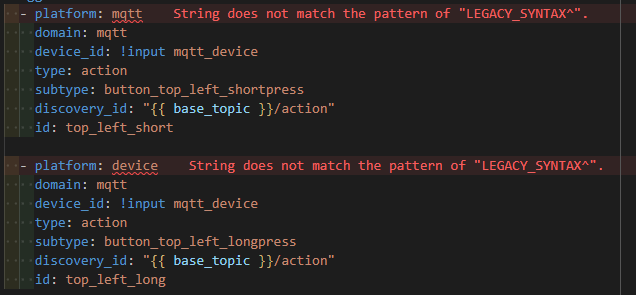

at the moment i am stuck at 2 errors.

image636×295 13 KB

image1051×255 11 KB

Thanks

2

If you’re trying to send a dict here as the payload, it needs braces around it:

                  payload: >-
                    {{
                        {"config_led_top_left_press": "{{ led_payload }}"}
                    }}

Also I think you probably are not trying to send the string "{{ led_payload }}", but you want to use that variable?

In that case maybe this:

                  payload: >-
                    {{
                        {"config_led_top_left_press": led_payload}
                    }}
3

Hello Layer8Problem,

You may indeed have errors as Karwost mentions, but the ‘Legacy Syntax’ messages are warnings that you are using legacy versions of code that you might have got from an LLM or old messages.
It is strongly recommended to look at the HA Docs and find the current version of that code to use.

4

Found the Time to finaly fix the Blueprint, LED are still missing but the Buttons are working.
What I do not understand is, why Trigger subtype: does not work under actions and needs payload.

Anyone want to test?

blueprint:
  name: Bosch Universal Switch II - BHI-US TEST
  description: >
    Supports short and long presses for all four buttons (Top Left, Top Right, Bottom Left, Bottom Right)
    of the Bosch Universal Switch II via Zigbee2MQTT.
  domain: automation
  input:
    integration:
      name: Zigbee2MQTT Base MQTT Topic
      description: Default is zigbee2mqtt
      default: zigbee2mqtt
    mqtt_device:
      name: Zigbee2MQTT Device Name
      description: Device name used in Zigbee2MQTT (e.g., bosch_switch)
      selector:
        device:
          filter:
            - integration: mqtt
              manufacturer: Bosch
    #################################
    button_top_left:
      name: Top Left Button
      collapsed: true
      input:
        button_top_left_release:
          name: Short Press (Release)
          default: []
          selector:
            action: {}
        button_top_left_longpress:
          name: Long Press (Hold)
          default: []
          selector:
            action: {}
        button_top_left_longpress_release:
          name: Long Press (Release)
          default: []
          selector:
            action: {}
    #################################
    button_top_right:
      name: Top Right Button
      collapsed: true
      input:
        button_top_right_release:
          name: Short Press (Release)
          default: []
          selector:
            action: {}
        button_top_right_longpress:
          name: Long Press (Hold)
          default: []
          selector:
            action: {}
        button_top_right_longpress_release:
          name: Long Press (Release)
          default: []
          selector:
            action: {}
    #################################
    button_bottom_left:
      name: Bottom Left Button
      collapsed: true
      input:
        button_bottom_left_release:
          name: Short Press (Release)
          default: []
          selector:
            action: {}
        button_bottom_left_longpress:
          name: Long Press (Hold)
          default: []
          selector:
            action: {}
        button_bottom_left_longpress_release:
          name: Long Press (Release)
          default: []
          selector:
            action: {}
    #################################
    button_bottom_right:
      name: Bottom Right Button
      collapsed: true
      input:
        button_bottom_right_release:
          name: Short Press (Release)
          default: []
          selector:
            action: {}
        button_bottom_right_longpress:
          name: Long Press (Hold)
          default: []
          selector:
            action: {}
        button_bottom_right_longpress_release:
          name: Long Press (Release)
          default: []
          selector:
            action: {}

##################################
##########   Variables   #########
##################################
trigger_variables:
  integration: !input integration
  mqtt_device: !input mqtt_device

##################################
##########   Triggers   ##########
##################################
trigger:
  # Top Left Button
  - trigger: device
    device_id: !input mqtt_device
    domain: mqtt
    type: action
    subtype: button_top_left_release
  - trigger: device
    device_id: !input mqtt_device
    domain: mqtt
    type: action
    subtype: button_top_left_longpress
  - trigger: device
    device_id: !input mqtt_device
    domain: mqtt
    type: action
    subtype: button_top_left_longpress_release
  # Top Right Button
  - trigger: device
    device_id: !input mqtt_device
    domain: mqtt
    type: action
    subtype: button_top_right_release
  - trigger: device
    device_id: !input mqtt_device
    domain: mqtt
    type: action
    subtype: button_top_right_longpress
  - trigger: device
    device_id: !input mqtt_device
    domain: mqtt
    type: action
    subtype: button_top_right_longpress_release
  # Bottom Left Button
  - trigger: device
    device_id: !input mqtt_device
    domain: mqtt
    type: action
    subtype: button_bottom_left_release
  - trigger: device
    device_id: !input mqtt_device
    domain: mqtt
    type: action
    subtype: button_bottom_left_longpress
  - trigger: device
    device_id: !input mqtt_device
    domain: mqtt
    type: action
    subtype: button_bottom_left_longpress_release
  # Bottom Right Button
  - trigger: device
    device_id: !input mqtt_device
    domain: mqtt
    type: action
    subtype: button_bottom_right_release
  - trigger: device
    device_id: !input mqtt_device
    domain: mqtt
    type: action
    subtype: button_bottom_right_longpress
  - trigger: device
    device_id: !input mqtt_device
    domain: mqtt
    type: action
    subtype: button_bottom_right_longpress_release

##################################
##########   Actions   ###########
##################################
action:
  - choose:
      # Top Left Button Actions
      - conditions:
          - condition: template
            value_template: "{{ trigger.payload == 'button_top_left_release' }}"
        sequence: !input button_top_left_release
      - conditions:
          - condition: template
            value_template: "{{ trigger.payload == 'button_top_left_longpress' }}"
        sequence: !input button_top_left_longpress
      - conditions:
          - condition: template
            value_template: "{{ trigger.payload == 'button_top_left_longpress_release' }}"
        sequence: !input button_top_left_longpress_release
      # Top Right Button Actions
      - conditions:
          - condition: template
            value_template: "{{ trigger.payload == 'button_top_right_release' }}"
        sequence: !input button_top_right_release
      - conditions:
          - condition: template
            value_template: "{{ trigger.payload == 'button_top_right_longpress' }}"
        sequence: !input button_top_right_longpress
      - conditions:
          - condition: template
            value_template: "{{ trigger.payload == 'button_top_right_longpress_release' }}"
        sequence: !input button_top_right_longpress_release
      # Bottom Left Button Actions
      - conditions:
          - condition: template
            value_template: "{{ trigger.payload == 'button_bottom_left_release' }}"
        sequence: !input button_bottom_left_release
      - conditions:
          - condition: template
            value_template: "{{ trigger.payload == 'button_bottom_left_longpress' }}"
        sequence: !input button_bottom_left_longpress
      - conditions:
          - condition: template
            value_template: "{{ trigger.payload == 'button_bottom_left_longpress_release' }}"
        sequence: !input button_bottom_left_longpress_release
      # Bottom Right Button Actions
      - conditions:
          - condition: template
            value_template: "{{ trigger.payload == 'button_bottom_right_release' }}"
        sequence: !input button_bottom_right_release
      - conditions:
          - condition: template
            value_template: "{{ trigger.payload == 'button_bottom_right_longpress' }}"
        sequence: !input button_bottom_right_longpress
      - conditions:
          - condition: template
            value_template: "{{ trigger.payload == 'button_bottom_right_longpress_release' }}"
        sequence: !input button_bottom_right_longpress_release
mode: single
