Hi all,

Quick question: how do I have to configure a shelly 1pm? No matter what I do, there is never any voltage on 0 or sw. I see current on N though, and the shelly had its Web interface up, so it’s working in general.

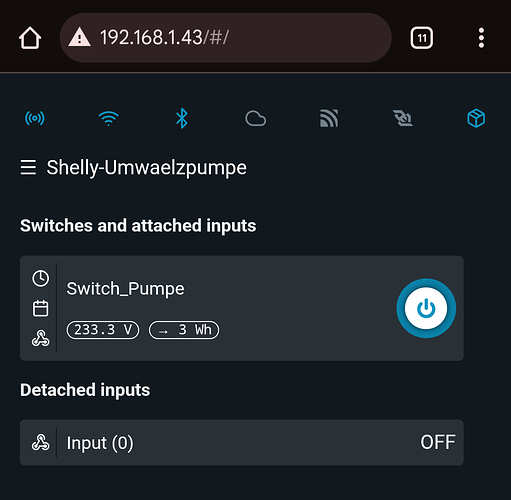

1000068996
10000689961080×1056 78.7 KB

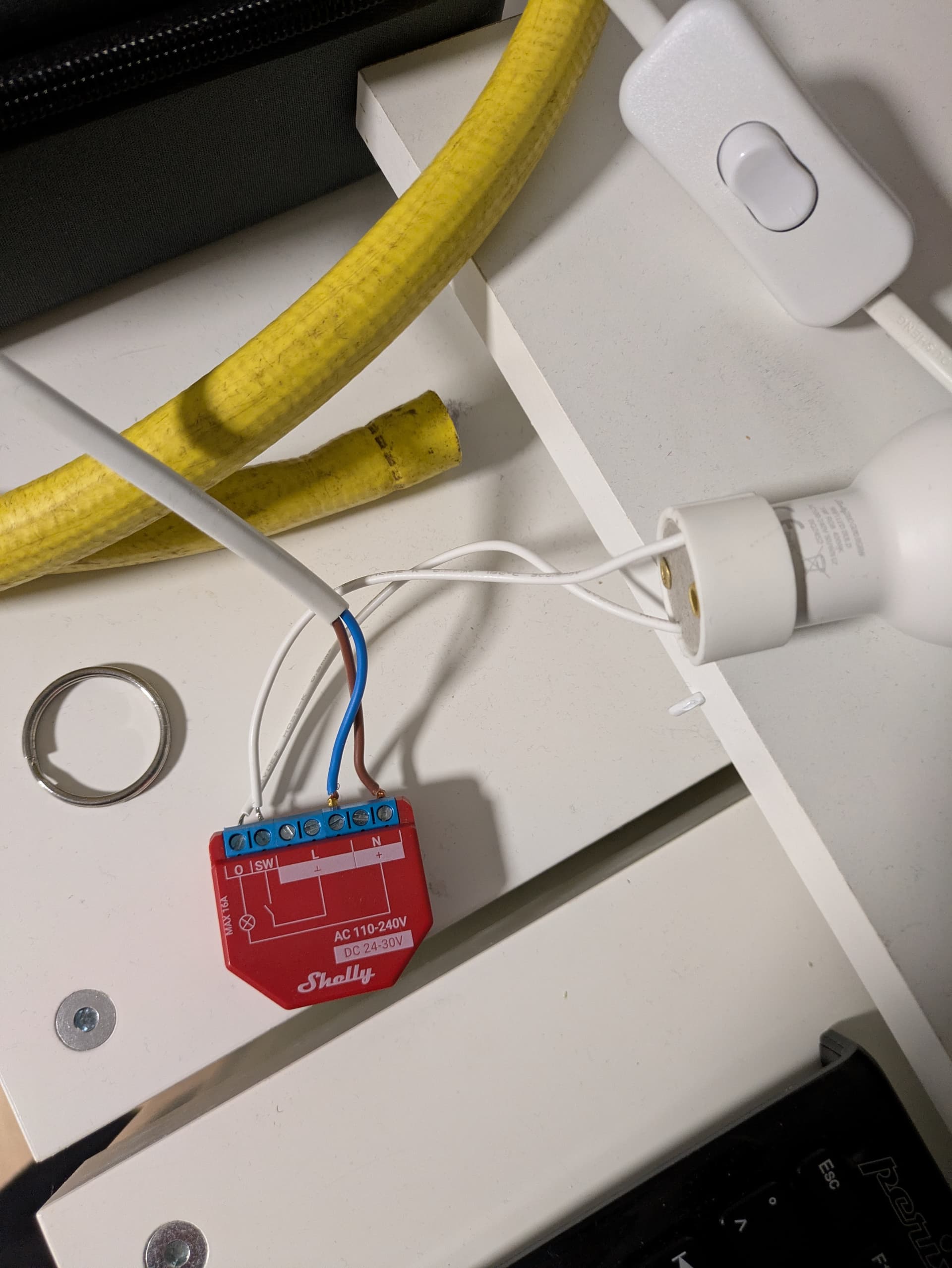

1000068995
10000689951920×2557 219 KB

What am I missing here?

I have no real switch, I just want to use the shelly to toggle a 230v device on and off.

And I am 99% sure the lamp is not attached Properly, but it doesn’t matter anyway couse there is no current anyway…

When I change the cabling of the lamp, I have current on sw permanently, no matter if I turn shelly on or off.
The lamp, though, never turns on.

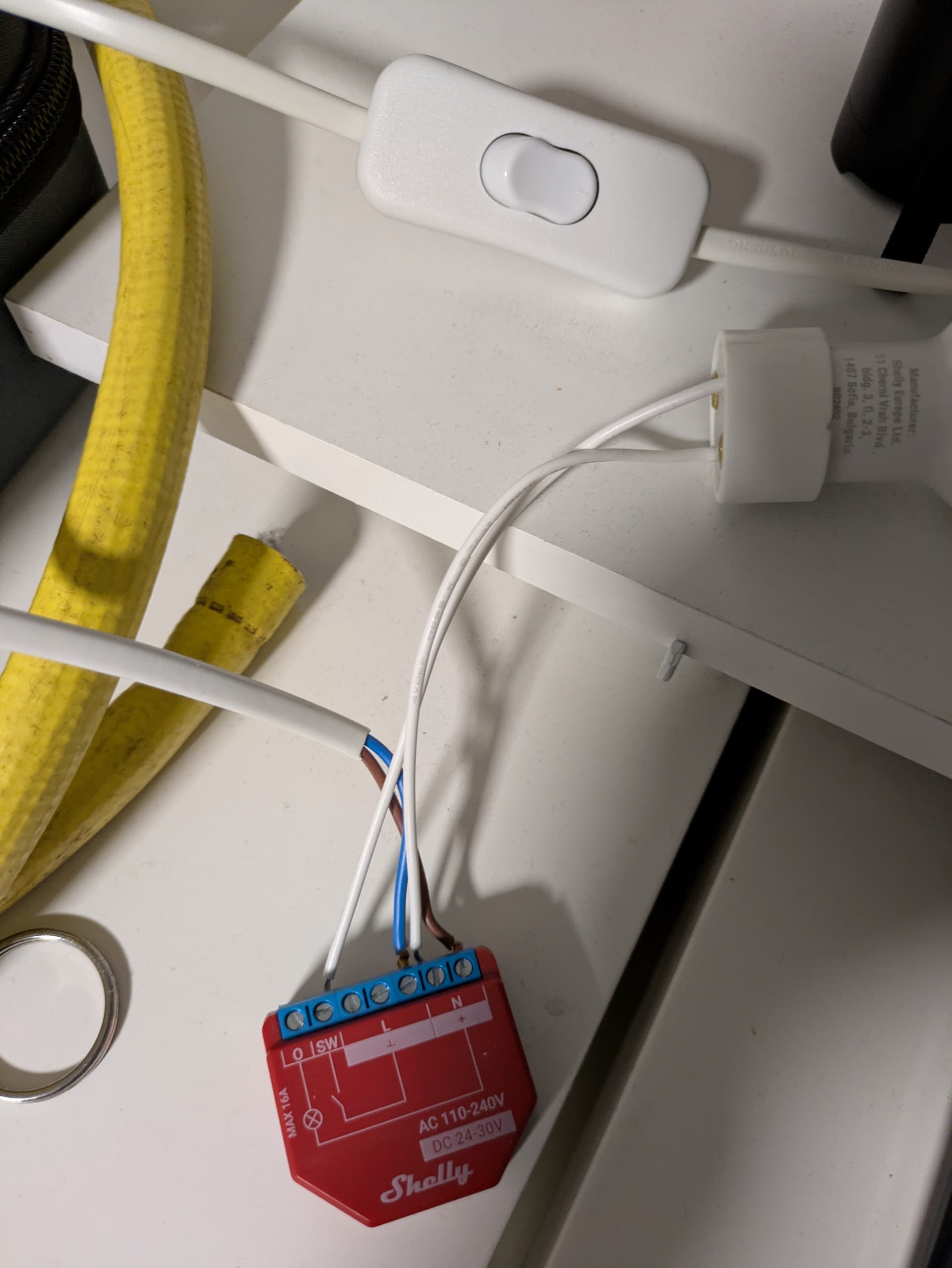

1000068997
10000689971920×2557 172 KB

2

Neutral is normally the blue wire, brown is the live wire (current) and that is switched by shelly to 0.
Connect blue to N and one wire from lamp to N, connect brown to L and the other wire from the lamp to 0.
… or call an electrician.

3

Do the colors really matter for euro sockets? I thought it wouldn’t because I can turn the plug this way or that way :thinking:

Oh ok, you were right

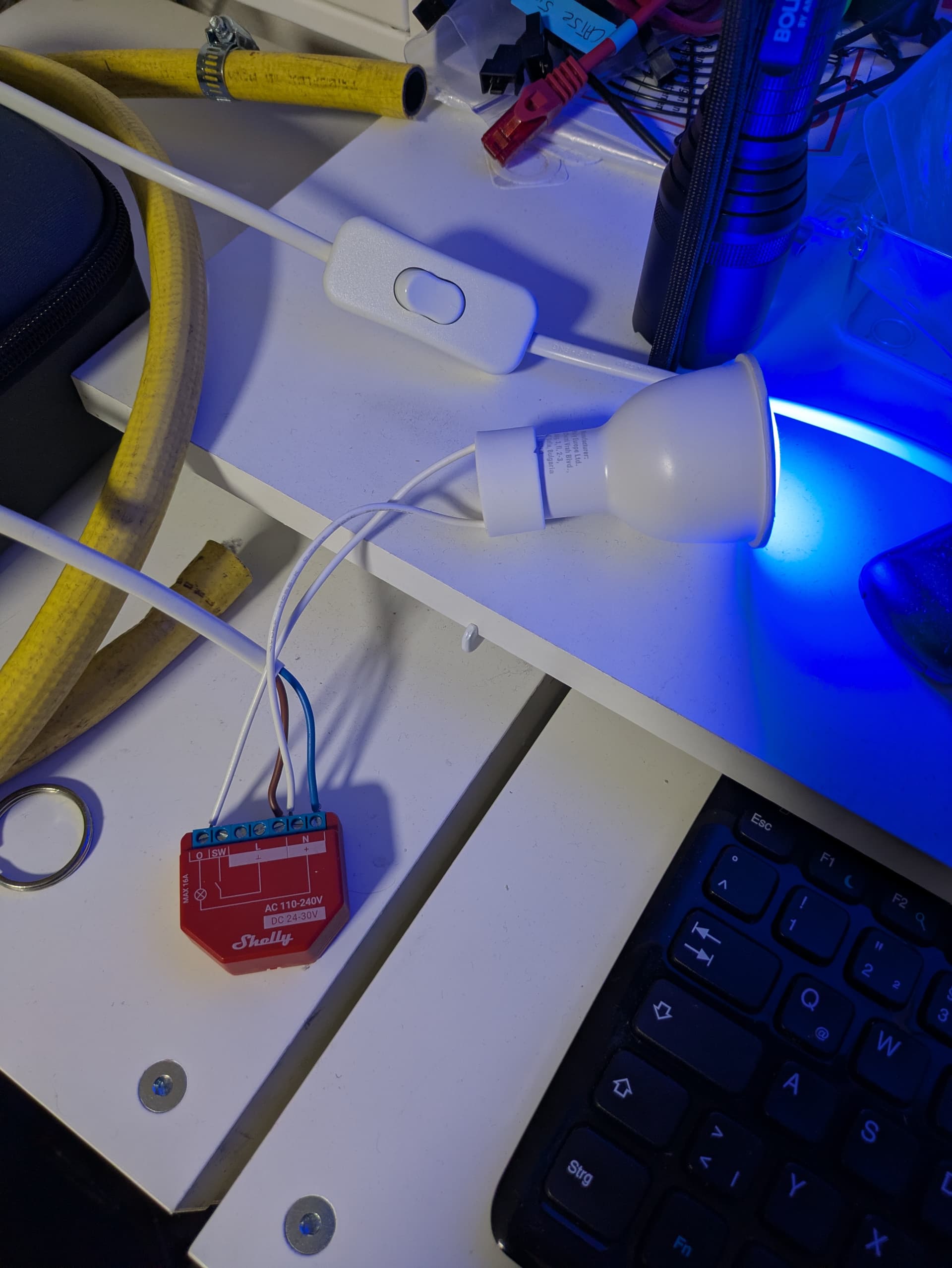

1000068998
10000689981920×2557 227 KB

4

If you turn the plug you need to reconnnect the shelly. The wire with current goes to L, the other to N.
One wire with N to Lamp, the other to 0.

1 Like
5

Ah, I think I understand now. It works both ways to power the shelly, but it matters for the end device because of how SW works, right?

6

SW is meant to be connected to a switch for manually switching.
