Hello,
Im having an issue getting proper measurements from my CircuitSetup Energy Meter de5b30 using 2x 120A/40mA Current Transformer YHDC SCT-016
When i had it on my desk measuring a lamp, it appeared correct (compared to my hand held amp clamp).
However now installed in my service panel, i am getting wild negative watt readings. (current reading looks good and accurate to what i expect 1737.6w)
Even though my amps appear to me measured correctly.
Then when creating a helper to show in KWh, im receiving negative items.
Any assistance or direction to another topic/resource is greatly appreciated.
energy-meter-de5b30.yaml
for reference
# CircuitSetup 6 Channel Energy Meter Main Board example config
# See all options at https://esphome.io/components/sensor/atm90e32.html
substitutions:
# Change the disp_name to something you want
disp_name: esphome-web-de5b30
friendly_name: "CircuitSetup Energy Meter"
# Interval of how often the power data is updated
update_time: 10s

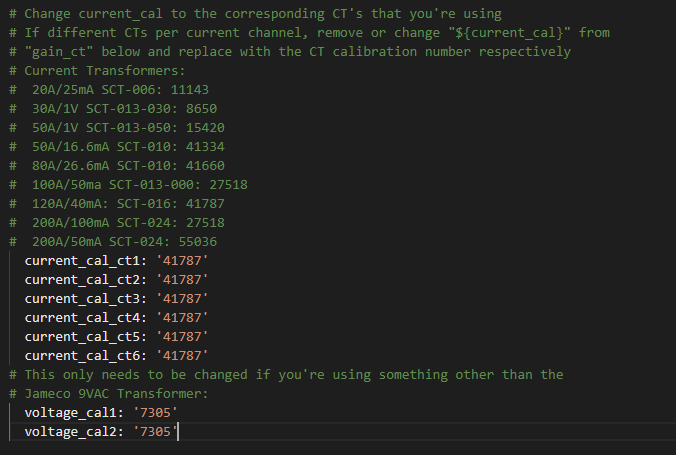

# Change current_cal to the corresponding CT's that you're using
# If different CTs per current channel, remove or change "${current_cal}" from
# "gain_ct" below and replace with the CT calibration number respectively
# Current Transformers:
# 20A/25mA SCT-006: 11143
# 30A/1V SCT-013-030: 8650
# 50A/1V SCT-013-050: 15420
# 50A/16.6mA SCT-010: 41334
# 80A/26.6mA SCT-010: 41660
# 100A/50ma SCT-013-000: 27518
# 120A/40mA: SCT-016: 41787
# 200A/100mA SCT-024: 27518
# 200A/50mA SCT-024: 55036
current_cal_ct1: '27518'
current_cal_ct2: '27518'
current_cal_ct3: '27518'
current_cal_ct4: '27518'
current_cal_ct5: '27518'
current_cal_ct6: '27518'
# This only needs to be changed if you're using something other than the
# Jameco 9VAC Transformer:
voltage_cal1: '7305'
voltage_cal2: '7305'
# WHEN CALIBRATION IS ENABLED, calculated values for offset and gain stored in memory take priority over config values
# to save calculated calibration values, copy them from the logs to your config
# then use the clear buttons to clear the calibration values from memory
offset_calibration: "true"
gain_calibration: "true"
main_meter_name1: Meter 1-3
main_meter_name2: Meter 4-6
main_meter_id1: meter_main1
main_meter_id2: meter_main2
ct1_name: CT1
ct2_name: CT2
ct3_name: CT3
ct4_name: CT4
ct5_name: CT5
ct6_name: CT6
wifi:
ssid: !secret wifi_ssid
password: !secret wifi_password
manual_ip:
static_ip: !secret ip_eh_nrgnode
gateway: 192.168.88.1
subnet: 255.255.255.0
# dns1: !secret ip_dns1
packages:
common: github://CircuitSetup/Expandable-6-Channel-ESP32-Energy-Meter/Software/ESPHome/6chan_common.yaml
sensor:
#IC1
####
- platform: atm90e32
cs_pin: 5
id: ${main_meter_id1}
phase_a:
voltage:
name: Voltage 1
id: ic1Volts
accuracy_decimals: 1
current:
name: ${ct1_name} Amps
id: ct1Amps
# The max value for current that the meter can output is 65.535. If you expect to measure current over 65A,
# divide the gain_ct by 2 (120A CT) or 4 (200A CT) and multiply the current and power values by 2 or 4 by uncommenting the filter below
# filters:
# - multiply: 2
power:
name: ${ct1_name} Watts
id: ct1Watts
# filters:
# - multiply: 2
power_factor:
name: ${ct1_name} PF
peak_current:
name: ${ct1_name} Peak Current
gain_voltage: ${voltage_cal1}
gain_ct: ${current_cal_ct1}
offset_voltage: 0
offset_current: 0
offset_active_power: 0
offset_reactive_power: 0
phase_b:
current:
name: ${ct2_name} Amps
id: ct2Amps
power:
name: ${ct2_name} Watts
id: ct2Watts
power_factor:
name: ${ct2_name} PF
peak_current:
name: ${ct2_name} Peak Current
gain_voltage: ${voltage_cal1}
gain_ct: ${current_cal_ct2}
offset_voltage: 0
offset_current: 0
offset_active_power: 0
offset_reactive_power: 0
phase_c:
current:
name: ${ct3_name} Amps
id: ct3Amps
power:
name: ${ct3_name} Watts
id: ct3Watts
power_factor:
name: ${ct3_name} PF
peak_current:
name: ${ct3_name} Peak Current
gain_voltage: ${voltage_cal1}
gain_ct: ${current_cal_ct3}
offset_voltage: 0
offset_current: 0
offset_active_power: 0
offset_reactive_power: 0
frequency:
name: Frequency 1
chip_temperature:
name: ${main_meter_name1} Chip Temp
line_frequency: 60Hz
gain_pga: 1X
update_interval: ${update_time}
enable_offset_calibration: ${offset_calibration}
enable_gain_calibration: ${gain_calibration}
#IC2
####
- platform: atm90e32
cs_pin: 4
id: ${main_meter_id2}
phase_a:
#this voltage is only needed if monitoring 2 voltages
# voltage:
# name: Voltage 2
# id: ic2Volts
# accuracy_decimals: 1
current:
name: ${ct4_name} Amps
id: ct4Amps
power:
name: ${ct4_name} Watts
id: ct4Watts
power_factor:
name: ${ct4_name} PF
phase_angle:
name: ${ct4_name} Phase Angle
peak_current:
name: ${ct4_name} Peak Current
gain_voltage: ${voltage_cal2}
gain_ct: ${current_cal_ct4}
offset_voltage: 0
offset_current: 0
offset_active_power: 0
offset_reactive_power: 0
phase_b:
current:
name: ${ct5_name} Amps
id: ct5Amps
power:
name: ${ct5_name} Watts
id: ct5Watts
power_factor:
name: ${ct5_name} PF
peak_current:
name: ${ct5_name} Peak Current
gain_voltage: ${voltage_cal2}
gain_ct: ${current_cal_ct5}
offset_voltage: 0
offset_current: 0
offset_active_power: 0
offset_reactive_power: 0
phase_c:
current:
name: ${ct6_name} Amps
id: ct6Amps
power:
name: ${ct6_name} Watts
id: ct6Watts
power_factor:
name: ${ct6_name} PF
peak_current:
name: ${ct6_name} Peak Current
gain_voltage: ${voltage_cal2}
gain_ct: ${current_cal_ct6}
offset_voltage: 0
offset_current: 0
offset_active_power: 0
offset_reactive_power: 0
#this is only needed if monitoring 2 voltages
# frequency:
# name: Frequency 2
chip_temperature:
name: ${main_meter_name2} Chip Temp
line_frequency: 60Hz
gain_pga: 1X
update_interval: ${update_time}
enable_offset_calibration: ${offset_calibration}
enable_gain_calibration: ${gain_calibration}
#Total Amps
###########
- platform: template
name: ${friendly_name} Total Amps
id: totalAmps
lambda: return id(ct1Amps).state + id(ct2Amps).state + id(ct3Amps).state + id(ct4Amps).state + id(ct5Amps).state + id(ct6Amps).state ;
accuracy_decimals: 2
unit_of_measurement: A
device_class: current
update_interval: ${update_time}
#Total Watts
############
- platform: template
name: ${friendly_name} Total Watts
id: totalWatts
lambda: return id(ct1Watts).state + id(ct2Watts).state + id(ct3Watts).state + id(ct4Watts).state + id(ct5Watts).state + id(ct6Watts).state ;
accuracy_decimals: 1
unit_of_measurement: W
device_class: power
update_interval: ${update_time}
#kWh
####
- platform: total_daily_energy
name: ${friendly_name} Total kWh
power_id: totalWatts
filters:
- multiply: 0.001
unit_of_measurement: kWh
device_class: energy
state_class: total_increasing
# Status Fields
###############
text_sensor:
- platform: atm90e32
id: ${main_meter_id1}
phase_status:
phase_a:
name: "${ct1_name} Status"
phase_b:
name: "${ct2_name} Status"
phase_c:
name: "${ct3_name} Status"
frequency_status:
name: "Frequency Status 1"
- platform: atm90e32
id: ${main_meter_id2}
phase_status:
phase_a:
name: "${ct4_name} Status"
phase_b:
name: "${ct5_name} Status"
phase_c:
name: "${ct6_name} Status"
#this is only needed if monitoring 2 voltages
# freq_status:
# name: "Frequency Status 2"
# Semi-automatic Calibration Buttons
####################################
button:
- platform: atm90e32
id: ${main_meter_id1}
run_offset_calibration:
name: "1. Run ${main_meter_name1} Offset Calibration"
clear_offset_calibration:
name: "z1. Clear ${main_meter_name1} Offset Calibration"
run_power_offset_calibration:
name: "2. Run ${main_meter_name1} Power Offset Calibration"
clear_power_offset_calibration:
name: "z2. Clear ${main_meter_name1} Power Offset Calibration"
run_gain_calibration:
name: "3. Run ${main_meter_name1} Gain Calibration"
clear_gain_calibration:
name: "z3. Clear ${main_meter_name1} Gain Calibration"
- platform: atm90e32
id: ${main_meter_id2}
run_offset_calibration:
name: "1. Run ${main_meter_name2} Offset Calibration"
clear_offset_calibration:
name: "z1. Clear ${main_meter_name2} Offset Calibration"
run_power_offset_calibration:
name: "2. Run ${main_meter_name2} Power Offset Calibration"
clear_power_offset_calibration:
name: "z2. Clear ${main_meter_name2} Power Offset Calibration"
run_gain_calibration:
name: "3. Run ${main_meter_name2} Gain Calibration"
clear_gain_calibration:
name: "z3. Clear ${main_meter_name2} Gain Calibration"
# V & I Calibration Reference Fields
####################################
# Use these to input a known value being measured by a CT or voltage transformer
number:
- platform: atm90e32
id: ${main_meter_id1}
reference_voltage:
# will copy to phase_b/c for calibration reference
phase_a:
name: "Ref Voltage 1"
reference_current:
phase_a:
name: "${ct1_name} Ref Current"
phase_b:
name: "${ct2_name} Ref Current"
phase_c:
name: "${ct3_name} Ref Current"
- platform: atm90e32
id: ${main_meter_id2}
reference_voltage:
# needed to calibrate voltage registers even if not output
phase_a:
name: "Ref Voltage 2"
reference_current:
phase_a:
name: "${ct4_name} Ref Current"
phase_b:
name: "${ct5_name} Ref Current"
phase_c:
name: "${ct6_name} Ref Current"
TRS-80
(TRS-80)
July 11, 2025, 11:17pm
3
Often negative values are because the clamp is the wrong way around. Which I think you can also change with a setting (if you don’t feel like getting into the panel again to flip it around).
But due to the magnitude, you might have something else going on as well. Perhaps mis-calibrated?
neel-m
(Neel Malik)
July 12, 2025, 12:00am
4
might want to read this issue on GitHub
opened 02:08AM - 31 May 25 UTC
With your recent updates to the ESPHome ATM90E32 component I though it was to t… ime to update to the latest yaml. But I started having serious problems. I started receiving SPI warnings like this one:
`[16:55:23][W][atm90e32:863]: [get_phase_current_()] SPI read mismatch: expected 0x0002, got 0x2413`
But the real problem was with the data.


What fixed my problem was removing `interface: software` from [6chan_common.yaml](https://github.com/CircuitSetup/Expandable-6-Channel-ESP32-Energy-Meter/blob/master/Software/ESPHome/6chan_common.yaml) line 55.. This defaults to `any` and I believe it will choose a hardware SPI on the NodeMCU.
```
spi:
interface: software
clk_pin: 18
miso_pin: 19
mosi_pin: 23
```
1 Like
carbuthn
(Charles Arbuthnot)
July 12, 2025, 12:29pm
5
if all are negative turn the plug for the transformer over. The polarity between L1 and L2 are 180 degrees out of phase with each other.
This looks very close to what I’m seeing
Am I reading this right in that I just need to add the linked code into my .yaml and push to the device?
dev
← clydebarrow:spi-multi
To use the changes from this PR as an external component, add the following to y… our ESPHome configuration YAML file:
```yaml
external_components:
- source: github://pr#9128
components: [mipi_spi, spi]
refresh: 1h
```
---
(Added by the PR bot)
neel-m
(Neel Malik)
July 12, 2025, 9:28pm
7
This is the YAML that you are including as a package:
it does use ESP-IDF so it seems like you should be able to use the external components as suggested (add to your YAML and recompile). You should try it and see what happens.
neel-m
(Neel Malik)
July 12, 2025, 9:29pm
8
You might also need to reverse your CT so it reads positive normally.
