Could someone help me to reverse engineer this protocol? :)

[sciorty]

Hi all,

Last year i managed to “smarten up” my aircon unit. I basically replaced the controller that was using a (proprietary?) protocol over an RS-485 line, with an Atom board and an RS485 expansion.

It works fine, as I simply send the frames that the “old” controller was sending, after i managed to identify which byte/nibble means what to the aircon unit, and setting it according to mqtt messages from home assistant.

Here a picture of what i came up with, with the frames that the “old” controller was sending to the unit at given settings (speed, temperature etc.):

As i said, it’s fine, it works!

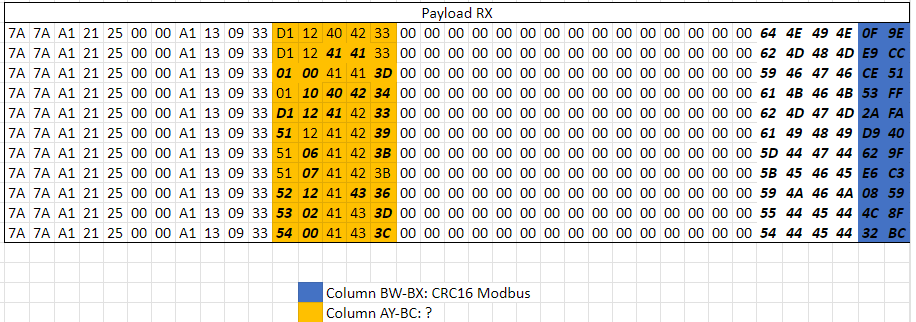

What i’m still having trouble to understand, is the reply of the aircon unit, which are these (as per the same settings of the previous picture):

So basically i’m not able to understand what the hell the machine is replying. Fortunately it’s fine, because these frames are sent very often so untill now it worked perfectly.
But maybe there could be some informations like confirmations of settings, or other informations that i’m not able to understand? Does anyone see a pattern on RX side or - and this is what i hope - recognize some standard protocol?

I marked in Bold and Italic the bytes on the frames the changes at each command.
Also, this is the original controller, if it could help

Thanks in advance!

[petro]

Can you post the tables in raw form instead of images?

[petro]

I took a deeper look into this, and I don’t think we have enough data to reverse engineer it.

I think you should fill in the following table. Ensuring you DO NOT CHANGE any other settings than what’s listed in the table.

state	set temperature	mode	fan speed
on	20°	cool	1
on	21°	cool	1
on	22°	cool	1
on	23°	cool	1
on	24°	cool	1
on	25°	cool	1
on	20°	cool	2
on	21°	cool	2
on	22°	cool	2
on	23°	cool	2
on	24°	cool	2
on	25°	cool	2
on	20°	cool	5
on	21°	cool	5
on	22°	cool	5
on	23°	cool	5
on	24°	cool	5
on	25°	cool	5
on	20°	cool	Turbo
on	21°	cool	Turbo
on	22°	cool	Turbo
on	23°	cool	Turbo
on	24°	cool	Turbo
on	25°	cool	Turbo
on	20°	heat	1
on	21°	heat	1
on	22°	heat	1
on	23°	heat	1
on	24°	heat	1
on	25°	heat	1
on	20°	heat	2
on	21°	heat	2
on	22°	heat	2
on	23°	heat	2
on	24°	heat	2
on	25°	heat	2
on	20°	heat	5
on	21°	heat	5
on	22°	heat	5
on	23°	heat	5
on	24°	heat	5
on	25°	heat	5
on	20°	heat	Turbo
on	21°	heat	Turbo
on	22°	heat	Turbo
on	23°	heat	Turbo
on	24°	heat	Turbo
on	25°	heat	Turbo
on	20°	dehumi	1
on	21°	dehumi	1
on	22°	dehumi	1
on	23°	dehumi	1
on	24°	dehumi	1
on	25°	dehumi	1
on	20°	dehumi	2
on	21°	dehumi	2
on	22°	dehumi	2
on	23°	dehumi	2
on	24°	dehumi	2
on	25°	dehumi	2
on	20°	dehumi	5
on	21°	dehumi	5
on	22°	dehumi	5
on	23°	dehumi	5
on	24°	dehumi	5
on	25°	dehumi	5
on	20°	dehumi	Turbo
on	21°	dehumi	Turbo
on	22°	dehumi	Turbo
on	23°	dehumi	Turbo
on	24°	dehumi	Turbo
on	25°	dehumi	Turbo
on	20°	fan	1
on	21°	fan	1
on	22°	fan	1
on	23°	fan	1
on	24°	fan	1
on	25°	fan	1
on	20°	fan	2
on	21°	fan	2
on	22°	fan	2
on	23°	fan	2
on	24°	fan	2
on	25°	fan	2
on	20°	fan	5
on	21°	fan	5
on	22°	fan	5
on	23°	fan	5
on	24°	fan	5
on	25°	fan	5
on	20°	fan	Turbo
on	21°	fan	Turbo
on	22°	fan	Turbo
on	23°	fan	Turbo
on	24°	fan	Turbo
on	25°	fan	Turbo
off	20°	cool	1
off	21°	cool	1
off	22°	cool	1
off	23°	cool	1
off	24°	cool	1
off	25°	cool	1
off	20°	cool	2
off	21°	cool	2
off	22°	cool	2
off	23°	cool	2
off	24°	cool	2
off	25°	cool	2
off	20°	cool	5
off	21°	cool	5
off	22°	cool	5
off	23°	cool	5
off	24°	cool	5
off	25°	cool	5
off	20°	cool	Turbo
off	21°	cool	Turbo
off	22°	cool	Turbo
off	23°	cool	Turbo
off	24°	cool	Turbo
off	25°	cool	Turbo
off	20°	heat	1
off	21°	heat	1
off	22°	heat	1
off	23°	heat	1
off	24°	heat	1
off	25°	heat	1
off	20°	heat	2
off	21°	heat	2
off	22°	heat	2
off	23°	heat	2
off	24°	heat	2
off	25°	heat	2
off	20°	heat	5
off	21°	heat	5
off	22°	heat	5
off	23°	heat	5
off	24°	heat	5
off	25°	heat	5
off	20°	heat	Turbo
off	21°	heat	Turbo
off	22°	heat	Turbo
off	23°	heat	Turbo
off	24°	heat	Turbo
off	25°	heat	Turbo
off	20°	dehumi	1
off	21°	dehumi	1
off	22°	dehumi	1
off	23°	dehumi	1
off	24°	dehumi	1
off	25°	dehumi	1
off	20°	dehumi	2
off	21°	dehumi	2
off	22°	dehumi	2
off	23°	dehumi	2
off	24°	dehumi	2
off	25°	dehumi	2
off	20°	dehumi	5
off	21°	dehumi	5
off	22°	dehumi	5
off	23°	dehumi	5
off	24°	dehumi	5
off	25°	dehumi	5
off	20°	dehumi	Turbo
off	21°	dehumi	Turbo
off	22°	dehumi	Turbo
off	23°	dehumi	Turbo
off	24°	dehumi	Turbo
off	25°	dehumi	Turbo
off	20°	fan	1
off	21°	fan	1
off	22°	fan	1
off	23°	fan	1
off	24°	fan	1
off	25°	fan	1
off	20°	fan	2
off	21°	fan	2
off	22°	fan	2
off	23°	fan	2
off	24°	fan	2
off	25°	fan	2
off	20°	fan	5
off	21°	fan	5
off	22°	fan	5
off	23°	fan	5
off	24°	fan	5
off	25°	fan	5
off	20°	fan	Turbo
off	21°	fan	Turbo
off	22°	fan	Turbo
off	23°	fan	Turbo
off	24°	fan	Turbo
off	25°	fan	Turbo

You would also need to record the temperature value on the device as well. If this is a response, it most likely has those values in the output.

[petro]

Also, here’s tables of that data, maybe they will help you.

hex 1	hex 2	hex 3	hex 4	hex 5
D1	12	40	42	33
D1	12	41	41	33
01	00	41	41	3D
01	10	40	42	34
D1	12	41	42	33
51	12	41	42	39
51	06	41	42	3B
51	07	41	42	3B
53	02	41	43	3D
54	00	41	43	3C

int1	int 2	int 3	int 4	int 5
209	18	64	66	51
209	18	65	65	51
1	0	65	65	61
1	16	64	66	52
209	18	65	66	51
81	18	65	66	57
81	06	65	66	59
81	07	65	66	59
83	02	65	67	61
84	0	65	67	60

bin 1	bin 2	bin 3	bin 4	bin 5
11010001	00010010	01000000	01000010	00110011
11010001	00010010	01000001	01000001	00110011
00000001	00000000	01000001	01000001	00111101
00000001	00010000	01000000	01000010	00110100
11010001	00010010	01000001	01000010	00110011
01010001	00010010	01000001	01000010	00111001
01010001	00000110	01000001	01000010	00111011
01010001	00000111	01000001	01000010	00111011
01010011	00000010	01000001	01000011	00111101
01010100	00000000	01000001	01000011	00111100

[sciorty]

Thanks! Honestly I don’t think I could re-fetch the data in these days… I should have to rewire the original controller, place the sniffer and even re-install the software I used to get the frames, that will take some time!

Also, I do not have the temperature as seen by the unit, it’s not displayed back into the controller… so I think for the moment I’m hoping for someone to recognize the protocol

[aceindy]

And just a tip, ChatGPT is pretty good in reverse engineering protocols
(helped me a lot when i reverse engineered my pellet stove )

[petro]

Well all I could see is that on/of is loosely tied to bin1 5th and 6th bit.

and set temperature is definitely the 3rd pair.

The rest is potentially grabbable but there’s too much noise in all the other bits.

[philh30]

Hex 4 could be current temperature measured at the unit. The manual also references temperature measured at the outdoor unit which could be hex 5, but that’s just guessing.

Looks like Mode is embedded in Bin 1.

I’d expect to see operating state in here as well. For example, in that last line the mode is set to heat but is the heat actually on or is the unit idle.
