Here’s my dashboard for configuring an LD2410-based ESPHome presence sensor. Hope you might find it useful. You might need to adjust slightly depending on your ESPHome YAML configuration.
The threshold/energy graphs are based on @athua’s post here. They require the Plotly Graph Card.
Here’s a template for the dashboard YAML (replace DEVICE with your device name):
- type: sections
max_columns: 4
sections:
- type: grid
cards:
- type: heading
heading: Detection
heading_style: title
icon: mdi:account
badges:
- type: entity
show_state: true
show_icon: true
entity: binary_sensor.DEVICE_presence
name: Presence
color: state
state_content: name
tap_action:
action: more-info
- type: entity
show_state: true
show_icon: true
entity: binary_sensor.DEVICE_moving_target
name: Moving
icon: mdi:run-fast
color: state
state_content: name
tap_action:
action: more-info
- type: entity
show_state: true
show_icon: true
entity: binary_sensor.DEVICE_still_target
name: Still
icon: mdi:human-male
color: state
state_content: name
tap_action:
action: more-info
- type: history-graph
entities:
- entity: binary_sensor.DEVICE_presence
name: Presence
- entity: binary_sensor.DEVICE_moving_target
name: Moving
- entity: binary_sensor.DEVICE_still_target
name: Still
hours_to_show: 0.05
- type: heading
icon: mdi:cog
heading: Configuration
heading_style: title
- type: tile
entity: number.DEVICE_timeout
features_position: inline
vertical: false
name: Timeout
icon: mdi:timer
features:
- type: numeric-input
style: buttons
- features:
- style: slider
type: numeric-input
type: tile
entity: number.DEVICE_max_move_distance_gate
features_position: inline
vertical: false
name: Max moving gate
icon: mdi:gate
- features:
- style: slider
type: numeric-input
type: tile
entity: number.DEVICE_max_still_distance_gate
features_position: inline
vertical: false
name: Max still gate
icon: mdi:gate
- type: tile
entity: switch.DEVICE_ld2410_engineering_mode
features_position: bottom
vertical: false
name: Engineering mode
- type: tile
entity: button.DEVICE_ld2410_query_params
features_position: bottom
vertical: false
name: Query params
hide_state: true
column_span: 1
- type: grid
cards:
- type: heading
icon: mdi:signal-distance-variant
heading: Distance
badges:
- type: entity
entity: select.DEVICE_distance_resolution
- type: entity
entity: sensor.DEVICE_detection_distance
tap_action:
action: more-info
- type: entity
entity: sensor.DEVICE_moving_distance
icon: mdi:run-fast
tap_action:
action: more-info
- type: entity
entity: sensor.DEVICE_still_distance
icon: mdi:human-male
tap_action:
action: more-info
- type: history-graph
entities:
- entity: sensor.DEVICE_detection_distance
name: Detection distance
- entity: sensor.DEVICE_moving_distance
name: Moving distance
- entity: sensor.DEVICE_still_distance
name: Still distance
hours_to_show: 0.05
- type: heading
icon: mdi:help
heading_style: title
heading: Diagnostics
- type: tile
entity: sensor.DEVICE_esp_temperature
features_position: bottom
vertical: false
name: Internal temperature
- type: tile
entity: sensor.DEVICE_uptime
features_position: bottom
vertical: false
name: Uptime
- type: tile
entity: sensor.DEVICE_wifi_rssi
features_position: bottom
vertical: false
name: WiFi RSSI
- type: grid
cards:
- type: heading
heading: Moving
heading_style: title
icon: mdi:run-fast
badges:
- type: entity
show_state: true
show_icon: true
entity: binary_sensor.DEVICE_moving_target
icon: mdi:run-fast
color: state
- type: entity
entity: sensor.DEVICE_moving_distance

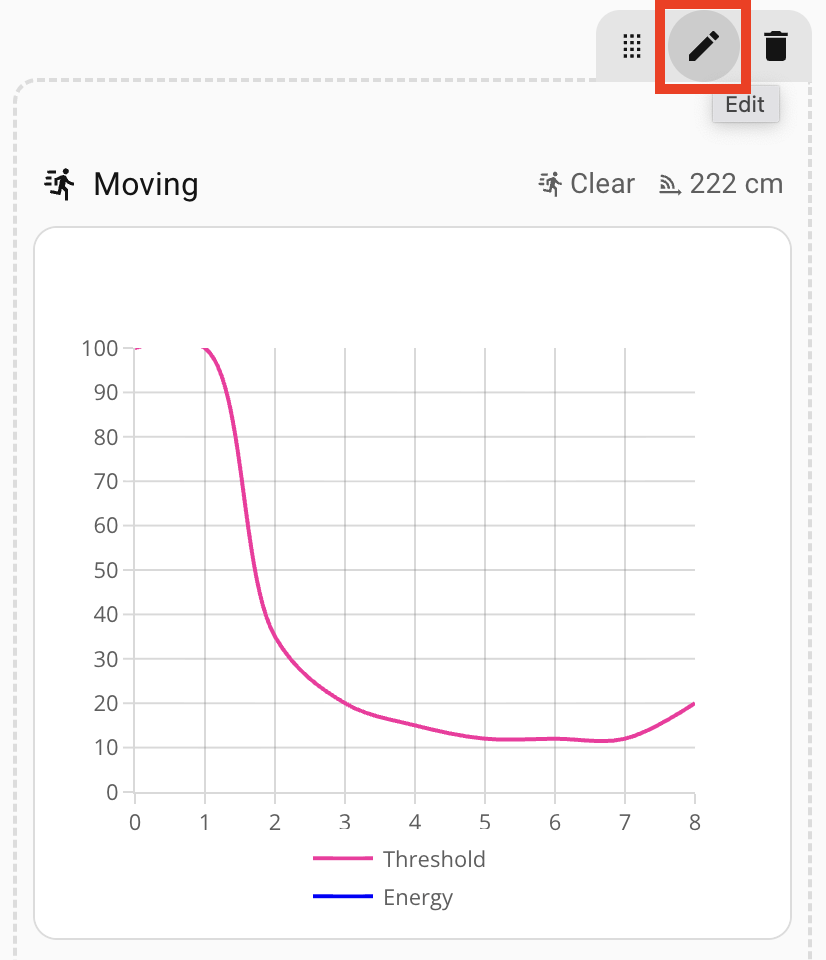

- type: custom:plotly-graph
refresh_interval: 1
hours_to_show: current_day
layout:
height: 350
margin:
l: 50
r: 50
t: 50
b: 50
showlegend: true
legend:
x: 0.3
'y': -0.3
xaxis:
dtick: 1
type: number
fixedrange: true
range:
- 0
- 8
yaxis:
dtick: 10
fixedrange: true
range:
- 0
- 100
entities:
- entity: ''
name: Threshold
mode: lines
line:
shape: spline
width: 2
color: FB239F
x:
- 0
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
'y':
- >-
$ex
hass.states["number.DEVICE_g0_move_threshold"].state
- >-
$ex
hass.states["number.DEVICE_g1_move_threshold"].state
- >-
$ex
hass.states["number.DEVICE_g2_move_threshold"].state
- >-
$ex
hass.states["number.DEVICE_g3_move_threshold"].state
- >-
$ex
hass.states["number.DEVICE_g4_move_threshold"].state
- >-
$ex
hass.states["number.DEVICE_g5_move_threshold"].state
- >-
$ex
hass.states["number.DEVICE_g6_move_threshold"].state
- >-
$ex
hass.states["number.DEVICE_g7_move_threshold"].state
- >-
$ex
hass.states["number.DEVICE_g8_move_threshold"].state
- entity: ''
name: Energy
mode: lines
line:
shape: spline
width: 2
color: blue
x:
- 0
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
'y':
- >-
$ex
hass.states["sensor.DEVICE_g0_move_energy"].state
- >-
$ex
hass.states["sensor.DEVICE_g1_move_energy"].state
- >-
$ex
hass.states["sensor.DEVICE_g2_move_energy"].state
- >-
$ex
hass.states["sensor.DEVICE_g3_move_energy"].state
- >-
$ex
hass.states["sensor.DEVICE_g4_move_energy"].state
- >-
$ex
hass.states["sensor.DEVICE_g5_move_energy"].state
- >-
$ex
hass.states["sensor.DEVICE_g6_move_energy"].state
- >-
$ex
hass.states["sensor.DEVICE_g7_move_energy"].state
- >-
$ex
hass.states["sensor.DEVICE_g8_move_energy"].state
raw_plotly_config: true
- type: tile
entity: number.DEVICE_g0_move_threshold
features_position: inline
vertical: false
name: Gate 0 move threshold
icon: mdi:run-fast
features:
- style: slider
type: numeric-input
- type: tile
entity: number.DEVICE_g1_move_threshold
features_position: inline
vertical: false
name: Gate 1 move threshold
icon: mdi:run-fast
features:
- style: slider
type: numeric-input
- type: tile
entity: number.DEVICE_g2_move_threshold
features_position: inline
vertical: false
name: Gate 2 move threshold
icon: mdi:run-fast
features:
- style: slider
type: numeric-input
- type: tile
entity: number.DEVICE_g3_move_threshold
features_position: inline
vertical: false
name: Gate 3 move threshold
icon: mdi:run-fast
features:
- style: slider
type: numeric-input
- type: tile
entity: number.DEVICE_g4_move_threshold
features_position: inline
vertical: false
name: Gate 4 move threshold
icon: mdi:run-fast
features:
- style: slider
type: numeric-input
- type: tile
entity: number.DEVICE_g5_move_threshold
features_position: inline
vertical: false
name: Gate 5 move threshold
icon: mdi:run-fast
features:
- style: slider
type: numeric-input
- type: tile
entity: number.DEVICE_g6_move_threshold
features_position: inline
vertical: false
name: Gate 6 move threshold
icon: mdi:run-fast
features:
- style: slider
type: numeric-input
- type: tile
entity: number.DEVICE_g7_move_threshold
features_position: inline
vertical: false
name: Gate 7 move threshold
icon: mdi:run-fast
features:
- style: slider
type: numeric-input
- type: tile
entity: number.DEVICE_g8_move_threshold
features_position: inline
vertical: false
name: Gate 8 move threshold
icon: mdi:run-fast
features:
- style: slider
type: numeric-input
- type: history-graph
entities:
- entity: sensor.DEVICE_g0_move_energy
name: g0 move energy
- entity: sensor.DEVICE_g1_move_energy
name: g1 move energy
- entity: sensor.DEVICE_g2_move_energy
name: g2 move energy
- entity: sensor.DEVICE_g3_move_energy
name: g3 move energy
- entity: sensor.DEVICE_g4_move_energy
name: g4 move energy
- entity: sensor.DEVICE_g5_move_energy
name: g5 move energy
- entity: sensor.DEVICE_g6_move_energy
name: g6 move energy
- entity: sensor.DEVICE_g7_move_energy
name: g7 move energy
- entity: sensor.DEVICE_g8_move_energy
name: g8 move energy
hours_to_show: 1

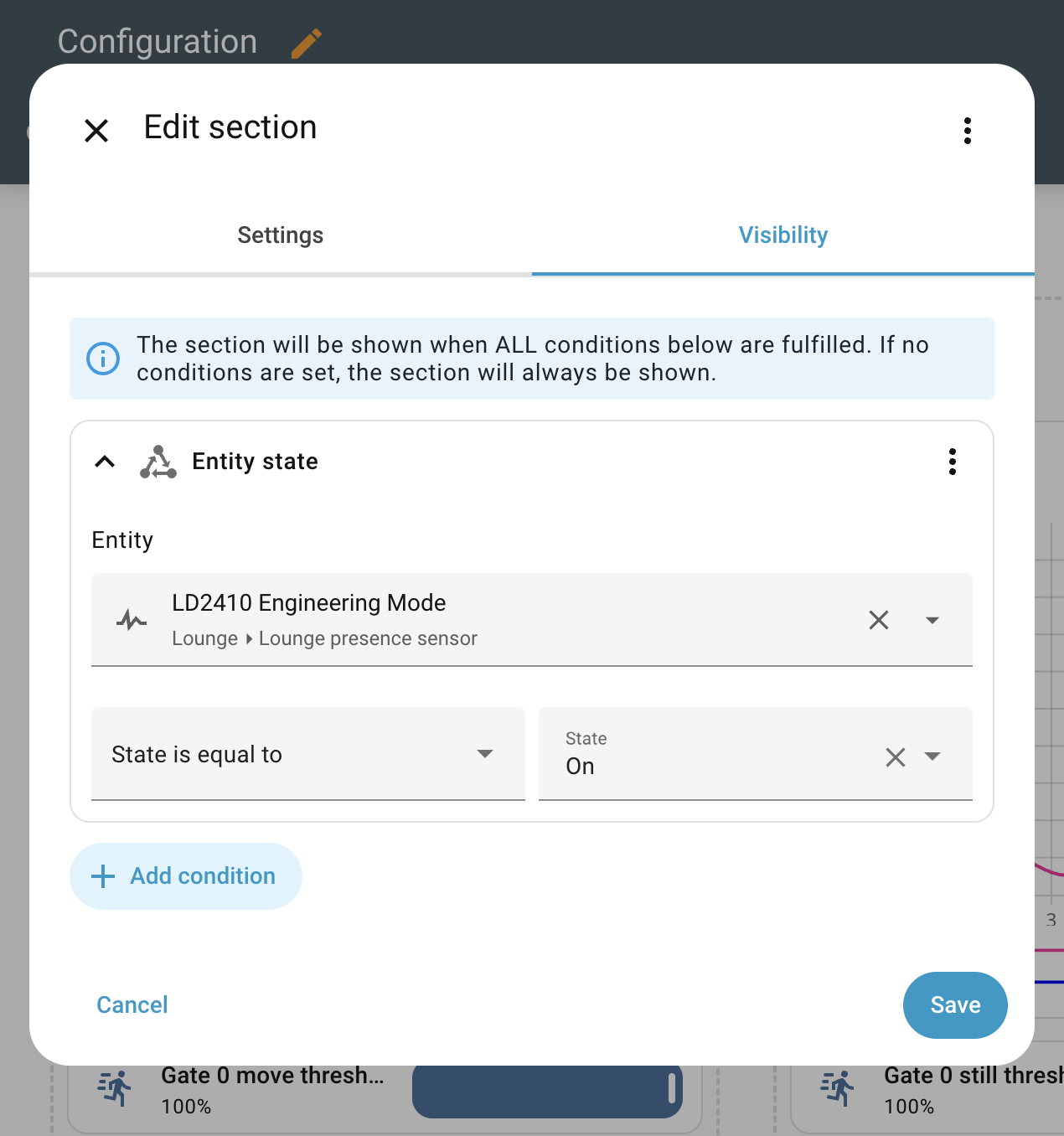

visibility:
- condition: state
entity: switch.DEVICE_ld2410_engineering_mode
state: 'on'
- type: grid
cards:
- type: heading
heading: Still
heading_style: title
icon: mdi:human-male
badges:
- type: entity
show_state: true
show_icon: true
entity: binary_sensor.DEVICE_still_target
color: state
icon: mdi:human-male
- type: entity
entity: sensor.DEVICE_still_distance
- type: custom:plotly-graph
refresh_interval: 1
hours_to_show: current_day
layout:
height: 350
margin:
l: 50
r: 50
t: 50
b: 50
showlegend: true
legend:
x: 0.3
'y': -0.3
xaxis:
dtick: 1
type: number
fixedrange: true
range:
- 0
- 8
yaxis:
dtick: 10
fixedrange: true
range:
- 0
- 100
entities:
- entity: ''
name: Threshold
mode: lines
line:
shape: spline
width: 2
color: FB239F
x:
- 0
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
'y':
- >-
$ex
hass.states["number.DEVICE_g0_still_threshold"].state
- >-
$ex
hass.states["number.DEVICE_g1_still_threshold"].state
- >-
$ex
hass.states["number.DEVICE_g2_still_threshold"].state
- >-
$ex
hass.states["number.DEVICE_g3_still_threshold"].state
- >-
$ex
hass.states["number.DEVICE_g4_still_threshold"].state
- >-
$ex
hass.states["number.DEVICE_g5_still_threshold"].state
- >-
$ex
hass.states["number.DEVICE_g6_still_threshold"].state
- >-
$ex
hass.states["number.DEVICE_g7_still_threshold"].state
- >-
$ex
hass.states["number.DEVICE_g8_still_threshold"].state
- entity: ''
name: Energy
mode: lines
line:
shape: spline
width: 2
color: blue
x:
- 0
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
'y':
- >-
$ex
hass.states["sensor.DEVICE_g0_still_energy"].state
- >-
$ex
hass.states["sensor.DEVICE_g1_still_energy"].state
- >-
$ex
hass.states["sensor.DEVICE_g2_still_energy"].state
- >-
$ex
hass.states["sensor.DEVICE_g3_still_energy"].state
- >-
$ex
hass.states["sensor.DEVICE_g4_still_energy"].state
- >-
$ex
hass.states["sensor.DEVICE_g5_still_energy"].state
- >-
$ex
hass.states["sensor.DEVICE_g6_still_energy"].state
- >-
$ex
hass.states["sensor.DEVICE_g7_still_energy"].state
- >-
$ex
hass.states["sensor.DEVICE_g8_still_energy"].state
raw_plotly_config: true
- type: tile
entity: number.DEVICE_g0_still_threshold
features_position: inline
vertical: false
name: Gate 0 still threshold
icon: mdi:run-fast
features:
- style: slider
type: numeric-input
- type: tile
entity: number.DEVICE_g1_still_threshold
features_position: inline
vertical: false
name: Gate 1 still threshold
icon: mdi:run-fast
features:
- style: slider
type: numeric-input
- type: tile
entity: number.DEVICE_g2_still_threshold
features_position: inline
vertical: false
name: Gate 2 still threshold
icon: mdi:run-fast
features:
- style: slider
type: numeric-input
- type: tile
entity: number.DEVICE_g3_still_threshold
features_position: inline
vertical: false
name: Gate 3 still threshold
icon: mdi:run-fast
features:
- style: slider
type: numeric-input
- type: tile
entity: number.DEVICE_g4_still_threshold
features_position: inline
vertical: false
name: Gate 4 still threshold
icon: mdi:run-fast
features:
- style: slider
type: numeric-input
- type: tile
entity: number.DEVICE_g5_still_threshold
features_position: inline
vertical: false
name: Gate 5 still threshold
icon: mdi:run-fast
features:
- style: slider
type: numeric-input
- type: tile
entity: number.DEVICE_g6_still_threshold
features_position: inline
vertical: false
name: Gate 6 still threshold
icon: mdi:run-fast
features:
- style: slider
type: numeric-input
- type: tile
entity: number.DEVICE_g7_still_threshold
features_position: inline
vertical: false
name: Gate 7 still threshold
icon: mdi:run-fast
features:
- style: slider
type: numeric-input
- type: tile
entity: number.DEVICE_g8_still_threshold
features_position: inline
vertical: false
name: Gate 8 still threshold
icon: mdi:run-fast
features:
- style: slider
type: numeric-input
- type: history-graph
entities:
- entity: sensor.DEVICE_g0_still_energy
name: g0 still energy
- entity: sensor.DEVICE_g1_still_energy
name: g1 still energy
- entity: sensor.DEVICE_g2_still_energy
name: g2 still energy
- entity: sensor.DEVICE_g3_still_energy
name: g3 still energy
- entity: sensor.DEVICE_g4_still_energy
name: g4 still energy
- entity: sensor.DEVICE_g5_still_energy
name: g5 still energy
- entity: sensor.DEVICE_g6_still_energy
name: g6 still energy
- entity: sensor.DEVICE_g7_still_energy
name: g7 still energy
- entity: sensor.DEVICE_g8_still_energy
name: g8 still energy
hours_to_show: 1
visibility:
- condition: state
entity: switch.DEVICE_ld2410_engineering_mode
state: 'on'
My ESPHome YAML is based on this configuration (thanks @FriedCheese!).
