Hello everyone,
My E-Paper Dashboard Creator is a hybrid hardware and software solution for creating custom smart home / IoT dashboards.

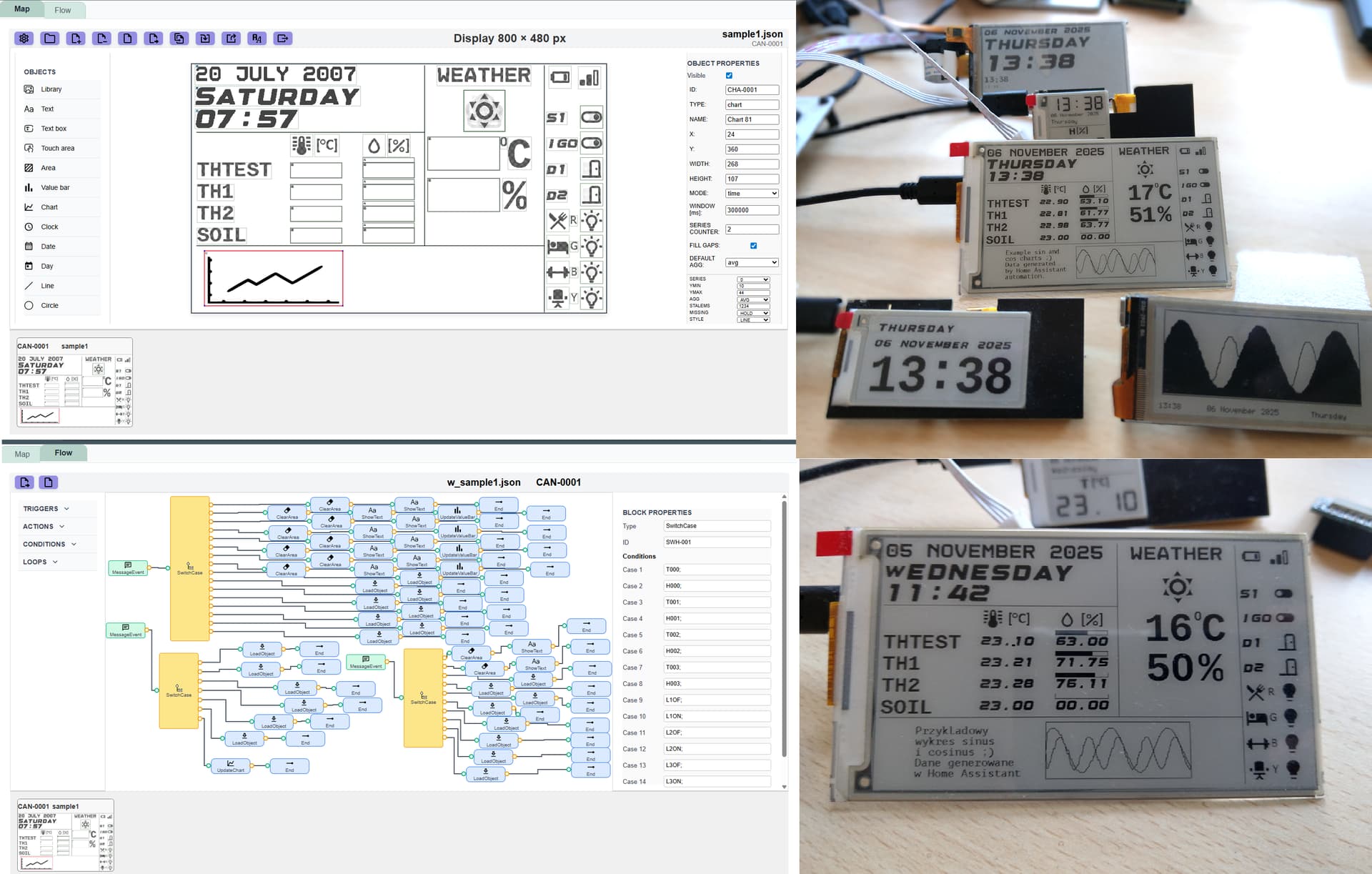

With no-code editor it is possible to design layouts for e-paper displays ranging from 1.54″ to 4.2″ — some models include touch panel input and frontlight.
Once designed, just generate a configuration binary and upload it directly to the device.
In this initial project state the devices work with Zigbee network.
It allows to:
- design, build, and deploy interactive dashboards powered by e-paper displays
- design smart thermostat, sensor, remote controler, wall controler, information screen, price tag, messanger etc.
- design without writing a single line of code
- design faster than anyone else
- design custom layout for any use case or client
- design dashboards for variety sizes and resolutions
- load a new design any time
The devices operate as Zigbee Devices, optimized for battery efficiency.
They integrate seamlessly with Zigbee2MQTT and Home Assistant .
Currently there are several screen sizes: 1.54″(200x200px), 2.13″, 2.9″, and 4.2″ (800x480px) — with optional touch and frontlight modules.
One of the FW development goals is to make it ready for various platform: STM32, ESP32, nRF etc. and to communicate over any available mean off communication like Bluetooth Low Energy, Zigbee, UART, I2C, MODBUS etc.
Current configuration:
- Based on STM32
- Wireless: Zigbee (IEEE 802.15.4)
- Display: e-paper, partial refresh supported
- Power: battery or USB
- Input: capacitive touch (selected models)
- Accelerometer and temperature&humidity sensor.
More info you can find in project info page lobsnet.eu
