dear fellows,
briefly about my setup:
I run home assistant on a pi4 with node red + a pi zero w with only node red on.
The pi zero w steers a 8 valve block & 15 bar pump to water my balcony plants.

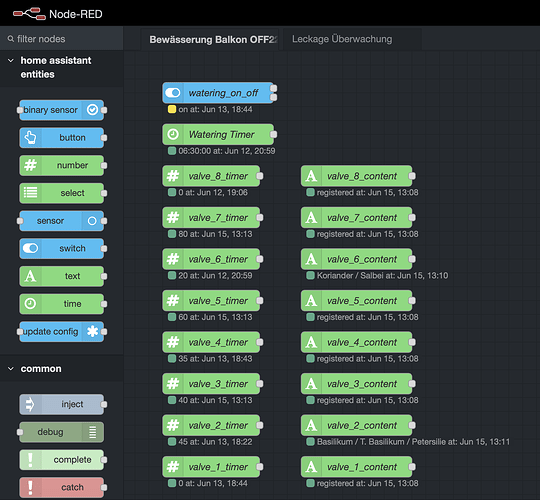

On home assistant / on the node red running I created multiple “home assistant entities” to configure settings via 2 Entity Cards in the UI. I struggle to now display the content from some entities on the other UI with the other entity card. Any hints how I could do this and make it look professional?
Ui 1 = setting for water timing aka how long the valves 1-8 open
Ui 2 = setting for what is connected to valve 1-8
I like to display the content connected e.g. tomato above/with the valve timing input.
Thanks a lot in advance.
Bests
Phil
In this entity card I like to display the content I collect with the entity card below:
type: entities
entities:
- entity: switch.watering_on_off
icon: mdi:watering-can
name: Ein/Aus
- entity: time.nodered_37d7352d552f4338
icon: mdi:clock-start
name: Startzeit
- entity: number.ventil_8_timer
icon: mdi:pipe-valve
name: Nr. 8
- entity: number.ventil_7_timer
icon: mdi:pipe-valve
name: Nr. 7
- entity: number.valve_6_timer_input
icon: mdi:pipe-valve
name: Nr. 6
- entity: number.valve_5_timer_input
icon: mdi:pipe-valve
name: Nr. 5
- entity: number.valve_4_timer_input
name: Nr. 4
icon: mdi:pipe-valve
- entity: number.valve_3_timer_input
name: Nr. 3
icon: mdi:pipe-valve
- entity: number.valve_2_timer_input
icon: mdi:pipe-valve
name: Nr. 2
- entity: number.valve_1_timer_input
icon: mdi:pipe-valve
name: Nr. 1
- type: section
label: Boost Steuerung
- entity: select.valve_single_boost_select_input
icon: mdi:format-list-checks
name: Ventilauswahl
secondary_info: Test
- entity: number.valve_single_boost_timer_input
icon: mdi:av-timer
name: Laufzeit
- entity: button.valve_single_boost_start
icon: invis
secondary_info: last-changed
name: ' '
title: Bewässerung Off223
theme: ios-dark-mode-blue-red
The content I like to display gets collected in this entity card:
type: entities
entities:
- entity: text.inhalt_anschluss_ventil_8
- entity: text.inhalt_anschluss_ventil_7
- entity: text.inhalt_anschluss_ventil_6
- entity: text.inhalt_anschluss_ventil_5
- entity: text.inhalt_anschluss_ventil_4
- entity: text.inhalt_anschluss_ventil_3
- entity: text.inhalt_anschluss_ventil_2
- entity: text.inhalt_anschluss_ventil_1
title: Konfiguration Bewässerung
