Hi

Working on a Solar Powered Smart Mailbox and struggling with the following so any help will be appreciated. Simply want to show show new battery images as the battery percentage changes.

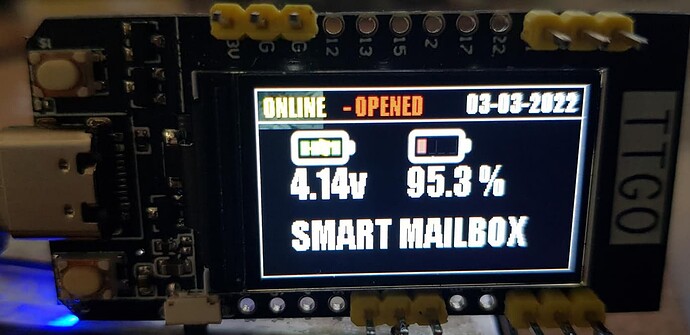

image1388×674 76.7 KB

Trying to adopt this code into ESPhome rather than a native arduino flash.

Board is a TTGO T-Display

Arduino code:

if(BL.getBatteryVolts() >= MIN_USB_VOL){
  for(int i=0; i< ARRAY_SIZE(batteryImages); i++){
    drawingBatteryIcon(batteryImages[i]);
    drawingText("Solar Charging");
    vTaskDelay(500);
  }
}else{
    int imgNum = 0;
    int batteryLevel = BL.getBatteryChargeLevel();
    if(batteryLevel >=80){
      imgNum = 3;
    }else if(batteryLevel < 80 && batteryLevel >= 50 ){
      imgNum = 2;
    }else if(batteryLevel < 50 && batteryLevel >= 20 ){
      imgNum = 1;
    }else if(batteryLevel < 20 ){
      imgNum = 0;
    }

ESPHome Code thats inside the display block:

  if (id(vcc).state) {
    if (id(vcc).state >=80) {
      it.image(24, 28, id(battery_image_5));
    } else {if (id(vcc).state >=50) {
      it.image(110, 28, id(battery_image_3));
    } else {if (id(vcc).state >=20) {
      it.image(110, 28, id(battery_image_2));
    } else {if (id(vcc).state < 20) {
    it.image(110, 28, id(battery_image_1));
    }

Sensor:

sensor:

  • platform: adc
    pin: 34
    attenuation: 11db
    name: VBatt_MBox
    id: vcc
    update_interval: 10s
    on_value_range:
    below: 3.00
    then:
    - switch.turn_on:
    id: shutdown_smart_mailbox
    filters:
    • multiply: 1.72

Display Block:

display:

  • platform: st7789v
    backlight_pin: GPIO4
    cs_pin: GPIO5
    dc_pin: GPIO16
    reset_pin: GPIO23
    rotation: 270
    lambda: |-
    it.image(0, 0, id(background_1));

    it.print(24, 86, id(impact_28), id(my_white), “SMART MAILBOX”);
    it.rectangle(0, 0, it.get_width(), it.get_height(), id(my_white));
    it.rectangle(0, 22, it.get_width(), it.get_height(), id(my_white)); // header bar

    it.strftime((234 / 1), (140 / 3) * 0 + 0, id(impact_17), id(my_white), TextAlign::RIGHT, “%d-%m-%Y”, id(esptime).now());

    if (id(Smart_Mailbox_Sensor).state) {
    it.print(5, 1, id(impact_17), id(my_yellow), TextAlign::TOP_LEFT, “ONLINE”);
    }
    else {
    it.print(5, 1, id(impact_17), id(my_red), TextAlign::TOP_LEFT, “OFFLINE”);
    }

    if (id(vcc).has_state()) {
    it.printf(24, 48, id(impact_28), id(my_white), “%.2fv %.1f %%”, id(vcc).state, id(batterylevel).state);
    }

    it.image(24, 28, id(battery_image_5));
    it.image(110, 28, id(battery_image_1));

    if (id(Smart_Mailbox_Status).state) {
    it.print(60, 1, id(impact_17), id(my_red), TextAlign::TOP_LEFT, " - OPENED");
    }
    else {
    it.print(60, 1, id(impact_17), id(my_white), TextAlign::TOP_LEFT, " - CLOSED");
    }

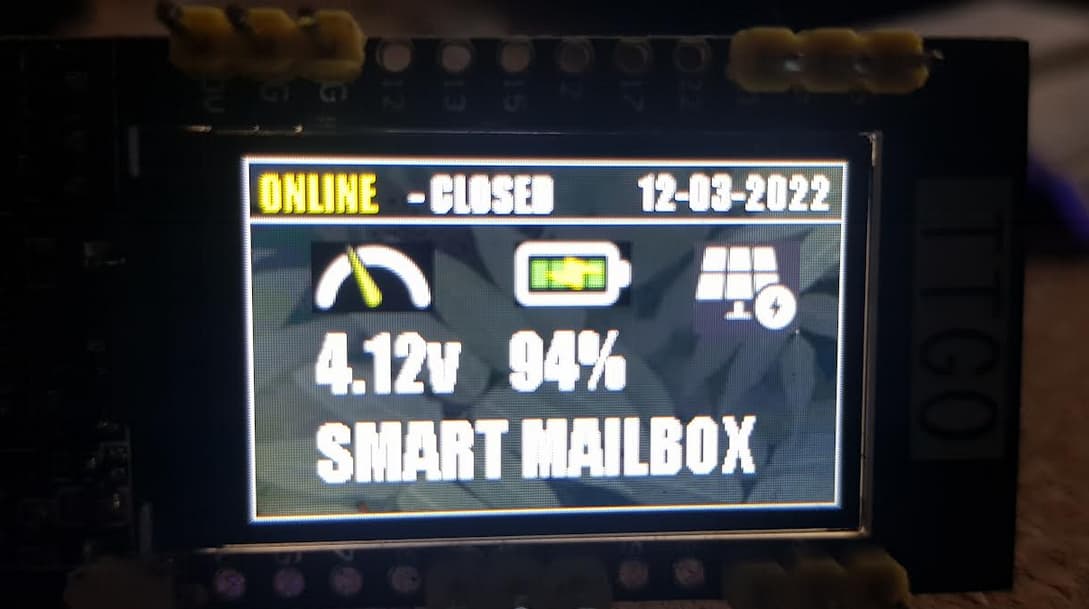

End Result to date

image1089×609 48.9 KB

image1020×561 46.2 KB

2

Managed to get the battery imaging to change with this code…

  float chargelevel = ((id(vcc).state-3) /1.2 * 100.00);

  if (chargelevel >=80) {
    it.image(104, 30, id(battery_image_5));
  }
  else if (chargelevel < 80 && chargelevel >=60) {
    it.image(104, 30, id(battery_image_4));
  }
  else if (chargelevel < 60 && chargelevel >=40) {
    it.image(104, 30, id(battery_image_3));
  }
  else if (chargelevel < 40 && chargelevel >=20) {
    it.image(104, 30, id(battery_image_2));
  }
  else if (chargelevel < 20) {
    it.image(104, 30, id(battery_image_1));
  }

Next issue is to convert

char *batteryImages[] = {"/battery_01.jpg", "/battery_02.jpg", "/battery_03.jpg", "/battery_04.jpg", "/battery_05.jpg"};

if(BL.getBatteryVolts() >= MIN_USB_VOL){
  for(int i=0; i< ARRAY_SIZE(batteryImages); i++){
    drawingBatteryIcon(batteryImages[i]);
    drawingText("Solar Charging");
    vTaskDelay(500);
  }

Anyone have advice on how to create a image array?

1 Like
3

I import a library into ESPHome

esphome:
name: $devicename #smart-mailbox-91
includes:
- include/Pangodream_18650_CL.h

added Pangodream_18650_CL.h to /config/esphome/include/Pangodream_18650_CL.h

I need to convert this but where do I start?

‘Pangodream_18650_CL BL(ADC_PIN, CONV_FACTOR, READS);’

into ESPHome?
