Hello,
I’m new to the whole Home Assistant and ESP universe. Therefore, I need help with a project.
I want to connect a “GY-GPS6MU2” with a “NEO-M8N-0-10” with an “ESP32 C3 supermini” so that my location data can be accessed in Home Assistant.
I’ve assigned the pins as follows:
VCC = 3.3V
GND = GND
RX = 20
TX = 21
But I can’t find any code to configure the ESP correctly.
Can anyone help me?
Thanks in advance
esphome:
name: gps_c3_supermini
comment: GPS6MU2 + ESP32‑C3 SuperMini
esp32:
board: esp32c3_devkitm // ajusta al nombre correcto según tu placa
framework:
type: esp-idf
wifi:
ssid: "TU_SSID"
password: "TU_PASS"
time:
- platform: gps
id: gps_time
uart:
tx_pin: GPIO17 # rx gps
rx_pin: GPIO16 # tx gps
baud_rate: 9600
gps:
latitude:
name: "GPS Latitud"
longitude:
name: "GPS Longitud"
altitude:
name: "GPS Altitud"
satellites:
name: "Satélites visibles"
speed:
name: "Velocidad GPS"
fix_type:
name: "Tipo de Fix GPS"
sensor:
- platform: uptime
name: "Tiempo encendido ESP"
logger:
level: DEBUG
ota:
safe_mode: true
whit the neo
esphome:
name: gps_m8n_esp32c3
comment: Configuración ESP32‑C3 con NEO-M8N
esp32:
board: esp32c3_devkitm
framework:
type: esp-idf
wifi:
ssid: "TU_SSID"
password: "TU_PASS"
time:
- platform: gps
id: gps_time
uart:
rx_pin: GPIO16 # TX del GPS
tx_pin: GPIO17 # not rerquires only if you want to send commands
baud_rate: 9600 # 38400 or 115200
gps:
latitude:
name: "Latitud GPS"
longitude:
name: "Longitud GPS"
altitude:
name: "Altitud GPS"
speed:
name: "Velocidad GPS"
satellites:
name: "Satélites visibles"
accuracy:
name: "Precisión GPS"
fix_type:
name: "Tipo de Fix"
sensor:
- platform: uptime
name: "Tiempo encendido ESP"
logger:
level: DEBUG
ota:
safe_mode: true
And not forgetting that once you have longtitude and latitude sensors into HA, you can use the action homeassistant.set_location to update it into your HA.
Thanks for the quick reply.
But somehow I can’t configure it.
I keep getting the error message.
"INFO ESPHome 2025.6.2
INFO Reading configuration /config/esphome/gps.yaml…
ERROR Error while reading config: Invalid YAML syntax:
Duplicate key “esphome”
what am I doing wrong?
You need to post your config with line numbers.
Read what the error message tries to tell you.

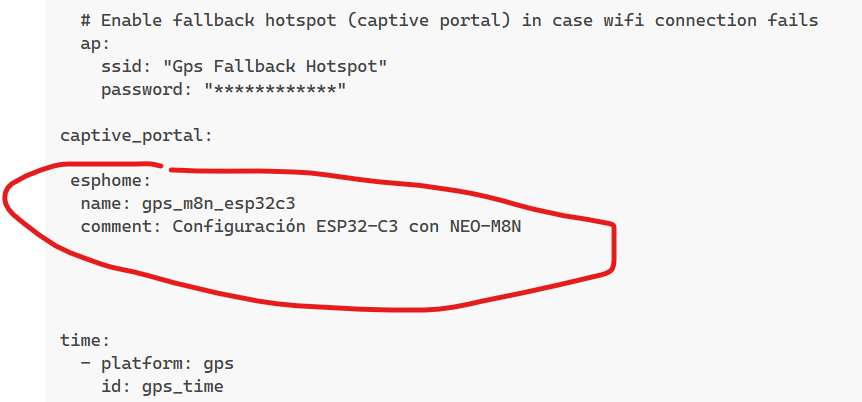

I could imagine that on line 33 you have duplicate of core configuration
esphome:
…
Maybe other duplicates as well…
I’ve already read it, but I don’t know what to do. If I delete the duplicate lines, another error occurs.
Here’s the error:
"INFO ESPHome 2025.6.2
INFO Reading configuration /config/esphome/gps.yaml…
Failed config
captive_portal: [source /config/esphome/gps.yaml:33]
[esphome] is an invalid option for [captive_portal]. Please check the indentation.
esphome:
name: gps_m8n_esp32c3
comment: Configuración ESP32‑C3 con NEO-M8Nh"
here the configuration:
esphome:
name: gps
friendly_name: gps
esp32:
board: esp32-c3-devkitm-1
framework:
type: esp-idf
# Enable logging
logger:
# Enable Home Assistant API
api:
encryption:
key: "*******************************************"
ota:
- platform: esphome
password: "********************************"
wifi:
ssid: !secret wifi_ssid
password: !secret wifi_password
# Enable fallback hotspot (captive portal) in case wifi connection fails
ap:
ssid: "Gps Fallback Hotspot"
password: "************"
captive_portal:
esphome:
name: gps_m8n_esp32c3
comment: Configuración ESP32‑C3 con NEO-M8N
time:
- platform: gps
id: gps_time
uart:
rx_pin: GPIO20 # TX del GPS
tx_pin: GPIO21 # not rerquires only if you want to send commands
baud_rate: 9600 # 38400 or 115200
gps:
latitude:
name: "Latitud GPS"
longitude:
name: "Longitud GPS"
altitude:
name: "Altitud GPS"
speed:
name: "Velocidad GPS"
satellites:
name: "Satélites visibles"
accuracy:
name: "Precisión GPS"
fix_type:
name: "Tipo de Fix"
sensor:
- platform: uptime
name: "Tiempo encendido ESP"
thank you for help
Looks like you have 2 esphome entries with the second using (improper) indentation.
just add this to your original code
after
captive_portal:
time:
- platform: gps
id: gps_time
uart:
rx_pin: GPIO20 # TX del GPS
tx_pin: GPIO21 # not rerquires only if you want to send commands
baud_rate: 9600 # 38400 or 115200
gps:
latitude:
name: "Latitud GPS"
longitude:
name: "Longitud GPS"
altitude:
name: "Altitud GPS"
speed:
name: "Velocidad GPS"
satellites:
name: "Satélites visibles"
accuracy:
name: "Precisión GPS"
fix_type:
name: "Tipo de Fix"
sensor:
- platform: uptime
name: "Tiempo encendido ESP"
than i got this error
INFO ESPHome 2025.6.2
INFO Reading configuration /config/esphome/gps.yaml...
INFO Detected timezone 'Europe/Berlin'
Failed config
gps: [source /config/esphome/gps.yaml:42]
- latitude:
name: Latitud GPS
longitude:
name: Longitud GPS
altitude:
name: Altitud GPS
speed:
name: Velocidad GPS
satellites:
name: Satélites visibles
[accuracy] is an invalid option for [gps]. Please check the indentation.
accuracy:
name: Precisión GPS
[fix_type] is an invalid option for [gps]. Please check the indentation.
fix_type:
name: Tipo de Fix
As you can see, accuracy and fix_type are NOT options for GPS.
I am not sure why @WarLion has them in his example.
yeah sorry was a old version code accuracy is now HDOP
and for the fix remove it
this will be a complete code
esphome:
name: cvgbn
friendly_name: cvgbn
esp32:
board: esp32-c3-devkitm-1
framework:
type: arduino
# Enable logging
logger:
# Enable Home Assistant API
api:
encryption:
key: "1fjHxOV0rhj6t8Fgr267HFmRrRB3Y18FFAxL7mZZWXM="
ota:
- platform: esphome
password: "5a1f960261257e2a9e4d54b483fd1edb"
wifi:
ssid: !secret wifi_ssid
password: !secret wifi_password
# Enable fallback hotspot (captive portal) in case wifi connection fails
ap:
ssid: "Cvgbn Fallback Hotspot"
password: "OLVYiqDPeoPe"
captive_portal:
time:
- platform: gps
id: gps_time
uart:
rx_pin: GPIO20 # TX del GPS
tx_pin: GPIO21 # not rerquires only if you want to send commands
baud_rate: 9600 # 38400 or 115200
gps:
latitude:
name: "Latitud GPS"
longitude:
name: "Longitud GPS"
altitude:
name: "Altitud GPS"
speed:
name: "Velocidad GPS"
satellites:
name: "Satélites visibles"
hdop:
name: "Precisión GPS"
sensor:
- platform: uptime
name: "Tiempo encendido ESP"
One more note - from experience in my camper. The weather integrations do not update based on home location changes by default. Actually, I believe the stock weather integration is the only one even capable of this, but there is a setting you have to change to enable this. I posted about it here - although I haven’t verified/tested it under version 2025.6.2 or later…
than i got this error
INFO ESPHome 2025.6.2
INFO Reading configuration /config/esphome/gps.yaml...
INFO Detected timezone 'Europe/Berlin'
Failed config
gps: [source /config/esphome/gps.yaml:42]
This feature is only available with frameworks ['arduino'].
- latitude:
name: Latitud GPS
longitude:
name: Longitud GPS
altitude:
name: Altitud GPS
speed:
name: Velocidad GPS
satellites:
name: Satélites visibles
hdop:
name: Precisión GPS
change this part of your code
l
INFO ESPHome 2025.6.2
INFO Reading configuration /config/esphome/gps.yaml...
INFO Detected timezone 'Europe/Berlin'
INFO Starting log output from ********** using esphome API
INFO Successfully resolved gps @ ************ in 0.000s
INFO Successfully connected to gps @ ************* in 0.080s
INFO Successful handshake with gps @ *************** in 0.052s***************
[20:59:02][I][app:137]: ESPHome version 2025.6.2 compiled on Jul 1 2025, 20:18:03
[20:59:02][C][wifi:613]: WiFi:
[20:59:02][C][wifi:434]: Local MAC: **************
[20:59:02][C][wifi:439]: SSID: [redacted]
[20:59:02][C][wifi:442]: IP Address: *************
[20:59:02][C][wifi:451]: BSSID: [redacted]
[20:59:02][C][wifi:451]: Hostname: 'gps'
[20:59:02][C][wifi:451]: Signal strength: -61 dB ▂▄▆█
[20:59:02][C][wifi:462]: Channel: 3
[20:59:02][C][wifi:462]: Subnet: ****************
[20:59:02][C][wifi:462]: Gateway: ****************
[20:59:02][C][wifi:462]: DNS1: ****************
[20:59:02][C][wifi:462]: DNS2: 0.0.0.0
[20:59:02][C][logger:215]: Logger:
[20:59:02][C][logger:215]: Max Level: DEBUG
[20:59:02][C][logger:215]: Initial Level: DEBUG
[20:59:02][C][logger:220]: Log Baud Rate: 115200
[20:59:02][C][logger:220]: Hardware UART: USB_CDC
[20:59:02][C][logger:224]: Task Log Buffer Size: 768
[20:59:02][C][uart.arduino_esp32:151]: UART Bus 0:
[20:59:02][C][uart.arduino_esp32:152]: TX Pin: GPIO21
[20:59:02][C][uart.arduino_esp32:153]: RX Pin: GPIO20
[20:59:02][C][uart.arduino_esp32:155]: RX Buffer Size: 256
[20:59:02][C][uart.arduino_esp32:162]: Baud Rate: 9600 baud
[20:59:02][C][uart.arduino_esp32:162]: Data Bits: 8
[20:59:02][C][uart.arduino_esp32:162]: Parity: NONE
[20:59:02][C][uart.arduino_esp32:162]: Stop bits: 1
[20:59:02][C][gps:014]: GPS:
[20:59:02][C][gps:015]: Latitude 'Latitud GPS'
[20:59:02][C][gps:015]: State Class: 'measurement'
[20:59:02][C][gps:015]: Unit of Measurement: '°'
[20:59:02][C][gps:015]: Accuracy Decimals: 6
[20:59:02][C][gps:015]: Icon: 'mdi:latitude'
[20:59:02][C][gps:016]: Longitude 'Longitud GPS'
[20:59:02][C][gps:016]: State Class: 'measurement'
[20:59:02][C][gps:016]: Unit of Measurement: '°'
[20:59:02][C][gps:016]: Accuracy Decimals: 6
[20:59:02][C][gps:016]: Icon: 'mdi:longitude'
[20:59:02][C][gps:017]: Speed 'Velocidad GPS'
[20:59:02][C][gps:017]: State Class: 'measurement'
[20:59:02][C][gps:017]: Unit of Measurement: 'km/h'
[20:59:02][C][gps:017]: Accuracy Decimals: 3
[20:59:02][C][gps:017]: Device Class: 'speed'
[20:59:02][C][gps:017]: Icon: 'mdi:speedometer'
[20:59:02][C][gps:019]: Altitude 'Altitud GPS'
[20:59:02][C][gps:019]: State Class: 'measurement'
[20:59:02][C][gps:019]: Unit of Measurement: 'm'
[20:59:02][C][gps:019]: Accuracy Decimals: 2
[20:59:02][C][gps:019]: Icon: 'mdi:altimeter'
[20:59:02][C][gps:020]: Satellites 'Satélites visibles'
[20:59:02][C][gps:020]: State Class: 'measurement'
[20:59:02][C][gps:020]: Unit of Measurement: ''
[20:59:02][C][gps:020]: Accuracy Decimals: 0
[20:59:02][C][gps:020]: Icon: 'mdi:satellite-variant'
[20:59:02][C][gps:021]: HDOP 'Precisión GPS'
[20:59:02][C][gps:021]: State Class: 'measurement'
[20:59:02][C][gps:021]: Unit of Measurement: ''
[20:59:02][C][gps:021]: Accuracy Decimals: 3
[20:59:02][C][uptime.sensor:033]: Uptime Sensor 'Tiempo encendido ESP'
[20:59:02][C][uptime.sensor:033]: State Class: 'total_increasing'
[20:59:02][C][uptime.sensor:033]: Unit of Measurement: 's'
[20:59:02][C][uptime.sensor:033]: Accuracy Decimals: 0
[20:59:02][C][uptime.sensor:033]: Device Class: 'duration'
[20:59:02][C][uptime.sensor:033]: Icon: 'mdi:timer-outline'
[20:59:02][C][uptime.sensor:034]: Type: Seconds
[20:59:02][C][captive_portal:089]: Captive Portal:
[20:59:02][C][esphome.ota:077]: Over-The-Air updates:
[20:59:02][C][esphome.ota:077]: Address: gps.local:3232
[20:59:02][C][esphome.ota:077]: Version: 2
[20:59:02][C][esphome.ota:080]: Password configured
[20:59:02][C][safe_mode:018]: Safe Mode:
[20:59:02][C][safe_mode:025]: Boot considered successful after 60 seconds
[20:59:02][C][safe_mode:025]: Invoke after 10 boot attempts
[20:59:02][C][safe_mode:025]: Remain for 300 seconds
[20:59:02][C][api:185]: API Server:
[20:59:02][C][api:185]: Address: gps.local:6053
[20:59:02][C][api:187]: Using noise encryption: YES
[20:59:02][C][mdns:125]: mDNS:
[20:59:02][C][mdns:125]: Hostname: gps
[20:59:09][D][sensor:099]: 'Latitud GPS': Sending state nan ° with 6 decimals of accuracy
[20:59:09][D][sensor:099]: 'Longitud GPS': Sending state nan ° with 6 decimals of accuracy
[20:59:09][D][sensor:099]: 'Velocidad GPS': Sending state nan km/h with 3 decimals of accuracy
[20:59:09][D][sensor:099]: 'Altitud GPS': Sending state nan m with 2 decimals of accuracy
[20:59:09][D][sensor:099]: 'Satélites visibles': Sending state 0.00000 with 0 decimals of accuracy
[20:59:09][D][sensor:099]: 'Precisión GPS': Sending state nan with 3 decimals of accuracy
Thanks to your help, I was able to configure it now.
But no coordinates are displayed, just “nan.”
The antenna hangs out the window, so it should have reception.
I’ve already swapped the RX and TX, but there’s no change.
im sorry this is as far i can go as i dont have your gps to test, maybe need time to get signal to satélite ,
can you show us your circuit a picture or you wiring and your code to check if you are connecting your wires correct
I don’t have this board either, but have ordered a similar one out of interest. I’d say for troubleshooting, don’t connect anything to the gps RX pin. Connect the GPS TX pin to the GPIO you have assigned as RX in esphome - I believe 20. And then let it sit for a while. From what I’ve read, it can take a bit of time to get a lock.
In your UART config, use the debug option to monitor the serial data being received. If none, you have a wiring or hardware problem. If it’s garbled non-ascii data, you probably have the wrong baud rate. If it’s NMEA sentences it should work, or at least report something.
