Hi!
It took me a while to figure out how to configure this board for esphome as the documentation on the product page was terrible, so I’m sharing it for other for future reference.

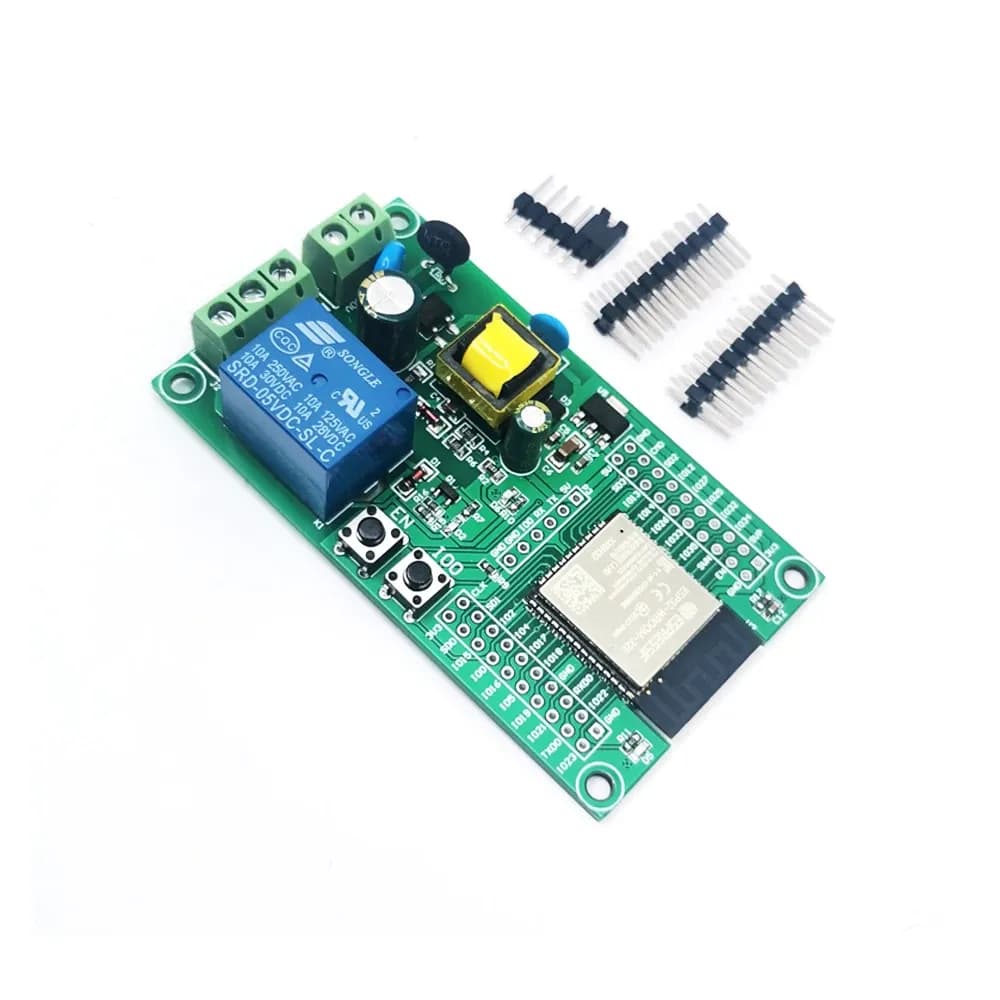

The board is this:
Esphome configuration is:
esphome:
name: esp32
friendly_name: Esp32
esp32:
variant: esp32
framework:
type: esp-idf
# Enable logging
logger:
# Enable Home Assistant API
api:
encryption:
key: ""
ota:
- platform: esphome
password: ""
wifi:
ssid:
password:
# Enable fallback hotspot (captive portal) in case wifi connection fails
ap:
ssid: "ESP32 Fallback Hotspot"
password: ""
captive_portal:
light:
- platform: status_led
id: led
name: "ESP32 Led"
restore_mode: ALWAYS_OFF
internal: True #Remove or change to false to show on home assistant
pin:
number: GPIO023
inverted: False
switch:
- platform: gpio
pin: GPIO16
name: "ESP32 Relay"
id: ESP32_relay
binary_sensor:
- platform: gpio
pin:
number: GPIO0
mode: INPUT_PULLUP
name: Button
filters:
- invert
- delayed_on_off: 50ms
on_press:
then:
- switch.toggle: ESP32_relay
- light.toggle: led
Is configured to use IO0 button to toggle the LED and Relay module at the same time.
