ESPHome Standalone 120 Volt AC Blower/Fan Speed Controller Control the speed manually with a button or set it to adjust automatically based on temperature ranges. Works seamlessly with or without Home Assistant automation or a constant network connection.
Objective
Develop a Smart Wood Pellet Stove System
Goal
Override the manufacturer’s control board to independently manage the convection blower. The current control board sets the blower speed based on the heat rate setting, but the convection blower always stays at a lower fan speed because, in my case, the stove is usually set to heat levels 2 or 3 out of 5. By synchronizing the stove’s operation with the thermostat schedule, we can maintain a consistent temperature throughout our home. I already setup a smart relay and ultrasonic sensor for pellet level in the hopper.
Here:
Smart pellet stove using shedy Python based schedule and ultrasonic sensor.
Plan

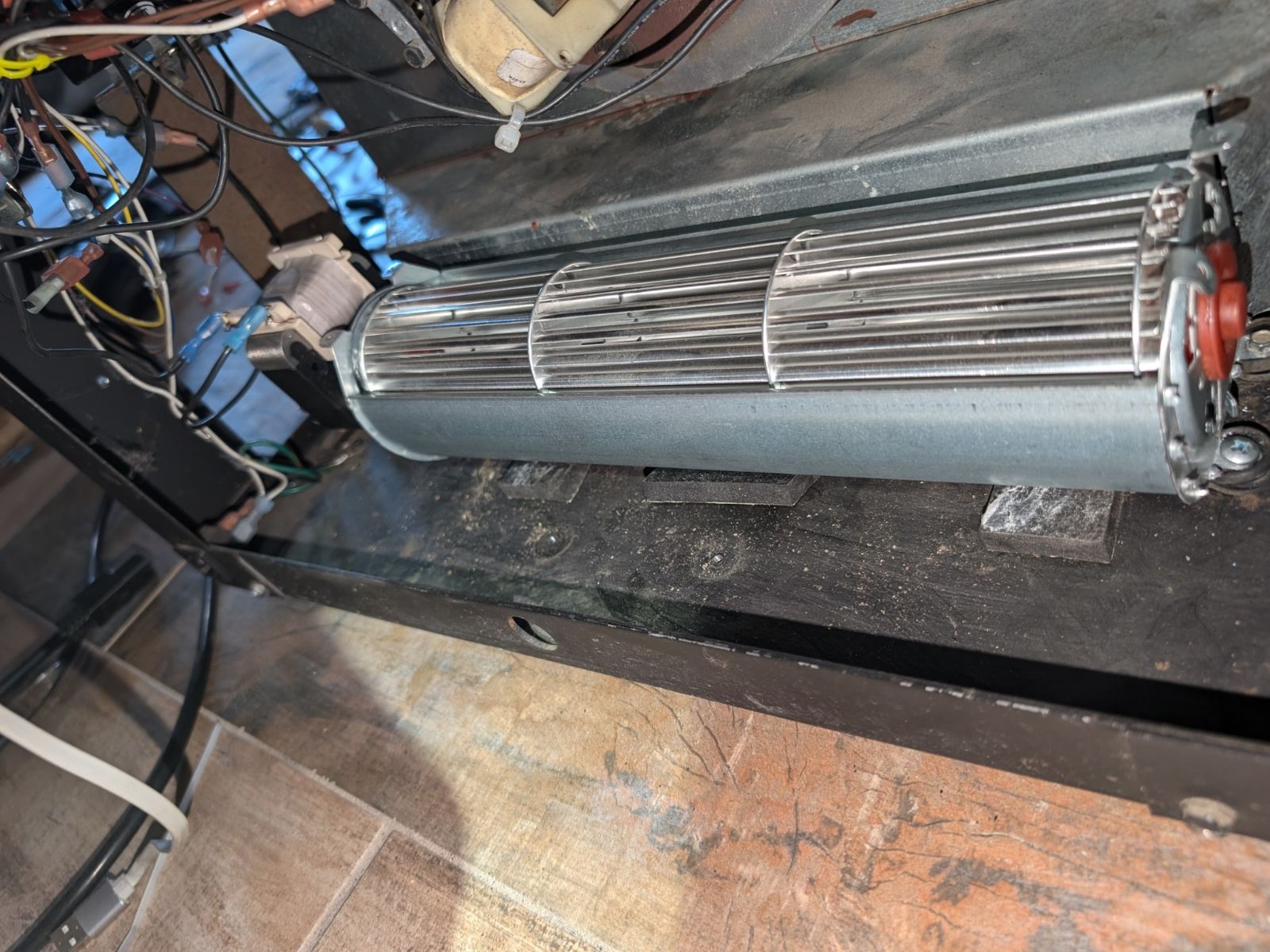

Enhance control over the convection blower of the pellet stove, ensuring it adjusts speeds according to the stove’s temperature and turns off when it cools down.
Implementation
To achieve this, I removed the power connection from the stove’s control board to the convection blower and used ESPHOME to program an ESP32. Here are the components and their details:
Components:
-
ESP32D or better
-
DS18B20 Digital Thermometer (surface mountable)
-
Protoboard with connections for AC dimmer and temperature sensor
-
ESP32 powered with USB C cord to 5V USB wall outlet
Setup
The ESP32, in conjunction with the AC dimmer module and temperature sensor, allows for precise control of the convection blower’s speed in relation to the stove’s temperature. This ensures it adjusts accordingly and turns off when the stove cools down, helping maintain a comfortable and consistent temperature in our home.

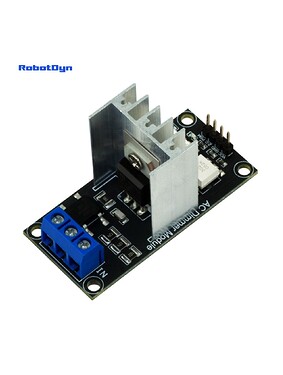

I achieved this by connecting the 120V from the stove’s power to an AC dimmer module controlled by the ESP32 using ESPHOME for programming. A DS18B20 digital sensor is attached to the back panel of the convection chamber to monitor temperature accurately. This setup ensures that the convection blower operates efficiently, enhancing the overall performance of the pellet stove and maintaining the desired temperature.
My cleaned up Full ESPHOME Yaml
or my github repository with updates.
currently working on my Pellet stove convection fan. No button just automatically controlling fan function with Temperature .
updated 12/30/2024
esphome:
name: pellet-controller-fan
friendly_name: Pellet Controller Fan
esp32:
board: esp32dev # Hiletgo esp32-DevKitc-32 esp-32d esp-32 cp2012 usbc board
framework:
type: arduino
api:
ota:
platform: esphome
logger:
wifi:
ssid: !secret wifi_ssid
password: !secret wifi_password
power_save_mode: none
manual_ip:
static_ip: 192.168.2.21
gateway: 192.168.2.1
subnet: 255.255.255.0
web_server:
version: 3
port: 80
captive_portal:
output:
- platform: ac_dimmer
id: pellet_fan_dimmer
gate_pin: GPIO16
zero_cross_pin:
number: GPIO19
method: LEADING
min_power: 42% # Minimum power level set to 42%
one_wire:
- platform: gpio
pin: GPIO4
sensor:
- platform: dallas_temp # DS18b20 3 pin wire digital thermometer
address: 0xc00000004421a328
id: dallastemp3
name: "stove fan temperature"
icon: "mdi:thermometer"
device_class: "temperature"
unit_of_measurement: "°C"
accuracy_decimals: 2
update_interval: 60s # Updated interval to 60 seconds
- platform: template
name: "Fan Speed"
id: fan_speed
unit_of_measurement: "%"
accuracy_decimals: 0
text_sensor:
- platform: template
name: "Fan Speed Level"
id: fan_speed_level
- platform: template
name: "Fan Status"
id: fan_status
select:
- platform: template
name: "Fan Speed Level"
id: fan_speed_select
options:
- "Off"
- "Low"
- "Medium-Low"
- "Medium"
- "Medium-High"
- "High"
optimistic: true
initial_option: "Off"
set_action:
- lambda: |-
if (x == "Off") {
id(pellet_fan_dimmer).set_level(0.0);
id(fan_status).publish_state("Off");
id(fan_speed).publish_state(0);
id(fan_speed_level).publish_state("Off");
} else if (x == "Low") {
id(pellet_fan_dimmer).set_level(0.35); // Updated speed level 1 to 0.35
id(fan_status).publish_state("On");
id(fan_speed).publish_state(35); // Adjusted percentage to match the level
id(fan_speed_level).publish_state("Low");
} else if (x == "Medium-Low") {
id(pellet_fan_dimmer).set_level(0.4);
id(fan_status).publish_state("On");
id(fan_speed).publish_state(40);
id(fan_speed_level).publish_state("Medium-Low");
} else if (x == "Medium") {
id(pellet_fan_dimmer).set_level(0.5); // Updated speed level 3 to 0.5
id(fan_status).publish_state("On");
id(fan_speed).publish_state(50); // Adjusted percentage to match the level
id(fan_speed_level).publish_state("Medium");
} else if (x == "Medium-High") {
id(pellet_fan_dimmer).set_level(0.7); // Updated speed level 4 to 0.7
id(fan_status).publish_state("On");
id(fan_speed).publish_state(70); // Adjusted percentage to match the level
id(fan_speed_level).publish_state("Medium-High");
} else if (x == "High") {
id(pellet_fan_dimmer).set_level(1.0);
id(fan_status).publish_state("On");
id(fan_speed).publish_state(100);
id(fan_speed_level).publish_state("High");
}
# Temperature ranges and Fan on or off controlled with Lambda below
# Adjust fan speed with set_level(0.35) = 35% to fine-tune fan speed percentage at each 1 to 5 step. Level 1 would be 35%
# Match the fan speed set action for set level and published % state in the above lambda "Low", "Medium-Low" etc. to the settings below
interval:
- interval: 31s
then:
- lambda: |-
float temp = id(dallastemp3).state;
if (temp < 31.5) { // Off state for when stove is cooling down shut off at 31.5
id(pellet_fan_dimmer).set_level(0.0);
id(fan_status).publish_state("Off");
id(fan_speed).publish_state(0);
id(fan_speed_level).publish_state("Off");
// When STOVE is starting up and running, fan will turn on and run on low (35%) at above 33 then increase speeds with temperature ranges
} else if (temp >= 33 && temp <= 36) {
id(pellet_fan_dimmer).set_level(0.35); // Updated speed level 1 to 0.35
id(fan_status).publish_state("On");
id(fan_speed).publish_state(35); // Adjusted percentage to match the level
id(fan_speed_level).publish_state("Low");
} else if (temp > 36 && temp <= 45) {
id(pellet_fan_dimmer).set_level(0.4);
id(fan_status).publish_state("On");
id(fan_speed).publish_state(40);
id(fan_speed_level).publish_state("Medium-Low");
} else if (temp > 45 && temp <= 50) {
id(pellet_fan_dimmer).set_level(0.5); // Updated speed level 3 to 0.5
id(fan_status).publish_state("On");
id(fan_speed).publish_state(50); // Adjusted percentage to match the level
id(fan_speed_level).publish_state("Medium");
} else if (temp > 50 && temp <= 60) {
id(pellet_fan_dimmer).set_level(0.7); // Updated speed level 4 to 0.7
id(fan_status).publish_state("On");
id(fan_speed).publish_state(70); // Adjusted percentage to match the level
id(fan_speed_level).publish_state("Medium-High");
} else if (temp > 60) {
id(pellet_fan_dimmer).set_level(1.0);
id(fan_status).publish_state("On");
id(fan_speed).publish_state(100);
id(fan_speed_level).publish_state("High");
}
- interval: 8h # Run this every 8 hours
then:
- if:
condition:
binary_sensor.is_on: fan_off_10_min
then:
- logger.log: "Fan has been off for 10 minutes. Rebooting device."
- delay: 5s # Short delay before rebooting
- switch.turn_on: restart_switch
# Create a binary sensor to track if the fan has been off for at least 10 minutes
binary_sensor:
- platform: template
name: "Fan Off for 10 Minutes"
id: fan_off_10_min
lambda: |-
return id(fan_status).state == "Off";
filters:
- delayed_on: 600s # 10 minutes
# Switch to trigger a reboot
switch:
- platform: restart
name: "Restart Switch"
id: restart_switch
Test blower and breadboard, blower or controller not the one use in pellet stove.
Video of working module
I’m using an ESP32 with an AC dimmer to control a pellet stove’s room air blower speed, adjusting it based on different temperature ranges.

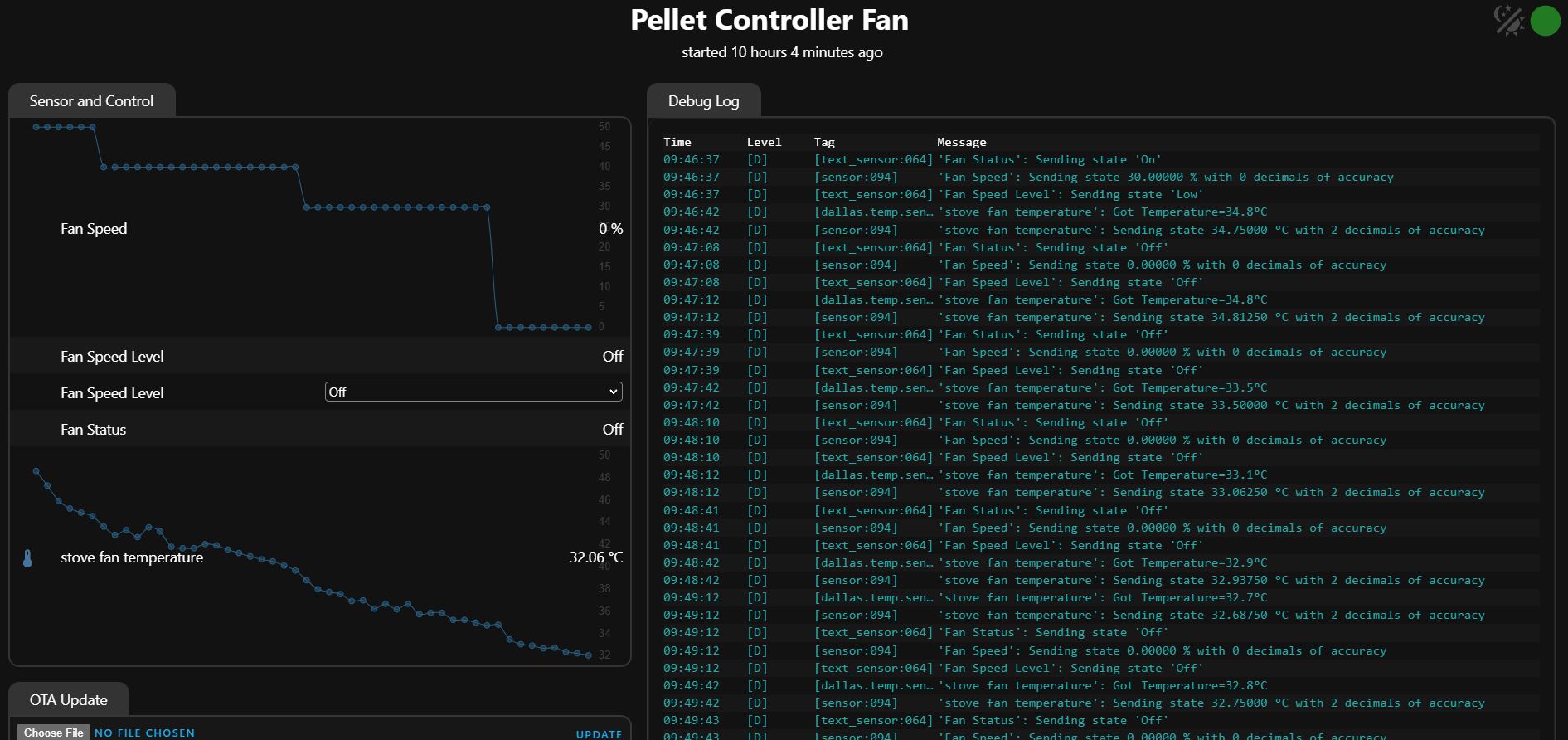

Esp web portal page.

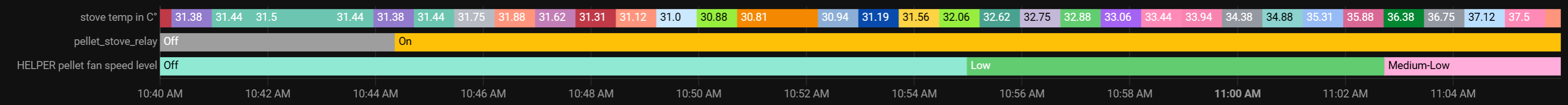

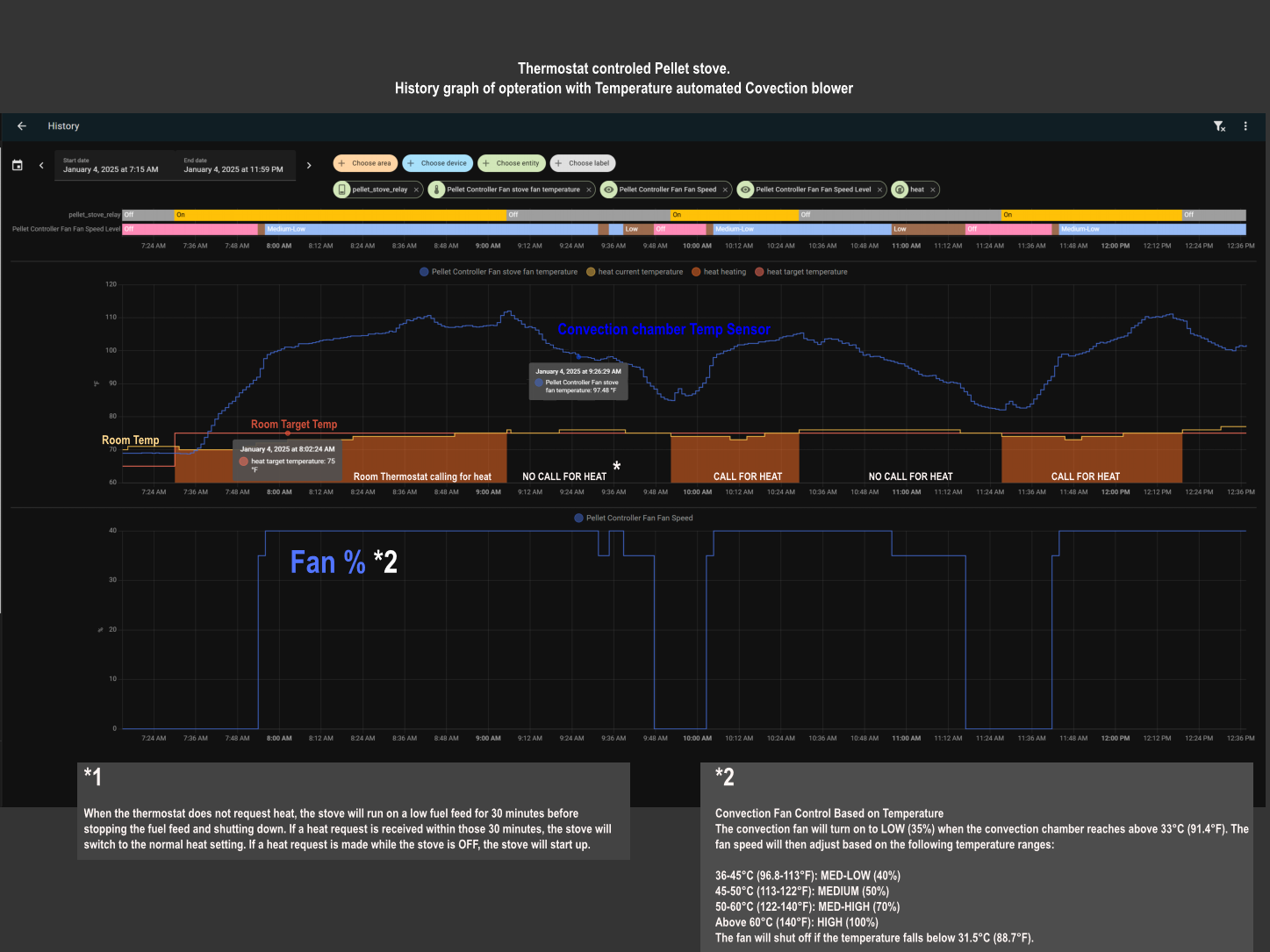

Home assistant History of Room temp, Stove temp and fan actions.

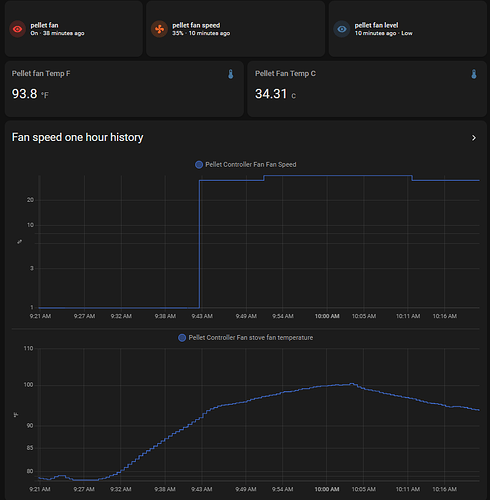

Home assistant dashboard
Fahrenheit Sensor Entity for use in Home Assistant
Sensor template in home assistant template.yaml to convert C° to F °
- sensors:
stove_temp_in_c:
friendly_name: "stove temp in C°"
unique_id: stovetemp11111
value_template: '{{ "%.2f"|format((( states("sensor.pellet_controller_fan_stove_fan_temperature") | float ) -32) *5/9) }}'
Playing with ESPHome Methods
To achieve my goal, I experimented with various ESPHome methods at my desk. I set up an ESP32 on a breadboard with a contact button, a temperature sensor, an AC dimmer module, and connected it to a blower motor for prototyping. On my test board, I experimented with temperature percentage steps using the on_value_range: method. Additionally, I tested the fan.cycle_speed action with a button to control fan speeds. Each button press cycles through the following states: off, on, 1, 2, 3, 4, and 5.
I used Copilot in GitHub to help polish the ESPHome YAML and guide me on the different methods to control fan speeds with temperature.
Button Configuration: yaml
- platform: gpio
pin:
number: GPIO15
mode:
input: true
pullup: true
inverted: true
id: fanbutton
name: fan button
filters:
- delayed_off: 20ms
on_press:
- fan.cycle_speed: fan_speeds
This setup allows effective control of the fan speed through button presses.
My Background
I am no expert just learning and having fun.
I have been an avid user of smart home electronics, currently managing over 200 local, off-the-cloud smart devices in our home. I started off using eWeLink with IFTTT, then branched out to Home Assistant and began converting Sonoff and other devices with Tasmota in 2016. This has allowed me to automate various aspects of my home, including heating and evaporative cooling systems. My journey into the world of home automation took a significant leap with the help of creators like Digiblur DIY, Dr. ZZZs, and many other helpful people on Discord when I started experimenting with Home Assistant in 2016. The experience has been both rewarding and educational.
Some of my projects involve playing with WLED and ESPHome, which have been incredibly fun. Additionally, I’ve successfully created an automatic fish feeder, hacked lamps, and made my pellet stove smart, showcasing my penchant for blending technology with creativity.
With over 35 years of experience in installing and servicing hearth products, I specialize in gas and wood pellet-burning stoves. This extensive background has honed my skills and expertise in the industry, allowing me to provide top-notch service to my clients.
Home automation has become a much-needed hobby, offering a perfect blend of technical challenges and innovative solutions. I continue to explore new ways to enhance my living environment through automation.
