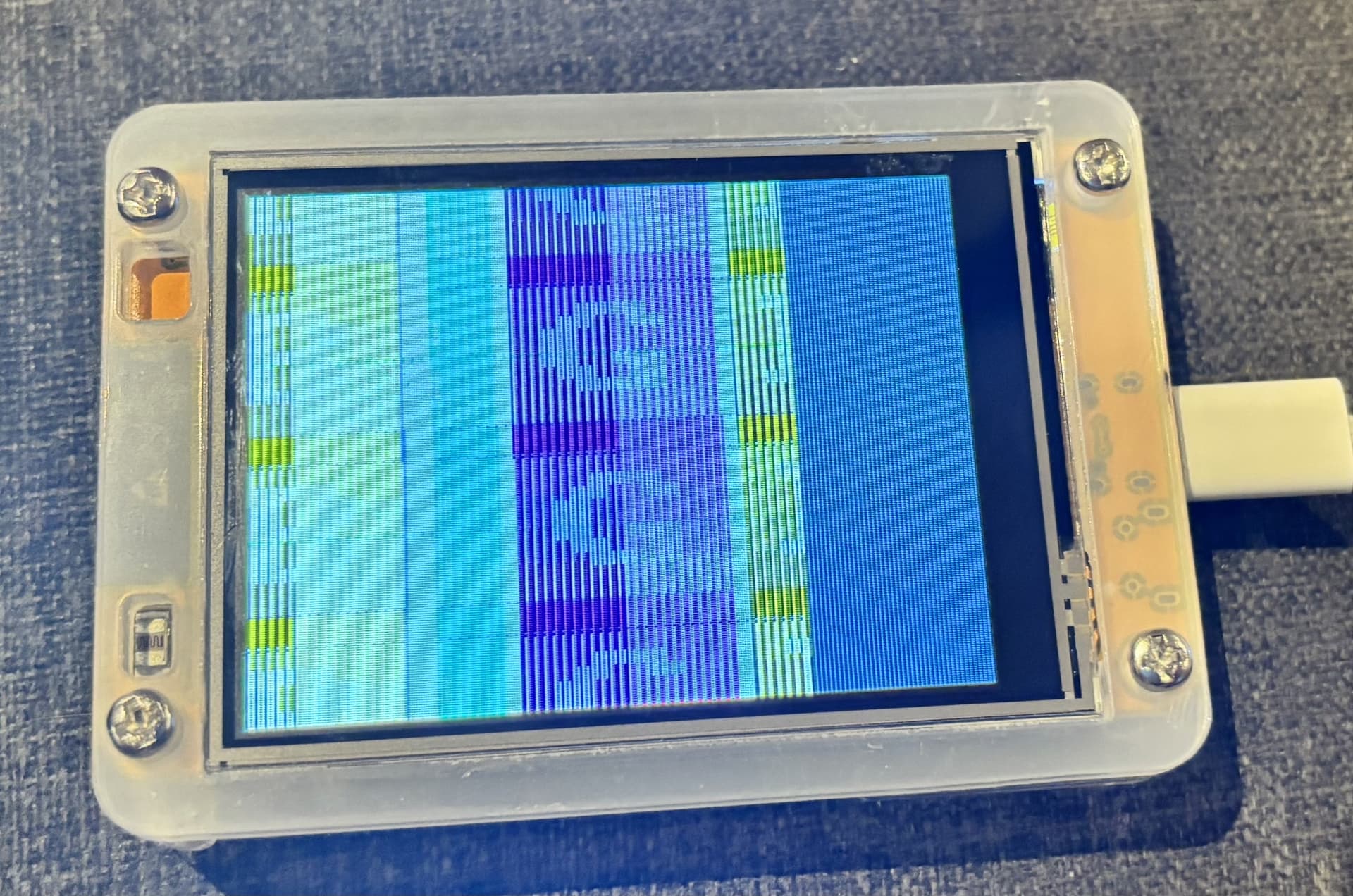

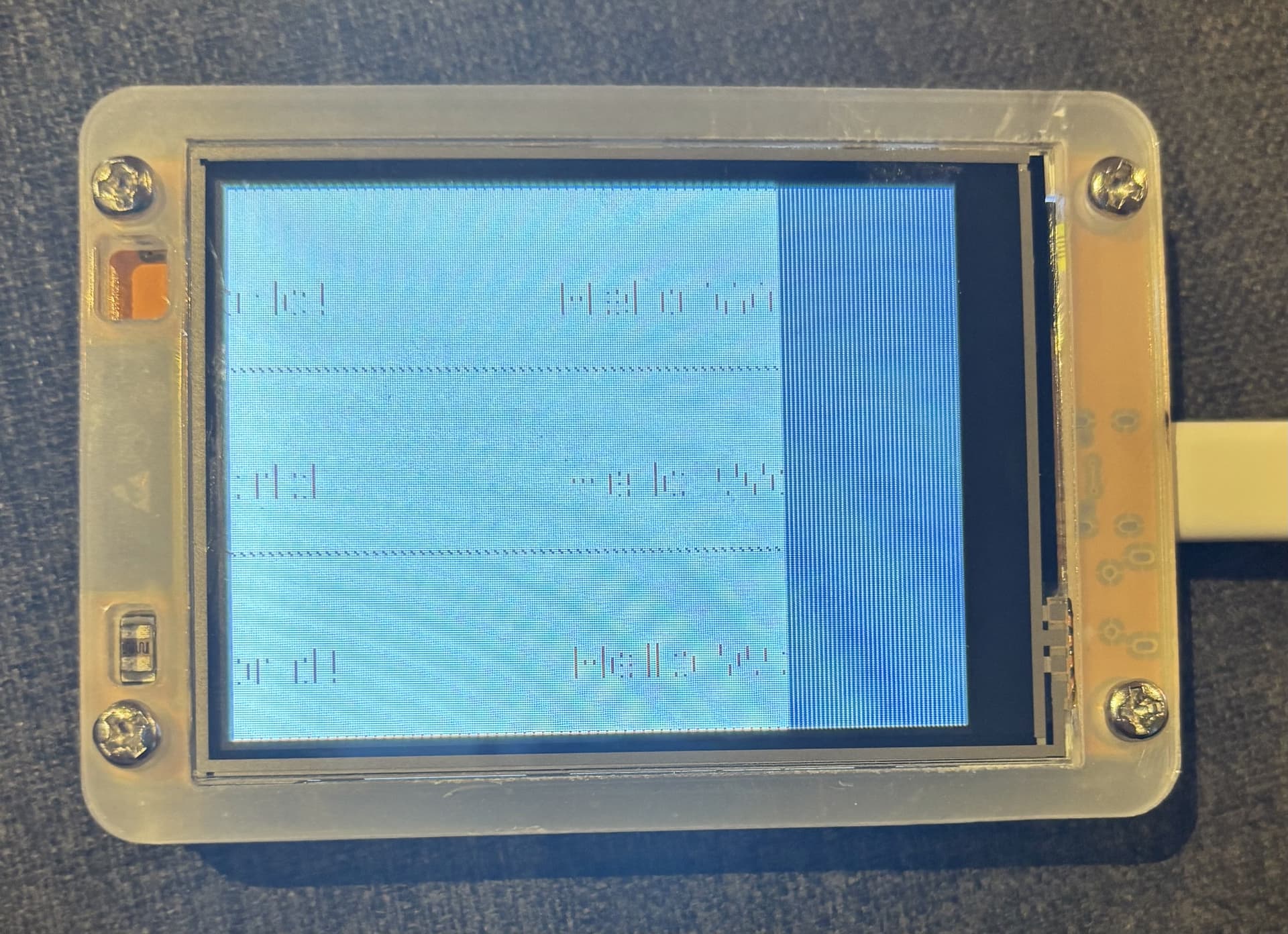

Hi, just received my first Cheap Yellow Display from Aliexpress. I’ve configured it but the display is garbled. I’ve tried using “show_test_card: true”, printing a simple “Hello World” text and using LVGL. Screen images
are attached. Have I misconfigured something or is the display faulty?
Here’s the yaml:
esphome:
name: cyd
friendly_name: CYD
esp32:
board: esp32dev
framework:
type: arduino
logger:
api:
encryption:
ota:
- platform: esphome
wifi:
ssid: !secret wifi_ssid
password: !secret wifi_password
# Create a font to use, add and remove glyphs as needed.
font:
- file: 'fonts/Arimo-Regular.ttf'
id: arimo20
size: 20
glyphs: "!\"%()+=,-_.:°0123456789ABCDEFGHIJKLMNOPQRSTUVWXYZÅÄÖ abcdefghijklmnopqrstuvwxyzåäö"
# Create a Home Assistant blue color
color:
- id: ha_blue
hex: 51c0f2
i2c: # these are on the CN1 connector and can be used for external I2C devices
- sda: 27
scl: 22
scan: true
# Setup SPI for the display. The ESP32-2432S028R uses separate SPI buses for display and touch
spi:
- id: tft
clk_pin: 14
mosi_pin: 13
miso_pin: 12
- id: touch
clk_pin: 25
mosi_pin: 32
miso_pin: 39
# Setup a pin to control the backlight
output:
- id: backlight_pwm
platform: ledc
pin: 21
- id: output_red
platform: ledc
pin: 4
inverted: true
- id: output_green
platform: ledc
pin: 16
inverted: true
- id: output_blue
platform: ledc
pin: 17
inverted: true
light:
- id: backlight
platform: monochromatic
output: backlight_pwm
name: Display Backlight
restore_mode: ALWAYS_ON
- id: led
platform: rgb
red: output_red
green: output_green
blue: output_blue
restore_mode: ALWAYS_OFF
# sensor:
# - platform: adc
# pin: 34
# name: "Brightness"
# update_interval: 60s
touchscreen:
- id: main_touchscreen
platform: xpt2046
spi_id: touch
cs_pin: 33
interrupt_pin: 36
threshold: 400
calibration:
x_min: 294
x_max: 3814
y_min: 194
y_max: 3734
transform:
mirror_x: true
display:
- platform: ili9xxx
id: esp_display
model: ili9342
spi_id: tft
cs_pin: GPIO15
dc_pin: GPIO2
#invert_display: true (changed to below with ESPhome 2023.12.0)
invert_colors: true
color_palette: 8BIT
#update_interval: never # The interval to re-draw the screen. Defaults to 1s.
#auto_clear_enabled: false
rotation: 90 #One of 0, 90, 180 or 270.
dimensions:
width: 320
height: 240
#show_test_card: true
#lvgl:
# - buffer_size: 25%
lambda: |-
it.rectangle(0, 0, 320, 240, id(ha_blue));
it.print(160, 140, id(arimo20), id(ha_blue), TextAlign::BOTTOM_CENTER, "Hello World!");
