fEVR - frigate Event Video Recorder

fEVR works along side of frigate and home assistant to collect video and snapshots of objects detected using your existing camera systems.

Notable Mentions

Self Hosted Podcast #67 Linux Unplugged Podcast #451

Value 4 Value

If you find value in this, please give back. Filing a bug report, suggestion or feature request, a high five, share us on social media, a kind note, or even a donation goes a long way to making the upkeep of open source software more enjoyable for the community as a whole.

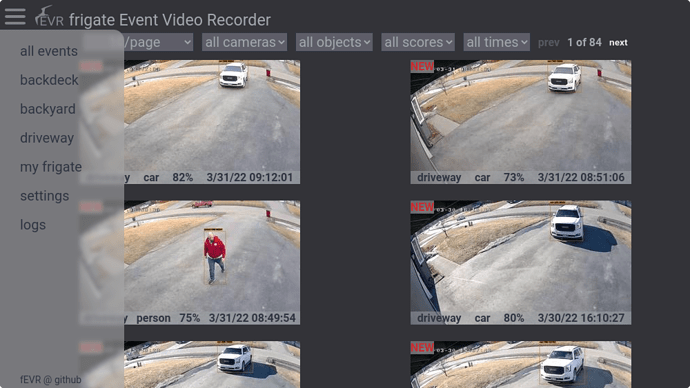

Screenshot

fEVR v0.5.1 Screenshot
fEVR v0.5.1 Screenshot1000×563 455 KB

Features

  • Stores video independently of frigate
  • Home Assistant generates notifications and makes a RESTful command to fEVR to grab data from frigate
  • fEVR stores, sorts, and makes browsing frigate events a snap.

Support

Cloud Instances of fEVR

  • I will be offering cloud instances of fEVR soon.
  • Click here for more details.

Cloud BETA Testing

  • If you would like to beta test this feature, please let me know by submitting an issue.

Known Bugs

Requirements:

Install

The easiest and recommended method of install is docker-compose.

  • Included is a container running tailscale to securely access fEVR. This is not 100% necessary, but far more secure.

  • Create .env file

cp template.env .env
nano .env
  • Edit .env file and
# Bridge Network Details
NETWORK_NAME=beardnet
NETWORK_SUBNET=192.168.200.0/24
NETWORK_GATEWAY=192.168.200.1

# Tailscale Container Variables
TAILSCALE_IP=192.168.200.3
TAILSCALE_IMAGE=ghcr.io/beardedtek-com/tailscale:main
TAILSCALE_CONTAINER_NAME=tailscale-devel
TAILSCALE_CONTEXT=./docker/tailscale/
TAILSCALE_DATA=./vol/tailscale/data
TAILSCALE_VAR_LIB=./vol/tailscale/var_lib
TAILSCALE_COMMAND=/opt/tailscale/tailscale

# fEVR Container Variables
FEVR_IP=192.168.200.2
FEVR_IMAGE=ghcr.io/beardedtek-com/fevr:main
FEVR_CONTAINER_NAME=fevr-devel
FEVR_CONTEXT=./docker/fEVR/
FEVR_DEBUG=true
FEVR_TITLE=Home
FRGIGATE_URL=http://192.168.2.240:5000

# OPTIONAL NAS
NAS_IP=192.168.18.10
NAS_EVENTS=/export/fevr
NAS_DATA=/export/fevr_data

# MQTT
MQTT_BROKER_URL=192.168.18.10
MQTT_BROKER_PORT=1883
MQTT_USER=
MQTT_PASS=

# comma seperated list of topics
# Default: 'frigate/available,frigate/events,frigate/stats'
# Debugging: 'frigate/+
# limited to 5 topics, all extras will be dropped.
MQTT_TOPICS='frigate/available,frigate/events,frigate/stats'
  • Bring the stack up:
sudo docker-compose up -d
  • After stack is up, issue the following command to bring up tailscale:
sudo docker-compose exec tailscale tailscale up --advertise-routes=192.168.200.0/24 --accept-routes

  • Follow the Auth URL and either add to your existing account or create a new one. Its free and easy to use.

  • Configure Home Assistant Automation provide notifications:

Home Assistant Automation

Home Assistant Automation adds a “break” using an input boolean helper.

alias: fEVR Backyard Person Alert
description: fEVR Object Detection Alerts
trigger:
  - platform: mqtt
    topic: frigate/events
condition:
  - condition: template
    value_template: '{{ trigger.payload_json["type"] == "end" }}'
  - condition: template
    value_template: |-
      {{
      trigger.payload_json["after"]["label"] == "person"
      }}
  - condition: template
    value_template: |-
      {{
      trigger.payload_json["after"]["top_score"] > 0.76
      }}
  - condition: template
    value_template: |-
      {{
      trigger.payload_json["after"]["camera"] == "backyard"
      }}
action:
  - choose:
      - conditions:
          - condition: state
            state: 'off'
            entity_id: input_boolean.fevrbackyardanimal
        sequence:
          - service: notify.mobile_app_sg20plus
            data:
              message: '{{ trigger.payload_json["after"]["label"] | title }} Detected'
              data:
                notification_icon: mdi:cctv
                ttl: 0
                priority: high
                sticky: true
                actions:
                  - action: URI
                    title: fEVR
                    uri: https://fevr.local:5080/?action=event&id={{trigger.payload_json['after']['id']}}
                image: >-
                  /api/frigate/notifications/{{trigger.payload_json['after']['id']}}/snapshot.jpg?bbox=1
                tag: '{{trigger.payload_json["after"]["id"]}}'
                alert_once: true
          - service: input_boolean.turn_on
            data: {}
            target:
              entity_id: input_boolean.fevrbackyardanimal
          - delay:
              hours: 0
              minutes: 0
              seconds: 30
              milliseconds: 0
          - service: input_boolean.turn_off
            data: {}
            target:
              entity_id: input_boolean.fevrbackyardperson
    default: []
mode: single

Help!

If you have any issues, please reach out and file an issue or start a discussion.

I hope you find this useful!
