Finally made some time to install the somewhat underwhelming device (its display is very unsharp, rather energy unfriendly and the battery is terrible…).
From factory, its firmware is truly bad, so the first thing you need to do is flash it with Awtrix. It’s a great and very versatile solution, allowing the user to do almost anything with it, of course, within the limits of the device itself, but with the power of MQTT which is light, immediate and extremely configurable
Given the Many Blueprints vids around are all rather lacking true detail, and require you to pay up for what appear to be very simple things, I figured to just try and understand the inner workings myself, and use those in a first basic setup.
An important step that is not described anywhere I could find, it that you need to set discovery not only in the MQTT add-on, but also in the configuration setting of the integration.
Without that last option, HA won’t find the device as configured via the Awtrix software.

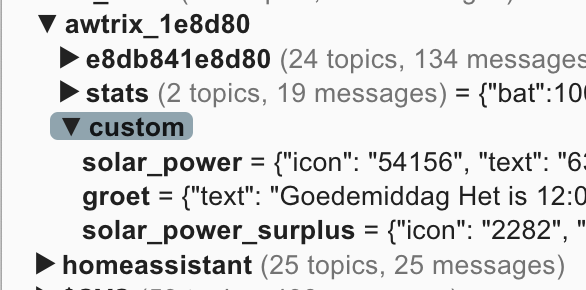

next all there is to customizing the thing to your liking and linking it with your HA entities, is finding the right device_topic, and checking the API documentation.
Turns out it is all rather simple, and hooking up your HA entities is almost a C&P (and edit an entity, trigger of condition here and there) once you have a first couple of simple things, and build from that.
below I’ve pasted my initial package, in which I tried to use a variety of available options so you can see how it’s done. Set an option in the settings for brightness, reboot, toggle native apps, and add a few custom apps.
Note:
This is not an advertisement for the device, and I didn’t post a link to it on purpose.
In the end, I wouldn’t recommend the overpriced device at all, but, since I have it and the return policy was very user unfriendly/unreachable, I took my loss, and figured why not make the most of it…
Awtrix package
##########################################################################################
# Package Awtrix display
# Hardware: Ulanzi 3
# Flashed with https://blueforcer.github.io/awtrix3/#/quickstart
# all options using the local APi are at https://blueforcer.github.io/awtrix3/#/api
# icons can be found at: https://developer.lametric.com/icons
# and uploaded to the device via the Awtrix local interface at your IP address
##########################################################################################
# some examples
# {
# "text" : "Hello, AWTRIX Light!",
# "rainbow": true,
# "icon": "87",
# "duration": 5,
# "pushIcon": 2,
# "lifetime": 900,
# "repeat": 4
# }
#
# {
# "text" : "Brightness is {{states('input_number.awtrix_brightness')|int}}",
# "rainbow": true,
# "icon": "87",
# "duration": 5,
# "pushIcon": 2,
# "lifetime": 900,
# "repeat": 4
# }
##########################################################################################
# Scripts
##########################################################################################
script:
awtrix_reboot:
sequence:
- delay: 1
- action: mqtt.publish
data:
topic: awtrix_1e8d80/reboot
awtrix_nextapp:
sequence:
action: mqtt.publish
data:
topic: awtrix_1e8d80/nextapp
awtrix_previousapp:
sequence:
action: mqtt.publish
data:
topic: awtrix_1e8d80/previousapp
##########################################################################################
# Automations
##########################################################################################
automation:
# create custom app at topic awtrix_1e8d80/custom/app_name
- id: set_awtrix_custom_app_familie
triggers:
trigger: state
entity_id: sensor.familie_samenvatting
actions:
action: mqtt.publish
data:
qos: 0
retain: false
topic: awtrix_1e8d80/custom/familie
payload: >
{
"text":
"{{state_attr('sensor.familie_samenvatting','tekst')}}",
"icon": "2102",
"rainbow": true,
"repeat": 1,
"pushIcon": 0,
"textCase": 2,
"textOffset": 5,
"background":
"{% set presence = states('zone.home')|int(0) %}
{% set colors = ['#4682b4','#b8860b','#008000','#ffd700',
'#ff8c00','#800000','#0ff'] %}
{{colors[presence]}}"
}

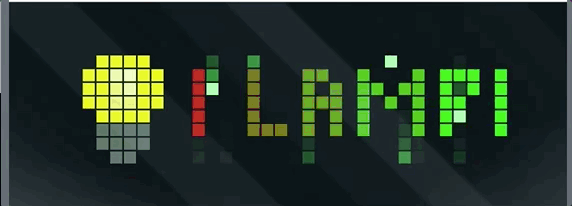

- id: set_awtrix_custom_app_lampen
triggers:
trigger: state
entity_id: sensor.alle_schakelaars_samen_actueel
actions:
action: mqtt.publish
data:
qos: 0
retain: false
topic: awtrix_1e8d80/custom/lampen
payload: >
{
"text":
"{{state_attr('sensor.lampen_samenvatting','aan')}} -
{{ states('sensor.alle_schakelaars_samen_actueel',with_unit=true) }}",
"icon": "2448",
"rainbow": true,
"repeat": 1,
"pushIcon": 0,
"textCase": 0,
"textOffset": 15
}
- id: set_awtrix_custom_weather_app
# inspired by https://github.com/DubhAd/Home-AssistantConfig/blob/live/automation/notification/awtrix_weather_app.yaml
trigger:
platform: state
entity_id: weather.buienradar
variables:
temperature: >-
{{states('sensor.buienradar_feel_temperature',with_unit=true) }}
color: >-
{% set temp = states('sensor.buienradar_feel_temperature')|float %}
{% if temp <= 0 %} #6666ff
{% elif temp >= 0 %} #00f
{% elif temp >= 16 %} #008000
{% elif temp >= 25 %} #ff7777
{% else %} #0ff
{% endif %}
weather_icon: >-
{% set condition = states('weather.buienradar') %}
{% set day = {
"clear-night":"13345",
"cloudy":"52159",
"fog":"676",
"hail":"53288",
"lightning":"56676",
"lightning-rainy":"56675",
"partlycloudy":"2286",
"pouring":"49300",
"rainy":"2284",
"snowy":"2289",
"snowy-rainy":"49301",
"sunny":"11201",
"windy":"55032",
"windy-variant":"56598",
"exceptional":"16754"
} %}
{% set night = {
"clear-night":"13345",
"cloudy":"55707",
"fog":"43741",
"hail":"53288",
"lightning":"56676",
"lightning-rainy":"56675",
"partlycloudy":"58532",
"pouring":"26092",
"rainy":"26092",
"snowy":"26090",
"snowy-rainy":"49301",
"sunny":"18433",
"windy":"56585",
"windy-variant":"56585",
"exceptional":"16754"
} %}
{{ night[condition] if is_state('sun.sun','below_horizon') else day[condition] }}
actions:
action: mqtt.publish
data:
qos: 0
retain: false
topic: awtrix_1e8d80/custom/weer
payload: >
{
"text":
"{{state_translated('weather.buienradar')}}:{{ temperature }}",
"icon": "{{ weather_icon }}",
"gradient": ["{{ color }}", "#ffd700"],
"rainbow": false,
"repeat": 2,
"pushIcon": 0,
"textCase": 0,
"textOffset": 0,
"lifetime": 1800,
"lifetimeMode": 0
}
- id: set_awtrix_custom_app_groet
triggers:
trigger: time_pattern
minutes: '/1'
actions:
action: mqtt.publish
data:
qos: 0
retain: false
topic: awtrix_1e8d80/custom/groet
payload: >
{
"text":
"{% set temp = states('sensor.ws_5500_outdoor_temperature',with_unit=true) %}
{% set deel = states('sensor.dag_deel')|lower %}
{% set tijd = states('sensor.time') %}
{% set n = 'n' if deel == 'avond' %}
Goede{{n}}{{deel}}
Het is {{tijd}} op {{states('sensor.vandaag')}} en buiten is het {{temp}}",
"icon": "{{'24636' if is_state('sun.sun','below_horizon') else '1246'}}",
"rainbow": true,
"repeat": 1,
"pushIcon": 0,
"textCase": 2,
"textOffset": 15
}
# adjust settings via topic awtrix_1e8d80/settings
# note the booleans require the absence of the quote in the payload value (otherwise they
# would be strings.....)
- id: set_awtrix_set_native_time_app
triggers:
trigger: state
entity_id: input_boolean.awtrix_native_time_app
actions:
- action: mqtt.publish
data:
topic: awtrix_1e8d80/settings
payload: >
{ "TIM":{{'false' if trigger.to_state.state == 'off' else 'true'}} }
- action: script.awtrix_reboot
- id: set_awtrix_set_native_date_app
triggers:
trigger: state
entity_id: input_boolean.awtrix_native_date_app
actions:
- action: mqtt.publish
data:
topic: awtrix_1e8d80/settings
payload: >
{ "DAT":{{'false' if trigger.to_state.state == 'off' else 'true'}} }
- action: script.awtrix_reboot
- id: set_awtrix_set_native_humidity_app
triggers:
trigger: state
entity_id: input_boolean.awtrix_native_humidity_app
actions:
- action: mqtt.publish
data:
topic: awtrix_1e8d80/settings
payload: >
{ "HUM":{{'false' if trigger.to_state.state == 'off' else 'true'}} }
- action: script.awtrix_reboot
- id: set_awtrix_set_native_temp_app
triggers:
trigger: state
entity_id: input_boolean.awtrix_native_temp_app
actions:
- action: mqtt.publish
data:
topic: awtrix_1e8d80/settings
payload: >
{ "TEMP":{{'false' if trigger.to_state.state == 'off' else 'true'}} }
- action: script.awtrix_reboot
- id: set_awtrix_set_native_battery_app
triggers:
trigger: state
entity_id: input_boolean.awtrix_native_battery_app
actions:
- action: mqtt.publish
data:
topic: awtrix_1e8d80/settings
payload: >
{ "BAT":{{'false' if trigger.to_state.state == 'off' else 'true'}} }
- action: script.awtrix_reboot
- id: set_awtrix_brightness_auto_adjust
triggers:
trigger: state
entity_id: input_boolean.awtrix_brightness_auto_adjust
actions:
action: mqtt.publish
data:
topic: awtrix_1e8d80/settings
payload: >
{ "ABRI":{{'false' if trigger.to_state.state == 'off' else 'true'}} }
- id: set_awtrix_set_brightness
triggers:
trigger: state
entity_id: input_number.awtrix_brightness
actions:
- if:
condition: state
entity_id: input_boolean.awtrix_brightness_auto_adjust
state: 'on'
then:
action: input_boolean.turn_off
target:
entity_id: input_boolean.awtrix_brightness_auto_adjust
- delay: 1
- action: mqtt.publish
data:
topic: awtrix_1e8d80/settings
payload: >
{"BRI": "{{trigger.to_state.state|int}}"}
- id: set_awtrix_transition_effect
triggers:
trigger: state
entity_id: input_select.awtrix_transition_effect
actions:
action: mqtt.publish
data:
topic: awtrix_1e8d80/settings
payload: >
{
"TEFF":
"{% set selection = trigger.to_state.state %}
{% set effect =
{'Slide':1,
'Dim':2,
'Zoom':3,
'Rotate':4,
'Pixelate':5,
'Curtain':6,
'Ripple':7,
'Blink':8,
'Reload':9,
'Fade':10 } %}
{{effect.get(selection,0)}}"
}

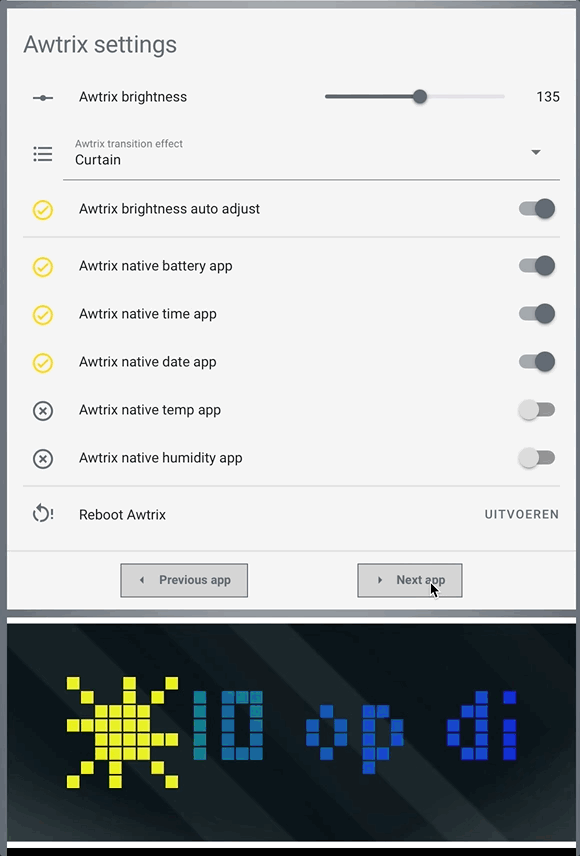

Several required sequences (reboot, app switchers) are in a script for ease of reuse or stand alone action in the footer buttons, the auto brightness adjust toggle I kept inside the automation, since it’s the only one requiring it.

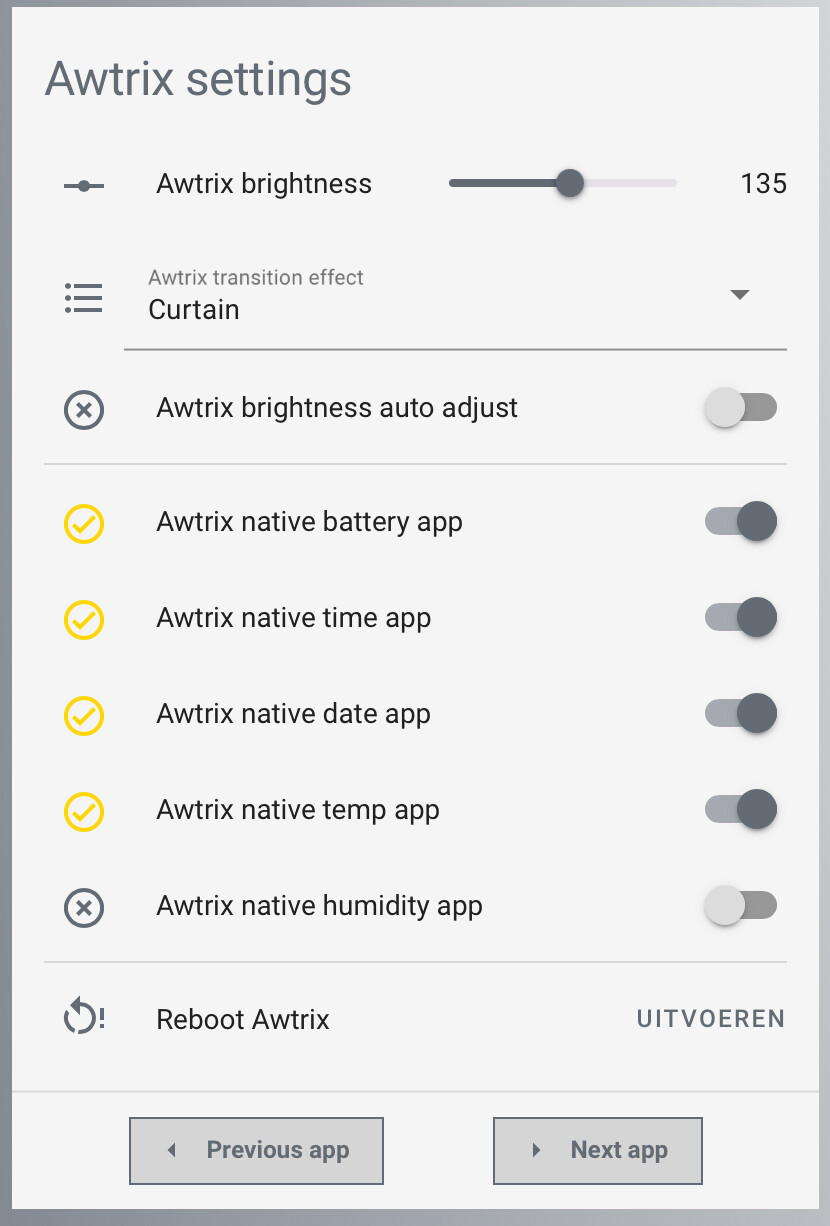

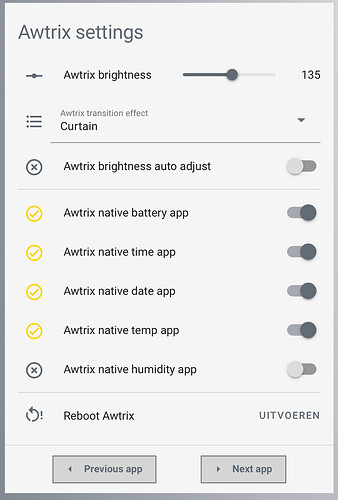

Ive added all entities in a quick entities card so I can do things directly in HA easily. This is a rather basic entities card, nothing fancy yet
Frontend card
type: entities
entities:
- entity: input_number.awtrix_brightness
- entity: input_select.awtrix_transition_effect
- entity: input_boolean.awtrix_brightness_auto_adjust
- type: divider
- entity: input_boolean.awtrix_native_battery_app
- entity: input_boolean.awtrix_native_time_app
- entity: input_boolean.awtrix_native_date_app
- entity: input_boolean.awtrix_native_temp_app
- entity: input_boolean.awtrix_native_humidity_app
- type: divider
- type: button
name: Reboot Awtrix
tap_action:
action: perform-action
perform_action: script.awtrix_reboot
icon: mdi:restart-alert
footer:
type: buttons
entities:
- entity: script.awtrix_previousapp
name: Previous app
icon: mdi:menu-left
- entity: script.awtrix_nextapp
name: Next app
icon: mdi:menu-right
title: Awtrix settings
state_color: true
show_header_toggle: false
