Hello, I still don’t understand how to use the clean area command…
cards:
- color: auto
entity: null
icon: 'mdi:toaster-oven'
name: Cucina
styles:
card:
- font-size: 12px
tap_action:
entity_id: vacuum.aspirapolvere
command: clean
params:
act: start
content: 1,
count: 1
type: spotArea
type: 'custom:button-card'
Is this correct?
No, if you want to use it in card directly:
- color: auto
entity: null
icon: 'mdi:bed-empty'
name: Camera
styles:
card:
- font-size: 12px
tap_action:
action: call-service
service: vacuum.send_command
service_data:
entity_id: vacuum.robi
command: clean
params:
act: start
content: '10,14'
count: 1
type: spotAreaI just tried it… but doesn’t seem to work…
cards:
- color: auto
entity: null
icon: 'mdi:toaster-oven'
name: Cucina
styles:
card:
- font-size: 12px
tap_action:
action: call-service
service: vacuum.send_command
service_data:
entity_id: vacuum.aspirapolvere
command: clean
params:
act: start
content: '1,'
count: 1
type: spotArea
Fixed, tap_action was not properly indented!!!
Now it works… great!!!
Any idea on if the water level will be supported?

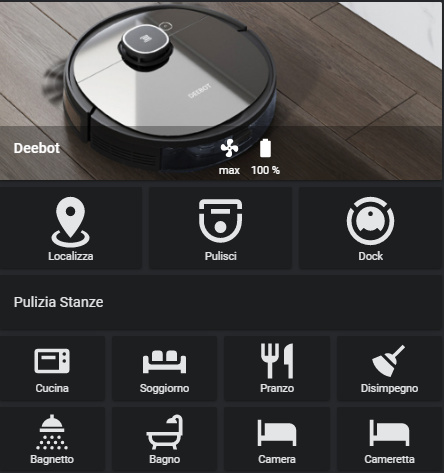

No, for now I will ignore it… this is my result:
Great result

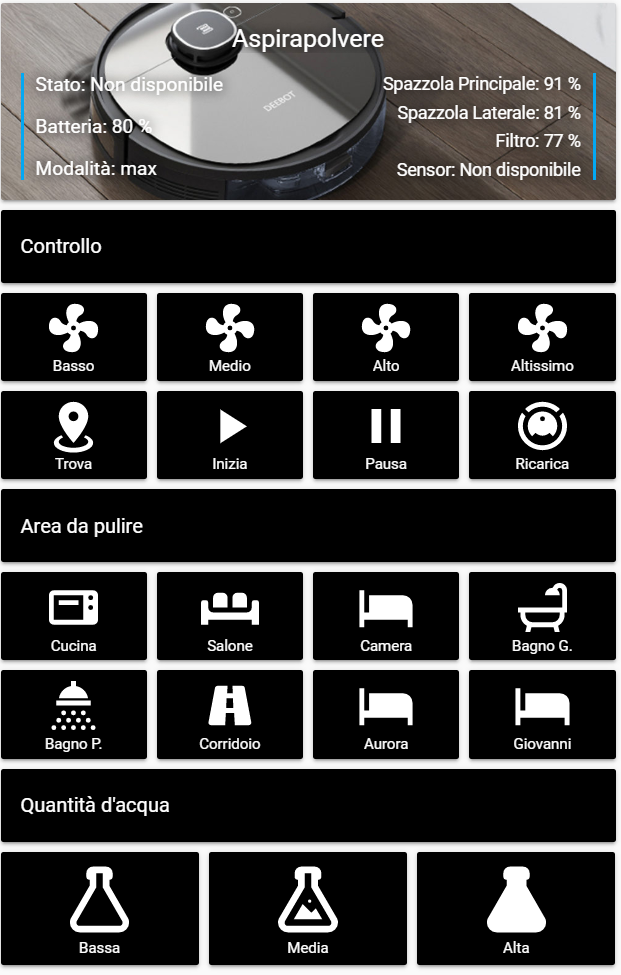

That’s my result… would you mind sending me the code of your card and the image for the robot? I like more the way you did it
and your icons…
Is there a way to transform the rooms into a checkboxs (like ON/OFF) and then click a button to clean all the selected rooms? Moreover, also a once/twice dropdown list would be great
That is:
cards:
- aspect_ratio: 0%
entities:
- entity: input_select.fan_speed
show_state: true
- entity: sensor.deebot_battery_level
show_state: true
entity: vacuum.robi
image: >-
https://www.smartcleaningtips.com/wp-content/uploads/2019/08/ECOVACS-DEEBOT-OZMO-920-3-1000x400.jpg
title: Deebot
type: picture-glance
- cards:
- color: auto
entity: null
icon: 'mdi:map-marker-radius'
name: Localizza
styles:
card:
- font-size: 12px
tap_action:
action: call-service
service: vacuum.locate
service_data:
entity_id: vacuum.robi
type: 'custom:button-card'
- color: auto
entity: null
icon: 'mdi:robot-vacuum-variant'
name: Pulisci
styles:
card:
- font-size: 12px
tap_action:
action: call-service
service: vacuum.start
service_data:
entity_id: vacuum.robi
type: 'custom:button-card'
- color: auto
entity: null
icon: 'mdi:robot-vacuum'
name: Dock
styles:
card:
- font-size: 12px
tap_action:
action: call-service
service: vacuum.return_to_base
service_data:
entity_id: vacuum.robi
type: 'custom:button-card'
type: horizontal-stack
- cards:
- color: auto
entity: null
icon: null
name: Pulizia Stanze
styles:
card:
- font-size: 16px
name:
- justify-self: start
- padding-left: 16px
type: 'custom:button-card'
- cards:
- cards:
- color: auto
entity: null
icon: 'mdi:toaster-oven'
name: Cucina
styles:
card:
- font-size: 12px
tap_action:
action: call-service
service: vacuum.send_command
service_data:
entity_id: vacuum.robi
command: clean
params:
act: start
content: '0'
count: 1
type: spotArea
type: 'custom:button-card'
- color: auto
entity: null
icon: 'mdi:sofa'
name: Soggiorno
styles:
card:
- font-size: 12px
tap_action:
action: call-service
service: vacuum.send_command
service_data:
entity_id: vacuum.robi
command: clean
params:
act: start
content: '2'
count: 1
type: spotArea
type: 'custom:button-card'
- color: auto
entity: null
icon: 'mdi:silverware-fork-knife'
name: Pranzo
styles:
card:
- font-size: 12px
tap_action:
action: call-service
service: vacuum.send_command
service_data:
entity_id: vacuum.robi
command: clean
params:
act: start
content: '10'
count: 1
type: spotArea
type: 'custom:button-card'
- color: auto
entity: null
icon: 'mdi:broom'
name: Disimpegno
styles:
card:
- font-size: 12px
tap_action:
action: call-service
service: vacuum.send_command
service_data:
entity_id: vacuum.robi
command: clean
params:
act: start
content: '3'
count: 1
type: spotArea
type: 'custom:button-card'
type: horizontal-stack
type: vertical-stack
- cards:
- cards:
- color: auto
entity: null
icon: 'mdi:shower-head'
name: Bagnetto
styles:
card:
- font-size: 12px
tap_action:
action: call-service
service: vacuum.send_command
service_data:
entity_id: vacuum.robi
command: clean
params:
act: start
content: '5'
count: 1
type: spotArea
type: 'custom:button-card'
- color: auto
entity: null
icon: 'mdi:shower'
name: Bagno
styles:
card:
- font-size: 12px
tap_action:
action: call-service
service: vacuum.send_command
service_data:
entity_id: vacuum.robi
command: clean
params:
act: start
content: '4'
count: 1
type: spotArea
type: 'custom:button-card'
- color: auto
entity: null
icon: 'mdi:bed-empty'
name: Camera
styles:
card:
- font-size: 12px
tap_action:
action: call-service
service: vacuum.send_command
service_data:
entity_id: vacuum.robi
command: clean
params:
act: start
content: '6'
count: 1
type: spotArea
type: 'custom:button-card'
- color: auto
entity: null
icon: 'mdi:bed-empty'
name: Cameretta
styles:
card:
- font-size: 12px
tap_action:
action: call-service
service: vacuum.send_command
service_data:
entity_id: vacuum.robi
command: clean
params:
act: start
content: '9'
count: 1
type: spotArea
type: 'custom:button-card'
type: horizontal-stack
type: vertical-stack
type: vertical-stack
I would upgrade to multi select… but I don’t know which HA component I can use…
Done!!! Thanks
My open points are now:
buttons:
locate: false
pause: false
return: false
spot: false
start: false
stop: false
entity: vacuum.aspirapolvere
image: /local/deebot.jpg
name: Aspirapolvere
type: 'custom:xiaomi-vacuum-card'
vendor: deebot

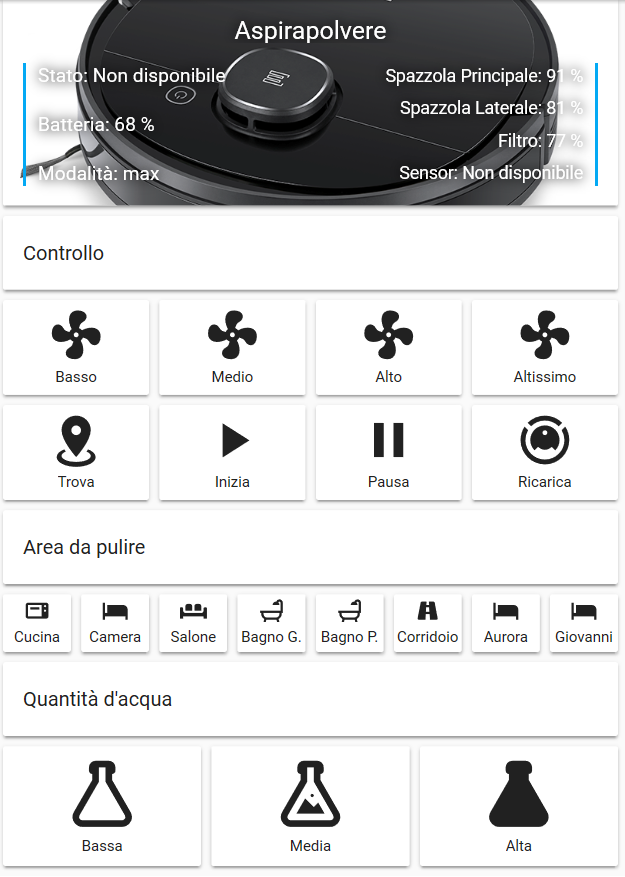

Big Update!
This is how last cleaned room looks like
Moreover, I cannot read the status: I tried with “state”, “vacuum_status” and “status”…
I’m trying to use input_boolean
UI is ready… now I need to understand how to format the action accordingly
- cards:
- color: 'rgb(255, 0, 0)'
entity: input_boolean.deebot_cucina
icon: 'mdi:toaster-oven'
state:
- color: 'rgb(100, 100, 100)'
value: 'off'
styles:
card:
- font-size: 12px
- background-color: black
- color: white
type: 'custom:button-card'
- color: 'rgb(255, 0, 0)'
entity: input_boolean.deebot_sala
icon: 'mdi:sofa'
state:
- color: 'rgb(100, 100, 100)'
value: 'off'
styles:
card:
- font-size: 12px
- background-color: black
- color: white
type: 'custom:button-card'
- color: 'rgb(255, 0, 0)'
entity: input_boolean.deebot_camera
icon: 'mdi:bed-king'
state:
- color: 'rgb(100, 100, 100)'
value: 'off'
styles:
card:
- font-size: 12px
- background-color: black
- color: white
type: 'custom:button-card'
- color: 'rgb(255, 0, 0)'
entity: input_boolean.deebot_bagno_grande
icon: 'mdi:shower'
state:
- color: 'rgb(100, 100, 100)'
value: 'off'
styles:
card:
- font-size: 12px
- background-color: black
- color: white
type: 'custom:button-card'
type: horizontal-stack
- cards:
- color: 'rgb(255, 0, 0)'
entity: input_boolean.deebot_bagno_piccolo
icon: 'mdi:shower-head'
state:
- color: 'rgb(100, 100, 100)'
value: 'off'
styles:
card:
- font-size: 12px
- background-color: black
- color: white
type: 'custom:button-card'
- color: 'rgb(255, 0, 0)'
entity: input_boolean.deebot_corridoio
icon: 'mdi:road-variant'
state:
- color: 'rgb(100, 100, 100)'
value: 'off'
styles:
card:
- font-size: 12px
- background-color: black
- color: white
type: 'custom:button-card'
- color: 'rgb(255, 0, 0)'
entity: input_boolean.deebot_aurora
icon: 'mdi:bed-empty'
state:
- color: 'rgb(100, 100, 100)'
value: 'off'
styles:
card:
- font-size: 12px
- background-color: black
- color: white
type: 'custom:button-card'
- color: 'rgb(255, 0, 0)'
entity: input_boolean.deebot_giovanni
icon: 'mdi:bed-empty'
state:
- color: 'rgb(100, 100, 100)'
value: 'off'
styles:
card:
- font-size: 12px
- background-color: black
- color: white
type: 'custom:button-card'
- color: 'rgb(0, 255, 0)'
entity: input_boolean.deebot_times
icon: 'mdi:numeric-2'
state:
- color: 'rgb(255, 0, 0)'
value: 'off'
icon: 'mdi:numeric-1'
styles:
card:
- font-size: 12px
- background-color: black
- color: white
type: 'custom:button-card'
type: horizontal-stack
This code doesn’t seem to work…
- color: white
entity: null
icon: 'mdi:view-dashboard-outline'
name: Stanze
styles:
card:
- font-size: 12px
- background-color: black
- color: white
tap_action:
action: call-service
service: vacuum.send_command
service_data:
command: spot_area
entity_id: vacuum.aspirapolvere
params:
cleanings: |-
{% if ('input_boolean.deebot_times', 'on') %}
2
{% else %}
1
{% endif %}
rooms: |-
{% if ('input_boolean.deebot_cucina', 'on') %}
1,
{% endif %}
{% if ('input_boolean.deebot_sala', 'on') %}
0,
{% endif %}
{% if ('input_boolean.deebot_camera', 'on') %}
3,
{% endif %}
{% if ('input_boolean.deebot_bagno_grande', 'on') %}
5,
{% endif %}
{% if ('input_boolean.deebot_bagno_piccolo', 'on') %}
8,
{% endif %}
{% if ('input_boolean.deebot_corridoio', 'on') %}
2,
{% endif %}
{% if ('input_boolean.deebot_aurora', 'on') %}
7,
{% endif %}
{% if ('input_boolean.eebot_giovanni', 'on') %}
6,
{% endif %}
type: 'custom:button-card'
How did you get that map of your place off the bot?
I have a 930 … it’s using the old firmware. I think the Firmware Update URL for this model is broken. I’ve had a bit of a circling with support over this.
last_clean_image
Thanks for all the great work guys. I am still kinda learning the whole HA and yaml thing and naturally I am confused. I got the HACS integration to work and also the card to display something but I am not able to control but maybe can somebody post everything he/she wrote? What belongs in the cards and what in the config, automation files? I am a little bit confused and maybe I could use that as a start. Thanks in advance!
Hi Stefano,
sorry I missed something…what are you referring to?
UI is ready to manage selection of multiple rooms and number of times with buttons and input_booleans…
I also have the code to feed rooms and cleanings parameters… but it doesn’t seem to work…
cleanings: >
{%- if is_state('input_boolean.deebot_times', 'on')
-%}2{%- else -%}1{%- endif -%}
rooms: >
{%- if is_state('input_boolean.deebot_cucina', 'on')
-%}1,{% endif %}{%- if
is_state('input_boolean.deebot_sala', 'on')-%}0,{% endif
%}{%- if is_state('input_boolean.deebot_camera',
'on')-%}3,{% endif %}{%- if
is_state('input_boolean.deebot_bagno_grande','on')
-%}5,{% endif %} {%- if
is_state('input_boolean.deebot_bagno_piccolo','on')
-%}8,{% endif %}{%- if
is_state('input_boolean.deebot_corridoio', 'on')-%}2,{%
endif %} {%- if is_state('input_boolean.deebot_aurora',
'on')-%}7,{% endif %}{%- if
is_state('input_boolean.deebot_giovanni', 'on') -%}6,{%
endif %}
In general… it seems that I’m not able to transform parametric values, code included in {{, % or whatever else… into the final result value inside the lovelace.yaml…
Am I missing something?
I’m very close to the solution…
With notify.notify I can read the value of x, and it’s correct… but it doesn’t work with rooms…
- type: 'custom:config-template-card'
entities:
- input_boolean.deebot_times
- input_boolean.deebot_cucina
- input_boolean.deebot_sala
- input_boolean.deebot_camera
- input_boolean.deebot_bagno_grande
- input_boolean.deebot_bagno_piccolo
- input_boolean.deebot_corridoio
- input_boolean.deebot_aurora
- input_boolean.deebot_giovanni
card:
type: 'custom:button-card'
color: white
entity: null
icon: 'mdi:view-dashboard-outline'
name: Stanze
styles:
card:
- font-size: 12px
- background-color: black
- color: white
tap_action:
action: call-service
service: vacuum.send_command
#service: notify.notify
service_data:
command: spot_area
entity_id: vacuum.aspirapolvere
params:
cleanings: >-
{%- if is_state('input_boolean.deebot_times', 'on') -%}2{%- else
-%}1{%- endif -%}
rooms: >-
{%- set x = "" %}
{% if is_state('input_boolean.deebot_cucina', 'on') %}
{% set x = x + "1," %}
{% endif %}
{% if is_state('input_boolean.deebot_sala', 'on') %}
{% set x = x + "0," %}
{% endif %}
{% if is_state('input_boolean.deebot_camera', 'on') %}
{% set x = x + "3," %}
{% endif %}
{% if is_state('input_boolean.deebot_bagno_grande','on') %}
{% set x = x + "5," %}
{% endif %}
{% if is_state('input_boolean.deebot_bagno_piccolo','on') %}
{% set x = x + "8," %}
{% endif %}
{% if is_state('input_boolean.deebot_corridoio', 'on') %}
{% set x = x + "2," %}
{% endif %}
{% if is_state('input_boolean.deebot_aurora', 'on') %}
{% set x = x + "7," %}
{% endif %}
{% if is_state('input_boolean.deebot_giovanni', 'on') %}
{% set x = x + "6," %}
{% endif %}
{{x[:-1]}}
