I’m trying to make the ESPHome initialization via the serial port of an ESP32C6.
https://web.esphome.io/
When I attempt to use the “Prepare for First Use” button on the main web page a box reports:
Error: Unsupported platform ESP32C6.
Only …S2, …S3, …C3 are supported.
How were you able to upload to ESP32C6?
My thanks
Taken from discord group. Only issue is it sets the flash as 8MB instead of 4MB but it seems to work. Having issues with the screen but everything else is working
esphome:
name: esp32c6new
friendly_name: esp32c6new
platformio_options:
platform: https://github.com/platformio/platform-espressif32/archive/refs/tags/v6.7.0.zip
board_build.f_cpu: 160000000L
board_build.f_flash: 80000000L
board_build.flash_size: 4MB
build_flags: “-DBOARD_HAS_PSRAM”
board_build.arduino.memory_type: qio_opi
esp32:
board: esp32-c6-devkitm-1
variant: esp32c6
framework:
type: esp-idf
version: 5.2.1
platform_version: 6.7.0
# version: latest
sdkconfig_options:
CONFIG_ESPTOOLPY_FLASHSIZE_4MB: y
Dont want to read the long text ?
Scroll down to EDIT 2
I am also trying to get this little screen in esphome
but after successful connection it stuck on the “circle of dead” with “Preparing Installation”
.
I already tried to uninstall and reinstall esphome
I tried this config:
esphome:
name: esp32c6new
friendly_name: esp32c6new
platformio_options:
platform: https://github.com/platformio/platform-espressif32/archive/refs/tags/v6.7.0.zip
board_build.f_cpu: 160000000L
board_build.f_flash: 80000000L
board_build.flash_size: 4MB
build_flags: “-DBOARD_HAS_PSRAM”
board_build.arduino.memory_type: qio_opi
esp32:
board: esp32-c6-devkitm-1
variant: esp32c6
framework:
type: esp-idf
version: 5.2.1
platform_version: 6.7.0
# version: latest
sdkconfig_options:
CONFIG_ESPTOOLPY_FLASHSIZE_4MB: y
and also this config: (found on the esp github page)
esphome:
name: esp32c6new
friendly_name: esp32c6new
platformio_options:
build_flags: "-DI2C_NUM_1=I2C_NUM_0"
esp32:
board: esp32-c6-devkitc-1
# flash_size: 4MB
variant: esp32c6
framework:
type: esp-idf
version: "5.3.1"
platform_version: 6.9.0
Any ideas ?
EDIT:
After some time (for the 1st code block) I got this message:
If I click on “See what went wrong”
I get this log:
EDIT 2:
With this code
esphome:
name: esp32c6new
friendly_name: esp32c6new
esp32:
board: esp32-c6-devkitc-1
variant: esp32c6
framework:
type: esp-idf
sdkconfig_options:
CONFIG_ESPTOOLPY_FLASHSIZE_8MB: y
version: 5.1.2
platform_version: 6.5.0
source: https://github.com/tasmota/esp-idf/releases/download/v5.1.2.240221/esp-idf-v5.1.2.zip
I was able to compile. It was complaining about the 8MB size but its working.
with
spi:
clk_pin: GPIO7
mosi_pin: GPIO6
display:
- platform: st7789v
model: CUSTOM
dc_pin: GPIO15
height: 320
width: 172
offset_height: 34
offset_width: 0
cs_pin: GPIO14
reset_pin: GPIO21
backlight_pin: GPIO22
spi_mode: 3
data_rate: 4000000.0
id: tft_ha
lambda: |-
// Draw a circle in the middle of the display
it.filled_circle(it.get_width() / 2, it.get_height() / 2, 20);
its drawing the circle in the middle of the screen.
Thanks to all contributors.
It does work now. Took hours but the code below works!
For beginners like me - First time install:
Write the yaml file and then complile manually to make a download bin file.
Plug the ESP32C6-lcd into your PC - check there’s a COM port has come up.
Now, using Chrome on Esphome Web connect and download the bin file to the COM port.
It should reboot and show some text!
After first file write then you can upload wirelessly on subsequent ones if you’ve set wifi correctly and esphome can find it.
I had issues with an error coming up that there was a lock file for a long time.
I had to delete the original file, paste the yaml into a new one and then manually connect again.
The next long waste of time was the unit needs to be ‘added in’ the esphome integration to be able to send data from homeassistant to it. Otherwise the sensor info comes up as nan.
p.s. Remember to ask an AI because they seem to be good at finding some useful hints.
esphome:
name: esp32-lcd
friendly_name: Esp32-LCD
esp32:
board: esp32-c6-devkitc-1
variant: esp32c6
framework:
type: esp-idf
version: 5.1.2
platform_version: 6.5.0
sdkconfig_options:
CONFIG_ESPTOOLPY_FLASHSIZE_8MB: y
source: https://github.com/tasmota/esp-idf/releases/download/v5.1.2.240221/esp-idf-v5.1.2.zip
wifi:
ssid: !secret wifi_ssid
password: !secret wifi_password
# snip - other parts in here to deal with fonts, colours, sensors etc taken from homeassistant to display on the screen.
# It didn't need another 'backlight' setting statement. Data rate doesn't seem to matter if 4000000 or 5000000
spi:
clk_pin: GPIO7
mosi_pin: GPIO6
display:
- platform: st7789v
model: Waveshare 1.47in 172X320
dc_pin: GPIO15
cs_pin: GPIO14
reset_pin: GPIO21
backlight_pin: GPIO22
spi_mode: 3
data_rate: 5000000.0
update_interval: 1s
id: tft_ha
rotation: 270
lambda: |-
it.rectangle(0, 0, it.get_width(), it.get_height(), id(my_blue));
it.rectangle(0, 28, it.get_width(), it.get_height(), id(my_blue)); // header bar
it.strftime(15, 2, id(helvetica_24), id(my_gray), TextAlign::LEFT, "%Y-%m-%d", id(esptime).now());
it.strftime(160, 2, id(helvetica_24), id(my_gray), TextAlign::LEFT, "%H:%M:%S", id(esptime).now());
it.print(10, 35, id(helvetica_24), id(my_red), "Electrical Power");
it.printf(10, 65, id(arial), id(my_gray), "G1:%.0fW G1k:%.0fW G1w:%.0fW", id(g1_power).state, id(g1k_power).state, id(g1w_power).state);
it.printf(10, 85, id(arial), id(my_gray), "G2:%.0fW G2f:%.0fW G2ts:%.0fW", id(g2_power).state, id(g2f_power).state, id(g2ts_power).state);
You’re going to have to define the sensors and colours and time output but they should be fairly easy. Sample here:
time:
- platform: homeassistant
id: esptime
sensor:
- platform: homeassistant
id: g1_power
entity_id: sensor.g1_c0_main_power_minute_average
# these bits below don't seem to matter if in or not
unit_of_measurement: "W"
state_class: "measurement"
internal: true

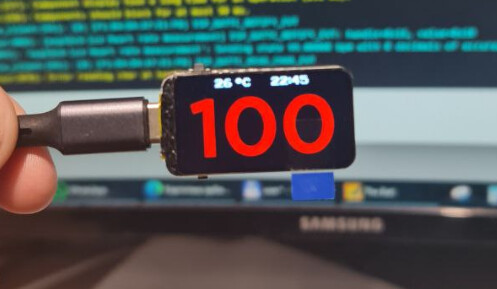

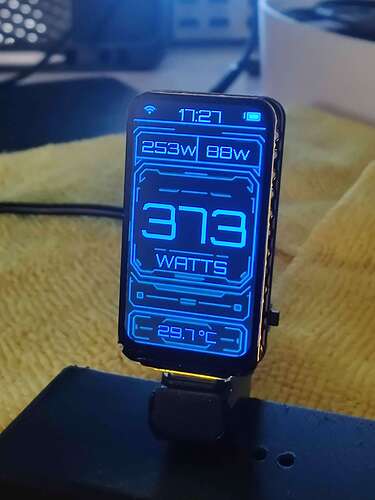

Here’s my config that reports the wifi signal, home assistant API connection and the temperature and humidity index from my Bambu Lab AMS.
Feel free to change the font files for your own liking.
My working config:
substitutions:
friendly_name: "ESP32-C6-LCD-1.47"
device_name: esp32-c6-lcd-147
id: esp32_c6_lcd_147
area: Home Assistant
device_description: ""
bt_proxy: "false"
logger: "DEBUG"
# logger: "VERY_VERBOSE"
vendor: "Waveshare"
model: "ESP32-C6-LCD-1-47in"
device_version: "v"
microcontroller: "ESP32-C6FH4 (QFN32) (revision v0.1)"
frequency: "160MHz"
ram: "512KB"
rom: "320KB"
hp_sram: "512KB"
lp_sram: "16KB"
flash: "4MB"
features: "WiFi 6, BT 5, Thread (802.15.4)"
crystal: "40MHz"
mac: "9c:9e:6e:ff:fe:76:51:a8"
base_mac: "9c:9e:6e:76:51:a8"
mac_ext: "ff:fe"
# i2c
i2c_id: bus_a
sda: GPIO1
scl: GPIO2
scan: "false"
# SPI bus for LCD and SD Card
miso_pin: GPIO5
mosi_pin: GPIO6
clk_pin: GPIO7
# LCD Pinout
lcd_cs_pin: GPIO14
lcd_dc_pin: GPIO15
lcd_reset_pin: GPIO21
lcd_backlight_pin: GPIO22
# SD Card
sd_cs_pin: GPIO4
# LED
rgb_led: GPIO8
# One Wire
one_wire: GPIO10
i2c:
- id: $i2c_id
sda: $sda
scl: $scl
scan: False
spi:
clk_pin: $clk_pin
miso_pin: $miso_pin
mosi_pin: $mosi_pin
one_wire:
- pin: $one_wire
platform: gpio
esp32:
board: esp32-c6-devkitc-1
variant: esp32c6
flash_size: 4MB
framework:
type: esp-idf
version: 5.3.1
platform_version: 6.9.0
sdkconfig_options:
CONFIG_ESPTOOLPY_FLASHSIZE_DETECT: y
CONFIG_ESPTOOLPY_FLASHSIZE_4MB: y
CONFIG_OPENTHREAD_ENABLED: n
CONFIG_USE_MINIMAL_MDNS: y
# Memory optimization
COMPILER_OPTIMIZATION_SIZE: y
COMPILER_OPTIMIZATION_LEVEL_RELEASE: y
CONFIG_COMPILER_OPTIMIZATION_ASSERTIONS_DISABLE: y
CONFIG_HEAP_POISONING_DISABLED: y
esphome:
friendly_name: $friendly_name
name: $id
name_add_mac_suffix: false
comment: "${device_description}"
area: $area
project:
name: "${vendor}.${model}"
version: "${device_version}"
platformio_options:
board_build.flash_mode: dio
build_flags:
- "-DI2C_NUM_1=I2C_NUM_0"
- "-DBOARD_HAS_PSRAM"
- "-Wl,-Map,output.map"
board_build.arduino.memory_type: qio_opi
platform_packages:
- platformio/toolchain-xtensa-esp-elf @ 14.2.0+20241119
logger:
level: $logger
api:
id: api_id
reboot_timeout: 300s
on_client_connected:
if:
condition:
api.connected:
then:
- logger.log:
format: "API Connection: %s [%s]"
args: ["client_info.c_str()", "client_address.c_str()"]
on_client_disconnected:
- logger.log:
format: "API Disonnection: %s [%s]"
args: ["client_info.c_str()", "client_address.c_str()"]
ota:
- platform: esphome
id: ota_esphome
safe_mode:
on_safe_mode:
- logger.log: "Safe Mode Activated"
wifi:
id: wifi_id
ssid: !secret wifi_ssid
password: !secret wifi_password
fast_connect: off
reboot_timeout: 5min
power_save_mode: HIGH
# ap:
# ssid: "${friendly_name} Fallback"
# password: !secret wifi_ap_password
# manual_ip:
# static_ip: $static_ip
# gateway: !secret gateway
# subnet: !secret subnet
# dns1: !secret dns1
# dns2: !secret dns2
# ap_timeout: 5min
on_connect:
then:
- logger.log: "WiFi connected"
on_disconnect:
then:
- logger.log: "WiFi disconnected"
# ESP-IDF ONLY https://esphome.io/components/wifi.html
# Enable 802.11v BSS Transition Management support.
enable_btm: true
# Enable 802.11k Radio Resource Management support.
enable_rrm: true
network:
enable_ipv6: False
# https://esphome.io/components/esp32_ble_tracker
# Enable Bluetooth Proxying
esp32_ble_tracker:
id: ble_tracker
scan_parameters:
interval: 1100ms
window: 1100ms
active: ${bt_proxy}
continuous: false
on_scan_end:
- then:
- lambda: |-
ESP_LOGD("ble_auto", "The scan has ended!");
# https://esphome.io/components/bluetooth_proxy.html
bluetooth_proxy:
id: ble_proxy
# Enables proxying active connections. Defaults to false.
active: ${bt_proxy}
cache_services: true
# https://esphome.io/components/esp32_improv.html
esp32_improv:
authorizer: none
on_start:
then:
- logger.log: "Improv awaiting authorization/authorized"
on_provisioning:
then:
- logger.log: "Improv provisioning"
on_provisioned:
then:
- logger.log: "Improv provisioned"
on_stop:
then:
- logger.log: "Improv stopped"
on_state:
then:
- if:
condition:
lambda: return state == improv::STATE_AUTHORIZED;
then:
- logger.log: "Improv state is STATE_AUTHORIZED"
# https://esphome.io/components/improv_serial
improv_serial:
# https://esphome.io/components/captive_portal
# captive_portal:
# deep_sleep:
# run_duration: 2min # Time the device stays awake
# sleep_duration: 28min # Time the device sleeps
text_sensor:
# ESPHome Version
- platform: version
name: "ESPHome Version"
id: "${id}_esphome_version"
icon: si:esphomes
hide_timestamp: 'true'
entity_category: diagnostic
# WiFi Info: IP, MAC, SSID, BSSID, Scan
- platform: wifi_info
ip_address:
name: "IP Address"
icon: mdi:ip
entity_category: diagnostic
update_interval: never
disabled_by_default: True
mac_address:
name: "WiFi MAC Address"
icon: mdi:fingerprint
entity_category: diagnostic
disabled_by_default: True
ssid:
name: "Connected SSID"
icon: mdi:wifi-settings
entity_category: diagnostic
update_interval: never
disabled_by_default: True
bssid:
name: "Connected BSSID"
icon: mdi:wifi
entity_category: diagnostic
update_interval: never
disabled_by_default: True
scan_results:
name: "Latest Scan Results"
icon: mdi:wifi-sync
entity_category: diagnostic
disabled_by_default: True
binary_sensor:
# https://esphome.io/components/binary_sensor/status.html
# Reports if this device is Connected or not
- platform: status
name: "Status"
id: "${id}_status"
icon: mdi:check-network
entity_category: diagnostic
button:
# Remotely reboot your node into Safe Mode.
# https://esphome.io/components/switch/safe_mode.html
- platform: safe_mode
name: "(Safe Mode)"
icon: mdi:restart-alert
id: "${id}_safe_mode"
entity_category: config
disabled_by_default: True
# Restart
- platform: restart
name: "Restart"
icon: mdi:restart
id: "${id}_restart"
# entity_category: diagnostic
disabled_by_default: True
# Shutdown
- platform: shutdown
name: "Shutdown"
id: "${id}_shutdown"
# entity_category: diagnostic
disabled_by_default: True
light:
# RGB LED
- platform: esp32_rmt_led_strip
pin:
number: $rgb_led
ignore_strapping_warning: true
name: "RGB LED"
id: rgb_led
chipset: ws2812
rmt_channel: 0
num_leds: 1
rgb_order: RGB
# gamma_correct: 2.8
default_transition_length: 2s
restore_mode: RESTORE_DEFAULT_OFF
effects:
- random:
- random:
name: "My Slow Random Effect"
transition_length: 30s
update_interval: 30s
- random:
name: "My Fast Random Effect"
transition_length: 4s
update_interval: 5s
- pulse:
- pulse:
name: "Fast Pulse"
transition_length: 0.5s
update_interval: 0.5s
min_brightness: 0%
max_brightness: 100%
- pulse:
name: "Slow Pulse"
transition_length: 500ms
update_interval: 2s
- pulse:
name: "Asymmetrical Pulse on1s off500ms"
transition_length:
on_length: 1s
off_length: 500ms
update_interval: 1.5s
- strobe:
- strobe:
name: "Strobe Effect br100 r100g90b0 250/500"
colors:
- state: true
brightness: 100%
red: 100%
green: 90%
blue: 0%
duration: 500ms
- state: false
duration: 250ms
- state: true
brightness: 100%
red: 0%
green: 100%
blue: 0%
duration: 500ms
- flicker:
- flicker:
name: "Flicker a95 i1.5"
alpha: 95%
intensity: 1.5%
- addressable_rainbow:
- addressable_rainbow:
name: "Rainbow w12"
width: 12
- addressable_rainbow:
name: "Rainbow sp10 w50"
speed: 10
width: 50
- addressable_color_wipe:
- addressable_color_wipe:
name: "Color Wipe r100g100b100 100ms"
colors:
- red: 100%
green: 100%
blue: 100%
num_leds: 1
gradient: true
- red: 0%
green: 0%
blue: 0%
num_leds: 1
add_led_interval: 100ms
reverse: false
- addressable_scan:
- addressable_scan:
name: "Scan Effect i100ms w1"
move_interval: 100ms
scan_width: 1
- addressable_twinkle:
- addressable_twinkle:
name: "Twinkle p5 i4ms"
twinkle_probability: 5%
progress_interval: 4ms #default 4ms
- addressable_twinkle:
name: "Twinkle p50 i4ms"
twinkle_probability: 50%
- addressable_random_twinkle:
- addressable_random_twinkle:
name: "Random Twinkle p50 i32ms"
twinkle_probability: 5%
progress_interval: 32ms
- addressable_fireworks:
- addressable_fireworks:
name: "Fireworks sp10% fade120 i32ms"
spark_probability: 10%
use_random_color: false
fade_out_rate: 120
update_interval: 32ms
- addressable_flicker:
- addressable_flicker:
name: Flicker Effect With Custom Values
update_interval: 16ms
intensity: 5%
- addressable_lambda:
name: "Error"
update_interval: 10ms
lambda: |-
static uint8_t brightness_step = 0;
static bool brightness_decreasing = true;
static uint8_t brightness_step_number = 10;
if (initial_run) {
brightness_step = 0;
brightness_decreasing = true;
}
Color error_color(255, 0, 0);
for (int i = 0; i < 12; i++) {
it[i] = error_color * uint8_t(255/brightness_step_number*(brightness_step_number-brightness_step));
}
if (brightness_decreasing) {
brightness_step++;
} else {
brightness_step--;
}
if (brightness_step == 0 || brightness_step == brightness_step_number) {
brightness_decreasing = !brightness_decreasing;
}
# Sync time with Home Assistant.
time:
- platform: homeassistant
id: homeassistant_time
sensor:
- platform: uptime
type: timestamp
name: Uptime
entity_category: diagnostic
# WiFi Signal sensor
- platform: wifi_signal
name: WiFi Signal
id: wifi_signal_db
icon: mdi:wifi-strength-outline
entity_category: diagnostic
update_interval: 30s
disabled_by_default: True
- platform: copy
source_id: wifi_signal_db
name: "WiFi Signal Percent"
id: wifi_signal_percent
icon: mdi:wifi-strength-outline
unit_of_measurement: "%"
filters:
- lambda: return min(max(2 * (x + 100.0), 0.0), 100.0);
entity_category: "diagnostic"
device_class: ""
disabled_by_default: True
- platform: uptime
type: seconds
name: Uptime Sensor
entity_category: diagnostic
- platform: internal_temperature
entity_category: diagnostic
name: "Internal Temperature"
- platform: homeassistant
name: AMS_Temperature
entity_id: sensor.ams_temperature
id: ams_temperature
internal: true
unit_of_measurement: "°F"
- platform: homeassistant
name: Humidity Index
entity_id: sensor.ams_humidity_index
id: ams_humidity_index
internal: true
font:
- file: "common/fonts/8-bit-nintendo.ttf"
id: nes_1x
size: 7 # Pixel Perfect
- file: "common/fonts/8-bit-nintendo.ttf"
id: nes_2x
size: 14
# - file: "common/fonts/8-bit-nintendo.ttf"
# id: nes_3x
# size: 21
# - file: "common/fonts/8-bit-nintendo.ttf"
# id: nes_4x
# size: 28
# - file: "common/fonts/gotham-Light-webfont.ttf"
# id: gotham_lt
# size: 25
- file: "common/fonts/gotham-Medium-webfont.ttf"
id: gotham_md
size: 60
# - file: "common/fonts/gotham-Black-webfont.ttf"
# id: gotham_b
# size: 30
image:
# Home Assistant Logo
- file: mdi:home-assistant
id: home_assistant_logo
# resize: 35x35
- file: mdi:home-assistant
id: home_assistant_logo_l
resize: 150x150
# WiFi
- file: mdi:signal-cellular-3
id: wifi_3
# resize: 35x35
- file: mdi:signal-cellular-2
id: wifi_2
# resize: 35x35
- file: mdi:signal-cellular-1
id: wifi_1
# resize: 35x35
- file: mdi:signal-cellular-outline
id: wifi_0
# resize: 35x35
- file: mdi:signal-off
id: wifi_off
resize: 150x150
# Temperature
- file: mdi:thermometer-low
id: temp_low
resize: 200x200
- file: mdi:thermometer
id: temp_med
resize: 200x200
- file: mdi:thermometer-high
id: temp_high
resize: 200x200
# Humidity
- file: mdi:water
id: water_drop
resize: 100x100
# - file: mdi:water-percent
# id: hum_icon
# resize: 30x30
# - file: mdi:water-percent-alert
# id: hum_icon_alert
# resize: 30x30
output:
- platform: ledc
pin: $lcd_backlight_pin
id: lcd_backlight
frequency: 1000 Hz
number:
- platform: template
name: "Display Brightness"
id: display_brightness
optimistic: true
min_value: 0
max_value: 100
step: 1
initial_value: 100
restore_value: true
mode: slider
on_value:
then:
- output.set_level:
id: lcd_backlight
level: !lambda "return x / 100.0;"
# https://esphome.io/components/display/
# TFT Display (ST7789)
display:
- platform: st7789v
cs_pin: $lcd_cs_pin
dc_pin:
number: $lcd_dc_pin
ignore_strapping_warning: true
reset_pin: $lcd_reset_pin
model: Waveshare 1.47in 172X320
id: tft_ha
rotation: 0
lambda: |-
ESP_LOGD("display", "Display update running");
auto black = Color(0, 0, 0);
auto gray = Color(128, 128, 128);
auto red = Color(255, 0, 0);
auto orange = Color(255, 165, 0);
auto yellow = Color(255, 255, 0);
auto green = Color(0, 255, 0);
auto blue = Color(0, 0, 255);
auto hablue = Color(3, 169, 244);
auto white = Color(255, 255, 255);
// Check if the HA time text sensor is available
// if (id(readable_ha_time).has_state() && id(readable_ha_time).state.length() > 0) {
// Print time from HA text sensor
// it.printf(it.get_width()/2, 10, id(nes_1x), TextAlign::TOP_CENTER, "%s", id(readable_ha_time).state.c_str());
// } else {
// Fallback to time from ESPHome's `homeassistant_time`
auto cur_time = id(homeassistant_time).now();
if (cur_time.is_valid()) {
auto hour = cur_time.hour;
auto ampm = "am";
// Convert military time to standard AM/PM format
if (hour > 12) hour = hour - 12;
if (hour >= 12) ampm = "pm";
if (hour == 0) hour = 12; // Midnight adjustment
// Print formatted time
// it.printf(it.get_width()/2, -10, id(nes_2x), TextAlign::TOP_CENTER, "%2d:%02d %s", hour, cur_time.minute, ampm);
it.printf(it.get_width()/2, -8, id(nes_2x), TextAlign::TOP_CENTER, "%2d:%02d", hour, cur_time.minute);
} else {}
// }
// Determine the appropriate WiFi icon
if (!id(wifi_signal_percent).has_state()) {
// Display WiFi off icon when disconnected
it.image(it.get_width()/2, it.get_height()/2, id(wifi_off), ImageAlign::CENTER, gray);
} else {
// Home Assistant API Connection Status
if (!id(api_id).is_connected()) {
// When disconnected, draw the icon with reduced opacity or you could skip drawing it
it.image(it.get_width()/2, it.get_height()/2, id(home_assistant_logo_l), ImageAlign::CENTER, gray); // Gray color for disconnected state
} else {
it.image(it.get_width()-2, 0, id(home_assistant_logo), ImageAlign::TOP_RIGHT, hablue);
}
// WiFi Signal Strength Status
int wifi_strength = id(wifi_signal_percent).state;
if (wifi_strength >= 75) {
it.image(5, 0, id(wifi_3), ImageAlign::TOP_LEFT, green);
} else if (wifi_strength >= 50) {
it.image(5, 0, id(wifi_2), ImageAlign::TOP_LEFT, orange);
} else if (wifi_strength >= 25) {
it.image(5, 0, id(wifi_1), ImageAlign::TOP_LEFT, yellow);
} else {
it.image(5, 0, id(wifi_0), ImageAlign::TOP_LEFT, red);
}
}
// Humidity Index
if (id(ams_humidity_index).has_state()) {
if (!isnan(id(ams_humidity_index).state)) {
//Humidity Index Status
int hum_idx = id(ams_humidity_index).state;
if (hum_idx == 1) {
it.image(it.get_width()/2 +10, it.get_height()/2, id(temp_low), ImageAlign::CENTER, blue);
it.image(it.get_width()/2 -38, it.get_height()/2 +2, id(water_drop), ImageAlign::CENTER, black);
it.image(it.get_width()/2 -40, it.get_height()/2, id(water_drop), ImageAlign::CENTER, blue);
} else if (hum_idx == 2) {
it.image(it.get_width()/2 +10, it.get_height()/2, id(temp_med), ImageAlign::CENTER, green);
it.image(it.get_width()/2 -38, it.get_height()/2 +2, id(water_drop), ImageAlign::CENTER, black);
it.image(it.get_width()/2 -40, it.get_height()/2, id(water_drop), ImageAlign::CENTER, green);
} else if (hum_idx == 3) {
it.image(it.get_width()/2 +10, it.get_height()/2, id(temp_med), ImageAlign::CENTER, yellow);
it.image(it.get_width()/2 -38, it.get_height()/2 +2, id(water_drop), ImageAlign::CENTER, black);
it.image(it.get_width()/2 -40, it.get_height()/2, id(water_drop), ImageAlign::CENTER, yellow);
} else if (hum_idx == 4) {
it.image(it.get_width()/2 +10, it.get_height()/2, id(temp_high), ImageAlign::CENTER, orange);
it.image(it.get_width()/2 -38, it.get_height()/2 +2, id(water_drop), ImageAlign::CENTER, black);
it.image(it.get_width()/2 -40, it.get_height()/2, id(water_drop), ImageAlign::CENTER, orange);
} else if (hum_idx == 5) {
it.image(it.get_width()/2 +10, it.get_height()/2, id(temp_high), ImageAlign::CENTER, red);
it.image(it.get_width()/2 -38, it.get_height()/2 +2, id(water_drop), ImageAlign::CENTER, black);
it.image(it.get_width()/2 -40, it.get_height()/2, id(water_drop), ImageAlign::CENTER, red);
} else {}
it.printf(it.get_width()/2 +10, it.get_height()/2 +40, id(gotham_md), white, TextAlign::CENTER, "%.0f", id(ams_humidity_index).state);
} else {}
} else {}
// AMS Temperature
if (id(ams_temperature).has_state()) {
if (!isnan(id(ams_temperature).state)) {
it.printf(it.get_width()/2, it.get_height()+10, id(nes_2x), white, TextAlign::BOTTOM_CENTER, "%.0f °F", id(ams_temperature).state);
} else {}
} else {}
I can’t compile it, i always get error messages. can you share the already compiled bin file?
Thanks
Thanks, this works perfectly! Also, I must say it’s a very nice layout.
Before I found your config, I struggled quite a while with the display working initially but not after a restart. I wonder what exactly in your config solved this. Is it due to the newer ESP-IDF?
PS: Check out Time Component — ESPHome strftime. You could use something like it.strftime(it.get_width()/2, 2, id(nes_2x), TextAlign::TOP_CENTER, "%I:%M", cur_time); to display the time in the imperial 12-hour format and save a few lines of code.
Make sure to update to the latest ESPHome device builder. If it still doesn’t work, post the error messages here.
Surely you will want to adapt the config somewhat, so a .bin file won’t be very helpful.
Thanks! Although I am certainly not a coder, I do have a design background. I wish I could figure out how to use gradients but I’m always hitting the 4MB limit of storage on this little guy.
I struggled with getting this device to work. I scoured through github and these were the latest settings I could find that would compile (challenge no. 1), boot (challenge no. 2) and not crash (challenge no. 3, aka the final boss).
Thank you for the suggestion of the time component. I’ll integrate that into my collection of snippets I use across my esphome projects.
Ultimately though… I’m still in my return window and am gonna send this back. I found the amount of storage too limiting and I’d rather learn how to use LVGL and no matter what settings/optimizations/component removals I tried, I just couldn’t get LVGL to fit in the storage amount and work. I think the best I got was 100.63% of the storage size. I’m gonna go with the gambler’s take on this one…
“Gotta know when to hold 'em, know then to fold 'em.”
Godspeed to the rest of ya.
