Homeassistant replacing Heimdall, Homer ... etc

[pixelwave]

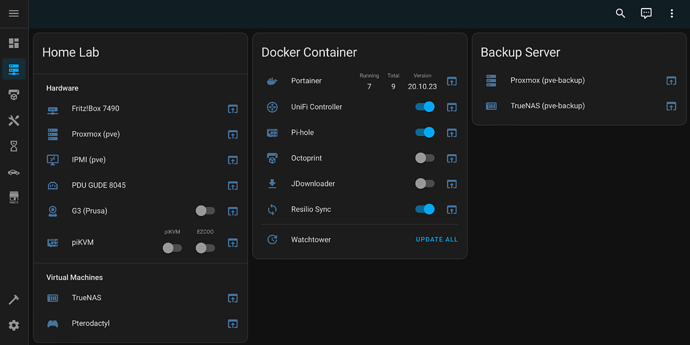

I wanted to share my - work in progress - endeavour to replace heimdall with a custom Homeassistant page:

Some noteworthy plugins for people trying to rebuild:

• multiple-entity-row (HACS)
• Monitor Docker (HACS)

I can control hardware (on/off) and read power consumption via my Gude PDU / POE access to the Unifi Switch:

Example of an entity config (piKVM):

  - entity: sun.sun
    name: piKVM
    icon: mdi:raspberry-pi
    show_state: false
    toggle: true
    type: custom:multiple-entity-row
    entities:
      - entity: switch.usw_16_poe_port_1_poe
        toggle: true
        name: piKVM
      - entity: switch.pdu_port_6_switch
        toggle: true
        name: EZCOO
      - type: button
        action_name: OPEN
        tap_action:
          action: url
          url_path: https://192.***/
        icon: mdi:open-in-app

[VCTGomes (Vitor Gomes)]

How could I set the sensor chip (which is being CPU) on right side in the center?

[RichardKimble]

Thank you so much for sharing this. I also have a Gude PDU, and I have followed your very helpful thread dedicated to that.
I see that you now even managed to show the current power consumption. That is awesome! Could you give advice or even share the code on how to do that?

[pixelwave]

Power consumption is supported via MQTT with the latest firmware update on the GUDE.

[LIP90 (Philipp)]

@pixelwave can you share your config from the fritzbox link with the icon at the end?

[cdnr1]

can you post some examples on how youve done what you have ?

[pixelwave]

This card:

Done via this code (you need some HACS frontend addons like "multiple-entity-row):

type: entities
entities:
  - type: section
    label: Hardware
  - entity: sun.sun
    name: Fritz!Box 7490
    icon: mdi:router-network
    show_state: false
    toggle: true
    type: custom:multiple-entity-row
    entities:
      - type: button
        action_name: OPEN
        tap_action:
          action: url
          url_path: http://192.168.178.1/
        icon: mdi:open-in-app
  - entity: sun.sun
    name: IPMI (pve)
    icon: mdi:remote-desktop
    show_state: false
    toggle: true
    type: custom:multiple-entity-row
    entities:
      - type: button
        action_name: OPEN
        tap_action:
          action: url
          url_path: http://192.*...*
        icon: mdi:open-in-app
  - entity: sun.sun
    name: PDU GUDE 8045
    icon: mdi:power-socket
    show_state: false
    toggle: true
    type: custom:multiple-entity-row
    entities:
      - type: button
        action_name: OPEN
        tap_action:
          action: url
          url_path: http://192.*...*
        icon: mdi:open-in-app
  - entity: sun.sun
    name: piKVM
    icon: mdi:raspberry-pi
    show_state: false
    toggle: true
    type: custom:multiple-entity-row
    entities:
      - entity: switch.usw_16_poe_port_1_poe
        toggle: true
        name: piKVM
      - entity: switch.pdu_port_6_switch
        toggle: true
        name: EZCOO
      - type: button
        action_name: OPEN
        tap_action:
          action: url
          url_path: http://192.*...*
        icon: mdi:open-in-app
  - type: section
    label: Main Server
  - entity: sun.sun
    name: Proxmox (pve)
    icon: mdi:server
    show_state: false
    toggle: true
    type: custom:multiple-entity-row
    entities:
      - type: button
        action_name: OPEN
        tap_action:
          action: url
          url_path: http://192.*...*
        icon: mdi:open-in-app
  - entity: sun.sun
    name: TrueNAS
    icon: mdi:nas
    show_state: false
    toggle: true
    type: custom:multiple-entity-row
    entities:
      - type: button
        action_name: OPEN
        tap_action:
          action: url
          url_path: http://192.*...*
        icon: mdi:open-in-app
  - entity: sun.sun
    name: Pterodactyl
    icon: mdi:microsoft-xbox-controller
    show_state: false
    toggle: true
    type: custom:multiple-entity-row
    entities:
      - type: button
        action_name: OPEN
        tap_action:
          action: url
          url_path: http://192.*...*
        icon: mdi:open-in-app
  - type: section
    label: Backup Server
  - entity: sun.sun
    name: Proxmox (pve-backup)
    icon: mdi:server
    show_state: false
    toggle: true
    type: custom:multiple-entity-row
    entities:
      - type: button
        action_name: OPEN
        tap_action:
          action: url
          url_path: http://192.*...*
        icon: mdi:open-in-app
  - entity: sun.sun
    name: TrueNAS (pve-backup)
    icon: mdi:nas
    show_state: false
    toggle: true
    type: custom:multiple-entity-row
    entities:
      - type: button
        action_name: OPEN
        tap_action:
          action: url
          url_path: http://192.*...*
        icon: mdi:open-in-app
state_color: true
title: Home Lab

[pixelwave]

Small update on my current progress. Going to post this soon also on Github with the icon library and more …

The docker container buttons have two click-able sections. The icon is a URL link to the app the lower part (ON/OFF) directly stops or starts the container (via SSH link).

[Friskey]

This is awesome! Have you posted to GitHub yet?

[sci-fi-si (muttley)]

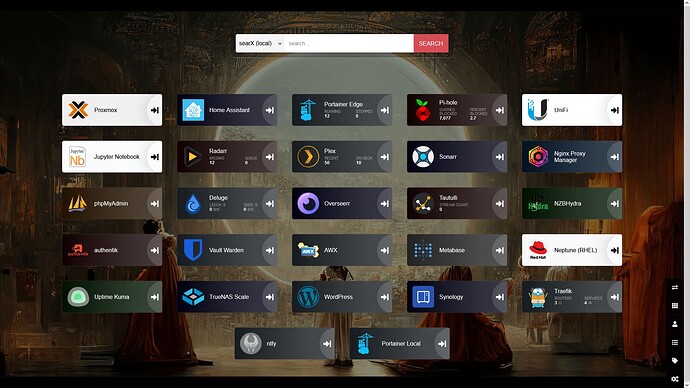

Nice! This is my Heimdall dashboard at the moment but if I can port this across to work in Home Assistant that would be even better!

[pixelwave]

I rearrange some stuff and worked with the new section feature now:
