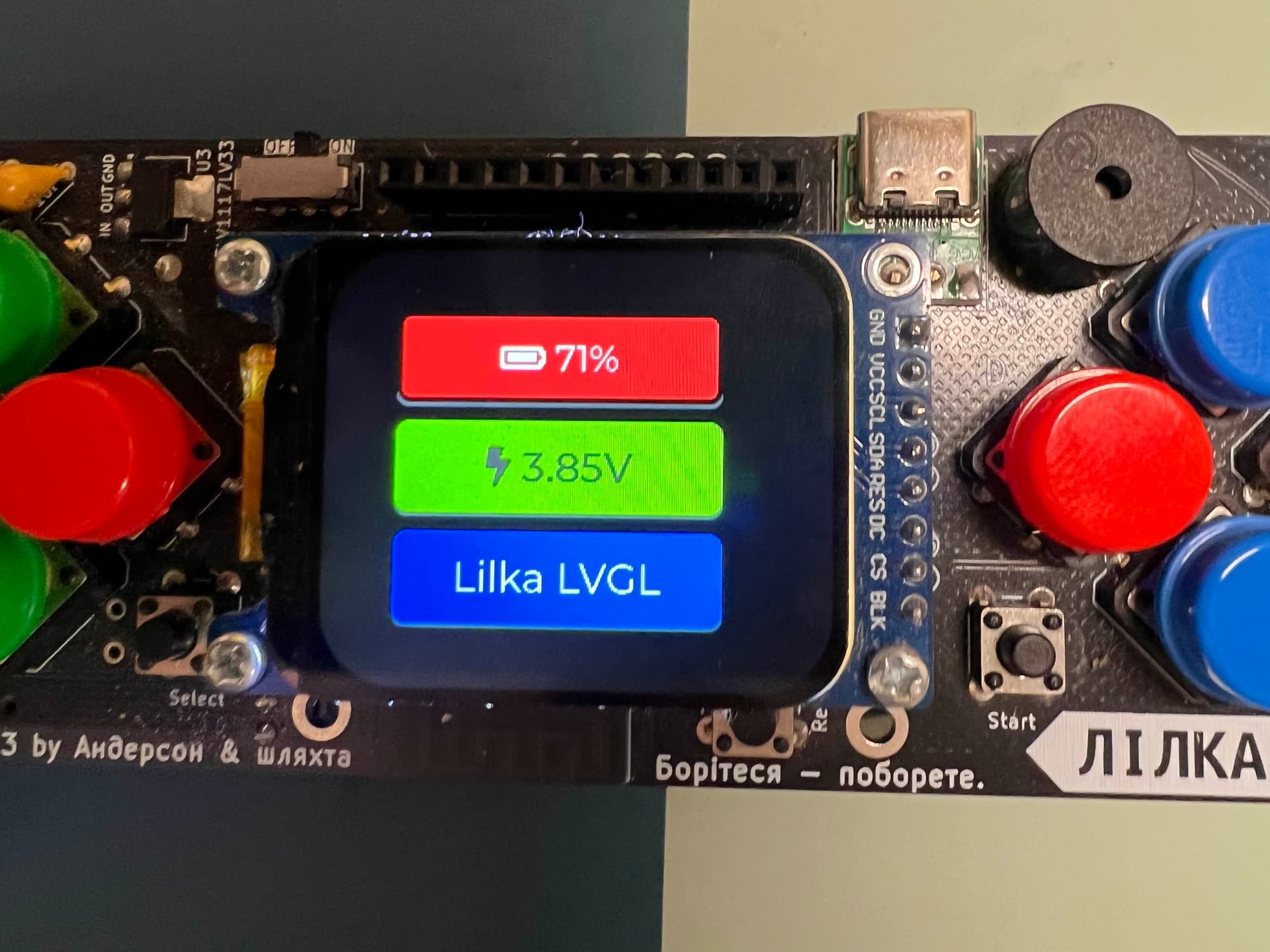

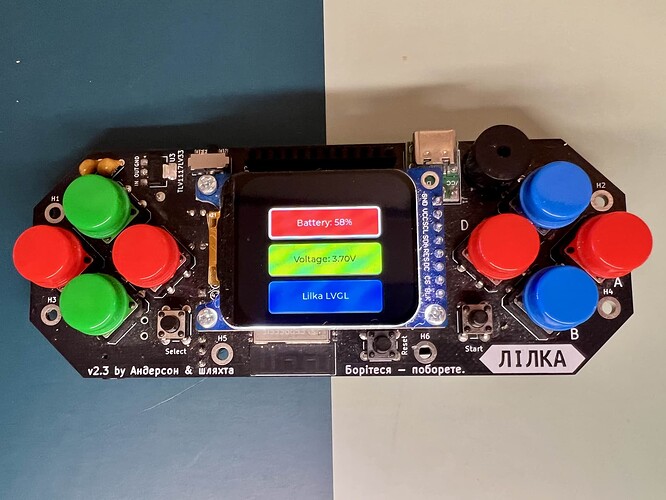

I have this ESPHome configuration for my ESP32 console Lilka. I have three buttons on the screen. They display Voltage, Battery %, and a button with the text Lilka LVGL.
How can I add an icon to this text?
esphome:
name: lilka
friendly_name: lilka
on_boot:
priority: 600
then:
- output.turn_on: display_power
- delay: 100ms
esp32:
board: esp32-s3-devkitc-1
framework:
type: esp-idf
version: recommended
# Оптимізація пам'яті
sdkconfig_options:
CONFIG_ESP32S3_DATA_CACHE_64KB: y
CONFIG_ESP32S3_DATA_CACHE_LINE_64B: y
CONFIG_SPIRAM_MODE_OCT: y
CONFIG_SPIRAM: y
# Додати якщо є PSRAM
psram:
mode: octal
speed: 80MHz
wifi:
ssid: !secret wifi_ssid
password: !secret wifi_password
power_save_mode: none
ap:
ssid: "Lilka Fallback Hotspot"
password: "hnYImYM4O6I0"
captive_portal:
web_server:
port: 80
api:
encryption:
key: "Yw3yq8lxsaze+jdggjAwxKpV4GD6gNZptvw4d6OPfOc="
logger:
level: INFO
logs:
lvgl: WARN
speaker_media_player: INFO
i2s_audio.speaker: INFO
ota:
- platform: esphome
password: "bb198feb99159fdaefc8092f10039acd"
output:
- platform: gpio
pin: 46
id: display_power
inverted: false
i2s_audio:
- id: i2s_out
i2s_lrclk_pin: GPIO1
i2s_bclk_pin: GPIO42
speaker:
- platform: i2s_audio
id: lilka_speaker
dac_type: external
i2s_audio_id: i2s_out
i2s_dout_pin: GPIO2
channel: mono
sample_rate: 16000
bits_per_sample: 16bit
buffer_duration: 100ms
media_player:
- platform: speaker
name: "Lilka Media Player"
id: lilka_media_player
buffer_size: 4000
codec_support_enabled: false
announcement_pipeline:
speaker: lilka_speaker
format: WAV
num_channels: 1
# ---------------------------------------------------
# СЕНСОРИ
# ---------------------------------------------------
sensor:
- platform: adc
pin: GPIO3
id: battery_voltage
name: "Battery Voltage"
icon: "mdi:lightning-bolt"
update_interval: 10s
attenuation: 12db
filters:
- multiply: 1.33
- platform: template
id: battery_level
name: "Battery Level"
icon: "mdi:battery"
unit_of_measurement: "%"
accuracy_decimals: 0
update_interval: 10s
lambda: |-
float voltage = id(battery_voltage).state;
float percent = (voltage - 3.0) / (4.2 - 3.0) * 100.0;
if (percent > 100) percent = 100;
if (percent < 0) percent = 0;
return percent;
# ---------------------------------------------------
# ДИСПЛЕЙ ST7789V + LVGL
# ---------------------------------------------------
spi:
clk_pin: 18
mosi_pin: 17
display:
- platform: mipi_spi
model: ST7789V
id: my_display
dc_pin: 15
cs_pin: 7
update_interval: 2s
rotation: 270
invert_colors: true
color_order: BGR
pixel_mode: 16bit
dimensions:
width: 280
height: 240
offset_width: 20
offset_height: 0
auto_clear_enabled: false
lvgl:
log_level: WARN
buffer_size: 25%
style_definitions:
- id: default_style
bg_color: 0x000000
text_color: 0xFFFFFF
- id: focused_style
border_color: 0xFFFFFF
border_width: 3
pages:
- id: main_page
bg_color: 0x000000
widgets:
- button:
id: red_button
align: CENTER
y: -40
width: 180
height: 50
bg_color: 0xFF0000
widgets:
- label:
id: battery_label
text: "Battery: --"
align: CENTER
- button:
id: green_button
align: CENTER
y: 20
width: 180
height: 50
bg_color: 0x00FF00
widgets:
- label:
id: voltage_label
text: "Voltage: --"
align: CENTER
text_color: 0x000000
- button:
id: blue_button
align: CENTER
y: 80
width: 180
height: 50
bg_color: 0x0000FF
widgets:
- label:
text: "Lilka LVGL"
align: CENTER
text_color: 0xFFFFFF
# ---------------------------------------------------
# ГЛОБАЛЬНІ ЗМІННІ ТА СКРИПТ ФОКУСУ
# ---------------------------------------------------
globals:
- id: current_button_index
type: int
restore_value: no
initial_value: '0'
script:
- id: update_focus
then:
- lvgl.widget.update:
id: red_button
border_width: !lambda 'return id(current_button_index) == 0 ? 3 : 0;'
- lvgl.widget.update:
id: green_button
border_width: !lambda 'return id(current_button_index) == 1 ? 3 : 0;'
- lvgl.widget.update:
id: blue_button
border_width: !lambda 'return id(current_button_index) == 2 ? 3 : 0;'
# ---------------------------------------------------
# КНОПКИ
# ---------------------------------------------------
binary_sensor:
- platform: gpio
pin:
number: 38
mode: INPUT_PULLUP
inverted: true
id: button_up
name: "Button Up"
icon: "mdi:arrow-up-circle"
filters:
- delayed_on_off: 50ms
on_press:
- lambda: |-
id(current_button_index)--;
if (id(current_button_index) < 0) id(current_button_index) = 2;
- script.execute: update_focus
- platform: gpio
pin:
number: 41
mode: INPUT_PULLUP
inverted: true
id: button_down
name: "Button Down"
icon: "mdi:arrow-down-circle"
filters:
- delayed_on_off: 50ms
on_press:
- lambda: |-
id(current_button_index)++;
if (id(current_button_index) > 2) id(current_button_index) = 0;
- script.execute: update_focus
- platform: gpio
pin:
number: 39
mode: INPUT_PULLUP
inverted: true
id: button_left
name: "Button Left"
icon: "mdi:arrow-left-circle"
filters:
- delayed_on_off: 50ms
- platform: gpio
pin:
number: 40
mode: INPUT_PULLUP
inverted: true
id: button_right
name: "Button Right"
icon: "mdi:arrow-right-circle"
filters:
- delayed_on_off: 50ms
- platform: gpio
pin:
number: 5
mode: INPUT_PULLUP
inverted: true
id: button_a
name: "Button A"
icon: "mdi:alpha-a-circle"
filters:
- delayed_on_off: 50ms
- platform: gpio
pin:
number: 6
mode: INPUT_PULLUP
inverted: true
id: button_b
name: "Button B"
icon: "mdi:alpha-b-circle"
filters:
- delayed_on_off: 50ms
- platform: gpio
pin:
number: 10
mode: INPUT_PULLUP
inverted: true
id: button_c
name: "Button C"
icon: "mdi:alpha-c-circle"
filters:
- delayed_on_off: 50ms
- platform: gpio
pin:
number: 9
mode: INPUT_PULLUP
inverted: true
id: button_d
name: "Button D"
icon: "mdi:alpha-d-circle"
filters:
- delayed_on_off: 50ms
- platform: gpio
pin:
number: 4
mode: INPUT_PULLUP
inverted: true
id: button_start
name: "Button Start"
icon: "mdi:play-circle"
filters:
- delayed_on_off: 50ms
- platform: gpio
pin:
number: 0
mode: INPUT_PULLUP
inverted: true
id: button_select
name: "Button Select"
icon: "mdi:checkbox-marked-circle"
filters:
- delayed_on_off: 50ms
# ---------------------------------------------------
# ОНОВЛЕННЯ СТАТУСУ БАТАРЕЇ НА ЕКРАНІ
# ---------------------------------------------------
interval:
- interval: 5s
then:
- lvgl.label.update:
id: battery_label
text: !lambda |-
return std::string("Battery: ") + to_string((int)id(battery_level).state) + "%";
- lvgl.label.update:
id: voltage_label
text: !lambda |-
char buf[20];
snprintf(buf, sizeof(buf), "Voltage: %.2fV", id(battery_voltage).state);
return std::string(buf);
