How to "break" a running flow

Third party integrations Node-RED
1

Hello

I have a simple Nodered flow: when the motion sensor is triggered, a lamp turns on, then after 100 seconds it turns off.

hassio

The problem happens when:

  • I trigger the sensor for the first time, so the first flow starts: the lamp turns on
  • after 90 seconds (let’s say), I trigger the sensor a second time: the second flow starts
  • after 10 seconds the first flow ends and the lamp is turned off, even if the second flow is still running

So, when I trigger the sensor I need to “stop” the running flow (if any), in order to avoid the lamp to be turned off too early.

What is the best way to achieve this?

2

Does your motion sensor report the off state? if it does, then this:

image1013×172 14.1 KB

[{"id":"e7c53191.24783","type":"server-state-changed","z":"937ef78.ec6b408","name":"Motion sensor off for 100s?","server":"9405c3fe.d0a6c","version":3,"exposeToHomeAssistant":false,"haConfig":[{"property":"name","value":""},{"property":"icon","value":""}],"entityidfilter":"binary_sensor.your_sensor","entityidfiltertype":"exact","outputinitially":false,"state_type":"str","haltifstate":"off","halt_if_type":"str","halt_if_compare":"is","outputs":2,"output_only_on_state_change":true,"for":"100","forType":"num","forUnits":"seconds","ignorePrevStateNull":false,"ignorePrevStateUnknown":false,"ignorePrevStateUnavailable":false,"ignoreCurrentStateUnknown":false,"ignoreCurrentStateUnavailable":false,"outputProperties":[{"property":"payload","propertyType":"msg","value":"","valueType":"entityState"}],"x":330,"y":720,"wires":[["37725ed5.caa4b2"],["37725ed5.caa4b2"]]},{"id":"37725ed5.caa4b2","type":"api-call-service","z":"937ef78.ec6b408","name":"light.turn_{{payload}}","server":"9405c3fe.d0a6c","version":3,"debugenabled":false,"service_domain":"light","service":"turn_{{payload}}","entityId":"light.your_light","data":"","dataType":"jsonata","mergecontext":"","mustacheAltTags":false,"outputProperties":[],"queue":"none","x":580,"y":720,"wires":[[]]},{"id":"9405c3fe.d0a6c","type":"server","name":"Home Assistant","version":2,"addon":true,"rejectUnauthorizedCerts":true,"ha_boolean":"y|yes|true|on|home|open","connectionDelay":true,"cacheJson":true,"heartbeat":false,"heartbeatInterval":30}]

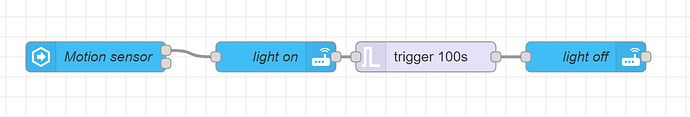

If your motion sensor only reports one state, motion detected, then this:

image1518×259 17.8 KB

[{"id":"f3594db2.4818c","type":"server-state-changed","z":"937ef78.ec6b408","name":"Motion sensor","server":"9405c3fe.d0a6c","version":3,"exposeToHomeAssistant":false,"haConfig":[{"property":"name","value":""},{"property":"icon","value":""}],"entityidfilter":"binary_sensor.your_sensor","entityidfiltertype":"exact","outputinitially":false,"state_type":"str","haltifstate":"on","halt_if_type":"str","halt_if_compare":"is","outputs":2,"output_only_on_state_change":true,"for":"0","forType":"num","forUnits":"seconds","ignorePrevStateNull":false,"ignorePrevStateUnknown":false,"ignorePrevStateUnavailable":false,"ignoreCurrentStateUnknown":false,"ignoreCurrentStateUnavailable":false,"outputProperties":[],"x":210,"y":440,"wires":[["b2f7fc07.2fcd"],[]]},{"id":"b2f7fc07.2fcd","type":"api-call-service","z":"937ef78.ec6b408","name":"light on","server":"9405c3fe.d0a6c","version":3,"debugenabled":false,"service_domain":"","service":"","entityId":"","data":"","dataType":"jsonata","mergecontext":"","mustacheAltTags":false,"outputProperties":[],"queue":"none","x":390,"y":440,"wires":[["b946dd45.1e234"]]},{"id":"b946dd45.1e234","type":"trigger","z":"937ef78.ec6b408","name":"","op1":"","op2":"","op1type":"nul","op2type":"payl","duration":"100","extend":true,"overrideDelay":false,"units":"s","reset":"","bytopic":"all","topic":"topic","outputs":1,"x":540,"y":440,"wires":[["5cf7ab14.b3eb54"]]},{"id":"5cf7ab14.b3eb54","type":"api-call-service","z":"937ef78.ec6b408","name":"light off","server":"9405c3fe.d0a6c","version":3,"debugenabled":false,"service_domain":"","service":"","entityId":"","data":"","dataType":"jsonata","mergecontext":"","mustacheAltTags":false,"outputProperties":[],"queue":"none","x":700,"y":440,"wires":[[]]},{"id":"9405c3fe.d0a6c","type":"server","name":"Home Assistant","version":2,"addon":true,"rejectUnauthorizedCerts":true,"ha_boolean":"y|yes|true|on|home|open","connectionDelay":true,"cacheJson":true,"heartbeat":false,"heartbeatInterval":30}]
3

Thank you! Your second solution seems obvious but I’m a newbie with Hassio :slight_smile:
I’ll give it try.

4

The real trick with the trigger node is checking Extend Delay If New Message Arrives.

Does your motion sensor send both on and off states?

5

Yes, I think it does the trick! I updated my configuration so I’ll test this solution for the next few days.

I think so, but as I’m almost a beginner I’d rather your second suggestion, that is more obvious and “readable” to me
Thank you!

6

This one is the same as the first one but more obvious. I leave it here for you to have more options

image1070×363 22.9 KB

[{"id":"d450b0b0.8e603","type":"server-state-changed","z":"937ef78.ec6b408","name":"Motion on?","server":"9405c3fe.d0a6c","version":3,"exposeToHomeAssistant":false,"haConfig":[{"property":"name","value":""},{"property":"icon","value":""}],"entityidfilter":"binary_sensor.your_sensor","entityidfiltertype":"exact","outputinitially":false,"state_type":"str","haltifstate":"on","halt_if_type":"str","halt_if_compare":"is","outputs":2,"output_only_on_state_change":true,"for":0,"forType":"num","forUnits":"minutes","ignorePrevStateNull":false,"ignorePrevStateUnknown":false,"ignorePrevStateUnavailable":false,"ignoreCurrentStateUnknown":false,"ignoreCurrentStateUnavailable":false,"outputProperties":[],"x":160,"y":200,"wires":[["1c13743d.92bedc"],[]]},{"id":"1c13743d.92bedc","type":"api-call-service","z":"937ef78.ec6b408","name":"Light on","server":"9405c3fe.d0a6c","version":3,"debugenabled":false,"service_domain":"light","service":"turn_on","entityId":"light.your_light","data":"","dataType":"jsonata","mergecontext":"","mustacheAltTags":false,"outputProperties":[],"queue":"none","x":360,"y":200,"wires":[[]]},{"id":"883a5f49.bbf83","type":"server-state-changed","z":"937ef78.ec6b408","name":"Motion off for 100 seconds?","server":"9405c3fe.d0a6c","version":3,"exposeToHomeAssistant":false,"haConfig":[{"property":"name","value":""},{"property":"icon","value":""}],"entityidfilter":"binary_sensor.your_sensor","entityidfiltertype":"exact","outputinitially":false,"state_type":"str","haltifstate":"off","halt_if_type":"str","halt_if_compare":"is","outputs":2,"output_only_on_state_change":true,"for":"100","forType":"num","forUnits":"seconds","ignorePrevStateNull":false,"ignorePrevStateUnknown":false,"ignorePrevStateUnavailable":false,"ignoreCurrentStateUnknown":false,"ignoreCurrentStateUnavailable":false,"outputProperties":[],"x":220,"y":280,"wires":[["6c2559c1.8c0f68"],[]]},{"id":"6c2559c1.8c0f68","type":"api-call-service","z":"937ef78.ec6b408","name":"Light off","server":"9405c3fe.d0a6c","version":3,"debugenabled":false,"service_domain":"light","service":"turn_off","entityId":"light.your_light","data":"","dataType":"jsonata","mergecontext":"","mustacheAltTags":false,"outputProperties":[],"queue":"none","x":440,"y":280,"wires":[[]]},{"id":"9405c3fe.d0a6c","type":"server","name":"Home Assistant","version":2,"addon":true,"rejectUnauthorizedCerts":true,"ha_boolean":"y|yes|true|on|home|open","connectionDelay":true,"cacheJson":true,"heartbeat":false,"heartbeatInterval":30}]

which turns out to be the same as this:

image1092×275 19.5 KB

[{"id":"1c13743d.92bedc","type":"api-call-service","z":"937ef78.ec6b408","name":"Light on","server":"9405c3fe.d0a6c","version":3,"debugenabled":false,"service_domain":"light","service":"turn_on","entityId":"light.your_light","data":"","dataType":"jsonata","mergecontext":"","mustacheAltTags":false,"outputProperties":[],"queue":"none","x":460,"y":300,"wires":[[]]},{"id":"883a5f49.bbf83","type":"server-state-changed","z":"937ef78.ec6b408","name":"Motion off for 100 seconds?","server":"9405c3fe.d0a6c","version":3,"exposeToHomeAssistant":false,"haConfig":[{"property":"name","value":""},{"property":"icon","value":""}],"entityidfilter":"binary_sensor.your_sensor","entityidfiltertype":"exact","outputinitially":false,"state_type":"str","haltifstate":"off","halt_if_type":"str","halt_if_compare":"is","outputs":2,"output_only_on_state_change":true,"for":"100","forType":"num","forUnits":"seconds","ignorePrevStateNull":false,"ignorePrevStateUnknown":false,"ignorePrevStateUnavailable":false,"ignoreCurrentStateUnknown":false,"ignoreCurrentStateUnavailable":false,"outputProperties":[{"property":"payload","propertyType":"msg","value":"","valueType":"entityState"}],"x":220,"y":280,"wires":[["6c2559c1.8c0f68"],["1c13743d.92bedc"]]},{"id":"6c2559c1.8c0f68","type":"api-call-service","z":"937ef78.ec6b408","name":"Light off","server":"9405c3fe.d0a6c","version":3,"debugenabled":false,"service_domain":"light","service":"turn_off","entityId":"light.your_light","data":"","dataType":"jsonata","mergecontext":"","mustacheAltTags":false,"outputProperties":[],"queue":"none","x":460,"y":260,"wires":[[]]},{"id":"9405c3fe.d0a6c","type":"server","name":"Home Assistant","version":2,"addon":true,"rejectUnauthorizedCerts":true,"ha_boolean":"y|yes|true|on|home|open","connectionDelay":true,"cacheJson":true,"heartbeat":false,"heartbeatInterval":30}]

If you go one step further in compacting you end up with the first example I put you above. Using the state of the binary_sensor (payload) to set the light’s service. All three will work just as well though.

7

Hello,
I’m coming back after some times (and some testing) because I didn’t solve completerly my problem.
It seems that there’s some issue/bug related to HUE sensors, as other brands (IKEA, Xiaomi etc) work fine with your suggestions.
So I’m opening a separated thread…
