Not yet.
Have been busy with Christmas and all that.
But I know I can control the remote from an ESP, I have figured that out.
The issue I have now is that the rotary encoder and display does not fit the box I have, my plan is to try and trim off some excess material from the parts to make them fit.
But been busy with other things and haven’t had time with hobby projects.
Just got it to run with a similar solution! Used an ESP8266 with GPIO pins driving a couple of relays to toggle preset memory buttons on the remote. ESPHome made it quite easy to set up, program and interface with HA. I have a LG tv on the mount, which when turned on triggers the automation to lower the stand using the setup. Works pretty well!
@vinaykashya can you share any more info about how you attached to the remote buttons (maybe a pic?). I’m about to do the same thing and would love a starting point.
Did anyone end up finishing up modifying their remote with an esp and relay/optocoupler?
Any pics to share? My mount is on its way and it has this remote. Unfortunately I can’t order a spare and the supplier won’t offer a “replacement” remote I can modify… So I’ll be modifying the only remote I have so I’ll be extra careful not to ground the wrong things.

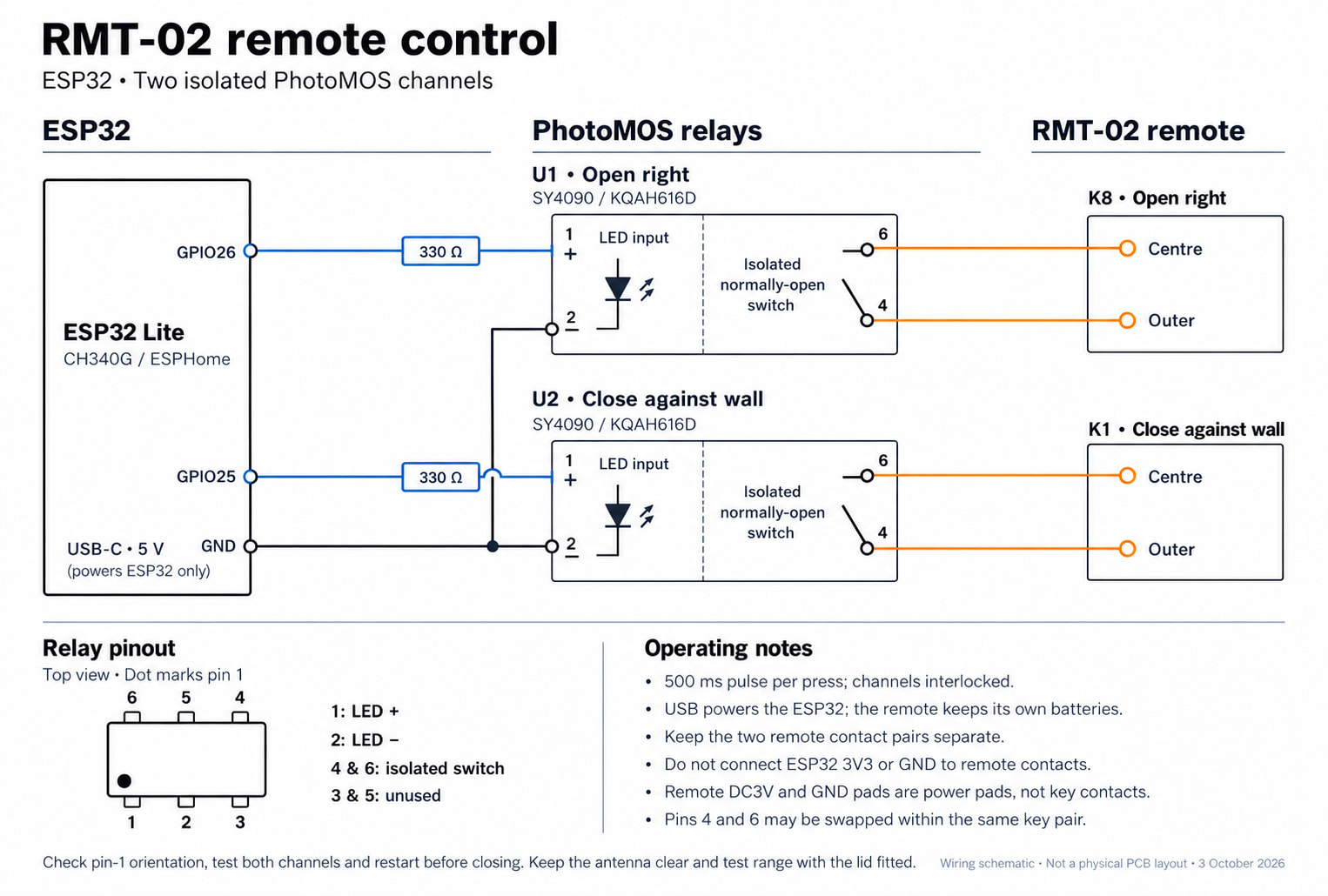

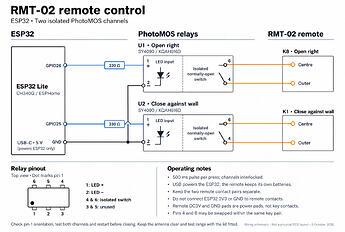

I used an ESP32 Lite (CH340G) and two Jaycar SY4090 / KQAH616D PhotoMOS relays. Each relay input has a 330 Ω resistor between the ESP32 GPIO and pin 1; pin 2 goes to ESP32 GND. The isolated output, pins 4 and 6, connects across the centre and one outer contact of a remote key:
GPIO25 → K1: closes the arm against the wall.
GPIO26 → K8: opens the arm to the right.
I programmed the position for K1 & K8 (1 & 2 buttons on the remote) before I did the soldering.
ESPHome gives each key a 500 ms pulse, starts with both outputs off, and prevents them operating together. I checked that each PhotoMOS output was open at rest and closed when driven before connecting it to the remote. Both directions now work from Home Assistant.
This uses the remote’s original RF transmitter; I haven’t decoded or reproduced its RF protocol. The circuit is working on a breadboard, and I’m moving it to a soldered board soon but this works and its an easier way to show you how I got there (thanks also to the previous posts on this thread).
