How to re-create HomeWizard 3-phase graphs in (core or custom) graph card

trying to gain more insight in my 3 phases comsumption/production data I receive over mqtt from my smart meter:

Id;love to bring that to the frontend like Homewizard:

So, I threw these in a core history-graph/statistics or custom mini-graph/apexcharts-card, but since they are all positive, that didnt really help… next I changed the export entities to be a negative value in the mqtt sensor using:

      <<: &kpower-neg
        unit_of_measurement: kW
        value_template: >
        device_class: power
        state_class: measurement

and that’s a first step to being helpful. I can now plot these values, and, depending on the type of card, they center around the y-axis alright. However, it’s nowhere close to the Homeward graph ofc.

btw, not sure if I should do that, or have the negative value be determined by some graph card setting?

this is what they look like out of the box, without any finetuning:

  - type: history-graph
    entities: &phase_entities
      - entity: sensor.l1_power_import
        name: L1
      - entity: sensor.l2_power_import
        name: L2
      - entity: sensor.l3_power_import
        name: L3
      - entity: sensor.l1_power_export
        name: -L1
      - entity: sensor.l2_power_export
        name: -L2
      - entity: sensor.l3_power_export
        name: -L3
    title: 'History: Energy gebruik per Fase'
    hours_to_show: 48

  - type: statistics-graph
    entities: *phase_entities
    title: 'Statistics: Energy gebruik per Fase'
    hours_to_show: 48

  - type: custom:mini-graph-card
    entities: *phase_entities
    name: 'Mini: Energy gebruik per Fase'
    hours_to_show: 48

  - type: custom:apexcharts-card
    graph_span: 2d
      title: 'Apex: Energy gebruik per Fase'
      show: true
    entities: *phase_entities

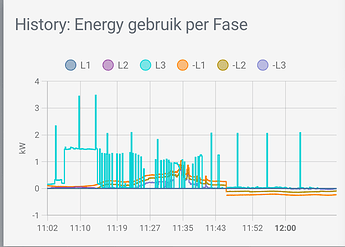

History seems ok-ish, shows pos/neg alright,but would need a lot of customizing (card_mod probably)?:

Statistics Is beautiful, but does not do what I am after…:

Mini-graph doesnt pickup the pos.neg like this, can it?

Apexcharts probably can do it all, and shows pos/neg alright, but not sure how to proceed…

ofc, above is frustrated by the fact Ive only just started to record these values.

For now, my question to the community would be, which of the cards would be the obvious card to proceed with, and please, if you have suggestions how to approach the HomeWizard graph, I’d appreciate that a lot.
Thanks for having a look if you would!

1 Like

small update with more filled data:

having more than 1 apex charts, or showing the apex charts together with these core graph cards is too heavy for the system , but this is an apecharts that would start showing the same:

   - type: custom:apexcharts-card
     graph_span: 1d
 #     span:
 #       start: day
 #       offset: -1d
       type: area
       stroke_width: 1
       opacity: 0.5
       title: 'Apex: Energy per Fase totaal'
       show: true
       - entity: sensor.calculated_totaal_l1_power
         name: L1
         color: purple
       - entity: sensor.calculated_totaal_l2_power
         name: L2
         color: purple
       - entity: sensor.calculated_totaal_l3_power
         name: L3

why is there not a simple way to have these graphs change color above/below zero… Ive played with the threshold (experimental) but that wont work as it colors the full entity for the current state, and doesn’t color historically…

using the split entities graph, with pos and neg per phase gives this now:

a bit closer, but not yet nearly as nice as the original… and, of course, no totals…

Dear @Mariusthvdb,

I’ve tried to work on this myself and have shared it here: ApexCharts card - A highly customizable graph card - #2050 by mennosmit

It’s work in progress, so happy to hear any suggested edits you might have!

Best wishes,
