Input_number with step=0.1 Why / How does it get set to multiple decimal places?

Configuration
1

Hoping someone can help me see why / how this is happening.

I have some input numbers, defined in configuration.yaml as follows:

input_number:
  max_living_temp:
    name: Maximum Living Room Temperature
    min: 20.0
    max: 26.0
    step: 0.1
    icon: mdi:thermometer-chevron-up
    mode: box
    unit_of_measurement: °C

  set_living_temp:
    name: Desired Living Room Temperature
    min: 20.0
    max: 26.0
    step: 0.1
    icon: mdi:thermometer-lines
    mode: box
    unit_of_measurement: °C

  min_living_temp:
    name: Minimum Living Room Temperature
    min: 11.0
    max: 21.0
    step: 0.1
    icon: mdi:thermometer-chevron-down
    mode: box
    unit_of_measurement: °C

I select the inputs using my HADashboard setup:

here are the definitons in my .dash file:

MinimumTemp:
  widget_type: input_slider
  title: Minimum Temperature
  widget_style: "background-image: url(/custom_css/blur_light/img/Cold.jpg);"
  title_style: "font-weight: bold;"
  level_style: "padding-top: 20px; font-weight: bold; font-size: 250%"
  level_up_style: "font-size: 150%"
  level_down_style: "font-size: 150%"
  unit_style: "padding-top: 15px; font-weight: bold"
  units: "°C"
  entity: input_number.min_living_temp
  step: 0.1
  precision: 1

MaxTemp:
  widget_type: input_slider
  title: Maximum Temperature
  widget_style: "background-image: url(/custom_css/blur_light/img/Hot.jpg);"
  title_style: "font-weight: bold;"
  level_style: "padding-top: 20px; font-weight: bold;"
  unit_style: "padding-top: 15px; font-weight: bold"
  level_up_style: "font-size: 150%"
  level_down_style: "font-size: 150%"
  units: "°C"
  entity: input_number.max_living_temp
  step: 0.1
  precision: 1

SetTemp:
  widget_type: input_slider
  title: Desired Temperature
  widget_style: "background-image: url(/custom_css/blur_light/img/Ideal.jpg);"
  title_style: "font-weight: bold;"
  level_style: "padding-top: 20px; font-weight: bold;"
  level_up_style: "font-size: 150%"
  level_down_style: "font-size: 150%"
  unit_style: "padding-top: 15px; font-weight: bold"
  units: "°C"
  entity: input_number.set_living_temp
  step: 0.1
  precision: 1

I also use these values as conditions in value templates in automations:

- alias: Set Flame to 1 once half way between desired and max temps
  trigger:
    - platform: state
      entity_id: sensor.ht_living_temp
  condition:
    condition: and
    conditions:
    - condition: template
      value_template: "{{ (states('sensor.ht_living_temp')|float) < states('input_number.max_living_temp')|float }}"
    - condition: template
      value_template: "{{ (states('sensor.ht_living_temp')|float) - (states('input_number.set_living_temp')|float) > (((states('input_number.max_living_temp')|float) - (states('input_number.set_living_temp')|float)) /2|float) }}"
    - condition: template
      value_template: "{{ states('input_datetime.stove_morning_start') [0:5] <= states('sensor.time') < states('input_datetime.stove_evening_finish') [0:5] }}"
  action:
    service: input_select.select_option
    data:
      entity_id: input_select.stove_flame_set
      option: 1

Other than that I never set these values prgramatically (with scripts or automations).

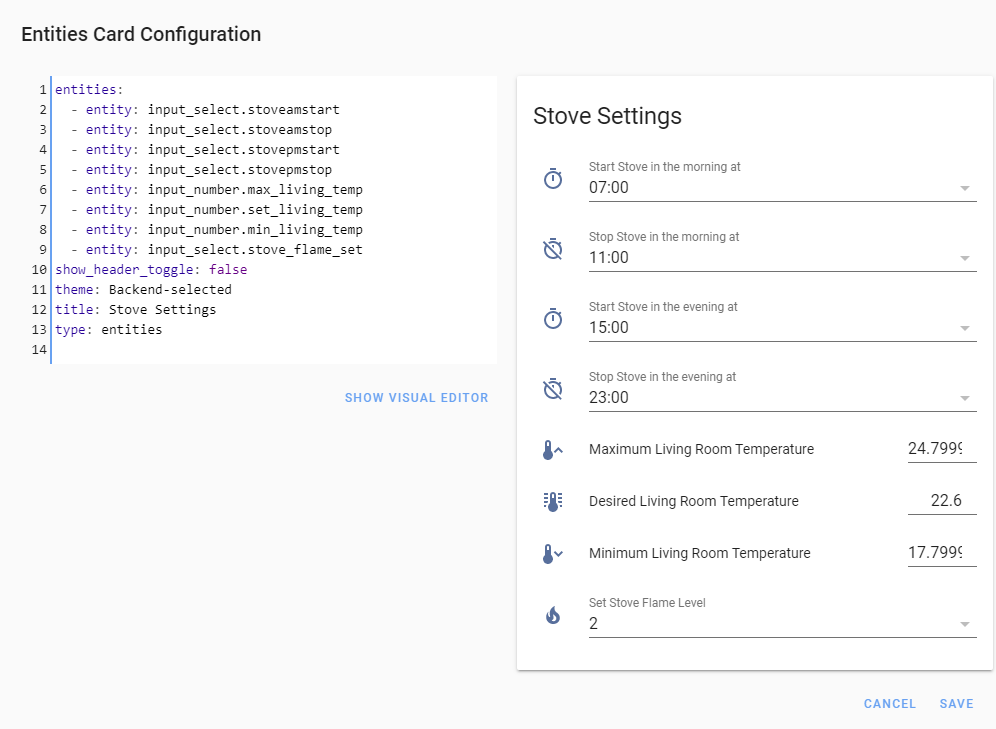

Despite the step 0.1, in lovelace, my values show with multiple decimal places:

image996×729 42.4 KB

Is it the value templates calculations that is changing the values? It should NOT, AFAIK.
I’m not hugely bothered, as it does not change an awful lot, but:

  1. I would like to understand why this is happening
  2. I would like a workaround so that I can display only 1 decimal place in the lovelace card

Any ideas?

Thanks.

2

This is just the nature of floats in Python:

>>> x = 25
>>> x -= 0.1; print(x)
24.9
>>> x -= 0.1; print(x)
24.799999999999997

AFAIK there’s nothing you can do about this when displaying the input_number itself. However you could make a template sensor that always shows only one decimal place using the |fomat() filter.

3

Thanks.

So nature of floats in Python is the issue.
It should not change anything functional with my setup, so I will leave it as it is.
