Hi,
I successfully integrated an Elli / VW ID. Charger Pro into HomeAssistant.
As there already is an integration for ioBroker and I am not able to program an integration for HomeAssistant myself, I used the following method:
install ioBroker add-on for HomeAssistant (see GitHub - MaxWinterstein/homeassistant-addons ) or set up a separate ioBroker instance
important: if using the ioBroker add-on, go to the add-on configuration and set port 8087 to be forwarded
in ioBroker, install the vw-connect add-on and set it up
in ioBroker, install the simple-api add-on and set it up
in HomeAssistant, set up sensors for the parameters you wish to see.
I assume that your ioBroker instance is reachable at 192.168.178.50.
# WeCharge sensors - read from ioBroker-simple-API
# ioBroker address: http://IP_from_ioBroker:8087/getPlainValue/<Object_ID>
- platform: rest
resource: http://192.168.178.50:8087/getPlainValue/vw-connect.0.wecharge.homecharging.records.latestItem.current_station_name
name: "WeCharge - latest charging - current station name"
- platform: rest
resource: http://192.168.178.50:8087/getPlainValue/vw-connect.0.wecharge.homecharging.records.latestItem.start_date_time
name: "WeCharge - latest charging - start date"
- platform: rest
resource: http://192.168.178.50:8087/getPlainValue/vw-connect.0.wecharge.homecharging.records.latestItem.stop_date_time
name: "WeCharge - latest charging - end date"
- platform: rest
resource: http://192.168.178.50:8087/getPlainValue/vw-connect.0.wecharge.homecharging.records.latestItem.total_energy_wh
name: "WeCharge - latest charging - total energy (Wh)"
unit_of_measurement: "Wh"
- platform: template
sensors:
wecharge_letzte_ladung_geladene_energie_kwh:
friendly_name: "WeCharge - latest charging - total energy (kWh)"
unit_of_measurement: 'kWh'
value_template: "{{ ( states('sensor.wecharge_letzte_ladung_geladene_energie_wh') | int / 1000 ) | round(2) }}"
- platform: rest
resource: http://192.168.178.50:8087/getPlainValue/vw-connect.0.wecharge.homecharging.stations.Home.connection_state
name: "WeCharge - Wallbox - connection state"
- platform: rest
resource: http://192.168.178.50:8087/getPlainValue/vw-connect.0.wecharge.homecharging.stations.Home.lifecycle_state
name: "WeCharge - Wallbox - activation state"
Please donât forget to add the following lines to âconfiguration.yamlâ (or alternatively, adapt the given paths to your needs):
sensor: !include_dir_merge_list includes/sensors/
Have fun,
David
2 Likes
wdeeken
June 1, 2022, 1:53pm
2
Hi,
yesterday the ID Charger update with EEBUS support was released, any chance to integrate the box directly without using the ioBbroker add-on?
Thx and regards
3 Likes
odelma
March 21, 2024, 10:42am
3
Itâs been a couple of years - is this still the way to go to integrate ID Charger Pro to HA?
Just bought the charger (price was too good) and thinking about how to get the most value out of itâŚ
sadly i had to use https://evcc.io/ to integrate it into home assistant
Should be possible to communicate from ha to elli via modbus directly, but it has to be implemented =(
odelma
March 22, 2024, 3:56pm
5
Thanks, this looks like an interesting choice, you can run it on docker I guess
And you used this: GitHub - evcc-io/hassio-addon: Hass.io add-on for EVCC âŚto integrate it to HA?
Nuffe
April 3, 2024, 3:27pm
6
Interested in the answer tooâŚlooking into that add-on, seems like it just installs evcc and nothing else. So I assume the integration to HA happens via MQTT. Evcc configuration has this section:
# mqtt message broker
mqtt:
# broker: localhost:1883
# topic: evcc # root topic for publishing, set empty to disable
# user:
# password:
No i am Using Home Assistant Docker => I used the docker evcc with this config:
# open evcc at http://evcc.local:7070
network:
schema: http
host: evcc.local # .local suffix announces the hostname on MDNS
port: 7070
log: debug
levels:
cache: error
# unique installation id
plant: xxx
interval: 10s # control cycle interval
meters:
- type: template
template: shelly-pro-3em
usage: grid
host: 192.168.2.92
name: grid1
chargers:
- type: template
template: ellipro
ski: X525 D213 FE23 ...
ip: 192.168.2.94
name: wallbox1
vehicles:
type: template
template: iso15118
title: xxx
icon: car
capacity: 10.4
phases: 1
minCurrent: 5
name: ev1
loadpoints:
- title: Garage
charger: wallbox1
mode: off
phases: 3
mincurrent: 5
maxcurrent: 16
# resetOnDisconnect: false
vehicle: ev1
site:
title: Mein Zuhause
meters:
grid: grid1
eebus:
certificate:
private: |
-----BEGIN EC PRIVATE KEY-----
xxx
-----END EC PRIVATE KEY-----
public: |
-----BEGIN CERTIFICATE-----
xxx
-----END CERTIFICATE-----
mqtt:
broker: 127.0.0.1:1883
topic: evcc # root topic for publishing, set empty to disable
user: xxx
password: xxx
But i would recommend another system to create your own one:
To get the entities in HA i have this packages/evcc.yaml file
mqtt:
select:
- name: evcc_mode
unique_id: uniqueid__evcc_mode_select
icon: mdi:tune-variant
state_topic: "evcc/loadpoints/1/mode"
command_topic: "evcc/loadpoints/1/mode/set"
availability_topic: "evcc/status"
options:
- "off"
- "now"
- "minpv"
- "pv"
- name: evcc_phases
unique_id: uniqueid__evcc_phases_select
icon: mdi:backburger
state_topic: "evcc/loadpoints/1/phasesEnabled"
command_topic: "evcc/loadpoints/1/phasesEnabled/set"
availability_topic: "evcc/status"
options:
- "0"
- "1"
- "3"
#############################################################################
sensor:
- name: evcc_charge_power_w
unique_id: uniqueid__evcc_charge_power_w
icon: mdi:car-electric
state_topic: "evcc/loadpoints/1/chargePower"
value_template: "{{ value | round(0) }}"
unit_of_measurement: "W"
state_class: measurement
availability_topic: "evcc/status"
- name: evcc_charged_energy_kwh
unique_id: uniqueid__evcc_charged_energy_kwh
icon: mdi:battery-charging-high
state_topic: "evcc/loadpoints/1/chargedEnergy"
value_template: "{{ (value | float / 1000) | round(4) }}"
unit_of_measurement: "kWh"
availability_topic: "evcc/status"
- name: evcc_charged_energy_self_kwh
unique_id: uniqueid__evcc_charged_energy_self_kwh
icon: mdi:battery-charging-high
state_topic: "evcc/site/savingsSelfConsumptionCharged"
value_template: "{{ value | round(1) }}"
unit_of_measurement: "kWh"
state_class: total_increasing
device_class: energy
availability_topic: "evcc/status"
- name: evcc_charged_energy_grid_kwh
unique_id: uniqueid__evcc_charged_energy_grid_kwh
icon: mdi:battery-charging-high
state_topic: "evcc/site/savingsGridCharged"
value_template: "{{ value | round(1) }}"
device_class: energy
state_class: total_increasing
unit_of_measurement: "kWh"
availability_topic: "evcc/status"
#############################################################################
- name: evcc_phases_active
unique_id: uniqueid__evcc_phases_active
icon: mdi:backburger
state_topic: "evcc/loadpoints/1/phasesActive"
value_template: "{{ value | round(0) }}"
availability_topic: "evcc/status"
- name: evcc_charge_duration_s
unique_id: uniqueid__evcc_charge_duration_s
icon: mdi:timer-settings-outline
state_topic: "evcc/loadpoints/1/chargeDuration"
value_template: "{{ value | round(0) }}"
unit_of_measurement: "s"
availability_topic: "evcc/status"
#############################################################################
- name: evcc_charge_current_l1_a
unique_id: uniqueid__evcc_charge_current_l1_a
icon: mdi:current-ac
state_topic: "evcc/loadpoints/1/chargeCurrents/l1"
value_template: "{{ value | round(1) }}"
unit_of_measurement: "A"
availability_topic: "evcc/status"
- name: evcc_charge_current_l2_a
unique_id: uniqueid__evcc_charge_current_l2_a
icon: mdi:current-ac
state_topic: "evcc/loadpoints/1/chargeCurrents/l2"
value_template: "{{ value | round(1) }}"
unit_of_measurement: "A"
availability_topic: "evcc/status"
- name: evcc_charge_current_l3_a
unique_id: uniqueid__evcc_charge_current_l3_a
icon: mdi:current-ac
state_topic: "evcc/loadpoints/1/chargeCurrents/l3"
value_template: "{{ value | round(1) }}"
unit_of_measurement: "A"
availability_topic: "evcc/status"
#############################################################################
binary_sensor:
- name: evcc_loadpoint_enabled
unique_id: uniqueid__evcc_loadpoint_enabled
icon: mdi:ev-station
state_topic: "evcc/loadpoints/1/enabled"
payload_on: "true"
payload_off: "false"
#device_class: problem
availability_topic: "evcc/status"
- name: evcc_loadpoint_connected
unique_id: uniqueid__evcc_loadpoint_connected
icon: mdi:ev-station
state_topic: "evcc/loadpoints/1/connected"
payload_on: "true"
payload_off: "false"
#device_class: problem
availability_topic: "evcc/status"
- name: evcc_loadpoint_charging
unique_id: uniqueid__evcc_loadpoint_charging
icon: mdi:ev-station
state_topic: "evcc/loadpoints/1/charging"
payload_on: "true"
payload_off: "false"
#device_class: problem
availability_topic: "evcc/status"
#############################################################################
number:
- name: evcc_min_current
unique_id: uniqueid__evcc_min_current
icon: mdi:current-ac
state_topic: "evcc/loadpoints/1/minCurrent"
command_topic: "evcc/loadpoints/1/minCurrent/set"
availability_topic: "evcc/status"
min: 5
max: 16
step: 0.25
unit_of_measurement: "A"
- name: evcc_max_current
unique_id: uniqueid__evcc_max_current
icon: mdi:current-ac
state_topic: "evcc/loadpoints/1/maxCurrent"
command_topic: "evcc/loadpoints/1/maxCurrent/set"
availability_topic: "evcc/status"
min: 5
max: 16
step: 0.25
unit_of_measurement: "A"
- name: evcc_buffer_soc
unique_id: uniqueid__evcc_buffer_soc
icon: mdi:label-percent-outline
state_topic: "evcc/site/bufferSoc"
command_topic: "evcc/site/bufferSoc/set"
availability_topic: "evcc/status"
min: 1
max: 100
unit_of_measurement: "%"
- name: evcc_priority_soc
unique_id: uniqueid__evcc_priority_soc
icon: mdi:label-percent-outline
state_topic: "evcc/site/prioritySoc"
command_topic: "evcc/site/prioritySoc/set"
availability_topic: "evcc/status"
min: 1
max: 100
unit_of_measurement: "%"
- name: evcc_residual_power
unique_id: uniqueid__evcc_residual_power
icon: mdi:label-percent-outline
state_topic: "evcc/site/residualPower"
command_topic: "evcc/site/residualPower/set"
availability_topic: "evcc/status"
min: -5000
max: +5000
unit_of_measurement: "W"
#############################################################################
homeassistant:
customize:
number.evcc_min_current:
friendly_name: "Garage Wallbox Minimale Stromstärke"
select.evcc_mode:
friendly_name: "Garage EVCC Modus"
And include it this way in the config file:
homeassistant:
packages: !include_dir_named packages
(Itâs stolen from here and modified: https://community.home-assistant.io/t/evcc-integration-via-mqtt-sensor-entity-config/ )
Because of the enormous power usage when my car is connected i build into the wallbox a Shelly Plus 1 Mini which seperate the CP cable to simulate that the car isnât connectedâŚ
And then I made an automation which take the shelly into account:
alias: wallbox - Auto laden hat sich geändert
description: ""
trigger:
- platform: state
entity_id:
- input_select.auto_laden_kompliziert
id: kompliziert
- platform: state
entity_id:
- input_boolean.auto_laden
id: einfach
- platform: state
entity_id:
- select.evcc_mode
id: evcc
condition: []
action:
- alias: Status der Schalter abgleichen
if:
- condition: trigger
id:
- kompliziert
then:
- choose:
- conditions:
- condition: state
entity_id: input_select.auto_laden_kompliziert
state: Schnell
sequence:
- service: input_boolean.turn_on
data: {}
target:
entity_id: input_boolean.auto_laden
- conditions:
- condition: state
entity_id: input_select.auto_laden_kompliziert
state: Aus
sequence:
- service: input_boolean.turn_off
data: {}
target:
entity_id: input_boolean.auto_laden
- conditions:
- condition: state
entity_id: input_select.auto_laden_kompliziert
state: Langsam
sequence:
- service: input_boolean.turn_on
data: {}
target:
entity_id: input_boolean.auto_laden
else:
- if:
- condition: trigger
id:
- einfach
then:
- choose:
- conditions:
- condition: state
entity_id: input_boolean.auto_laden
state: "on"
sequence:
- service: input_select.select_option
data:
option: Schnell
target:
entity_id: input_select.auto_laden_kompliziert
- conditions:
- condition: state
entity_id: input_boolean.auto_laden
state: "off"
sequence:
- service: input_select.select_option
data:
option: Aus
target:
entity_id: input_select.auto_laden_kompliziert
else:
- if:
- condition: trigger
id:
- evcc
then:
- choose:
- conditions:
- condition: state
entity_id: select.evcc_mode
state: now
sequence:
- service: input_boolean.turn_on
data: {}
target:
entity_id: input_boolean.auto_laden
- service: input_select.select_option
data:
option: Schnell
target:
entity_id: input_select.auto_laden_kompliziert
- conditions:
- condition: state
entity_id: select.evcc_mode
state: minpv
sequence:
- service: input_select.select_option
data:
option: Langsam
target:
entity_id: input_select.auto_laden_kompliziert
- conditions:
- condition: state
entity_id: select.evcc_mode
state: "off"
sequence:
- service: input_boolean.turn_off
data: {}
target:
entity_id: input_boolean.auto_laden
- service: input_select.select_option
data:
option: Aus
target:
entity_id: input_select.auto_laden_kompliziert
else:
- stop: Das war nicht erwartet
error: true
- if:
- condition: state
entity_id: input_boolean.auto_laden
state: "off"
- condition: state
entity_id: input_select.auto_laden_kompliziert
state: Aus
then:
- service: mqtt.publish
data:
topic: shelly1mini-6055f998957c/rpc
payload: "{\"method\": \"Switch.Set\", \"params\": { \"id\": 0, \"on\":false }}"
qos: "1"
enabled: true
else:
- service: mqtt.publish
data:
topic: shelly1mini-6055f998957c/rpc
payload: "{\"method\": \"Switch.Set\", \"params\": { \"id\": 0, \"on\":true }}"
qos: "1"
enabled: true
alias: CP an oder aussschalten
- choose:
- conditions:
- condition: state
entity_id: input_boolean.auto_laden
state: "on"
- condition: state
entity_id: input_select.auto_laden_kompliziert
state: Schnell
sequence:
- service: mqtt.publish
data:
topic: evcc/loadpoints/1/mode/set
payload: now
qos: "1"
enabled: true
- conditions:
- condition: state
entity_id: input_select.auto_laden_kompliziert
state: Langsam
sequence:
- service: mqtt.publish
data:
topic: evcc/loadpoints/1/mode/set
payload: minpv
qos: "1"
enabled: true
- conditions:
- condition: state
entity_id: input_select.auto_laden_kompliziert
state: Aus
- condition: state
entity_id: input_boolean.auto_laden
state: "off"
sequence:
- service: mqtt.publish
data:
topic: evcc/loadpoints/1/mode/set
payload: "off"
qos: "1"
enabled: true
enabled: true
alias: EVCC Bescheid sagen
mode: single

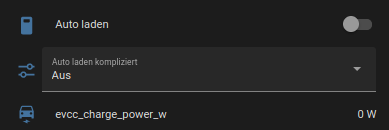

I mostly only use this:
But I to be honest another docker with another System is for me a bit to much and as soon the wallbox can be integrated into ha, i would changeâŚ
