Introducing Status Banner Card - New Cards, Automations and Blueprints

Share your Projects!
, ,
1

So I first struggled endlessly getting what I wanted using the excellent usernein/tailwindcss-template-card) not the I did not get there in the end, but then I wanted a second card in the same style. And in the end I ended up making my own new custom lovelace card for my need, included blueprints (untested) for the advanced automations I have setup that use the cards. And even shared the automations in there whole.

The Lovelace Card

@johnneerdael/status-banner-card

Examples

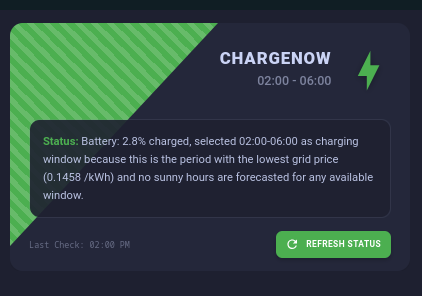

ev-charging
ev-charging464×320 21.1 KB

See more on Personal Github, here you will also find the gists and automations

Blueprints

EV Charging: AI Energy Strategist

Find the correct gist on my github johnneerdael/ev-charging-001.yaml

Integrations Used
  • johnneerdael/Lynk-Co-HA (up to date integration for the EU Lynk & CO from yours truely)
  • LLM Vision
  • Pirate-Weather/pirate-weather-ha or any other weather provider with hourly forecasts and sun conditions in it
  • Frigate or any camera integration that can determine if your car is home
  • Build-in Sun Integration for next-setting and next-rising time (after all there is no sun at night)
  • A AI Task integration (I used Google Gemini) this is going to analyze the data to recommend a charging slot
  • A input_button helper

####Garbage Collection: Vision Verification
Find the correct gist on my github johnneerdael/garbage-collection.yaml

Integrations Used
  • LLM Vision
  • Frigate or any camera integration that can physically see your garbage bins
  • A TTS provider and speakers to send notifications to
  • Optional: A controllable light to take better snapshots of the garbage bins, my automation knows exactly which bins are out based on the color and we have 4

Automations (gists - not made from blueprint):
EV Charging Automation: johnneerdael/a71b316da3ece86165fe3ae4a9668023
Garbage Collection Automation: johnneerdael/f1907f11554b50ee9eee3391987f9092

Note due to being new I can’t add more links or credit people better, sorry!

2

Next let’s see if i can manage to get a fully functional shadcn/ui HA Card to see if the sky is the limit :wink: Progress is here but non-functional atm: shadcn/ui Home Assistant Card

3

New up to date description: A flexible Home Assistant Lovelace card with a distinctive banner design (that can be disabled) for displaying entity states. This card excels at displaying “Call to Action” information—situations where the user needs to know something immediately or do something specific. Because of the distinct banner style and the ability to map colors to a flexible number of states, it works best for cards that should support 2 or more different types of states differently. Unique is that the card has no limit to the number of states or associated state colors that you want to report on.

Had to respond since I haven’t been sitting still. I basically added tons of configuration options in the WebUI. You can now toggle the triangular accent on or off, change both the height and the width of it over the entire card length and height, made that status-box have a configurable opacity setting and made the title and subtitle font (CHARGENOW and time window is this example) adjustable… And for who wasn’t aware, the card has been designed to work with multiple states, you can map these state values to a colormap all from the UI which allows you have your card completely transformed in looks depending on the status. Combined with features like AI entity tasks you can also populate the box with extremely unique and difference text based on the state.

Also I believe the card might seem a bit complex at start, and people might struggle thinking of use cases, so I’ve outlined around 20 possible use-cases for the card in my readme but I will add them here to :wink:

Screenshot_20260102_033440
Screenshot_20260102_033440422×296 16.6 KB

You can also make the card more compact by disabling the status box and the footer (or one or the other), below some simple examples of the same card with different UI settings.

Screenshot_20260102_035653
Screenshot_20260102_035653391×121 4.44 KB

Screenshot_20260102_035902
Screenshot_20260102_035902390×218 12.2 KB

Screenshot_20260102_035959
Screenshot_20260102_035959390×169 6.63 KB

This card excels at displaying “Call to Action” information—situations where the user needs to know something immediately or do something specific. Because of the distinct banner style and the ability to map colors to urgency, it works best for binary or ternary states (Good/Warning/Critical).

:house: Home Maintenance & Chores

  • Washer/Dryer Status

    • State: Running / Finished / Idle
    • Banner: “LAUNDRY COMPLETE” (Green) vs “WASHING” (Blue)
    • Subtitle: “Cycle finished 10m ago” or “Time remaining: 15m”
    • Status Text: “Please move clothes to dryer.”

  • Dishwasher Cycle

    • State: Clean / Dirty / Running
    • Banner: “DISHES CLEAN” (Green) vs “RUNNING” (Blue)
    • Subtitle: “Ready to empty”
    • Status Text: “Cycle finished at 19:30.”

  • HVAC Filter Replacement

    • State: OK / Replace Soon / Overdue
    • Banner: “FILTER REPLACE” (Red) vs “AIR SYSTEM OK” (Green)
    • Subtitle: “Runtime: 300 hours”
    • Status Text: “Airflow restriction detected. Order generic size 20x20x1.”

  • Robotic Vacuum

    • State: Docked / Cleaning / Stuck / Bin Full
    • Banner: “ROBOROCK STUCK” (Red) or “CLEANING” (Blue)
    • Subtitle: “Location: Living Room”
    • Status Text: “Main brush entangled” or “Returning to dock to empty bin.”

:shield: Security & Safety

  • Perimeter/Window Monitor

    • State: Secure / Open / Raining & Open
    • Banner: “CLOSE WINDOWS” (Red) vs “HOUSE SECURE” (Green)
    • Subtitle: “Rain detected”
    • Status Text: “Master Bedroom window is currently open while it is raining.”

  • Garage Door Monitor

    • State: Closed / Open < 10m / Left Open
    • Banner: “GARAGE LEFT OPEN” (Red/Stripe)
    • Subtitle: “Open for 45 minutes”
    • Status Text: “No motion detected in garage. Tap to close.”

  • Smart Lock / Guest Access

    • State: Locked / Unlocked / Jammed
    • Banner: “FRONT DOOR UNLOCKED” (Orange)
    • Subtitle: “Auto-lock disabled”
    • Status Text: “Unlocked by ‘Cleaner Code’ at 10:00 AM.”

  • Leak Detection System

    • State: Dry / Leak Detected
    • Banner: “WATER LEAK DETECTED” (Red/Stripe)
    • Subtitle: “Location: Basement”
    • Status Text: “Main water valve has been shut off automatically.”

:herb: Environment & Health

  • Air Quality (CO2/PM2.5)

    • State: Good / Moderate / Unhealthy
    • Banner: “AIR QUALITY POOR” (Purple)
    • Subtitle: “CO2: 1200ppm”
    • Status Text: “Ventilation required. Open a window or boost HVAC fan.”

  • Plant Care (Aggregated)

    • State: Thriving / Thirsty / Fertilize
    • Banner: “WATER PLANTS” (Blue)
    • Subtitle: “3 Plants Critical”
    • Status Text: “Peace Lily and Monstera moisture levels below 15%.”

  • Pollen/Allergy Forecast

    • State: Low / High / Extreme
    • Banner: “HIGH POLLEN ALERT” (Orange)
    • Subtitle: “Tree Pollen: High”
    • Status Text: “Keep windows closed today. Air purifier set to High.”

:zap: Energy & Network

  • Grid Power Status (Solar)

    • State: Importing / Exporting / Peak Rate
    • Banner: “FREE ENERGY” (Green) vs “PEAK RATE” (Red)
    • Subtitle: “Solar Export: 3.2kW”
    • Status Text: “Great time to run the dishwasher or charge the car.”

  • Home Battery Backup

    • State: Charging / Discharging / Grid Outage
    • Banner: “RUNNING ON BATTERY” (Orange/Stripe)
    • Subtitle: “Grid Power Lost”
    • Status Text: “Est. runtime: 4 hours. Heavy loads (AC) disabled.”

  • Network/Server Health

    • State: Online / Offline / Degraded
    • Banner: “INTERNET DOWN” (Red)
    • Subtitle: “WAN IP Unreachable”
    • Status Text: "UDM Pro has been offline for 5 minutes. Attempting reboot.

  • 3D Printer Status

    • State: Printing / Finished / Error
    • Banner: “PRINT COMPLETE” (Green)
    • Subtitle: “File: Bracket_v2.gcode”
    • Status Text: “Bed cooled to 30°C. Safe to remove object.”

:family_man_woman_girl: Family & Lifestyle

  • Commute Traffic
    • State: Clear / Moderate / Heavy
    • Banner: “HEAVY TRAFFIC” (Red)
    • Subtitle: “+25 mins delay”
    • Status Text: “Accident on I-95. Suggest taking alternate route via Highway 1.”
  • Mail/Package Delivery
    • State: Empty / Mail Arrived / Package Retrieved
    • Banner: “YOU’VE GOT MAIL” (Yellow)
    • Subtitle: “Vibration detected”
    • Status Text: “Mailbox opened at 14:05. Not yet retrieved.”
  • Family Presence / House Mode
    • State: Home / Away / Vacation / Guest
    • Banner: “GUEST MODE ACTIVE” (Purple)
    • Subtitle: “Automations Paused”
    • Status Text: “Lighting motion sensors disabled. Alarm auto-arm disabled.”
  • Medication/Vitamin Reminder
    • State: Taken / Due / Missed
    • Banner: “TAKE MEDICATION” (Red)
    • Subtitle: “Morning Dose”
    • Status Text: “Button last pressed yesterday. Please acknowledge.”
  • Groceries / Shopping List
    • State: Empty / Items Pending
    • Banner: “SHOPPING NEEDED” (Blue)
    • Subtitle: “5 items on list”
    • Status Text: “Milk, Eggs, Bread. Tap to view full Todoist list.”
1 Like
