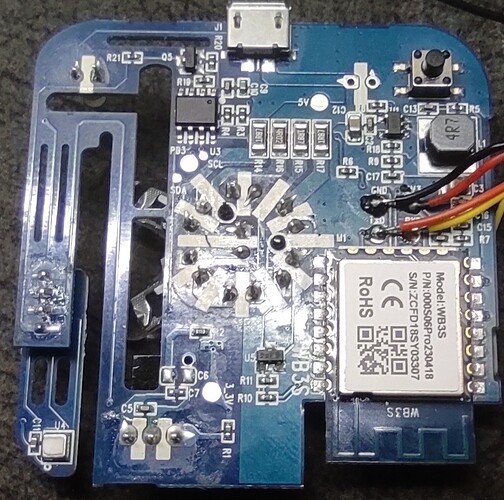

I noticed many people change Tuya modules to ESP8266.

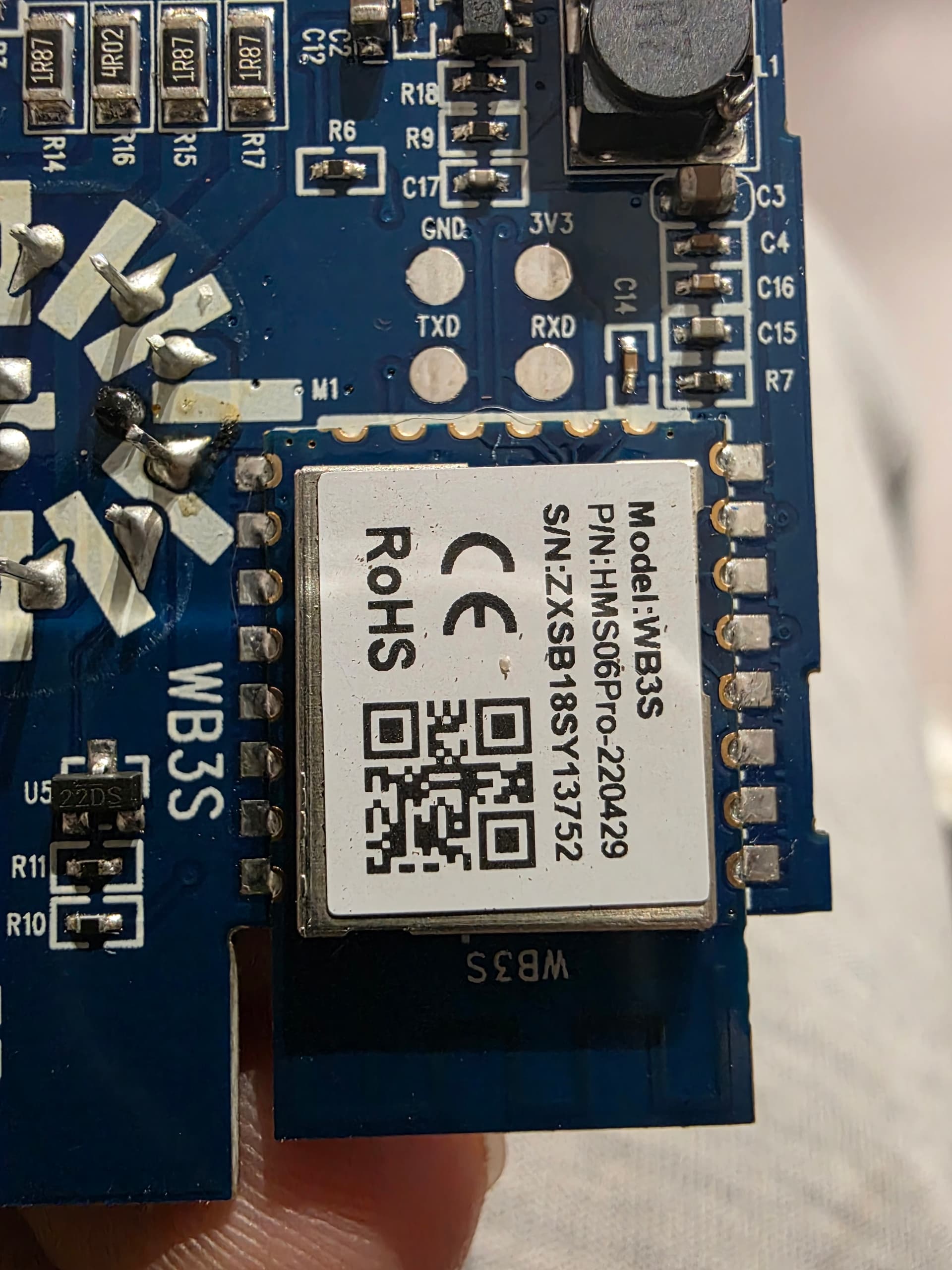

AHT20 (i2c) - connected to WB3S via MCU on uart
I offer my code:
There is a button to check the received code.
And send via ESPhome (code) or automation
esphome:
name: devices03
friendly_name: ir01
bk72xx:
board: wb3s
logger:
level: DEBUG # study the code
ota:
- platform: esphome
password: "xxxxxxxxxxxxxxxxx"
wifi:
ssid: !secret wifi_ssid
password: !secret wifi_password
power_save_mode: none
manual_ip:
static_ip: 192.168.0.53
gateway: 192.168.0.1
subnet: 255.255.255.0
captive_portal:
web_server:
port: 80
api:
encryption:
key: "qouxxxxxxxxxxxxxxxxxxxxxxU="
services:
- service: send_ir
variables:
raw_data: int[]
then:
- remote_transmitter.transmit_raw:
transmitter_id: ir01_ir_tx
code: !lambda 'return raw_data;'
carrier_frequency: 38kHz
status_led:
pin: P9
# Global
globals:
- id: last_ir_code
type: std::string
restore_value: no
initial_value: ""
- id: ir_code_buf
type: std::vector<int32_t>
restore_value: no
remote_receiver:
id: ir01_ir_rx
pin:
number: P8
inverted: true
dump:
- raw
tolerance: 50%
buffer_size: 4kb
on_raw:
then:
- lambda: |-
if (id(learning_mode).state && !x.empty()) {
std::string code;
code.reserve(x.size() * 8);
for (size_t i = 0; i < x.size(); ++i) {
if (i != 0) code += ",";
code += std::to_string(x[i]);
}
id(ir01_code).publish_state("RAW:" + code);
id(last_ir_code) = code;
id(ir_code_buf) = x;
}
switch:
- platform: template
name: "IR01 Learning Mode"
id: learning_mode
optimistic: true
restore_mode: ALWAYS_OFF
remote_transmitter:
id: ir01_ir_tx
pin: P26
carrier_duty_percent: 50%
binary_sensor:
- platform: gpio
pin: P6
name: "IR01 Learn Button"
on_press:
then:
- switch.toggle: learning_mode
button:
- platform: template
name: "IR01 Repeat code"
icon: "mdi:repeat"
disabled_by_default: false
on_press:
then:
- if:
condition:
lambda: |-
if (id(ir_code_buf).empty()) {
ESP_LOGW("IR01", "Code buffer is empty!");
return false;
}
return true;
then:
- lambda: |-
ESP_LOGI("IR01", "Sending code: %s", id(last_ir_code).c_str());
ESP_LOGD("IR01", "Buffer size: %d", id(ir_code_buf).size());
- remote_transmitter.transmit_raw:
transmitter_id: ir01_ir_tx
code: !lambda |-
ESP_LOGD("IR01", "First element of the code: %d", id(ir_code_buf)[0]);
return id(ir_code_buf);
carrier_frequency: 38kHz
repeat:
times: 3
wait_time: 100ms # pause
- delay: 50ms
- lambda: |-
ESP_LOGI("IR01", "Code sent successfully");
else:
- logger.log:
level: ERROR
format: "Error: No saved code for redo"
- platform: template
name: "IR01 Laser"
icon: "mdi:laser-pointer"
id: ir01_laser_button
disabled_by_default: false
on_press:
then:
- remote_transmitter.transmit_raw:
transmitter_id: ir01_ir_tx
carrier_frequency: 38kHz
code: [
8925,-4508,560,-559,563,-563,562,-563,531,-594,
563,-563,562,-563,563,-563,563,-562,532,-1719,
532,-1719,532,-1719,563,-1691,560,-1688,562,-1689,
593,-1657,594,-1688,563,-563,531,-1720,563,-1688,
562,-1689,562,-563,563,-562,563,-563,562,-563,
563,-1688,563,-562,563,-563,562,-563,563,-1688,
563,-1688,563,-1688,562,-1689,531,-10000
]
- delay: 200ms
# tuya mcu
tuya:
uart:
rx_pin: RX1
tx_pin: TX1
baud_rate: 9600
text_sensor:
- platform: template
name: "IR01 Last IR Code"
id: ir01_code
sensor:
- platform: tuya
sensor_datapoint: 101
name: "IR01 Temperature"
unit_of_measurement: "°C"
accuracy_decimals: 1
filters:
- lambda: return x * 0.1;
- platform: tuya
sensor_datapoint: 102
name: "IR01 Humidity"
unit_of_measurement: "%"
- platform: wifi_signal
name: "IR01 Dummy RSSI"
update_interval: 60salias: Send IR code on event
description: ""
triggers:
- domain: mqtt
device_id: 038cb24eaa43bfd3af00abb0b52e74dd
type: action
subtype: 2_double
trigger: device
actions:
- data:
raw_data:
- 8925
- -4508
- 560
- -559
- 563
- -563
- 562
- -563
- 531
- -594
- 563
- -563
- 562
- -563
- 563
- -563
- 563
- -562
- 532
- -1719
- 532
- -1719
- 532
- -1719
- 563
- -1691
- 560
- -1688
- 562
- -1689
- 593
- -1657
- 594
- -1688
- 563
- -563
- 531
- -1720
- 563
- -1688
- 562
- -1689
- 562
- -563
- 563
- -562
- 563
- -563
- 562
- -563
- 563
- -1688
- 563
- -562
- 563
- -563
- 562
- -563
- 563
- -1688
- 563
- -1688
- 563
- -1688
- 562
- -1689
- 531
- -10000
action: esphome.devices03_send_ir- I first flashed via UART in Open B K7238_Q Ю_1.18.136.bin via BK7231GUIFlashTool-v32 (When flashing, via uart you need to short-circuit Pin1 - Pin9 (CEN-GND);
- From ESPhome firmware “bin” via Itchiptool v4.12.1 (When flashing, via uart you need to short-circuit Pin1 - Pin9 (CEN-GND));
- then it is esphome updated via WiFi.
