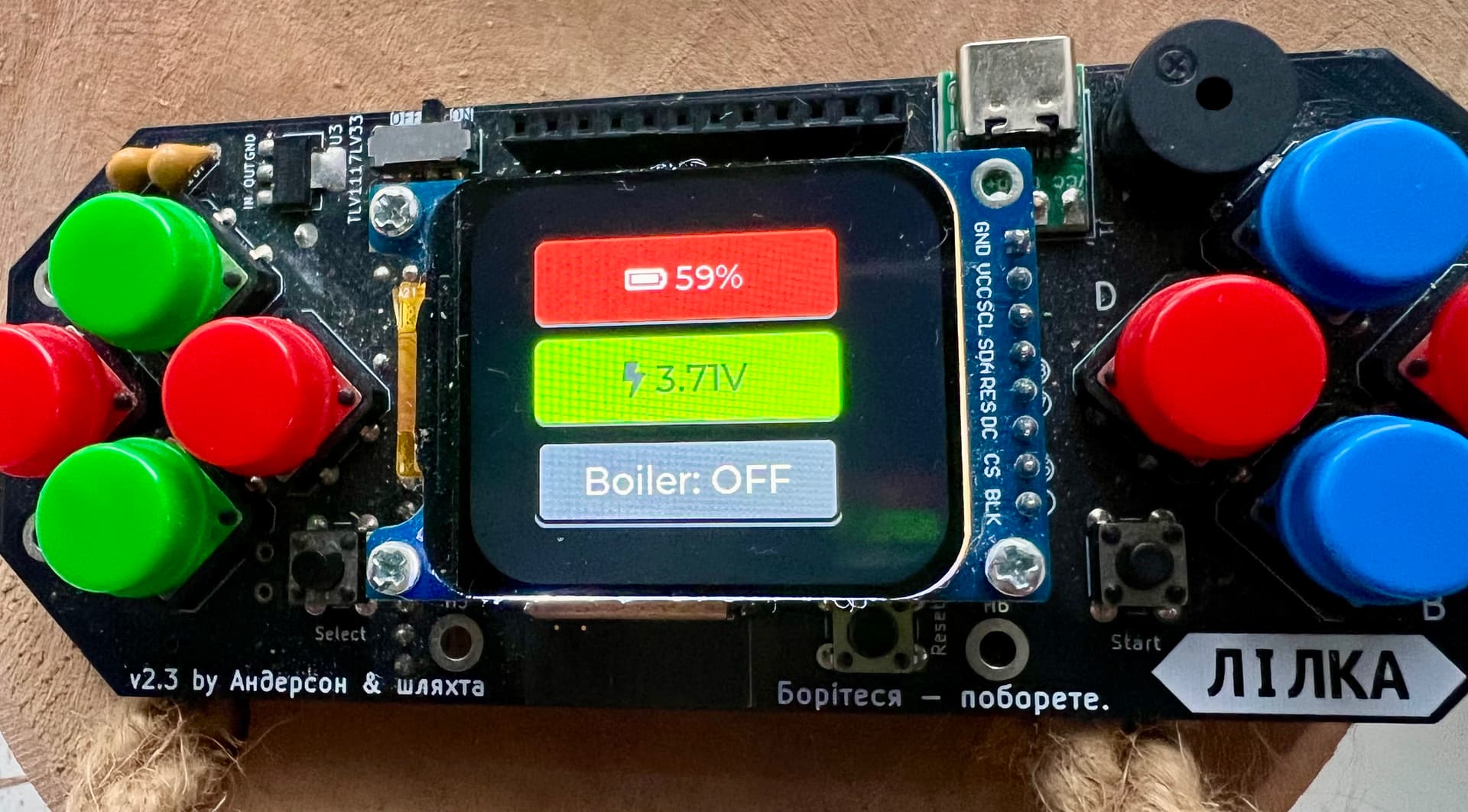

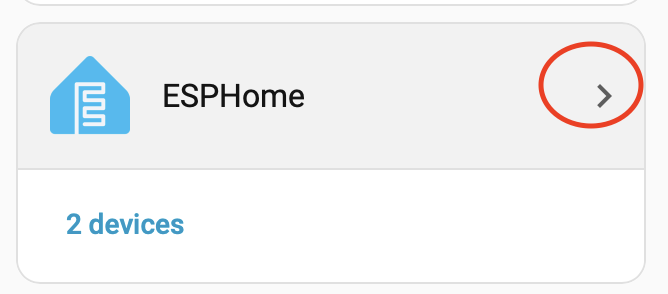

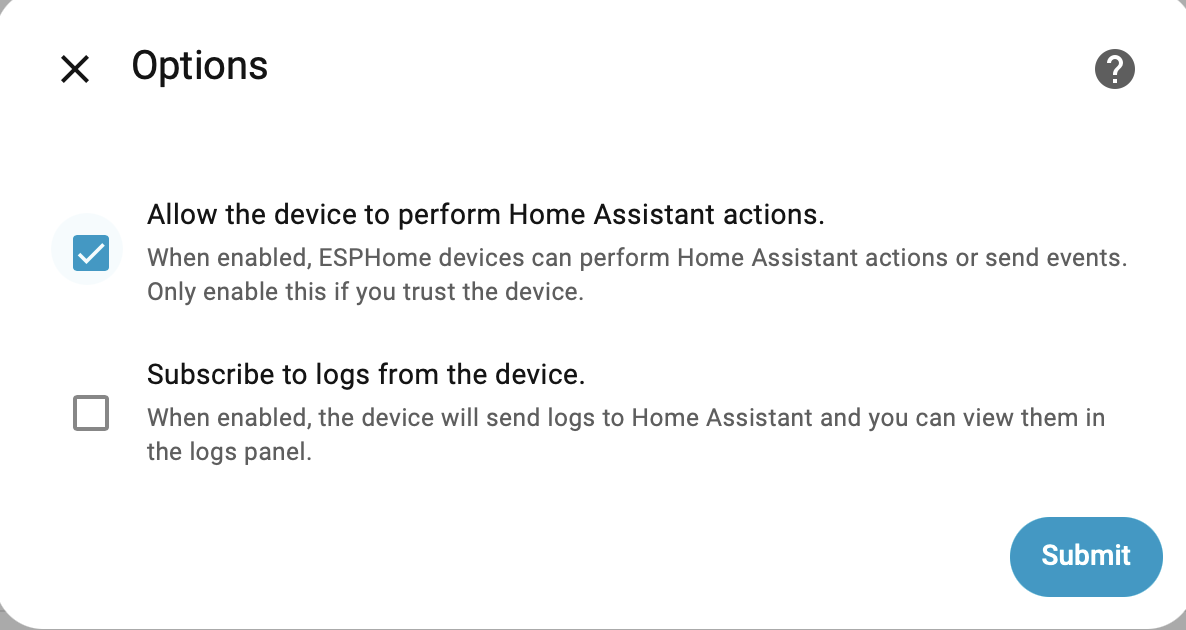

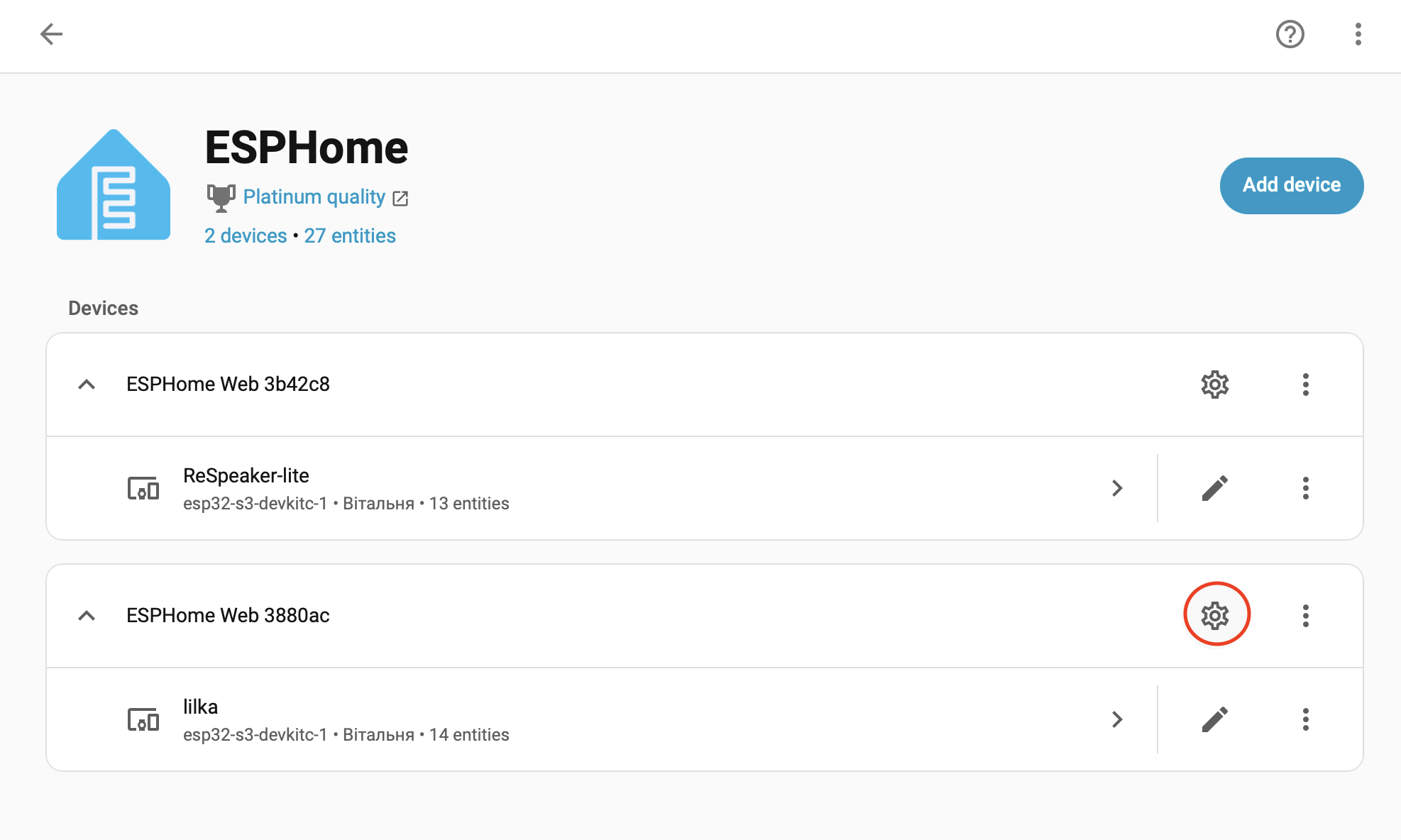

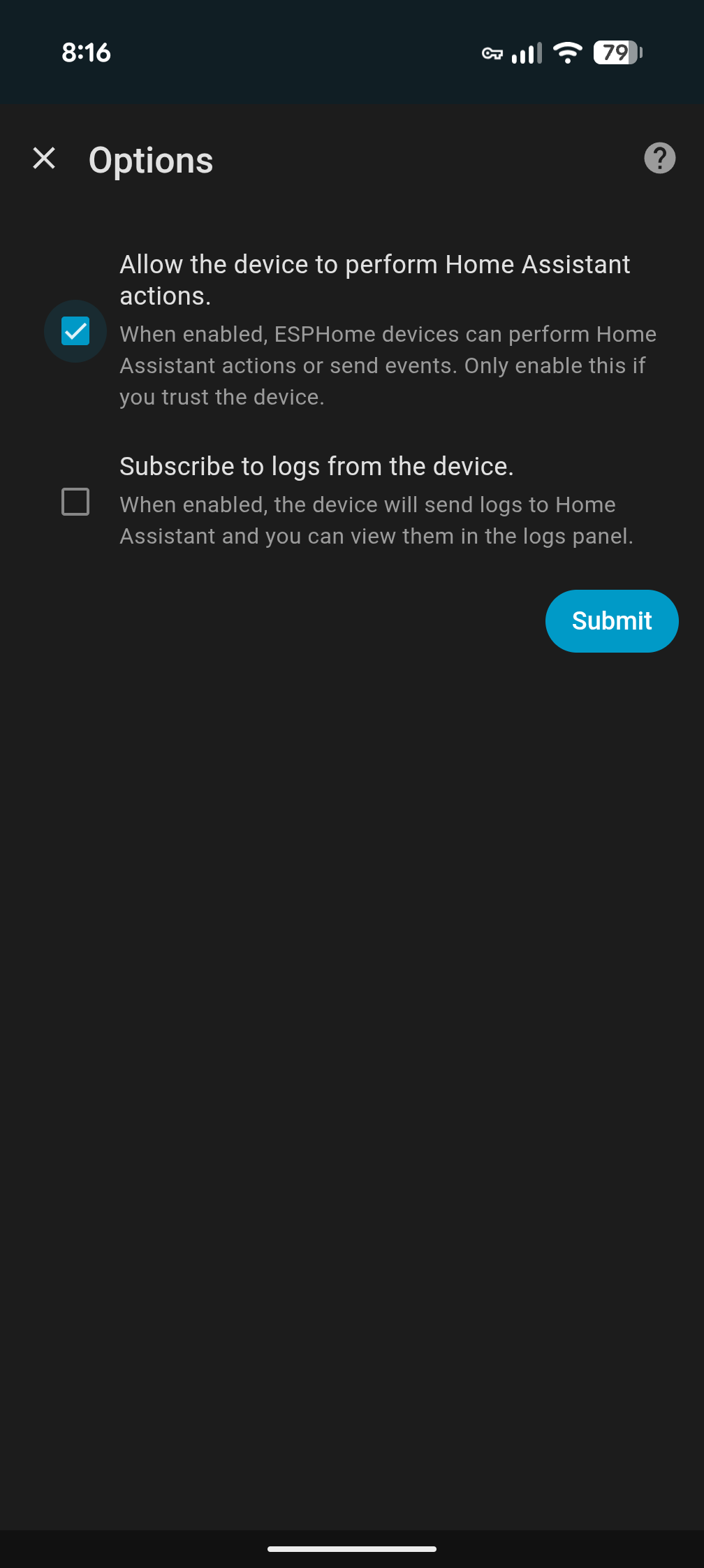

I have set up an ESP32-based device to control the boiler through a template switch in ESPHome. The status of this switch is correctly passed to Home Assistant. When I change the status in Home Assistant, it also updates on the ESPHome device’s screen. However, when I press the Select button on the ESPHome device, the logs show that an attempt to change the boiler’s state (ON/OFF) was made, but the physical boiler does not switch. There are also no changes in Home Assistant or on the ESPHome device’s screen. What am I doing wrong? Any advice?
Log
[07:23:36.736][C][safe_mode:018]: Successful after: 60s
[07:23:36.736][C][safe_mode:018]: Invoke after: 10 attempts
[07:23:36.736][C][safe_mode:018]: Duration: 300s
[07:23:36.751][C][web_server.ota:241]: Web Server OTA
[07:23:36.758][C][api:222]: Server:
[07:23:36.758][C][api:222]: Address: lilka.local:6053
[07:23:36.758][C][api:222]: Listen backlog: 4
[07:23:36.758][C][api:222]: Max connections: 8
[07:23:36.761][C][api:229]: Noise encryption: YES
[07:23:36.773][C][homeassistant.binary_sensor:016]: Homeassistant Binary Sensor 'boiler_switch_state'
[07:23:36.775][C][homeassistant.binary_sensor:040]: Entity ID: 'switch.boiler_switch'
[07:23:36.825][C][mdns:179]: mDNS:
[07:23:36.825][C][mdns:179]: Hostname: lilka
[07:23:37.060][D][sensor:131]: 'Battery Level': Sending state 64.43417 % with 0 decimals of accuracy
[07:23:37.456][W][component:453]: lvgl took a long time for an operation (60 ms)
[07:23:37.458][W][component:456]: Components should block for at most 30 ms
[07:23:38.199][D][sensor:131]: 'Battery Voltage': Sending state 3.77055 V with 2 decimals of accuracy
[07:23:43.823][D][binary_sensor:039]: 'Button Down': New state is ON
[07:23:43.832][W][component:453]: lvgl took a long time for an operation (85 ms)
[07:23:43.834][W][component:456]: Components should block for at most 30 ms
[07:23:43.896][D][binary_sensor:039]: 'Button Down': New state is OFF
[07:23:46.359][D][binary_sensor:039]: 'Button Down': New state is ON
[07:23:46.463][D][binary_sensor:039]: 'Button Down': New state is OFF
[07:23:47.066][D][sensor:131]: 'Battery Level': Sending state 64.21252 % with 0 decimals of accuracy
[07:23:48.192][D][main:336]: Button Select pressed! Current index: 2
[07:23:48.193][D][main:422]: Toggling boiler switch
[07:23:48.193][D][switch:028]: 'Boiler Control' Toggling ON.
[07:23:48.194][D][main:634]: Turning boiler ON via Home Assistant
[07:23:48.194][D][switch:063]: 'Boiler Control': Sending state ON
[07:23:48.194][D][binary_sensor:039]: 'Button Select': New state is ON
[07:23:48.200][D][sensor:131]: 'Battery Voltage': Sending state 3.77321 V with 2 decimals of accuracy
[07:23:48.294][D][binary_sensor:039]: 'Button Select': New state is OFF
[07:23:51.291][D][main:336]: Button Select pressed! Current index: 2
[07:23:51.292][D][main:422]: Toggling boiler switch
[07:23:51.295][D][switch:028]: 'Boiler Control' Toggling OFF.
[07:23:51.298][D][main:626]: Turning boiler OFF via Home Assistant
[07:23:51.303][D][switch:063]: 'Boiler Control': Sending state OFF
[07:23:51.307][D][binary_sensor:039]: 'Button Select': New state is ON
[07:23:51.413][D][binary_sensor:039]: 'Button Select': New state is OFF
[07:23:55.248][D][main:336]: Button Select pressed! Current index: 2
[07:23:55.249][D][main:422]: Toggling boiler switch
[07:23:55.249][D][switch:028]: 'Boiler Control' Toggling ON.
[07:23:55.249][D][main:634]: Turning boiler ON via Home Assistant
[07:23:55.249][D][switch:063]: 'Boiler Control': Sending state ON
[07:23:55.249][D][binary_sensor:039]: 'Button Select': New state is ON
[07:23:55.361][D][binary_sensor:039]: 'Button Select': New state is OFF
[07:23:57.103][D][sensor:131]: 'Battery Level': Sending state 64.43417 % with 0 decimals of accuracy
[07:23:58.254][D][sensor:131]: 'Battery Voltage': Sending state 3.77188 V with 2 decimals of accuracy
[07:23:59.915][D][main:336]: Button Select pressed! Current index: 2
[07:23:59.916][D][main:422]: Toggling boiler switch
[07:23:59.917][D][switch:028]: 'Boiler Control' Toggling OFF.
[07:23:59.917][D][main:626]: Turning boiler OFF via Home Assistant
[07:23:59.969][D][switch:063]: 'Boiler Control': Sending state OFF
[07:23:59.969][D][binary_sensor:039]: 'Button Select': New state is ON
[07:24:00.071][D][binary_sensor:039]: 'Button Select': New state is OFF
[07:24:05.605][D][main:336]: Button Select pressed! Current index: 2
[07:24:05.606][D][main:422]: Toggling boiler switch
[07:24:05.607][D][switch:028]: 'Boiler Control' Toggling ON.
[07:24:05.607][D][main:634]: Turning boiler ON via Home Assistant
[07:24:05.607][D][switch:063]: 'Boiler Control': Sending state ON
[07:24:05.607][D][binary_sensor:039]: 'Button Select': New state is ON
[07:24:05.703][D][binary_sensor:039]: 'Button Select': New state is OFF
[07:24:07.038][D][main:336]: Button Select pressed! Current index: 2
[07:24:07.041][D][main:422]: Toggling boiler switch
[07:24:07.041][D][switch:028]: 'Boiler Control' Toggling OFF.
[07:24:07.042][D][main:626]: Turning boiler OFF via Home Assistant
[07:24:07.042][D][switch:063]: 'Boiler Control': Sending state OFF
[07:24:07.042][D][binary_sensor:039]: 'Button Select': New state is ON
[07:24:07.066][D][sensor:131]: 'Battery Level': Sending state 64.32335 % with 0 decimals of accuracy
[07:24:07.137][D][binary_sensor:039]: 'Button Select': New state is OFF
[07:24:08.062][D][main:336]: Button Select pressed! Current index: 2
[07:24:08.063][D][main:422]: Toggling boiler switch
[07:24:08.064][D][switch:028]: 'Boiler Control' Toggling ON.
[07:24:08.064][D][main:634]: Turning boiler ON via Home Assistant
[07:24:08.064][D][switch:063]: 'Boiler Control': Sending state ON
[07:24:08.064][D][binary_sensor:039]: 'Button Select': New state is ON
[07:24:08.161][D][binary_sensor:039]: 'Button Select': New state is OFF
[07:24:08.206][D][sensor:131]: 'Battery Voltage': Sending state 3.76789 V with 2 decimals of accuracy
[07:24:12.159][D][homeassistant.binary_sensor:026]: 'switch.boiler_switch': Got state ON
[07:24:12.162][D][binary_sensor:039]: 'boiler_switch_state': New state is ON
[07:24:16.572][D][homeassistant.binary_sensor:026]: 'switch.boiler_switch': Got state OFF
[07:24:16.573][D][binary_sensor:039]: 'boiler_switch_state': New state is OFF
[07:24:17.075][D][sensor:131]: 'Battery Level': Sending state 63.99083 % with 0 decimals of accuracy
[07:24:18.302][D][sensor:131]: 'Battery Voltage': Sending state 3.77188 V with 2 decimals of accuracy
[07:24:19.026][D][homeassistant.binary_sensor:026]: 'switch.boiler_switch': Got state ON
[07:24:19.026][D][binary_sensor:039]: 'boiler_switch_state': New state is ON
[07:24:23.664][D][homeassistant.binary_sensor:026]: 'switch.boiler_switch': Got state OFF
[07:24:23.669][D][binary_sensor:039]: 'boiler_switch_state': New state is OFF
[07:24:24.909][I][safe_mode:042]: Boot seems successful; resetting boot loop counter
[07:24:24.910][D][esp32.preferences:149]: Writing 1 items: 0 cached, 1 written, 0 failed
[07:24:27.111][D][sensor:131]: 'Battery Level': Sending state 64.32335 % with 0 decimals of accuracy
[07:24:28.338][D][sensor:131]: 'Battery Voltage': Sending state 3.77321 V with 2 decimals of accuracy
Config
esphome:
name: lilka
friendly_name: lilka
on_boot:
priority: 600
then:
- output.turn_on: display_power
- delay: 100ms
esp32:
board: esp32-s3-devkitc-1
framework:
type: esp-idf
version: recommended
sdkconfig_options:
CONFIG_ESP32S3_DATA_CACHE_64KB: y
CONFIG_ESP32S3_DATA_CACHE_LINE_64B: y
CONFIG_SPIRAM_MODE_OCT: y
CONFIG_SPIRAM: y
mdns:
disabled: false
psram:
mode: octal
speed: 80MHz
wifi:
ssid: !secret wifi_ssid
password: !secret wifi_password
power_save_mode: none
ap:
ssid: "Lilka Fallback Hotspot"
password: "hnYImYM4O6I0"
captive_portal:
web_server:
port: 80
api:
encryption:
key: "Yw3yq8lxsaze+jdggjAwxKpV4GD6gNZptvw4d6OPfOc="
logger:
level: DEBUG
ota:
- platform: esphome
password: "bb198feb99159fdaefc8092f10039acd"
# ---------------------------------------------------
# Дозволяє Home Assistant виявляти Bluetooth пристрої
# через цей ESP32 (розширює покриття BLE мережі)
# https://esphome.io/components/bluetooth_proxy/
# ---------------------------------------------------
esp32_ble_tracker:
scan_parameters:
interval: 1100ms
window: 1100ms
active: true
bluetooth_proxy:
active: true
connection_slots: 3
# ---------------------------------------------------
# Динамік
# ---------------------------------------------------
output:
- platform: gpio
pin: 46
id: display_power
inverted: false
i2s_audio:
- id: i2s_out
i2s_lrclk_pin: GPIO1
i2s_bclk_pin: GPIO42
speaker:
- platform: i2s_audio
id: lilka_speaker
dac_type: external
i2s_audio_id: i2s_out
i2s_dout_pin: GPIO2
channel: mono
sample_rate: 16000
bits_per_sample: 16bit
buffer_duration: 100ms
media_player:
- platform: speaker
name: "Lilka Media Player"
id: lilka_media_player
buffer_size: 4000
codec_support_enabled: false
announcement_pipeline:
speaker: lilka_speaker
format: WAV
num_channels: 1
# ---------------------------------------------------
# TEMPLATE SWITCH - для керування бойлером
# ---------------------------------------------------
switch:
- platform: template
id: boiler_switch
name: "Boiler Control"
optimistic: true
turn_on_action:
- logger.log: "Turning boiler ON via Home Assistant"
- homeassistant.service:
service: switch.turn_on
data:
entity_id: switch.boiler_switch
turn_off_action:
- logger.log: "Turning boiler OFF via Home Assistant"
- homeassistant.service:
service: switch.turn_off
data:
entity_id: switch.boiler_switch
# ---------------------------------------------------
# СЕНСОРИ БАТАРЕЇ
# ---------------------------------------------------
sensor:
- platform: adc
pin: GPIO3
id: battery_voltage
name: "Battery Voltage"
icon: "mdi:lightning-bolt"
update_interval: 10s
attenuation: 12db
filters:
- multiply: 1.33
- platform: template
id: battery_level
name: "Battery Level"
icon: "mdi:battery"
unit_of_measurement: "%"
accuracy_decimals: 0
update_interval: 10s
lambda: |-
float voltage = id(battery_voltage).state;
float percent = (voltage - 3.0) / (4.2 - 3.0) * 100.0;
if (percent > 100) percent = 100;
if (percent < 0) percent = 0;
return percent;
# ---------------------------------------------------
# ДИСПЛЕЙ ST7789V
# ---------------------------------------------------
spi:
clk_pin: 18
mosi_pin: 17
display:
- platform: mipi_spi
model: ST7789V
id: my_display
dc_pin: 15
cs_pin: 7
update_interval: 2s
rotation: 270
invert_colors: true
color_order: BGR
pixel_mode: 16bit
dimensions:
width: 280
height: 240
offset_width: 20
offset_height: 0
auto_clear_enabled: false
# ---------------------------------------------------
# LVGL З FLEX LAYOUT https://esphome.io/cookbook/lvgl/#flex-layout-positioning
# ---------------------------------------------------
lvgl:
log_level: WARN
buffer_size: 25%
style_definitions:
- id: default_style
bg_color: 0x000000
text_color: 0xFFFFFF
- id: focused_style
border_color: 0xFFFFFF
border_width: 3
pages:
- id: main_page
bg_color: 0x000000
widgets:
# Контейнер з flex layout для автоматичного розташування
- obj:
align: CENTER
width: 200
height: 200
bg_opa: TRANSP
border_opa: TRANSP
border_width: 0
outline_width: 0
pad_all: 0
layout:
type: FLEX
flex_flow: COLUMN # Вертикальне розташування
flex_align_main: CENTER
flex_align_cross: CENTER
pad_row: 10 # Відступ між кнопками
widgets:
- button:
id: red_button
width: 180
height: 50
bg_color: 0xFF0000
widgets:
- label:
id: battery_label
text: "\uF240 --% "
align: CENTER
text_font: montserrat_20
- button:
id: green_button
width: 180
height: 50
bg_color: 0x00FF00
widgets:
- label:
id: voltage_label
text: "Voltage: --"
align: CENTER
text_color: 0x333333
text_font: montserrat_22
- button:
id: blue_button
width: 180
height: 50
bg_color: 0x808080
widgets:
- label:
id: boiler_label
text: "Boiler: --"
align: CENTER
text_color: 0xFFFFFF
text_font: montserrat_22
# ---------------------------------------------------
# НАВІГАЦІЯ ФІЗИЧНИМИ КНОПКАМИ
# ---------------------------------------------------
globals:
- id: current_button_index
type: int
restore_value: no
initial_value: '0'
script:
- id: update_focus
then:
- lvgl.widget.update:
id: red_button
border_width: !lambda 'return id(current_button_index) == 0 ? 3 : 0;'
- lvgl.widget.update:
id: green_button
border_width: !lambda 'return id(current_button_index) == 1 ? 3 : 0;'
- lvgl.widget.update:
id: blue_button
border_width: !lambda 'return id(current_button_index) == 2 ? 3 : 0;'
# ---------------------------------------------------
# BINARY SENSORS - ФІЗИЧНІ КНОПКИ + HOME ASSISTANT
# ---------------------------------------------------
binary_sensor:
# Home Assistant binary sensor для статусу бойлера
- platform: homeassistant
id: boiler_switch_state
entity_id: switch.boiler_switch
internal: true
# Навігаційні кнопки
- platform: gpio
pin:
number: 38
mode: INPUT_PULLUP
inverted: true
id: button_up
name: "Button Up"
icon: "mdi:arrow-up-circle"
filters:
- delayed_on_off: 50ms
on_press:
- lambda: |-
id(current_button_index)--;
if (id(current_button_index) < 0) id(current_button_index) = 2;
- script.execute: update_focus
- platform: gpio
pin:
number: 41
mode: INPUT_PULLUP
inverted: true
id: button_down
name: "Button Down"
icon: "mdi:arrow-down-circle"
filters:
- delayed_on_off: 50ms
on_press:
- lambda: |-
id(current_button_index)++;
if (id(current_button_index) > 2) id(current_button_index) = 0;
- script.execute: update_focus
- platform: gpio
pin:
number: 39
mode: INPUT_PULLUP
inverted: true
id: button_left
name: "Button Left"
icon: "mdi:arrow-left-circle"
filters:
- delayed_on_off: 50ms
- platform: gpio
pin:
number: 40
mode: INPUT_PULLUP
inverted: true
id: button_right
name: "Button Right"
icon: "mdi:arrow-right-circle"
filters:
- delayed_on_off: 50ms
# Кнопки дій
- platform: gpio
pin:
number: 5
mode: INPUT_PULLUP
inverted: true
id: button_a
name: "Button A"
icon: "mdi:alpha-a-circle"
filters:
- delayed_on_off: 50ms
- platform: gpio
pin:
number: 6
mode: INPUT_PULLUP
inverted: true
id: button_b
name: "Button B"
icon: "mdi:alpha-b-circle"
filters:
- delayed_on_off: 50ms
- platform: gpio
pin:
number: 10
mode: INPUT_PULLUP
inverted: true
id: button_c
name: "Button C"
icon: "mdi:alpha-c-circle"
filters:
- delayed_on_off: 50ms
- platform: gpio
pin:
number: 9
mode: INPUT_PULLUP
inverted: true
id: button_d
name: "Button D"
icon: "mdi:alpha-d-circle"
filters:
- delayed_on_off: 50ms
- platform: gpio
pin:
number: 4
mode: INPUT_PULLUP
inverted: true
id: button_start
name: "Button Start"
icon: "mdi:play-circle"
filters:
- delayed_on_off: 50ms
- platform: gpio
pin:
number: 0
mode: INPUT_PULLUP
inverted: true
id: button_select
name: "Button Select"
icon: "mdi:checkbox-marked-circle"
filters:
- delayed_on_off: 50ms
on_press:
- logger.log:
format: "Button Select pressed! Current index: %d"
args: [ 'id(current_button_index)' ]
# Перемикання бойлера при натисканні Select
- if:
condition:
lambda: 'return id(current_button_index) == 2;'
then:
- logger.log: "Toggling boiler switch"
- switch.toggle: boiler_switch
else:
- logger.log: "Not on boiler button, ignoring"
# ---------------------------------------------------
# АВТОМАТИЧНЕ ОНОВЛЕННЯ ДИСПЛЕЮ
# ---------------------------------------------------
interval:
- interval: 5s
then:
- lvgl.label.update:
id: battery_label
text: !lambda |-
return std::string("\uF240 ") + to_string((int)id(battery_level).state) + "%";
- lvgl.label.update:
id: voltage_label
text: !lambda |-
char buf[20];
snprintf(buf, sizeof(buf), "\uF0E7 %.2fV", id(battery_voltage).state);
return std::string(buf);
# Оновлення статусу бойлера
- lvgl.label.update:
id: boiler_label
text: !lambda |-
return std::string(id(boiler_switch_state).state ? "Boiler: ON" : "Boiler: OFF");
# Оновлення кольору кнопки бойлера
- lvgl.widget.update:
id: blue_button
bg_color: !lambda |-
lv_color_t green = lv_color_hex(0x00FF00);
lv_color_t gray = lv_color_hex(0x808080);
return id(boiler_switch_state).state ? green : gray;
