Keypad missing in custom alarm_control_panel

Development
1

Hi,

I am developing a custom alarm_control_panel and is curious about how to display the keypad to enter a code when arming the alarm system.

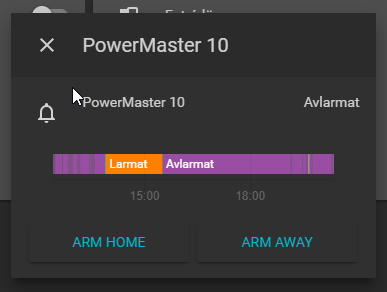

At the beginning of developing the component there was a keypad right above the ARM HOME and ARM AWAY buttons. Now it just looks like this and I have no idea why it is gone:
HomeAssistantArmDialog

Any help would be much appreciated :slight_smile:

Here is a link to the source code: https://github.com/MikaelSchultz/homeassistant

2

My understanding is that this peace of code should show the keypad, but it doesn’t. It is cut from the alarm_control_panel\visonicalarm.py file:

@property
def code_format(self):
    """ Return one or more digits/characters. """
    return 'Number'

Update: Just found this link that explain that setting code_format as Number should display the key pad: https://developers.home-assistant.io/docs/en/entity_alarm_control_panel.html

3

Or you could use lovelace and Lovelace: Alarm card

4

Thanks, I have not used Lovelace before but it seems it is time to look into it now.

5

Sadly the Lovelace Alarm Card act the same way as the previous UI. The keypad is missing here as well. There must be some small mistake I have made in the code, but I cannot seem to find it :frowning:

This is what I get when using Lovelace:
HomeAssistantLovelaceAlarmPanel

This is the config I tried:

cards:
  - type: custom:alarm_control_panel-card
    entity: alarm_control_panel.visonic_alarm
    title: My alarm
    hide_keypad: false
    display_letters: true
    code_length: 4
    states:
      - arm_home
      - arm_away
6

Solved it! :rofl:

When I added the state_attributes() method to my VisonicAlarm class (which inherit from homeassistant.components.alarm_control_panel:AlarmControlPanel) I overrode the state_attributes() method from the parent class:

@property
def state_attributes(self):
    """Return the state attributes."""
    state_attr = {
        ATTR_CODE_FORMAT: self.code_format,
        ATTR_CHANGED_BY: self.changed_by
    }
    return state_attr

Which meant that my method (which is now missing the attribute ATTR_CODE_FORMAT) did not share the code_format() anymore:

@property
def state_attributes(self):
    """ Return the state attributes of the alarm system. """
    return {
        STATE_ATTR_SYSTEM_SERIAL_NUMBER: hub.alarm.serial_number,
        STATE_ATTR_SYSTEM_NAME: hub.alarm.name,
        STATE_ATTR_SYSTEM_MODEL: hub.alarm.model,
        STATE_ATTR_SYSTEM_READY: hub.alarm.ready,
        STATE_ATTR_SYSTEM_ACTIVE: hub.alarm.active,
        STATE_ATTR_SYSTEM_CONNECTED: hub.alarm.connected,
        STATE_ATTR_SYSTEM_SESSION_TOKEN: hub.alarm.session_token,
        STATE_ATTR_SYSTEM_LAST_UPDATE: hub.last_update,
    }

So, all I had to do was to add this link to the attribute list and it worked!

ATTR_CODE_FORMAT: self.code_format,

Finally, this is what solved my problem:

@property
def state_attributes(self):
    """ Return the state attributes of the alarm system. """
    return {
        STATE_ATTR_SYSTEM_SERIAL_NUMBER: hub.alarm.serial_number,
        STATE_ATTR_SYSTEM_NAME: hub.alarm.name,
        STATE_ATTR_SYSTEM_MODEL: hub.alarm.model,
        STATE_ATTR_SYSTEM_READY: hub.alarm.ready,
        STATE_ATTR_SYSTEM_ACTIVE: hub.alarm.active,
        STATE_ATTR_SYSTEM_CONNECTED: hub.alarm.connected,
        STATE_ATTR_SYSTEM_SESSION_TOKEN: hub.alarm.session_token,
        STATE_ATTR_SYSTEM_LAST_UPDATE: hub.last_update,
        ATTR_CODE_FORMAT: self.code_format,
        ATTR_CHANGED_BY: self.changed_by,
        ATTR_CHANGED_TIMESTAMP: self._changed_timestamp,
    }
