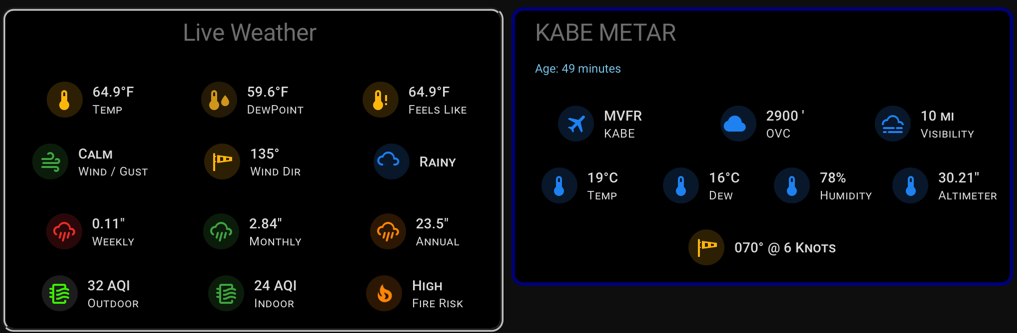

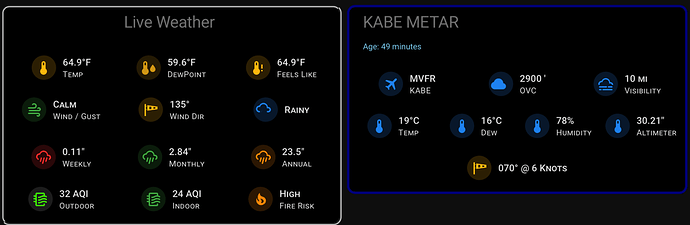

Here are two weather cards that I created with much reading from different searches.
I have an extensive SmartThings deployment and was looking for something that would extend the feature/functionality of my current ST deployment and allow me to consolidate 12 Raspberry Pi into HA. Ultimately, my goal is to supplant ST with HA.
I am not a programmer by trade but can hold my own. I had no prior experience with YAML, json, or MQTT.
For my first production dashboard, I focused on weather. Being a private pilot, I wanted to display METAR information but found no working integrations. This started me down the path of leveraging APIs. I also have an AmbientWeather station on my roof and wanted to create a different card for that.
I am currently wading through different hardware approaches to have HA specific displays, particularly for my bedstand and office. I’m finding this to be the biggest challenge. I am testing a repurposed Raspberry Pi with the 7” display, so screen real estate is at a premium
These cards use mushroom-template-badge cards enveloped in a stack-in-card. I use horizontal-stack cards to delineate lines of related data that I wanted to keep together.
Both cards use dynamic icon colors.

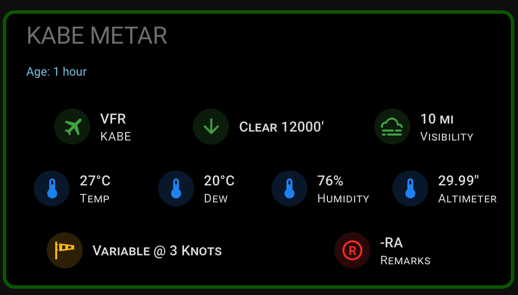

The METAR card border will change with the current flight conditions (green = VFR, blue = MVFR, red = IFR, and magenta = LIFR. The top row of cards (flight rules, cloud layers and visibility all change colors to reflect the current flight rules. Gusting wind conditions, when present. The cloud layers in row 1 come and go based on their presence.
I use two API sources: one from NWS and the other from AVWX.rest. Each provides slightly different info that made my programming life easier. Node Red to create the flow and create sensors.

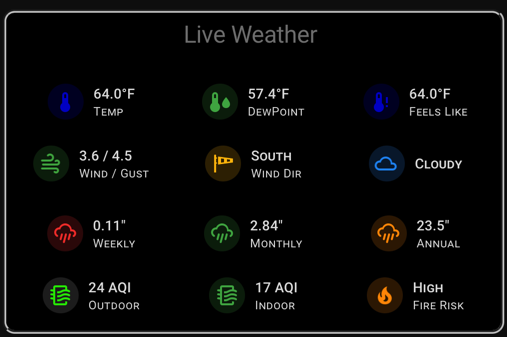

Live Weather card has six rows of information. When present, it will show NWS weather alerts on the first row (if present). Row 2: temperatures. Row 3: winds and sky conditions (sky conditions via OpenWeather). Row 4: precipitation when there is an active event. I show rate rate/hr and Rain Event. Row 5: Weekly, Monthly and Annual rain. Color coded for my area’s expected rain within those categories. Row 6: AQI and Fire Risk. AQI via PurpleAir unit and EcoWitt (Ecowitt2mqtt) for inside AQI. Fire risk via PirateWeather.
Using the ambient2mqtt integration. It provided me with some entities that the AmbientWeather integration didn’t.

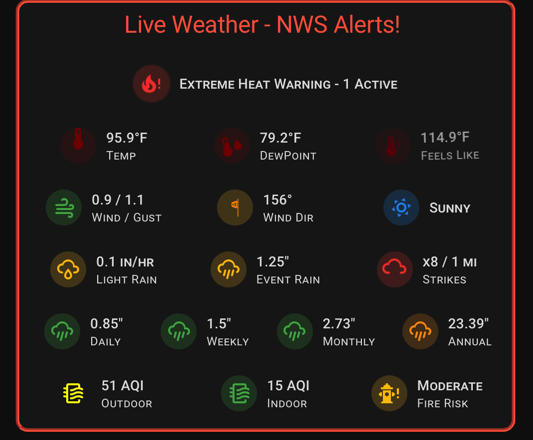

The most fun I had was integrating the NWS Alerts into a mushroom-template-badge card. I only want it to appear when there are active alerts, but more importantly, I didn’t want to go to another card to get the alert into.
I integrated the NWS alert data into a popup card (browser-mod). When there is an alert, I post the alert title and quantity of alerts. Click on the badge and a popup appears with all of the NWS alert into.
I may augment my weather card with pollen info next…
The integrations in play:
• Browser Mod - NWS popup display
• MQTT / Ambient2mqtt – pull weather station data
• Node Red – easily pull METAR API data and stuff into sensors
• OpenWeatherMap – sky conditions
• PurpleAir – AQI info
• NWS Alerts – manage NWS alerts
Cards:
• Stack-in-card
• Mushroom-title-card
• Card-mod
• Horizontal-stack
• Mushroom-template-badge
METAR YAML
type: custom:stack-in-card
card_mod:
style: |
ha-card {
padding-bottom: 8px !important;
padding-right: 8px;
padding-left: 8px;
border: 3.5px solid
{% if 'MVFR' in states('sensor.flight_rules') %}
darkblue
{% elif 'VFR' in states('sensor.flight_rules') %}
darkgreen
{% elif 'LIFR' in states('sensor.flight_rules') %}
darkmagenta
{% elif 'IFR' in states('sensor.flight_rules') %}
darkred
{% endif %}
!important;
background: url('/local/sky-vfr.jpg')
}
cards:
- type: custom:mushroom-title-card
title: KABE METAR
card_mod:
style: |
ha-card {
padding-top: 6px !important;
--title-color: gray;
--subtitle-font-size: 12px;
--subtitle-color:
skyblue
}
alignment: left
subtitle: "Age: {{ states ('sensor.aviation_gov_metar_age') }}"
- type: horizontal-stack
cards:
- type: custom:mushroom-template-badge
content: "{{ states ('sensor.flight_rules') }}"
icon: mdi:airplane
color: |
{% if 'MVFR' in states('sensor.flight_rules') %}
blue
{% elif 'VFR' in states('sensor.flight_rules') %}
green
{% elif 'LIFR' in states('sensor.flight_rules') %}
magenta
{% elif 'IFR' in states('sensor.flight_rules') %}
red
{% endif %}
entity: sensor.flight_rules
label: KABE
- type: custom:mushroom-template-badge
content: "{{ (states ('sensor.clouds_kabe') | float * 100) }}"
icon: mdi:cloud
color: |
{% if 'MVFR' in states('sensor.flight_rules') %}
blue
{% elif 'VFR' in states('sensor.flight_rules') %}
green
{% elif 'LIFR' in states('sensor.flight_rules') %}
magenta
{% elif 'IFR' in states('sensor.flight_rules') %}
red
{% endif %}
entity: sensor.flight_rules
tap_action:
action: more-info
visibility:
- condition: state
entity: sensor.metar_sky
state_not: CLR
label: "{{ states ('sensor.cloud1_type_kabe') }}"
- type: custom:mushroom-template-badge
content: "{{ (states ('sensor.cloud2_alt_kabe') | float * 100) }}"
icon: mdi:cloud
color: |
{% if 'MVFR' in states('sensor.flight_rules') %}
blue
{% elif 'VFR' in states('sensor.flight_rules') %}
green
{% elif 'LIFR' in states('sensor.flight_rules') %}
magenta
{% elif 'IFR' in states('sensor.flight_rules') %}
red
{% endif %}
label: "{{ states ('sensor.cloud2_type_kabe')}}"
entity: sensor.cloud2_alt_kabe
tap_action:
action: more-info
visibility:
- condition: numeric_state
entity: sensor.nodered_8989ebdce7216303
above: 1
below: 4
- type: custom:mushroom-template-badge
icon: mdi:cloud
content: "{{ (states ('sensor.clouds_alt_layer3_kabe') | float * 100) }}"
color: |
{% if 'MVFR' in states('sensor.flight_rules') %}
blue
{% elif 'VFR' in states('sensor.flight_rules') %}
green
{% elif 'LIFR' in states('sensor.flight_rules') %}
magenta
{% elif 'IFR' in states('sensor.flight_rules') %}
red
{% endif %}
label: "{{ states ('sensor.cloud_type_layer_3_kabe') }}"
tap_action:
action: more-info
entity: sensor.clouds_alt_layer3_kabe
visibility:
- condition: state
entity: sensor.nodered_8989ebdce7216303
state: "3"
- type: custom:mushroom-template-badge
content: "{{ states ('sensor.visibility_kabe') }}"
icon: mdi:weather-fog
color: |-
{% if 'MVFR' in states('sensor.flight_rules') %}
blue
{% elif 'VFR' in states('sensor.flight_rules') %}
green
{% elif 'LIFR' in states('sensor.flight_rules') %}
magenta
{% elif 'IFR' in states('sensor.flight_rules') %}
red
{% endif %}
entity: sensor.visibility_kabe
label: Visibility
tap_action:
action: more-info
- type: horizontal-stack
cards:
- type: custom:mushroom-template-badge
content: "{{ states ('sensor.avwx_temp_kabe') }}°C"
icon: mdi:thermometer
color: blue
label: Temp
entity: sensor.avwx_temp_kabe
tap_action:
action: more-info
- type: custom:mushroom-template-badge
content: "{{ states ('sensor.dewpoint_c_kabe') }}°C"
icon: mdi:thermometer
color: blue
label: Dew
entity: sensor.dewpoint_c_kabe
tap_action:
action: more-info
- type: custom:mushroom-template-badge
content: "{{ states ('sensor.kabe_relative_humidity') }}% "
icon: mdi:thermometer
color: blue
label: Humidity
entity: sensor.kabe_relative_humidity
tap_action:
action: more-info
- type: custom:mushroom-template-badge
content: "{{ states ('sensor.pressure_kabe') | round(2) }}'' "
icon: mdi:thermometer
color: blue
label: Pressure
entity: sensor.pressure_kabe
tap_action:
action: more-info
- type: horizontal-stack
cards:
- type: custom:mushroom-template-badge
content: >
{% if states('sensor.wind_speed_kabe') | float == 0 %} Calm {% elif
is_state('sensor.nodered_dea7a79f1301dfbf', 'VRB') %} Variable @ {{
states ('sensor.wind_speed_kabe') }} Knots
{% elif states('sensor.wind_speed_kabe') | float > 0 and
states('sensor.nwswind_gust_array_size') | float == 0 %} {{ states
('sensor.nodered_dea7a79f1301dfbf') }}° @ {{ states
('sensor.wind_speed_kabe') }} Knots
{% elif states('sensor.wind_speed_kabe') | float > 0 and
states('sensor.nwswind_gust_array_size') | float > 0 %}
{{ states ('sensor.nodered_dea7a79f1301dfbf') }}° @ {{ states
('sensor.wind_speed_kabe') }} Knots - Gust {{states
('sensor.wind_gust') }} Knots {% endif %}
icon: mdi:windsock
color: gold
label: Winds
entity: sensor.wind_speed_kabe
tap_action:
action: more-info
Live Weather YAML:
type: custom:stack-in-card
card_mod:
style: |
ha-card {
padding-bottom: 8px !important;
padding-right: 8px;
padding-left: 8px;
border: 3.5px groove
{% if is_state('sensor.nws_alerts_are_active', 'True') %}
tomato
{% else %}
rgb(120,120,120)
{% endif %}
!important;
background: url('/local/sky-vfr6.jpg')
}
cards:
- type: custom:mushroom-title-card
title: |
{% if is_state('sensor.nws_alerts_are_active', 'True') %}
Live Weather - NWS Alerts!
{% else %}
Live Weather
{% endif %}
card_mod:
style: |
ha-card {
padding-top: 6px !important;
--title-color:
{% if is_state('sensor.nws_alerts_are_active', 'True') %}
tomato;
{% else %}
gray !important;
{% endif %}
--subtitle-font-size: 20px;
--subtitle-color:
{% if is_state('sensor.nws_alerts_are_active', 'True') %}
red !important;
{% else %}
transparent
{% endif %}
}
alignment: center
- type: horizontal-stack
cards:
- type: custom:mushroom-template-badge
content: >-
{% if is_state('sensor.nws_alerts_are_active', 'True') %}
⚠️ {{ state_attr('sensor.nws_alerts','Alerts')[0].Event }} - {{
states('sensor.nws_alerts') | int }} Active ⚠️
{% else %}
NWS: Clear
{% endif %}
icon: |-
{% if is_state('sensor.nws_alerts_are_active', 'True') %}
mdi:
{% else %}
mdi:emoticon-happy-outline
{% endif %}
color: |-
{% if is_state('sensor.nws_alerts_are_active', 'True') %}
#D60E30
{% else %}
green
{% endif %}
entity: sensor.nws_alerts
label: |
{% if is_state('sensor.nws_alerts_are_active', 'True') %}
{% else %}
Woohoo!
{% endif %}
visibility:
- condition: state
entity: sensor.nws_alerts_are_active
state: "True"
tap_action:
action: fire-dom-event
browser_mod:
service: browser_mod.popup
data:
title: NWS Alert Detail
target:
device_id: browser_mod_9658740a_e102002b
content:
type: custom:layout-card
cards:
- type: entity
entity: sensor.nws_alerts
name: National Weather Service
theme: ios-dark-mode
state_color: true
icon: mdi:weather-lightning-rainy
unit: Active Alert(s)
- type: conditional
conditions:
- entity: sensor.nws_alerts
state_not: "0"
card:
card_mod:
style: |
ha-card {
color: red
}
type: markdown
content: >
{% set num_alerts = states('sensor.nws_alerts') | int
%}
{% for alert_num in range(num_alerts) %}
---
## {{ state_attr('sensor.nws_alerts',
'Alerts')[alert_num].Event }}
___
{{ state_attr('sensor.nws_alerts',
'Alerts')[alert_num].Description }}
{% endfor %}
theme: Caule Dark Pink
- type: horizontal-stack
cards:
- type: custom:mushroom-template-badge
content: >-
{{states('sensor.ambientweather2mqtt_temperatureoutdoor') |round(1)
}}°F
icon: mdi:thermometer
color: >-
{% if states('sensor.ambientweather2mqtt_temperatureoutdoor') | float
>= 90 %} maroon {% elif
states('sensor.ambientweather2mqtt_temperatureoutdoor') | float >= 80
and states('sensor.ambientweather2mqtt_temperatureoutdoor') | float <=
89.9 %} red {% elif
states('sensor.ambientweather2mqtt_temperatureoutdoor') | float < 80
and states('sensor.ambientweather2mqtt_temperatureoutdoor') | float
>=75 %} lightpink {% elif
states('sensor.ambientweather2mqtt_temperatureoutdoor') | float >= 65
and states('sensor.ambientweather2mqtt_temperatureoutdoor') | float <
75 %} orange {% elif
states('sensor.ambientweather2mqtt_temperatureoutdoor') | float >= 55
and states('sensor.ambientweather2mqtt_temperatureoutdoor') | float <
65 %} gold {% elif
states('sensor.ambientweather2mqtt_temperatureoutdoor') | float >= 32
and states('sensor.ambientweather2mqtt_temperatureoutdoor') | float <
55 %} blue {% elif
states('sensor.ambientweather2mqtt_temperatureoutdoor') | float < 32
%} skyblue {% endif %}
entity: sensor.ambientweather2mqtt_temperatureoutdoor
label: Temp
tap_action:
action: more-info
- type: custom:mushroom-template-badge
content: "{{states('sensor.ambientweather2mqtt_dewpoint') |round(1)}}°F"
icon: mdi:thermometer-water
color: >-
{% if states('sensor.ambientweather2mqtt_dewpoint') | float >= 75 %}
maroon {% elif states('sensor.ambientweather2mqtt_dewpoint') | float
< 75 and states('sensor.ambientweather2mqtt_dewpoint') | float >= 67
%} red {% elif states('sensor.ambientweather2mqtt_dewpoint') | float
< 67 and states('sensor.ambientweather2mqtt_dewpoint') | float >= 64
%} orange {% elif states('sensor.ambientweather2mqtt_dewpoint') |
float < 64 and states('sensor.ambientweather2mqtt_dewpoint') | float >
59 %} gold {% elif states('sensor.ambientweather2mqtt_dewpoint') |
float <= 59 %} green {% endif %}
entity: sensor.ambientweather2mqtt_dewpoint
label: DewPoint
tap_action:
action: more-info
- type: custom:mushroom-template-badge
content: "{{states('sensor.ambientweather2mqtt_feelslike') |round(1)}}°F"
icon: mdi:thermometer-alert
color: >-
{% if states('sensor.ambientweather2mqtt_temperatureoutdoor') | float
>= 90 %} maroon {% elif
states('sensor.ambientweather2mqtt_temperatureoutdoor') | float >= 80
and states('sensor.ambientweather2mqtt_temperatureoutdoor') | float <=
89.9 %} red {% elif
states('sensor.ambientweather2mqtt_temperatureoutdoor') | float < 80
and states('sensor.ambientweather2mqtt_temperatureoutdoor') | float
>=75 %} lightpink {% elif
states('sensor.ambientweather2mqtt_temperatureoutdoor') | float >= 65
and states('sensor.ambientweather2mqtt_temperatureoutdoor') | float <
75 %} orange {% elif
states('sensor.ambientweather2mqtt_temperatureoutdoor') | float >= 55
and states('sensor.ambientweather2mqtt_temperatureoutdoor') | float <
65 %} gold {% elif
states('sensor.ambientweather2mqtt_temperatureoutdoor') | float >= 32
and states('sensor.ambientweather2mqtt_temperatureoutdoor') | float <
55 %} blue {% elif
states('sensor.ambientweather2mqtt_temperatureoutdoor') | float < 32
%} skyblue {% endif %}
entity: sensor.ambientweather2mqtt_feelslike
label: Feels Like
tap_action:
action: more-info
- type: horizontal-stack
cards:
- type: custom:mushroom-template-badge
content: >
{% if states('sensor.ambientweather2mqtt_windspeed') | float > 0 %}
{{states('sensor.ambientweather2mqtt_windspeed') + ' / ' +
states('sensor.ambientweather2mqtt_windgust') }} {% elif
states('sensor.ambientweather2mqtt_windspeed') | float <= 0 %} Calm
{% endif %}
icon: mdi:weather-windy
color: >-
{% if states('sensor.ambientweather2mqtt_windgust') | float > 20 %}
maroon {% elif states('sensor.ambientweather2mqtt_windgust') | float
<= 20 and states('sensor.ambientweather2mqtt_windgust') | float > 15
%} red {% elif states('sensor.ambientweather2mqtt_windgust') | float
<= 15 and states('sensor.ambientweather2mqtt_windgust') | float > 10
%} orange {% elif states('sensor.ambientweather2mqtt_windgust') |
float <= 10 and states('sensor.ambientweather2mqtt_windgust') | float
> 6 %} gold {% elif states('sensor.ambientweather2mqtt_windgust') |
float <= 10 %} green {% endif %}
label: Wind / Gust
entity: sensor.ambientweather2mqtt_windspeed
tap_action:
action: more-info
- type: custom:mushroom-template-badge
content: "{{ states ('sensor.ambientweather2mqtt_winddirection') }}°"
icon: mdi:windsock
color: gold
label: Wind Dir
entity: sensor.ambientweather2mqtt_winddirection
tap_action:
action: more-info
- type: custom:mushroom-template-badge
content: >-
{% if is_state('sensor.openweathermapkabe_condition', 'fog') %} Fog {%
elif is_state('sensor.openweathermapkabe_condition', 'rainy') %} Rainy
{% elif is_state('sensor.openweathermapkabe_condition', 'snowy') %}
Snowy {% elif is_state('sensor.openweathermapkabe_condition', 'hazy')
%} Hazy {% elif is_state('sensor.openweathermapkabe_condition',
'cloudy') %} Cloudy {% elif
is_state('sensor.openweathermapkabe_condition', 'sunny') %} Sunny {%
elif is_state('sensor.openweathermapkabe_condition', 'clear-night') %}
Clear Night {% elif is_state('sensor.openweathermapkabe_condition',
'partlycloudy') %} Partly Cloudy {% endif %}
icon: >-
{% if is_state('sensor.openweathermapkabe_condition', 'fog') %}
mdi:weather-fog {% elif
is_state('sensor.openweathermapkabe_condition', 'rainy') %}
mdi:weather-rainy {% elif
is_state('sensor.openweathermapkabe_condition', 'snowy') %}
mdi:weather-snowy {% elif
is_state('sensor.openweathermapkabe_condition', 'hazy') %}
mdi:weather-hazy {% elif
is_state('sensor.openweathermapkabe_condition', 'cloudy') %}
mdi:weather-cloudy {% elif
is_state('sensor.openweathermapkabe_condition', 'sunny') %}
mdi:weather-sunny {% elif
is_state('sensor.openweathermapkabe_condition', 'clear-night') %}
mdi:weather-night {% elif
is_state('sensor.openweathermapkabe_condition', 'partlycloudy') %}
mdi:weather-partly-cloudy {% endif %}
color: blue
label: Skies
entity: sensor.openweathermapkabe_condition
tap_action:
action: more-info
- type: custom:mushroom-template-badge
content: >-
{{states('sensor.ambientweather2mqtt_lightningcount') }} /
{{states('sensor.ambientweather2mqtt_lightningdistance') }} mi
icon: mdi:weather-lightning
color: gold
label: Strikes
entity: sensor.ambientweather2mqtt_lightningcount
tap_action:
action: more-info
visibility:
- condition: numeric_state
entity: sensor.ambientweather2mqtt_lightningcount
above: 0
- type: horizontal-stack
cards:
- type: custom:mushroom-template-badge
content: "{{ states ('sensor.ambientweather2mqtt_rainhourly') +' in/hr' }}"
icon: mdi:weather-pouring
color: >-
{% if states('sensor.ambientweather2mqtt_rainhourly') | float > 1.0%}
purple {% elif states('sensor.ambientweather2mqtt_rainhourly') | float
>= 0.5 and states('sensor.ambientweather2mqtt_rainhourly') | float <=
1.0%} red {% elif states('sensor.ambientweather2mqtt_rainhourly') |
float >= 0.1 and states('sensor.ambientweather2mqtt_rainhourly') |
float < 0.5 %} gold {% elif
states('sensor.ambientweather2mqtt_rainhourly') | float < 0.1 %} green
{% endif %}
label: >
{% if states('sensor.ambientweather2mqtt_rainhourly') | float > 1.0%}
Run For The Hills! {% elif
states('sensor.ambientweather2mqtt_rainhourly') | float >= 0.5 and
states('sensor.ambientweather2mqtt_rainhourly') | float <= 1.0 %}
Holy Shit! {% elif states('sensor.ambientweather2mqtt_rainhourly') |
float >= 0.2 and states('sensor.ambientweather2mqtt_rainhourly') |
float < 0.5 %} Moderate Rain {% elif
states('sensor.ambientweather2mqtt_rainhourly') | float < 0.2 %}
Light Rain {% endif %}
entity: sensor.ambientweather2mqtt_rainhourly
tap_action:
action: more-info
visibility:
- condition: numeric_state
entity: sensor.ambientweather2mqtt_rainhourly
above: 0
- type: custom:mushroom-template-badge
content: "{{ states ('sensor.ambientweather2mqtt_rainevent') +'\"' }}"
icon: mdi:weather-pouring
color: >-
{% if states('sensor.ambientweather2mqtt_rainevent') | float >= 2 %}
red {% elif states('sensor.ambientweather2mqtt_rainevent') | float < 2
and states('sensor.ambientweather2mqtt_rainevent') | float >= 1.5 %}
orange {% elif states('sensor.ambientweather2mqtt_rainevent') | float
< 1.5 and states('sensor.ambientweather2mqtt_rainevent') | float >=
1.0 %} gold {% elif states('sensor.ambientweather2mqtt_rainevent') |
float < 1 and states('sensor.ambientweather2mqtt_rainevent') | float
>= 0 %} green {% endif %}
entity: sensor.ambientweather2mqtt_rainevent
label: Event Rain
hold_action:
action: toggle
tap_action:
action: more-info
visibility:
- condition: numeric_state
entity: sensor.ambientweather2mqtt_rainevent
above: 0
- type: horizontal-stack
cards:
- type: custom:mushroom-template-badge
content: "{{ states ('sensor.ambientweather2mqtt_raindaily') |round(2)}}\""
icon: mdi:weather-pouring
color: >-
{% if states('sensor.ambientweather2mqtt_raindaily') | float >= 0 and
states('sensor.ambientweather2mqtt_raindaily') | float < 0.1 %} red {%
elif states('sensor.ambientweather2mqtt_raindaily') | float >= 0.1 and
states('sensor.ambientweather2mqtt_raindaily') | float < 0.25 %}
orange {% elif states('sensor.ambientweather2mqtt_raindaily') | float
> 0.25 and states('sensor.ambientweather2mqtt_raindaily') | float <
0.5 %} gold {% elif states('sensor.ambientweather2mqtt_raindaily') |
float > 0.5 %} green {% endif %}
entity: sensor.ambientweather2mqtt_raindaily
label: Daily Rain
hold_action:
action: toggle
tap_action:
action: more-info
visibility:
- condition: numeric_state
entity: sensor.ambientweather2mqtt_raindaily
above: 0
- type: custom:mushroom-template-badge
content: "{{ states ('sensor.ambientweather2mqtt_rainweekly')|round(2)}}\""
icon: mdi:weather-pouring
color: >-
{% if states('sensor.ambientweather2mqtt_rainweekly') | float >= 0 and
states('sensor.ambientweather2mqtt_rainweekly') | float <= 0.25 %} red
{% elif states('sensor.ambientweather2mqtt_rainweekly') | float > 0.25
and states('sensor.ambientweather2mqtt_rainweekly') | float <= 0.5 %}
orange {% elif states('sensor.ambientweather2mqtt_rainweekly') | float
> 0.5 and states('sensor.ambientweather2mqtt_rainweekly') | float <=
0.8 %} gold {% elif states('sensor.ambientweather2mqtt_rainweekly') |
float > 0.8 %} green {% endif %}
entity: sensor.ambientweather2mqtt_rainweekly
label: Weekly Rain
tap_action:
action: more-info
visibility:
- condition: numeric_state
entity: sensor.ambientweather2mqtt_rainweekly
above: 0
- type: custom:mushroom-template-badge
content: "{{ states ('sensor.ambientweather2mqtt_rainmonthly')|round(2)}}\""
icon: mdi:weather-pouring
color: >-
{% if states('sensor.ambientweather2mqtt_rainmonthly') | float <1 %}
red {% elif states('sensor.ambientweather2mqtt_rainmonthly') | float
>= 1.0 and states('sensor.ambientweather2mqtt_rainmonthly') | float <=
1.75 %} orange {% elif
states('sensor.ambientweather2mqtt_rainmonthly') | float > 1.75 and
states('sensor.ambientweather2mqtt_rainmonthly') | float <= 2.5 %}
gold {% elif states('sensor.ambientweather2mqtt_rainmonthly') | float
> 2.5 %} green {% endif %}
label: Monthly Rain
entity: sensor.ambientweather2mqtt_rainmonthly
tap_action:
action: more-info
visibility:
- condition: numeric_state
entity: sensor.ambientweather2mqtt_rainmonthly
above: 0
hold_action:
action: toggle
- type: custom:mushroom-template-badge
content: "{{ states ('sensor.ambientweather2mqtt_yearlyrainin')|round(2)}}\""
icon: mdi:weather-pouring
color: >-
{% if states('sensor.ambientweather2mqtt_yearlyrainin') | float <= 15
%} red {% elif states('sensor.ambientweather2mqtt_yearlyrainin') |
float > 15 and states('sensor.ambientweather2mqtt_yearlyrainin') |
float <= 25 %} orange {% elif
states('sensor.ambientweather2mqtt_yearlyrainin') | float > 25 and
states('sensor.ambientweather2mqtt_yearlyrainin') | float < 40 %} gold
{% elif states('sensor.ambientweather2mqtt_yearlyrainin') | float >=
40 %} green {% endif %}
label: Annual Rain
entity: sensor.ambientweather2mqtt_yearlyrainin
tap_action:
action: more-info
visibility:
- condition: numeric_state
entity: sensor.ambientweather2mqtt_yearlyrainin
above: 0
- type: horizontal-stack
cards:
- type: custom:mushroom-template-badge
content: >-
{{states('sensor.purpleair_outdoor_aqi_2_5_120s_moving_average_b') +'
AQI' }}
icon: mdi:air-filter
color: "{{ states ('sensor.purpleair_outdoor_pm_2_5_aqi_rgb_color_b') }}"
tap_action:
action: more-info
label: AQI Outdoor
entity: sensor.purpleair_outdoor_aqi_2_5_120s_moving_average_b
- type: custom:mushroom-template-badge
content: "{{states('sensor.ambientweather2mqtt_aqi_pm25_aqin') +' AQI' }}"
icon: mdi:air-filter
color: >
{% if states('sensor.ambientweather2mqtt_aqi_pm25_aqin') | float > 300
%} maroon {% elif states('sensor.ambientweather2mqtt_aqi_pm25_aqin') |
float > 200 and states('sensor.ambientweather2mqtt_aqi_pm25_aqin') |
float < 301 %} purple {% elif
states('sensor.ambientweather2mqtt_aqi_pm25_aqin') | float > 150 and
states('sensor.ambientweather2mqtt_aqi_pm25_aqin') | float < 201 %}
red {% elif states('sensor.ambientweather2mqtt_aqi_pm25_aqin') | float
> 100 and states('sensor.ambientweather2mqtt_aqi_pm25_aqin') | float <
151 %} orange {% elif
states('sensor.ambientweather2mqtt_aqi_pm25_aqin') | float > 50 and
states('sensor.ambientweather2mqtt_aqi_pm25_aqin') | float < 101 %}
yellow {% elif states('sensor.ambientweather2mqtt_aqi_pm25_aqin') |
float < 51 %} green {% endif %}
tap_action:
action: more-info
label: AQI Indoor
entity: sensor.ambientweather2mqtt_aqi_pm25_aqin
- type: custom:mushroom-template-badge
content: "{{ states ('sensor.pirateweather_fire_risk_level') }}"
entity: sensor.pirateweather_fire_risk_level
label: Fire Risk
icon: >-
{% if is_state('sensor.pirateweather_fire_risk_level', 'Low') %}
mdi:fire-hydrant
{% elif is_state('sensor.pirateweather_fire_risk_level', 'Moderate')
%}
mdi:fire-hydrant-alert
{% elif is_state('sensor.pirateweather_fire_risk_level', 'High') %}
mdi:fire
{% elif is_state('sensor.pirateweather_fire_risk_level', 'Very High')
%}
mdi:fire-alert
{% elif is_state('sensor.pirateweather_fire_risk_level', 'Extreme') %}
mdi:fire-truck
{% endif %}
tap_action:
action: more-info
color: >
{% if is_state('sensor.pirateweather_fire_risk_level', 'Low') %}
green
{% elif is_state('sensor.pirateweather_fire_risk_level', 'Moderate')
%}
gold
{% elif is_state('sensor.pirateweather_fire_risk_level', 'High') %}
orange
{% elif is_state('sensor.pirateweather_fire_risk_level', 'Very High')
%}
red
{% elif is_state('sensor.pirateweather_fire_risk_level', 'Extreme') %}
purple
{% endif %}
visibility:
- condition: state
entity: sensor.pirateweather_fire_risk_level
state_not: N/A
