I also hope that the owner will come back or that someone will take over the project. I spent a lot of time to create my dashboard with this type of card.
1 Like
well lets cross finger, because it looks very very nice and I want to play around a bit and try to make out of it something, but when its stable.
1 Like
What version are you running?
latest version
Some cards shown here, only work with beta version v2.5.1-dev.2. Unfortunately, this version was never officially distributed.
Please try the 2.4.6 or 2.5.1 dev. 1
If the I.set issue is still there⊠Maybe you should give up.
It is a pitty, i likr this carda a lot.
Dont know if someone is taking care of the project or someone would adopt it.
Anyway, ill try those versions
Bonjour, je reviens sur la discussion car je me retrouve au mĂȘme point⊠pour lâinstallation de Swiss Army Knife
1 - Jâai installĂ© via HACS Swiss Army Knife
2 - fichier : configuration.yaml :
lovelace:
resources:
- url: /homeassistant/www/community/frigate-hass-card.js
- url: /homeassistant/www/community/swiss-army-knife-card/resources.yaml
type: module
3 - Jâai copiĂ© le fichier : sak_templates sous
/homeassistant/ mĂȘme sâil se trouvait dĂ©jĂ dans le dossier crĂ©e lors de lâinstallation sous www/community/Swiss Army Knife car je nâai pas de dossier lovelace fallait-il en crĂ©er un ?
4 - Jâai crĂ©e le fichier : ressources.yaml sous
/homeassistant/www/community/swiss-army-knife-card/resources.yaml
- url: /hacsfiles/swiss-army-knife-card/swiss-army-knife-card.js
type: module
5 - et lĂ , le drame⊠je nâai pas : user-svg-definitions.yaml
6 - et je nâai pas le fichier : ui-lovelace.yaml. mais ui_lovelace_minimalist Ă la racineâŠ
En cherchant je lâai trouvĂ© sous : /homeassistant/ui_lovelace_minimalist/dashboard/ui-lovelace.yaml du coup, jâai rajoutĂ© :
# Swiss Army Knife Templates
#
# The system templates come with the HACS install and can be updated
# with a new release. That part is automatic!
sak_sys_templates:
!include www/community/swiss-army-knife-card/sak_templates.yaml
# The user templates are created by the user, and won't be updated
# with a new release. If changes are required, then the user has to
# upate the template configuration files.
sak_user_templates:
!include lovelace/sak_templates/sak_templates.yaml
7 - jâai rajoutĂ© dans le fichier configuration.yaml
http:
cors_allowed_origins:
- https://unpkg.com
- https://unpkg.com/lit-html@1/directives/style-map.js?module
- https://unpkg.com/lit-html@1/directives/if-defined?module
- https://unpkg.com/lit-html@%5E1.0.0?module
- https://unpkg.com/lit-html@1/directives/style-map.js?module
mĂȘme si jâai rien compris Ă :
Ătape 2c : Ajouter quelques fichiers Ă configuration.yaml Tant que cette carte nâest pas un bundle, vous devez ajouter manuellement quelques rĂ©fĂ©rences dans la **cors_allowed_origins** dĂ©finition du configuration.yaml
Jâai pas trouvĂ© ce âcors_allowed_originsâ
Si quelquâun avait la gentillesse de mâaider⊠? ça pourrait peut etre aussi en aider dâautresâŠ
Merci et dĂ©solĂ©e pour la longueurâŠ
TrÚs bonne journée !
In English
Hello, I am coming back to the discussion because I find myself at the same point⊠for the installation of Swiss Army Knife
1 - I installed via HACS Swiss Army Knife
2 - file: configuration.yaml:
lovelace:
resources:
- url: /homeassistant/www/community/frigate-hass-card.js
- url: /homeassistant/www/community/swiss-army-knife-card/resources.yaml
type: module
3 - I copied the file: sak_templates under
/homeassistant/ even if it was already in the folder created during installation under www/community/Swiss Army Knife because I donât have a lovelace folder, did I have to create one?
4 - I created the file: resources.yaml under
/homeassistant/www/community/swiss-army-knife-card/resources.yaml
- url: /hacsfiles/swiss-army-knife-card/swiss-army-knife-card.js
type: module
5 - and here, the drama⊠I donât have: user-svg-definitions.yaml
6 - and I donât have the file: ui-lovelace.yaml. but ui_lovelace_minimalist at the rootâŠ
While searching I found it under: /home assistant/ui lovelace minimalist/dashboard/ui-lovelace.yaml so I added:
# Swiss Army Knife Templates
#
# The system templates come with the HACS install and can be updated
# with a new release. That part is automatic!
sak_sys_templates:
!include www/community/swiss-army-knife-card/sak_templates.yaml
# The user templates are created by the user, and won't be updated
# with a new release. If changes are required, then the user has to
# upate the template configuration files.
sak_user_templates:
!include lovelace/sak_templates/sak_templates.yaml
7 - I added in the configuration.yaml file
http:
cors_allowed_origins:
- https://unpkg.com
- https://unpkg.com/lit-html@1/directives/style-map.js?module
- https://unpkg.com/lit-html@1/directives/if-defined?module
- https://unpkg.com/lit-html@%5E1.0.0?module
- https://unpkg.com/lit-html@1/directives/style-map.js?module
even if I didnât understand anything about :
Step 2c: Add some files to configuration.yaml As long as this card is not a bundle, you have to manually add some references in the cors_allowed_origins definition of the configuration.yaml
I didnât find this âcors_allowed_originsâ
If someone would be kind enough to help meâŠ? it could perhaps help others tooâŠ
Thanks and sorry for the lengthâŠ
Have a great day!
Does anyone get the slider tool works by sliding and set the brightness?
i only can see the brightness but cant set it
Hi, I have a problem with the gauge only filling a third of the arc segment.
The map code:
- type: 'custom:swiss-army-knife-card'
entities:
- entity: light.salon_spots_au_sol
name: Spot
area: Salon
icon: mdi:lightbulb-spot
- entity: light.salon_spots_au_sol
name: Spot
area: Salon
icon: mdi:lightbulb-spot
attribute: brightness
unit_of_measurement: "%"
convert: brightness_pct
...
template:
name: sak_toolset_light_button_slider3_nm
the code of the template
sak_toolset_light_button_slider3_nm:
template:
type: toolset
defaults:
- entity_light: 0
- entity_brightness: 1
#unit_of_measurement: "%"
convert: brightness_pct
...
...
- type: segarc
id: 0
entity_index: '[[entity_brightness]]'
position:
cx: 83
cy: 17
start_angle: -70
end_angle: 250
width: 2
radius: 12
scale:
min: 0
max: 100
show:
scale: true
style: 'colorlist'
#derived_entity:
# input : '[[[ return state ]]]'
# state: >
# [[[
# if (typeof(entity) === 'undefined') return;
# if (typeof(state) === 'undefined') return;
# const brightness = entity.attributes.brightness;
# return brightness === null ? 0 : Math.round(brightness **[u]tried * and / 2.55[/u]**);
# ]]]
segments:
colorlist:
I uncommented the #derived entity part and tried *2.55 because 100/2.55=39,⊠same results
The slider at the bottom of the icon works correctly and the entire gauge fills up to 100% brightness.
An idea ?
I did a hybrid installation. I downloaded the package from GitHub: git clone https://github.com/AmoebeLabs/swiss-army-knife-card.git
Then I copied the files into the correct directories according to the structure you find here Installation - Swiss Army Knife Card.
I use the lovelace UI mode but for swiss-army-knife-card I created a dashboard in yaml, in fact I created 4 to include the examples and tutorials. To do this you add this in configuration.yaml
lovelace:
dashboards:
yaml-dashboard:
mode: yaml
filename: ui-lovelace.yaml
title: Dashboard YAML
icon: mdi:home
show_in_sidebar: true
require_admin: false
sak-examples:
mode: yaml
filename: sak-examples-dashboard.yaml
title: Swiss Army Knife Examples
icon: mdi:hospital-box
show_in_sidebar: true
sak-tutorials:
mode: yaml
filename: sak-tutorials-dashboard.yaml
title: Swiss Army Knife Tutorials
icon: mdi:hospital-box
show_in_sidebar: true
sak-fces:
mode: yaml
filename: sak-functional-card-examples-dashboard.yaml
title: Swiss Army Knife FCEs
icon: mdi:hospital-box
show_in_sidebar: true
If you have placed the files correctly according to the required structure, you should have these 4 files in the folder where configuration.yaml is located: ui-lovelace.yaml, sak-examples-dashboard.yaml, sak-tutorials-dashboard.yaml et sak-functional-card-examples-dashboard.yaml.
You need to check that ui-lovelace.yaml points to the yaml files and the .js resource. Here is what I have (with a small example of two cards, adjust the entities):
# Swiss Army Knife Templates
sak_sys_templates:
!include www/community/swiss-army-knife-card/sak_templates.yaml
sak_user_templates:
!include lovelace/sak_templates/sak_templates.yaml
# Decluttering Templates
decluttering_templates:
!include lovelace/decluttering_templates/decluttering_templates.yaml
resources:
- url: /local/community/swiss-army-knife-card/swiss-army-knife-card.js
type: module
views:
- title: Test
path: Test
theme: 'NM - Gonsboro'
cards:
# Swiss Army Knife Card for Salon
- type: custom:decluttering-card
template: header_template
variables:
- content: 'Salon'
- font_color: var(--secondary-text-color)
- font_size: 3em
- type: horizontal-stack
cards:
- type: custom:decluttering-card
template: sak_light_button_template_nm_tpl
variables:
- entity: light.salon
- area: Salon
- name: Plafonnier
- icon: 'mdi:globe-light-outline'
- type: custom:decluttering-card
template: sak_light_button_template_nm_tpl
variables:
- entity: light.salon_spots_au_sol
attribute: brightness
unit_of_measurement: "%"
convert: brightness_pct
secondary_info: last_changed
format: relative
- area: Salon
- name: Spots
- icon: 'mdi:wall-sconce-flat-variant'
- type: 'custom:button-card'
color_type: blank-card
Restart or reload the configuration, clear the browser cache, and you should see the new dashboards. Very few cards will be visible because youâll obviously have to adjust the entities.

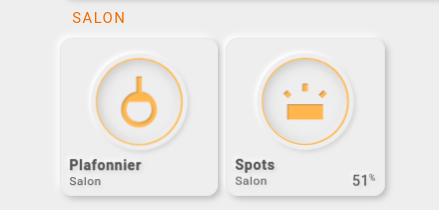

In the dashboard named âDashboard Yamlâ you should then see this:
1 Like
I was searching for this kind of equalizer view to compare my 13 solar power strings current power output, but the specific one based on Watt per kWp installed.
That way I can compare different pitches and panels on the same comparable scale.
I searched for home assistant equalizer chart and found your idea here quite close
Is it possible to show 13 sensors / strings and its values next to each other and in how many segments ?
Thanks a lot

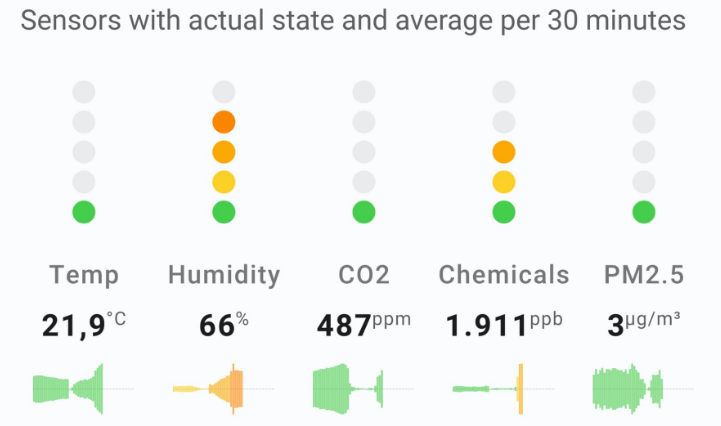

sounds similiar to this

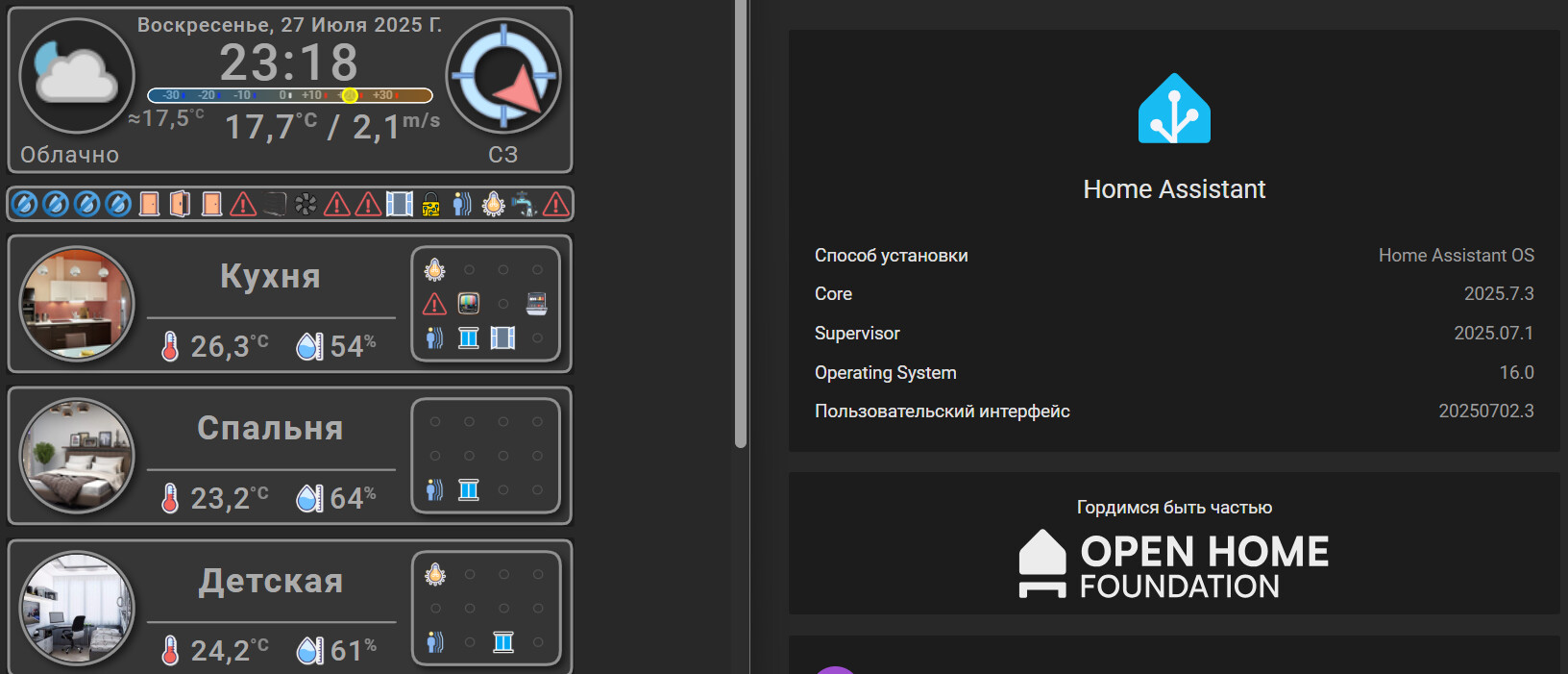

i.setConfig is not a function
HA 2025.7.1
ĐĐŸĐ·ĐŽŃĐ°ĐČĐ»ŃŃ!
please share your version and the structure folder
I did it according to your instructions
i.setConfig is not a function
