M5Stack Atom with M5Stack ENV Pro Unit with Temperature, Humidity, Pressure and Gas Sensor (BME688)

ESPHome
1

I had a requirement to have a USB powered sensor (due to the frequency of measurements). Having already been using the M5Stack as a Bluetooth Proxy for some blinds I thought I’d see whether this was an appropriate platform.

The answer was, of course, yes as there are a variety of sensors that simply plug into the Grove port and can be addressed by I2C.

In this case I went with the Env Pro with BME688 sensor which came with the connecting cable.

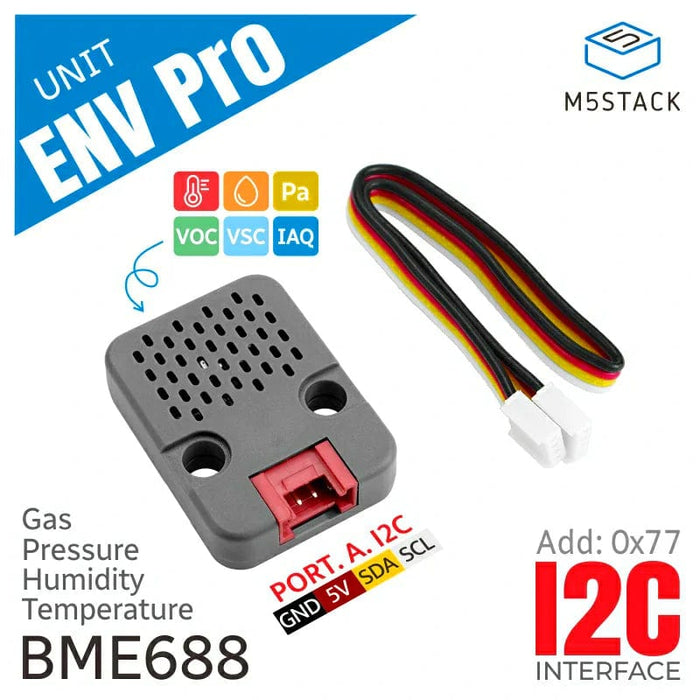

Picture of the sensor

Connect the Sensor to the M5Stack with the supplied cable.
Connect the M5Stack to you computer with USBC cable (has to be a data cable).
Open ESPHome and Add new device and prepare for first time use.
After you’ve got it added to HA then use the following yaml for a start.

esphome:
  name: esphome-web-xxxxx
  friendly_name: <Your_Friendly_Name>
  min_version: 2024.11.0
  name_add_mac_suffix: false

esp32:
  board: esp32dev
  framework:
    type: esp-idf

# Enable logging
logger:

# Enable Home Assistant API
api:

# Allow Over-The-Air updates
ota:
- platform: esphome

wifi:
  ssid: !secret wifi_ssid
  password: !secret wifi_password

i2c:
  sda: 26
  scl: 32
  scan: true
  id: bus_a

sensor:
  - platform: bme680
    address: 0x77
    update_interval: 10s
    temperature:
      name: "Temperature"
    pressure:
      name: "Pressure"
    humidity:
      name: "Humidity"

There are some other bits on the sensor board like Air quality etc but this is the basic starting point. Hope this helps someone!

2 Likes
2

Hi Dan, short question… How do you implement the gas sensor for usefull readings? Is there a possibility to read the air quality index directly out of the chip? Warm regards Thomas

3

I just started working on this and this is what I have so far. I got most of this by spending a lot of time with Gemini 2.5 Pro, so…not sure it’s all functional yet.

# Sensoren von der bme68x_bsec2_i2c Komponente
  - platform: bme68x_bsec2
    bme68x_bsec2_id: env_pro_bme_core
    temperature:
      name: "${upper_devicename} ENV Pro Temperatur"
      id: env_pro_temperature
      filters: [ median ]
    pressure:
      name: "${upper_devicename} ENV Pro Luftdruck"
      id: env_pro_pressure
      filters: [ median ]
    humidity:
      name: "${upper_devicename} ENV Pro Luftfeuchtigkeit"
      id: env_pro_humidity
      filters: [ median ]
    iaq:
      name: "${upper_devicename} ENV Pro IAQ"
      id: env_pro_iaq
      filters: [ median ]
      on_value:
        - component.update: iaq_classification_id
    iaq_static:
      name: "${upper_devicename} ENV Pro Static IAQ"
      id: env_pro_static_iaq
      filters: [ median ]
      on_value:
        - component.update: static_iaq_classification_id
    co2_equivalent:
      name: "${upper_devicename} ENV Pro eCO2"
      id: env_pro_eco2
      filters: [ median ]
    breath_voc_equivalent:
      name: "${upper_devicename} ENV Pro bVOC"
      id: env_pro_bvoc
      filters: [ median ]
    gas_resistance:
      name: "${upper_devicename} ENV Pro Gaswiderstand"
      filters: [ median ]
    # update_interval: 60s # Globales Sendeintervall an HA für diese Sensoren (Standard ist 60s)

text_sensor:
  - platform: bme68x_bsec2
    bme68x_bsec2_id: env_pro_bme_core
    iaq_accuracy:
      name: "${upper_devicename} ENV Pro IAQ Genauigkeit"
      id: env_pro_iaq_accuracy_text

  - platform: template
    name: "${upper_devicename} ENV Pro IAQ Klassifikation"
    id: iaq_classification_id
    icon: "mdi:leaf"
    lambda: |-
      if (!id(env_pro_iaq).has_state()) { return {"Kalibrierung..."}; }
      int iaq_value = id(env_pro_iaq).state;
      if (iaq_value <= 50) { return {"Ausgezeichnet"}; }
      else if (iaq_value <= 100) { return {"Gut"}; }
      else if (iaq_value <= 150) { return {"Leicht verschmutzt"}; }
      else if (iaq_value <= 200) { return {"Mäßig verschmutzt"}; }
      else if (iaq_value <= 250) { return {"Stark verschmutzt"}; }
      else if (iaq_value <= 350) { return {"Sehr stark verschmutzt"}; }
      else if (iaq_value > 350) { return {"Extrem verschmutzt"}; }
      else { return {"Fehler"}; }
    update_interval: never

  - platform: template
    name: "${upper_devicename} ENV Pro Static IAQ Klassifikation"
    id: static_iaq_classification_id
    icon: "mdi:leaf-map"
    lambda: |-
      if (!id(env_pro_static_iaq).has_state()) { return {"Kalibrierung..."}; }
      int iaq_value = id(env_pro_static_iaq).state;
      if (iaq_value <= 50) { return {"Ausgezeichnet (s)"}; }
      else if (iaq_value <= 100) { return {"Gut (s)"}; }
      else if (iaq_value <= 150) { return {"Leicht verschm. (s)"}; }
      else if (iaq_value <= 200) { return {"Mäßig verschm. (s)"}; }
      else if (iaq_value <= 250) { return {"Stark verschm. (s)"}; }
      else if (iaq_value <= 350) { return {"Sehr stark v. (s)"}; }
      else if (iaq_value > 350) { return {"Extrem verschm. (s)"}; }
      else { return {"Fehler (s)"}; }
    update_interval: never
