Mirabella Genio Wi-Fi 7W LED Smart Tube Light (Tuya, BK7231N/CB3S, I003028)

ESPHome
1

Hi Folks, Was able to get 2 of these lamps running completly local with ESPhome (LibreTiny) - No Dissasembly - No Soldering - All over the air - Never had to download or log into Tuya App. Yeah!

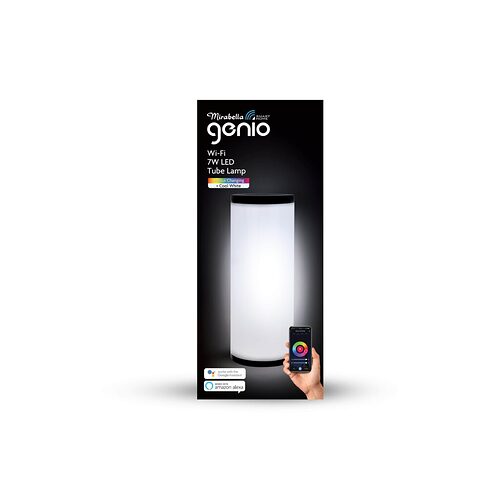

I003028-Genio-Tube-Lamp
I003028-Genio-Tube-Lamp1024Ă—1024 26.9 KB

I pretty much followed Digiblurs guide [UPDATED How To Guide - Tuya CloudCutter with ESPHome LibreTiny - No soldering | digiblurDIY] with the following things to note:

  • Used a Rasberry Pi 4 (Tried first with Raspberry Pi 2 B, but the WiFi dongle I had couldnt get it into Access Point Mode. RP4 has inbuilt wifi and AP mode)
  • Used the Raspberry Pi Imager with the Raspberry Pi OS Lite (32-Bit)
  • When I got to the “Install ESPHome Kickstarter firmware on the Device” section, step 4, the “Manufacture/Device Name” option did not have a compatible image. So I used the “By Firmware version” process using the “2.0.0 - BK7231N / oem_bk7231n_strip_ty” version.
  • I used this firmware file selection “ESPHome-Kickstart-v23.08.29_bk7231n_app.ota.ug.bin” (not the OpenBeken firmware)
  • If you follow along closely, you will have to put the lamp into slow blink mode twice.
  • After sucessfully cut from cloud, just connected to the Kickstart access point so I could add the correct local wifi details.
  • Used the ltchiptool to generate the yaml.
  • Created new ESPhome device which I called geniolamp01 and spliced in the YAML from the ltchiptool.
  • Generated the UF2 firmware and flashed from the lamps Kickstart web site.

Problem:

  • The YAML that was created by the ltchiptool did not enable the use of the button on the top of the lamp.
  • I wanted to still be able to turn the lamp on and off from the lamp.
  • I was able to determine the pin required to enable this (Pin 14), so added additioninal information to the YAML (As well as adding all the other stuff I like to add to the YAML :slight_smile:)

For those that are interested, here is the yaml I have used:

esphome:
  name: geniolamp01
  friendly_name: MCW Lamp

bk72xx:
  board: cb3s
  #board: generic-bk7231n-qfn32-tuya

#Beken chips, unlike ESP, do not have an RTC memory for storing data. The settings are saved in flash memory every 10 minutes, not every time you change. If you need to shorten the time, then use the code below
#https://github.com/libretiny-eu/libretiny/issues/75
#https://github.com/libretiny-eu/libretiny/issues/41
preferences:
  flash_write_interval: 1min

# Enable logging
logger:

web_server:
  port: 80

# Enable Home Assistant API
api:
  encryption:
    key: !secret enryption_key

ota:
  - platform: esphome
    password: !secret ota_password

wifi:
  ssid: !secret wifi_ssid
  password: !secret wifi_password
  use_address: 192.168.30.39 #required because I run the devices in a separate VLAN to my ESPHome
  domain: .home
  fast_connect: yes

  # Enable fallback hotspot (captive portal) in case wifi connection fails
  ap:
    ssid: "Geniolamp01 Fallback Hotspot"
    password: !secret ap_password

captive_portal:

button:
  - platform: restart
    name: Restart
    entity_category: diagnostic

debug:
  update_interval: 30s

text_sensor:
  - platform: debug
    reset_reason:
      name: Reset Reason
  - platform: libretiny
    version:
      name: LibreTiny Version
      entity_category: diagnostic
  - platform: version
    name: 'ESPHome Version'
    entity_category: diagnostic
  - platform: wifi_info
    ip_address:
      name: WiFi IP Address
      entity_category: diagnostic
    ssid:
      name: WiFi SSID
      entity_category: diagnostic
    mac_address:
      name: WiFi MAC Address
      entity_category: diagnostic
    dns_address:
      name: WiFi DNS Address
      entity_category: diagnostic

sensor:
  - platform: wifi_signal
    name: 'WiFi Signal'
    entity_category: diagnostic
  - platform: uptime
    name: 'Uptime'
    entity_category: diagnostic
    unit_of_measurement: s

binary_sensor:
  - platform: gpio
    name: Button Press
    pin: P14
    on_press:
      then:
        - light.toggle: light_rgbw

output:
  - platform: libretiny_pwm
    id: output_red
    pin: P8
  - platform: libretiny_pwm
    id: output_green
    pin: P24
  - platform: libretiny_pwm
    id: output_blue
    pin: P26
  - platform: libretiny_pwm
    id: output_cold
    pin: P7

light:
  - platform: rgbw
    id: light_rgbw
    name: Light
    red: output_red
    green: output_green
    blue: output_blue
    white: output_cold
    restore_mode: RESTORE_DEFAULT_OFF

Anyway - I hope this is valuable for someone out there.
Pop a comment in if it helped you out.
