Hi @klogg, i have see now that you have upload the version2 with some correction. I have rewrite the garden_irrigation.yaml file for receive notifications in telegram.
This is my code:
#===================
#=== Input Booleans
#===================
input_boolean:
irrigation_notify_user1:
name: Notify Edoardo of events
icon: mdi:message-text-outline
irrigation_notify_user2:
name: Notify Sabrina of events
icon: mdi:message-text-outline
#================
#=== Automations
#================
automation:
#===================================================
#=== Notify about irrigation events
#===================================================
- alias: Irrigation Notify About Irrigation Events User1
trigger:
- platform: state
entity_id:
- input_boolean.irrigation_cycle1_running
- input_boolean.irrigation_cycle2_running
condition:
- condition: state
entity_id: input_boolean.irrigation_notify_user1
state: 'on'
action:
- service: telegram_bot.send_message
data_template:
target: !secret chat_id_edoardo
title: '*IRRIGATION SYSTEM*'
message: >
{% if trigger.entity_id == 'input_boolean.irrigation_cycle1_running' %}
{% set cycle = 'cycle1' %}
{% else %}
{% set cycle = 'cycle2' %}
{% endif %}
{% set cycle_name = states('input_text.irrigation_' ~ cycle ~ '_name') %}
{% if trigger.to_state.state == 'on' %}
{% set ns = namespace(total_time = 0) %}
{% for zone in states.input_number if zone.entity_id.startswith('input_number.irrigation_' ~ cycle ~ '_zone') and
zone.entity_id.endswith('_duration') %}
{% if is_state('input_boolean.irrigation_' ~ cycle ~ '_zone' ~ loop.index ~ '_skip', 'off') %}
{# Adjust for rainfall #}
{% if is_state('input_boolean.irrigation_' ~ cycle ~ '_adjust_for_rainfall', 'on') %}
{% set ns.total_time = ns.total_time * states('input_number.irrigation_rainfall_multiplier') | float %}
{% elif is_state('input_boolean.irrigation_' ~ cycle ~ '_adjust_for_temperature', 'on') %}
{% set ns.total_time = ns.total_time * states('input_number.irrigation_temp_multiplier') | float %}
{% else %}
{% set ns.total_time = ns.total_time + states(zone.entity_id) | float %}
{% endif %}
{% endif %}
{% endfor %}
I thought you'd like to know that the {{ cycle_name }} cycle has just started.
The total watering time should be about {{ (ns.total_time * 60) | timestamp_custom('%H:%M', false) }} but I'll let you know when it has finished.
{% else %}
All the {{ cycle_name }} cycle watering is done.
{% endif %}
#===================================================
#=== Notify about irrigation events
#===================================================
- alias: Irrigation Notify About Irrigation Events User2
trigger:
- platform: state
entity_id:
- input_boolean.irrigation_cycle1_running
- input_boolean.irrigation_cycle2_running
condition:
- condition: state
entity_id: input_boolean.irrigation_notify_user2
state: 'on'
action:
- service: telegram_bot.send_message
data_template:
target: !secret chat_id_sabrina
title: '*IRRIGATION SYSTEM*'
message: >
{% if trigger.entity_id == 'input_boolean.irrigation_cycle1_running' %}
{% set cycle = 'cycle1' %}
{% else %}
{% set cycle = 'cycle2' %}
{% endif %}
{% set cycle_name = states('input_text.irrigation_' ~ cycle ~ '_name') %}
{% if trigger.to_state.state == 'on' %}
{% set ns = namespace(total_time = 0) %}
{% for zone in states.input_number if zone.entity_id.startswith('input_number.irrigation_' ~ cycle ~ '_zone') and
zone.entity_id.endswith('_duration') %}
{% if is_state('input_boolean.irrigation_' ~ cycle ~ '_zone' ~ loop.index ~ '_skip', 'off') %}
{# Adjust for rainfall #}
{% if is_state('input_boolean.irrigation_' ~ cycle ~ '_adjust_for_rainfall', 'on') %}
{% set ns.total_time = ns.total_time * states('input_number.irrigation_rainfall_multiplier') | float %}
{% elif is_state('input_boolean.irrigation_' ~ cycle ~ '_adjust_for_temperature', 'on') %}
{% set ns.total_time = ns.total_time * states('input_number.irrigation_temp_multiplier') | float %}
{% else %}
{% set ns.total_time = ns.total_time + states(zone.entity_id) | float %}
{% endif %}
{% endif %}
{% endfor %}
I thought you'd like to know that the {{ cycle_name }} cycle has just started.
The total watering time should be about {{ (ns.total_time * 60) | timestamp_custom('%H:%M', false) }} but I'll let you know when it has finished.
{% else %}
All the {{ cycle_name }} cycle watering is done.
{% endif %}
I have also fixed many other small errors, including: cycle 3 could not be edited from the interface, the valves turned on but did not turn off (I rewrite the template), I added the pulsetime for each valve and I removed the master valve which I do not have, fixed some settings that were not seen.
I have yet to take a look at the new changes you’ve uploaded and the temperature and rainfall part because I don’t have smartweather sensors in my area.
This is being caused by the darksky sensor. I have changed the prerequisite description on GitHub to try and make it clearer. There is one line you need to change as your sensor will not have the same name as mine:
In the file item_schedule_cycle_header.yaml you must change from:
I think I have included all the bugs found so far in the new version. I have also removed the use of a Sonoff as I found a way to include the failsafe time directly on the ESP32 in ESPHome.
If you still want to use the temperature adjustments, that only needs DarkSky or some other source of temperature. To be honest since I came up with those algorithms in version 1 I have never actually used them much .
Actually, if I’m totally honest I pretty much only even use the schedules when I’m on holiday. My wife likes to press the Dash button to make it work
Hi klogg, I would like to implement this…would you mind sharing hardware information/configuration in ESPhome as that is likely the direction I would pursue.
(This all relates to Version 2 of course, Version 1 used a simple Sonoff 4ch flashed with Tasmota)
I will be implementing a hardware solution pretty much exactly as described by @sparkydave here, and from here onwards but as of yet it is only the ESP32 and the relay board sitting on my desk. So I know the software driven ‘relay-on-and-off’ bit works, I just need to install the electrics on the other side of the relays to actually control the valves
My ESPHome config is here. As always, suggestions for improvements are welcome:

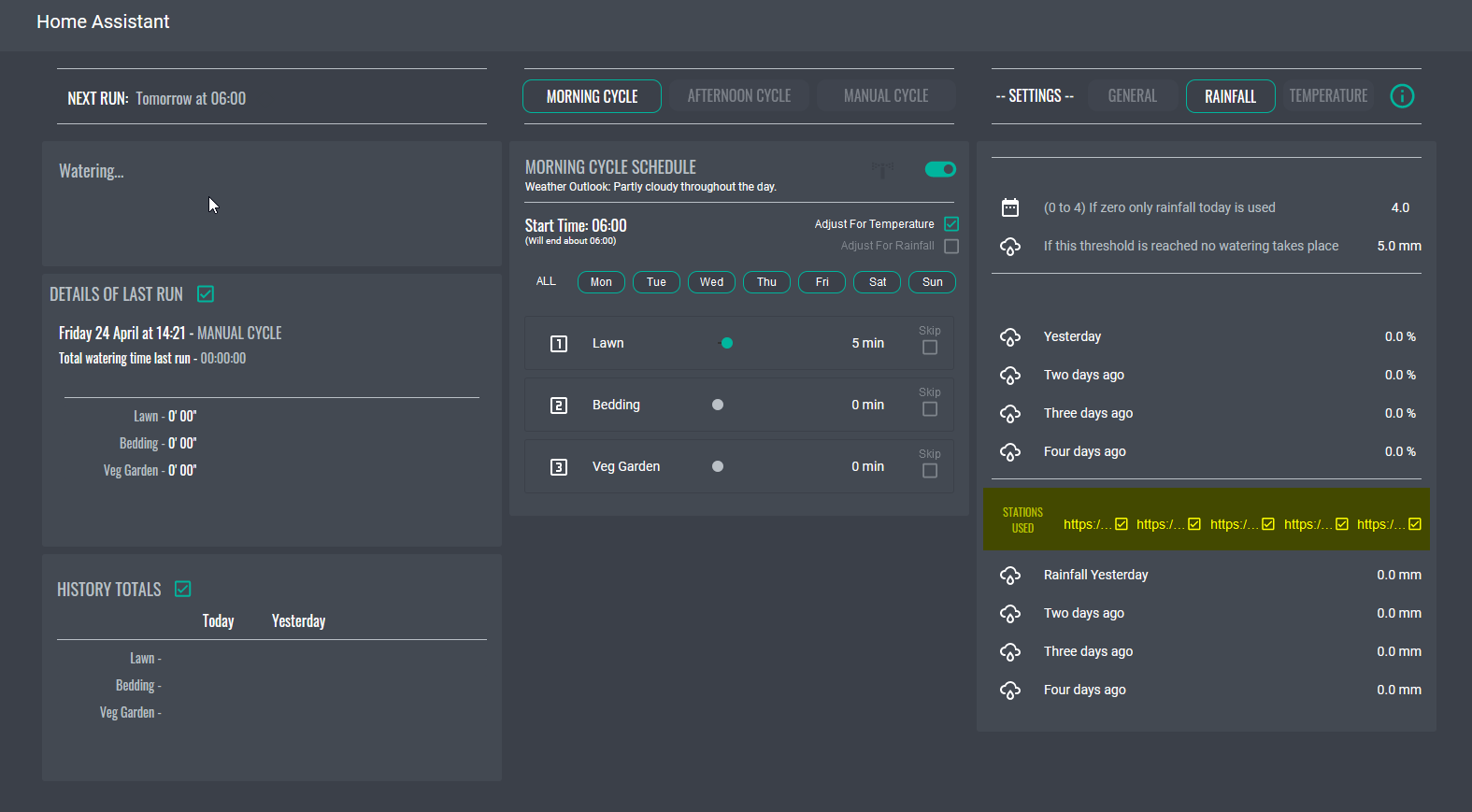

Sensors to show detail Unless i need to wait a bit.
@klogg i’m using mqtt to control my 8 channel relay. Apologies for the stupid question. Can the below switch be changed to use mqtt instead to turn the zones on and off?
Regarding the temperature history, yes you need to wait for those figures to become populated over time.
The graph though should display but it has the same darksky sensor problem. I’ll update the readme but in the meantime you need to edit one line in section_settings_temperature.yaml
So far for me irrigation works with esp32 + relays + a simple cron job that sends mqtt messages, to add more flexibility for the config I’m trying to configure this package.
Now I’m stuck at lovelace not displaying anything and trying to sort out this:
Secret smartweather_location_code_1 not defined
Do you have any pointers if I’m not able to use smartweather as no stations are around, nor darksy, what to use instead?
@klogg thanks for the updated readme file it helped a lot!
For rainfall I have no other suggestions I’m afraid. Getting rainfall data in a way that is useable is a real problem. In version 1 I attempt to use darksky but the method is not very reliable and relies on constantly updating the figures (I think I have it updating every 30 minutes).
For temperature, an alternative could be openweathermap. Since the Apple/Darksky announcemnet I think they have decided to try and capture some of the Darksky users. They have a new api too I think.
At some point I will probably change to openweathermap as I will lose access to darksky in 2021.
Hi @klogg, first I’ve to said your work is fantastic!
I’ve found your first garden system " Logic processing and other issues" and the the new one.
I have the same old Gardena 6 water distributor and I’m looking to have a single eletrovalve that open/close in order to use 4 or 5 water zone in our garden (under Her Majesty The Wife supervision).
Do you think it’s possible to use your latest HA-Irrigation-Version1 only with just one valve and 4 or 5 zones? Could you help me about the changes I need to do in your code?
Thanks a lot!
.
