Need help to graphically represent a data point

Configuration
1

I monitor my sump pump fairly closely, one of the things I monitor is the rolling average of time in minutes between runs for the current day starting at midnight. I cannot figure out how to present that data in a typical graph.

Our ground water table is very high, my basement does not leak but I have infiltration into a sump pit from below the pit. Can go without running a pump at all as the water does not rise above the bottom of the floor in the pit. But, if I had a leak… I really need the pump.

This is how if represent it now…

Is there a way to get an x and y axis on this graph? It would be nice to have an x axis to represent days and a y axis to represent a range of minutes. This is several days, but there is no way to tell that from the graph.

3

Since you are looking for a rate of change over time, maybe a derivative sensor can get you close. As for an xy graph, a statistics graph with a day period might also work. But what would give you any and all graphs that’d you could wish would be exporting data to Grafana.

4

Check out ApexCharts. It is very customisable, including axis labelling.

Or the History Explorer card (this can replace your pop-up graphs too):

5

Wow, the second one looks amazing! But, it has gone unsupported, is it likely to work for a good while?

6

Oh! I didn’t realise that (I just copied my bookmark without opening it). Yeah don’t use that custom card. There is no way to know how long it will keep working.

7

I have the Apex chart running now. For the life of me I cannot figure out how to increase the resolution of the Y axis. I would like a smaller range between divisions, maybe 5 or 10…

8

Try this:

yaxis:
  apex_config:
    tickAmount: 10

See: https://github.com/RomRider/apexcharts-card#yaxis-options-multi-y-axis

And: https://apexcharts.com/docs/options/yaxis/

9

This is making me feel like an idiot… I cannot figure out for the life of me where this would be inserted… I am not sure what to do with the format of the second link you sent… Does not look like yaml to me.

No matter where I insert the yaxis I get “/// apexcharts-card version 2.0.4 /// value.yaxis is not an array”

type: custom:apexcharts-card
header:
  show: true
  title: Sump Pump history
  show_states: true
  colorize_states: true
all_series_config:
  stroke_width: 1
graph_span: 7d
span:
  end: day
yaxis:
  apex_config:
    tickAmount: 10
series:
  - entity: sensor.sump_minutes_between_run
    data_generator: ''
  - entity: sensor.sump_run_count_24h
    type: line
    data_generator: ''
10

I think yaxis expects a list of mappings (one for each yaxis, but you only have one):

yaxis:
  - apex_config:
      tickAmount: 10
11

Tom, I have the card being accepted as valid but tickAmount is flat being ignored?

type: custom:apexcharts-card
header:
  show: true
  title: Sump Pump history
  show_states: true
  colorize_states: true
all_series_config:
  stroke_width: 1
graph_span: 5d
span:
  end: day
series:
  - entity: sensor.sump_minutes_between_run
    data_generator: ''
  - entity: counter.sumppump
    type: line
    data_generator: ''
yaxis:
  - apex_config:
      tickAmount: 10

This is the chart that is presented…

12

Your graph is showing 10 tick intervals. That is the expected behavior. Please read the documentation Tom linked.

tickAmount: Number
Number of Tick Intervals to show

13

So, I did not know what to describe… that is on me. But, I have been reading docs and about every post here I can read. I needed stepSize, but as you can see it is not working in my example… From my config I would expect the side bar to take 10 even steps from 0 to 100. I am getting 10 steps less than 10 to the max value . While it is redrawing the graph, for a short time I see an empty graph with y axis of 0-100 in even steps of 10. I guess what I am wanting to see is a y axis that is arbitrary numbers, not based upon my data fields. It looks like I could maybe use the function option to define a static y axis, but I really have no idea what to put in for a function.

To make matters worse, every time I make a change under yaxis I have to touch each of the properties and delete the spaces in front of them and put the spaces back for them to register the change.

From the docs:

image857×118 4.39 KB

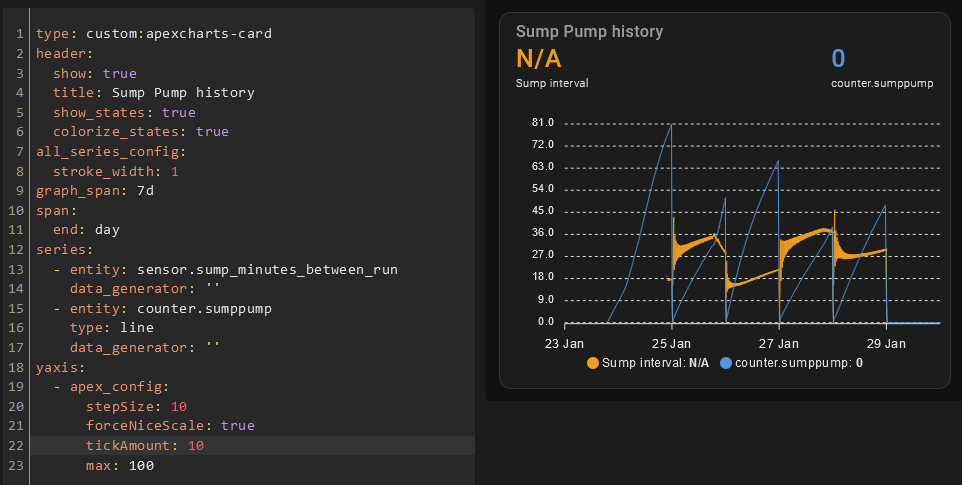

One more example of stepSize ignoring my config…

image965×472 34.9 KB

type: custom:apexcharts-card
header:
  show: true
  title: Sump Pump history
  show_states: true
  colorize_states: true
all_series_config:
  stroke_width: 1
graph_span: 5d
span:
  end: day
series:
  - entity: sensor.sump_minutes_between_run
    data_generator: ''
  - entity: counter.sumppump
    type: line
    data_generator: ''
yaxis:
yaxis:
  - apex_config:
      stepSize: 10
      forceNiceScale: true
      tickAmount: 10
      max: 100

image962×485 37.9 KB

I have been running HA for many years and have a couple hundred automations, many of them are fairly complex with multiple choices and I have many sensors, bulbs, controlled outlets and motion and occupancy based actions. There are times I hit a brick wall of frustration with HA and this is one of them. I am getting old and tired, maybe I should just stick with what works and makes sense to me and not worry about things above and beyond. I love several of the things added by good programmers to HACS, but some are just above me.

Sorry to rant, but I spend enough time during the week in front of computers, at home I relax with them and today has not been relaxing at all. I love the challenge of a good automation, but making graphs pretty and any type of data mining… do not love it and really do not understand the add on.

Current dashboard… Just felt that I could maybe represent the data from the 2 charts better and clean it up a little. Maybe I will still use what I have in place of the 2 other charts.

image1003×732 59.9 KB

1 Like
14

Did you get the the bottom of the stepSize question? Same issue on mine - would love to be able to have it so that a temperature graph displays grid lines on the nearest degree C so its easier to read!

15

Nope, finally gave up on it. Still have the graph, but I am mainly using the graph on the left side. Will likely remove the other one.
