Philips Tap Dial Switch with double tap and 4 dial actions

ohthehugemanatee · December 6, 2023, 2:00pm

I implemented it because I couldn’t resist. There’s only one example action at the moment. Maybe later I’ll update with some rotation examples and mixed buttons / rotations. But it’s all there… you just have to parse the array of inputs.

alias: My Philips button
description: |
  My version of the Philips button automation
trigger:
  - alias: Button
    platform: event
    event_data:
      device_id: f1d484eecfd7ae66406d537f38c66ebf
      cluster_id: 5
    event_type: zha_event
    id: button
  - alias: Rotation
    platform: event
    event_data:
      device_id: f1d484eecfd7ae66406d537f38c66ebf
      cluster_id: 8
    event_type: zha_event
    id: rotation
condition: []
action:
  - variables:
      map_buttons:
        "0": 2
        "1": 1
        "4": 4
        "5": 3
      map_rotation:
        "0": R
        "1": L
      pushed_button: "{{ map_buttons.get( trigger.event.data.params.scene_id | string, 0) }}"
      rotation_dir: "{{ map_rotation.get( trigger.event.data.params.step_mode | string) }}"
      rotation_dist: "{{ map_rotation.get( trigger.event.data.params.step_size | string) }}"
  - alias: Add pressed button to the sequence
    if:
      - condition: trigger
        id:
          - button
    then:
      - service: input_text.set_value
        data:
          value: >-
            {{ states('input_text.button_sequence') }}{{ pushed_button | string
            }}
        target:
          entity_id: input_text.button_sequence
  - alias: Add rotation to the sequence
    if:
      - condition: trigger
        id:
          - rotation
    then:
      - service: input_text.set_value
        data:
          value: >-
            {{ states('input_text.button_sequence') }} {{ rotation_dir }}{{
            rotation_dist }}
        target:
          entity_id: input_text.button_sequence
  - variables:
      sequence_this_run: "{{ states('input_text.button_sequence') | string }}"
  - delay:
      hours: 0
      minutes: 0
      seconds: 1
      milliseconds: 0
  - alias: Stop if global sequence has changed
    if:
      - alias: If global sequence has changed
        condition: template
        value_template: >-
          {{ states('input_text.button_sequence') | string != sequence_this_run
          | string }}
    then:
      - stop: >-
          Further button presses or rotations detected. Execution will continue
          in their thread.
    else:
      - service: input_text.set_value
        data:
          value: "{{ states('input_text.button_sequence') }} END"
        target:
          entity_id: input_text.button_sequence
        alias: End the sequence
  - variables:
      sequence_array: "{{ states('input_text.button_sequence').split(' ') }}"
  - choose:
      - conditions:
          - condition: template
            value_template: "{{ states('input_text.button_sequence') == '14421 END' }}"
        sequence:
          - service: media_player.play_media
            target:
              entity_id: media_player.living_room
            data:
              media_content_id: >-
                media-source://tts/tts.google_en_com?message=You+entered+the+secret+code%21&language=en
              media_content_type: provider
            metadata:
              title: You entered the secret code!
              thumbnail: https://brands.home-assistant.io/_/tts/logo.png
              media_class: app
              children_media_class: null
              navigateIds:
                - {}
                - media_content_type: app
                  media_content_id: media-source://tts
                - media_content_type: provider
                  media_content_id: >-
                    media-source://tts/tts.google_en_com?message=You+entered+the+secret+code%21&language=en
  - alias: Empty the global sequence
    service: input_text.set_value
    data:
      value: " "
    target:
      entity_id: input_text.button_sequence
mode: parallel
max: 10

Dennis2023 · December 10, 2023, 9:55pm

Hi there,

I’m new to Home Assistant, but i Buoght a Philips Tap Dail switch.
Problem is i’m not able to add the switch to Home Assistant.

I’m using ZHA.

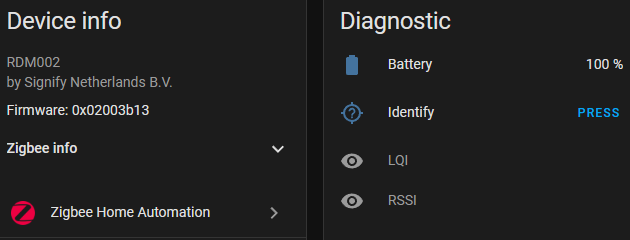

I tried to put the switch in pairing mode, and i got it to find a Signify Netherlands device. I know this must be the switch.
But all i can see is battery status and identify.

All other switches i added, show the different buttons.

Can you help in what i’m doing wrong?

Thanks in advance.
Dennis

starob · December 12, 2023, 3:12pm

You need to create an automation that triggers on ZHA Events with the device id of your tap dial switch and then find out which button was pressed. Read this thread from the beginning.

fleeman · December 13, 2023, 3:22pm

Zigbee2MQTT: 2417 devices (90%)
ZHA: 1187 devices (45%)
deCONZ: 979 devices (37%)

Source: https://zigbee.blakadder.com (13-12-2023)

I’ve observed that devices supported by Zigbee2MQTT offer a wider range of attributes compared to those supported by ZHA and deCONZ. Therefore, I definitely recommend considering a switch to Zigbee2MQTT.

wisehome · December 28, 2023, 5:00pm

Hello fleeman,
First of all, Thanks for your post and help for this automation with Mqtt.
Well, i’m a very very newsbie… Only 3 week i discover Home Assistant, the word Zigbee, Device, Entities, etc etc.
I try to use your code In HA but don’t arrive to execute a simple light on lol. Don’t know where to complete this in the yaml file…
1.My device Hue Philips is rename in “HueSwitch” - Model 8719514440937/8719514440999 ( Philips Hue Tap )
2.this one is “connected” with mqtt
3. I create your two Helper files “Philips Hue Dial Switch Last Pressed” and “Philips Hue Dial Switch button counter”
4. I create an automation and under the id i paste your code:

id: ‘1703697669883’
alias: Philips Hue Dial Switch (Zigbee2MQTT)
description: Teest
trigger:…

Now, where i can add for this device “Zig” Zigbeemodel TS0505B ( TS0505B ) (controler for a led Strip Cool and White Led (Not RGB))
a/If press 1 time button 1 → Device “Zig” → Action “Toggle Col” (Toggle Switch)
b/If i Double Press Button 1 just after press 1–> And rotate Left (Down White Temperature - coolest). If i Rotate right(Up Warmest White temperature - Warmest ) on device Device “Zig”
c/If i Triple Press Button 1 just after press 1–> And rotate Left (Down Intensity). If i Rotate right(Increase Intensity) on device Device “Zig”

If you want, i also have a Sonoff Zbmini2 ( [ZBMINIL2]) which switch on/off a simple Bulb. May be we could start with this device with Button 2?

Sorry for my bad english and hope someone could help me.

Best regards

Carphone12 · January 6, 2024, 8:52pm

Also a newbie trying to follow this. I can create the helpers and copy and paste the automation code into a fresh automation. But now need a bit of direction as to what next.

Should i try and switch back to the UI interface or do i need to get my head round the YAML code and figure out how to edit to add my lights?

Guessing no way to spoon feed me with a blueprint I can import for this?

Maybe its out of my current expertise to get this working for me…

Thanks very much

Carphone12 · January 6, 2024, 10:31pm

Update - found a blueprint. Not as cool as the routine in this thread but useable for a novice like me lol. Would be nice to combine / update this blueprint with the automation here (make it work with helpers). Then it would be more accessible / doable for newbies or people that are not comfortable with editing raw YAML code.

thotha · January 7, 2024, 7:07pm

Dear Freddie
Where did you get this eintiy_id from?
I did try to use your blueprint and even did use all of your used names for device and helpers but all I get is this failure message all the time.

Error: In 'template' condition: UndefinedError: 'dict object' has no attribute 'event'

My setup:
Raspberry Pi 4B+ 4GB
Core: 2024.1.2
Supervisor: 2023.12.0
Operating System: 11.3
Frontend: 20240104.0
Zigbee2MQTT: 1.35.1-1
Mosquitto Brocker: 6.4.0
ITead Sonoff Zigbee 3.0 Dongle-P: Firmware 20230507
Philips Hue Tap Dial Switch Modell: RDM002
Philips Hue Tap Dial Switch Firmeware: 2.59.25

The only sensors I can find for this Philips Hue Tap Dial Switch are

sensor.philips_hue_dial_switch_zigbee2mqtt_action_direction
sensor.philips_hue_dial_switch_zigbee2mqtt_action_time
sensor.philips_hue_dial_switch_zigbee2mqtt_action_type

Thank you for some help and pushing me in the right direction.

Kind regards
Thomas

thotha · January 8, 2024, 11:04am

After search the internet with this search one of the first results is this one and close to the bottom I did find the solution to this problem.
I do not know with which update within the last few days this happened but suddenly the mentioned setting legacy triggers was disabled.
Maybe you could mention somewhere that if a user as problems with your blueprint, he should check that setting within Zigbee2MQTT.

Sorry for this trouble.

wisehome · January 8, 2024, 3:02pm

Hello Thotha,

Thank for your reply I have already find this one but as you i will be glad to have a mix with this one
And I can’t do the “mix”

thotha · January 13, 2024, 11:02am

I can‘t figure out, how I can use your blueprint for the following behavior.

Single press run automation/sceen (works for me)
Double press run automation/sceen (works as well)
Double press and then switch to your dial turn (how to get that working?)
Turn dial and put together all three possibilities (step, slow, fast turn) into ONE command (how to get that working?)

In more details.
Button 1 is for living room dimmable light. Now after single press turn light on to a specific brightness works, as well as hold press to switch of the light. I‘m having no idea how to programm it, that after a double press I can turn the wheel left/right to manually dim down/up the light.

Thank you for anyones suggestions

jriggit · January 24, 2024, 11:29am

Thank you so much for this! In addition to this being the only automation for the tap dial that supports double tap and hold, this thread finally made me realize why z2mqtt is preferable over ZHA - most other threads are filled with people that picked one or the other and stuck with it bc they both work, but I didn’t realize that ZHA isn’t picking up certain button presses that I needed for my use case.

After switching all of my devices over to z2m, I copied over the code generously written by OP and everything has worked on the first try! Haven’t quite gotten around to playing with the dimmer settings yet but hope to get some time to figure that out this weekend. Thank you again for your contributions to this community!

wisehome · January 28, 2024, 10:36am

Hello,is there someone here who could do a flow with all these action from Z2M in Node Red. I search to do the same thing but i’m so a newbie i can’t find a way

botboy · February 4, 2024, 9:22pm

Thanks for creating this, just wanted to check, I currently have my lights and dimmer switches connected via the Hue Bridge and set up in HA using the Hue integration. Would I be able to use this to control a Tap Dial switch connected in the same way?

fleeman · February 5, 2024, 9:05am

Yes, it will give you more options than using it with the Hue bridge.

botboy · February 5, 2024, 2:18pm

Great, thanks for confirming!

Robi07 · February 9, 2024, 8:50pm

Hi davidd1205. Did you found parameters to increase/decrease brightness with Z2M? I’m struggling to get this working.

Robi07 · February 9, 2024, 9:08pm

Found the solution that works for me.

Increasing brightness:

                    sequence:
                      - service: light.turn_on
                        data:
                          entity_id: light.licht_essen
                          brightness_step_pct: 3

Decreasing brightness:

                    sequence:
                      - service: light.turn_on
                        data:
                          entity_id: light.licht_essen
                          brightness_step_pct: -3

jriggit · February 10, 2024, 1:02pm

Have you tried this nodered custom node and flow? I started out using this one because it even has triple taps, but I couldn’t get my chromecast to cooperate in node red so I preferred the yaml automation here.

wisehome · February 11, 2024, 2:11pm

Hello, yes i try to understand all this but can’t arrive to what i want
Here is the node Red Flow i make but with many Debug etc and try of all thing, mix lol But don’t understand all

Don’t a find a way to add the All code of Json code. Too long
