I created a workaround to allow text to be added to picture-elements using the state-label without having to add the text to the picture itself and not having to create sensor for each label.
To do this I created a sensor that has a special ASCII ‘blank’ or ‘space’, it is not an actual space it is a special character, so copy and paste it and don’t just put in a space. This is done since either a blank or null or space results in an error seen when putting on a picture-element.

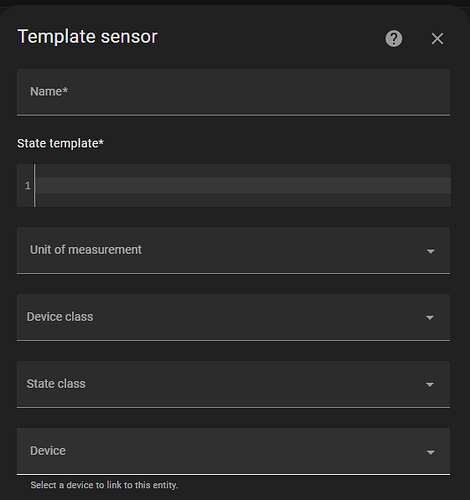

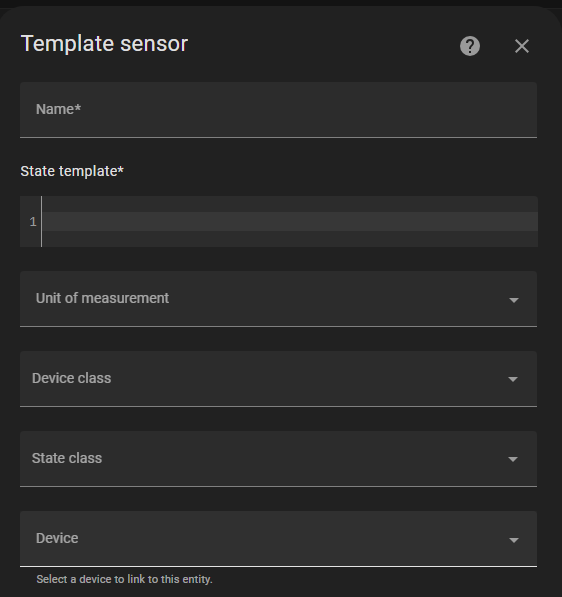

# in sensor.yaml which is included in configuration.yaml
# Fake Sensor to give a blank for state-label in picture-elements card
- platform: template
sensors:
blank_blank:
friendly_name: "Blank Blank"
value_template: " "
Example front-end yaml:
type: picture-elements
image: /local/gauge/Dewpoint.png
elements:
- type: state-label
style:
top: 84%
left: 50%
box-shadow: none
background-color: transparent
entity: sensor.wf_dewpoint_comfort_level
prefix: ''
attribute: ''
title: null
- type: state-label
entity: sensor.blank_blank
prefix: Dry
style:
top: 50%
left: 5%
color: rgb(255,255,255)
font-family: Quicksand
font-size: 120%
font-weight: bold
transform: rotate(0deg)
background-color: rgba(0,0,0,.0)
border-radius: 50%
text-align: center
- type: state-label
entity: sensor.blank_blank
prefix: Somewhat Dry
style:
top: 5%
left: 10%
color: rgb(0,0,0)
font-family: Quicksand
font-size: 120%
font-weight: bold
transform: rotate(0deg)
background-color: rgba(0,0,0,.0)
border-radius: 50%
text-align: center
- type: state-label
entity: sensor.blank_blank
prefix: Very
style:
top: 7%
left: 46%
color: rgb(0,0,0)
font-family: Quicksand
font-size: 120%
font-weight: bold
transform: rotate(-90deg)
background-color: rgba(0,0,0,.0)
border-radius: 50%
text-align: center
- type: state-label
entity: sensor.blank_blank
prefix: Comfortable
style:
top: 7%
left: 44%
color: rgb(0,0,0)
font-family: Quicksand
font-size: 120%
font-weight: bold
transform: rotate(-78deg)
background-color: rgba(0,0,0,.0)
border-radius: 50%
text-align: center
- type: state-label
entity: sensor.blank_blank
prefix: Comfortable
style:
top: 8%
left: 52%
color: rgb(0,0,0)
font-family: Quicksand
font-size: 120%
font-weight: bold
transform: rotate(-68deg)
background-color: rgba(0,0,0,.0)
border-radius: 50%
text-align: center
- type: state-label
entity: sensor.blank_blank
prefix: Ok for Most
style:
top: 9%
left: 62%
color: rgb(0,0,0)
font-family: Quicksand
font-size: 120%
font-weight: bold
transform: rotate(-55deg)
background-color: rgba(0,0,0,.0)
border-radius: 50%
text-align: center
- type: state-label
entity: sensor.blank_blank
prefix: Uncomfortable
style:
top: 14%
left: 70%
color: rgb(0,0,0)
font-family: Quicksand
font-size: 120%
font-weight: bold
transform: rotate(-40deg)
background-color: rgba(0,0,0,.0)
border-radius: 50%
text-align: center
- type: state-label
entity: sensor.blank_blank
prefix: Oppressive
style:
top: 24%
left: 75%
color: rgb(255,255,255)
font-family: Quicksand
font-size: 120%
font-weight: bold
transform: rotate(-30deg)
background-color: rgba(0,0,0,.0)
border-radius: 50%
text-align: center
- type: state-label
entity: sensor.blank_blank
prefix: Miserable
style:
top: 36%
left: 77%
color: rgb(255,255,255)
font-family: Quicksand
font-size: 120%
font-weight: bold
transform: rotate(-10deg)
background-color: rgba(0,0,0,.0)
border-radius: 50%
text-align: center
- type: state-label
entity: sensor.blank_blank
prefix: Severely High
style:
top: 65%
left: 73%
color: rgb(255,255,255)
font-family: Quicksand
font-size: 120%
font-weight: bold
transform: rotate(50deg)
background-color: rgba(0,0,0,.0)
border-radius: 50%
text-align: center
- type: custom:canvas-gauge-card
style:
top: 50%
left: 50%
width: null
heigth: null
box-shadow: none
background-color: transparent
transform: scale(1,1) translate(-50%,-50%)
card_height: 230
entity: sensor.wf_dew_point
name: ''
gauge:
type: radial-gauge
title: ''
width: 230
height: 230
minValue: 0
maxValue: 100
startAngle: 40
ticksAngle: 280
valueBox: true
majorTicks:
- 0
- 10
- 20
- 30
- 40
- 50
- 60
- 70
- 80
- 90
- 100
minorTicks: 10
strokeTicks: true
highlights:
- from: 0
to: 30
color: rgba(5, 19, 235, .75)
- from: 30
to: 50
color: rgba(52, 189, 235, .75)
- from: 50
to: 55
color: rgba(104, 250, 67, .75)
- from: 55
to: 60
color: rgba(104, 200, 67, .75)
- from: 60
to: 65
color: rgba(255, 255, 85, .75)
- from: 65
to: 70
color: rgba(239, 133, 51, .75)
- from: 70
to: 75
color: rgba(234, 51, 36, .75)
- from: 75
to: 80
color: rgba(140, 26, 75, .75)
- from: 80
to: 100
color: rgba(115, 20, 37, .75)
borders: 'no'
needleType: arrow
needleWidth: 4
needleCircleSize: 7
needleCircleOuter: true
needleCircleInner: false
animationDuration: 1500
animationRule: linear
valueBoxBorderRadius: 10
colorValueBoxRect: '#222'
colorValueBoxRectEnd: '#333'
valueDec: 0
valueInt: 0
- type: image
image: /local/gauge/Dewpoint_logo.png
style:
top: 50%
left: 50%
width: 20%
box-shadow: none
background-color: transparent
As you can see I utilize the ‘prefix’ option for state-label, this is not the most elegant, but it works.
Is there another way to accomplish this? (without creating a sensor for each)
Also, is there a way to have multiple lines without having to create a new state-label? (see “Very Comfortable”. I did try setting a word width but that really messed up angle and position.
Putting the text in the front-end allows others to use my background and use their own language for the categories.
More examples:
https://github.com/GlennGoddard/CanvasGaugeBackgrounds
