Simple alarm for monitoring pool equipment?

Configuration
1

I have Home Assistant, Smart Things, Konnected, Hayward Omnipool, and ESP Home (and a little Hubitat too). I’m learning and experimenting with ESP Home as of late (quite enjoyable). I’m looking to learn more on ESP Home by adding a monitor for my physical pool equipment and a landscape lighting controller.

I plan to add a simple PIR/motion sensor and tamper switch in addition to 4 relays with a wifi ESP at the pool equipment pad. I’ve already got the sensors worked out and code working on both dev board and an integrated ESP with 4 onboard relays. I could try to integrate the Konnected yaml but have instead written from scratch.

My question… what’s the best way to approach the tamper and or motion aspects. I’m just reading on Alarmo. Do I need a state machine to latch the motion or tamper detction? I don’t necessarily want a full on code to deactivate the alarm, loud alarm noise (just a notification on tamper or motion is fine), maybe an auto-reset after 5m detection. Happy for some ideas.

2

Is your pool equipment in a shed?

PIRs will false trigger in changing sunlight outdoors.

If you only want a notification then all you need is an automation. Trigger on movement/tamper and send a message in the actions.

Alarmo seems a bit overblown for this application but sure you could use that.

In either case, no you do not need to latch the motion/tamper binary sensors.

3

Good thoughts @tom_l . It’ will be outside, uncovered. Mostly shade side of the house. Great thought about the sun. I need a waterproof, weather proof PIR option. I’d be able to hang it under my Hayward Omnipool controller, but don’t want one of the “large” ones if avoidable (visibility and concealment issues)

too big

4

Did you achieve your pool alarm DIY?

5

Getting super close!. The electronics are all working on breadboards. Working on ribbon cable connections and cover/box for it. Maybe by this weekend!

1 Like
6

@olivomatic I’m pretty close now… I’ve moved away from an ESP with 4 attached relays to a Konnected.io Alarm Panel Pro (ESP-based) as it has more robust break out wiring capabilities for the sensors. I’m using

  • SHT30 dual temp/humidity for equipment temp and humidity (ambient)
  • pressure transducer on top of pool filter
  • door switch for the Hayward panel
  • motion sensor for near my pump equipment
  • may add one more.

I’ve done all the coding in ESPhome and pretty happy about the outcome (but not the time investment. I learned a ton about ESP, YAML, Konnected, electronic theory and practice I forgot, and a little architecture too…

Here’s the current dashboard. I’ll share yaml a bit later… maybe in GitHub. I gotta figure out saving, archiving and publishing between ESPHome and HomeAssistant.

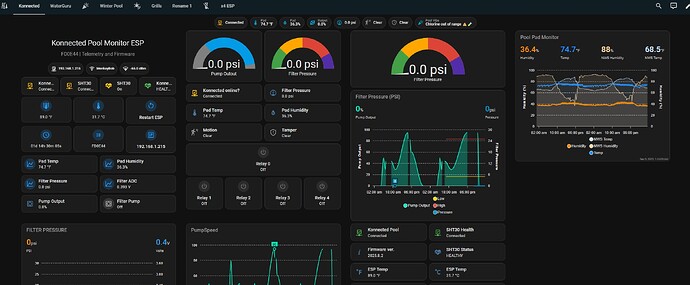

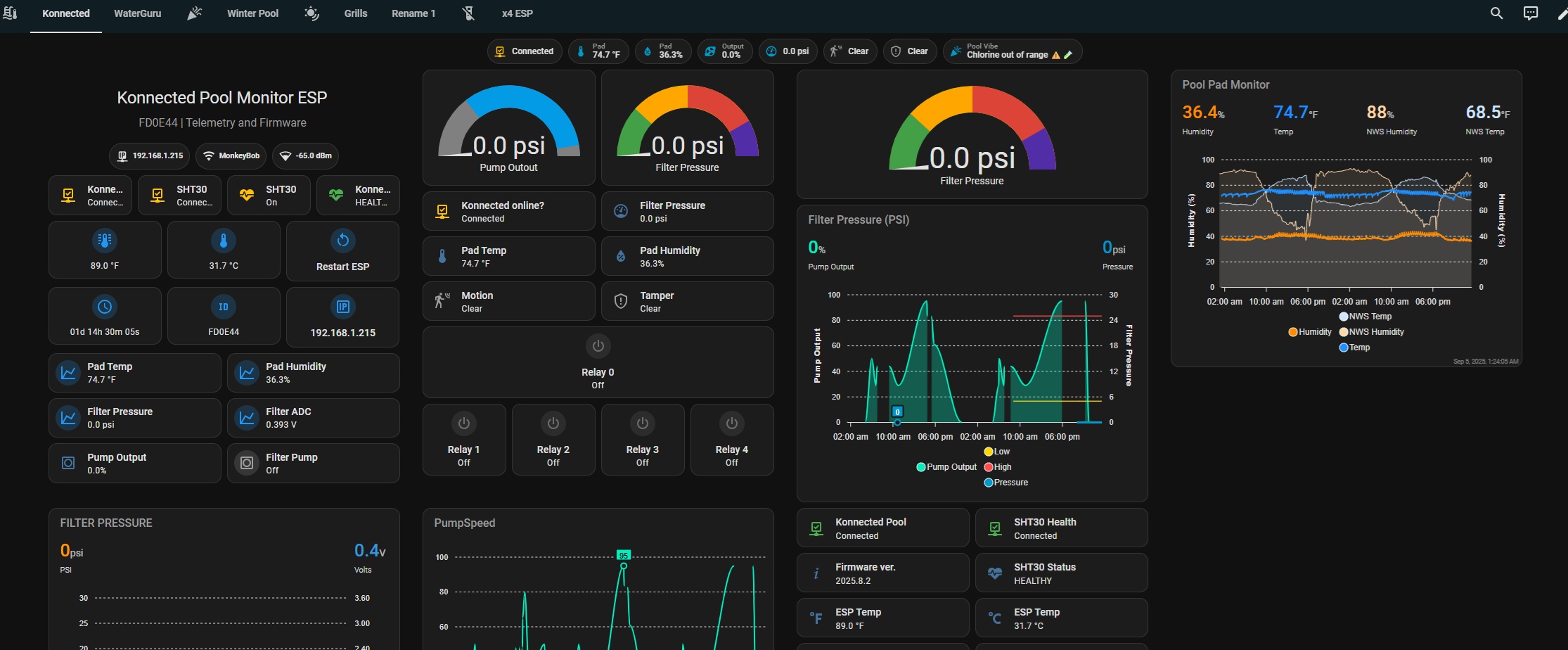

Konnected based Hayward Omnipool monitor
Konnected based Hayward Omnipool monitor2230×924 299 KB

Pump speed is coming via Hayward OmniPool.
I put a standard set of sensors on all my ESPs to get IP, temps, up time, etc.
Now that I have confidence in the sensors and conversions (via voltage dividers) I’ll likely drop raw ADC voltages from this.

Hayward Alarm monitor Dashboard
Hayward Alarm monitor Dashboard569×347 26.1 KB

I really like the Hayward Alarm monitor I built.
It’s active. If you click on Equip or Lighting it expands the associated rows shown below here to expose their alarms.

Had to build a few sensors, helpers and automations to make all that work from out-of-the-box Hayward Omnitpool HA integration.

1 Like
