Hello everyone,

I come from the Jeedom forum to present the system I have developed for automating INTEX brand spas.

A home automation system is absolutely necessary, such as:

  • Jeedom
  • Gladys
  • OpenHab
  • Domoticz
  • Home Assistant (several HA users have contacted me through the Jeedom forum to obtain this system).

It is a box that connects to the spa’s original connectors to retrieve information such as temperature and status, and to control it.

Therefore, there is no loss of warranty as nothing is modified on the spa.

2be17f8f4d557cb57a06a6cdfe9978047245fcda_2_690x458
2be17f8f4d557cb57a06a6cdfe9978047245fcda_2_690x458690×458 150 KB

be3e312e39fe3aa03a7ec289f68b648c33d79c27
be3e312e39fe3aa03a7ec289f68b648c33d79c27687×389 35.6 KB

There are four fully compatible spa models:

Functions of my system:

  • Spa ON/OFF
  • Bubbles ON/OFF
  • Water filtration ON/OFF
  • Water heating ON/OFF
  • Water temperature information
  • Water temperature setpoint from 20°C to 40°C
  • Error information (E90 or others in French)

For the SJB-HS-20-1C:

3ec5005ac8e7975c8004182dc95a465f89a1fd3c
3ec5005ac8e7975c8004182dc95a465f89a1fd3c528×320 23 KB

Two additional functions are available:

  • Sanitizer
  • Water jets

26dbb1e25e8e924be4d909503d8134472b491a3e_2_558x499
26dbb1e25e8e924be4d909503d8134472b491a3e_2_558x499558×499 36.8 KB

Spas with detachable wireless tablets are not compatible (those that can be placed on the edge of the spa, for example).

The system is based on a Wemos D1 mini pro (with external antenna for long range).

The Wemos programming is done by me.

I have, of course, designed a tutorial to easily enter this information into my system.

New since June 2024, easy integration in a few seconds thanks to automatic configuration:

If you want to see the evolution of my system since I started manufacturing it (summer 2021), it has evolved a lot since then:

Since 2020, the system is priced at €70, including shipping (in France) via Colissimo with tracking number. 85€ for the rest of the world.

When I have systems ready to ship, I can send them as soon as I have all the information.
However, when I am out of supplies, delays can be up to one month.

If I am out of stock, I will put you on the list and get back to you in chronological order.

If you have any questions, I am available here or on the Jeedom forum or home Assistant France :slight_smile:

PaTiTan

2 Likes
2

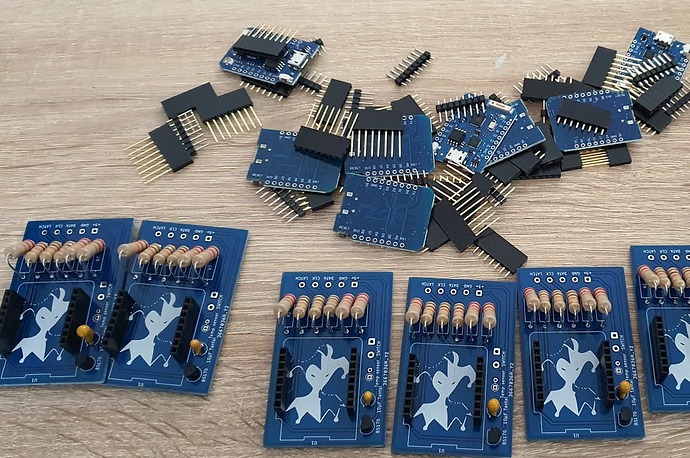

I don’t have a spa but I do have a question. Why are you using such massive power resistors for such small signals?

1 Like
3

It was in 2021 when all electronic components were impossible to find, now it’s 1/4W

image1218×596 84.6 KB

1 Like
5

Hi, i have a Intex SJB-HS-20-1G and very interested in the remote controll of my Spa.
i wonder how to attach this into my Spa, i see the connectors of your picture, bur i do not have such connectors (visible) on my Spa.
Do i need to do some DIY before i can use it or are these connectors somewhere easy reachable in my Spa?
If so please let me know how to order one.

6

I’d love to order on for my SB-H20 pump as well.

7

@lornika oh ?Why ?

@R0yk3

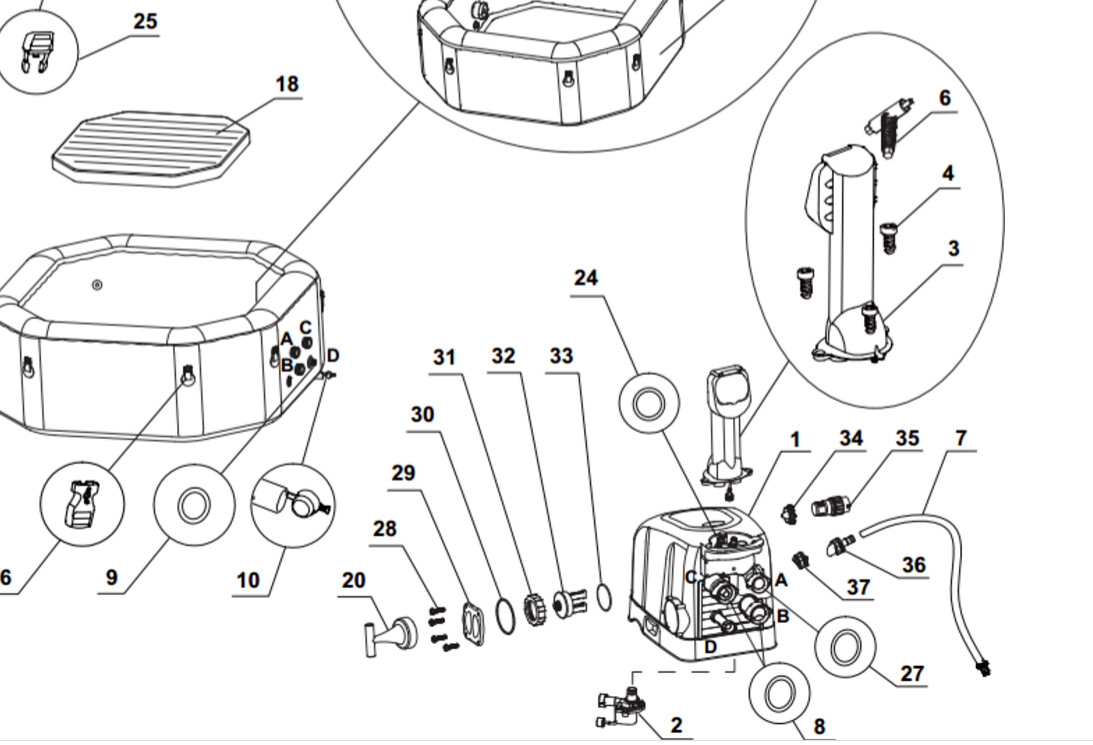

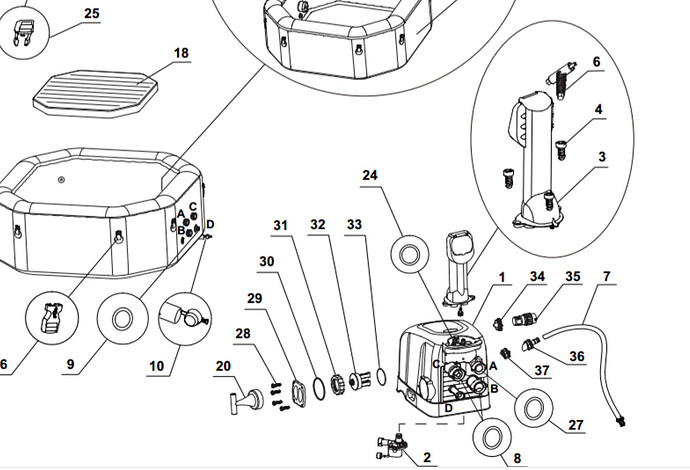

this picture can help you :slight_smile:

image1093×745 121 KB

@eXisTa MP on your box

8

Thank you, it has been a long time since i put it in place and took the control part off. but there it goes then?
Where and how can i order it?
Model number end with G. i have no idea if it is compatible with C?
outside it looks exactly the same.
The partnumber from the display unit is also the same. so i am willing to take the risk.

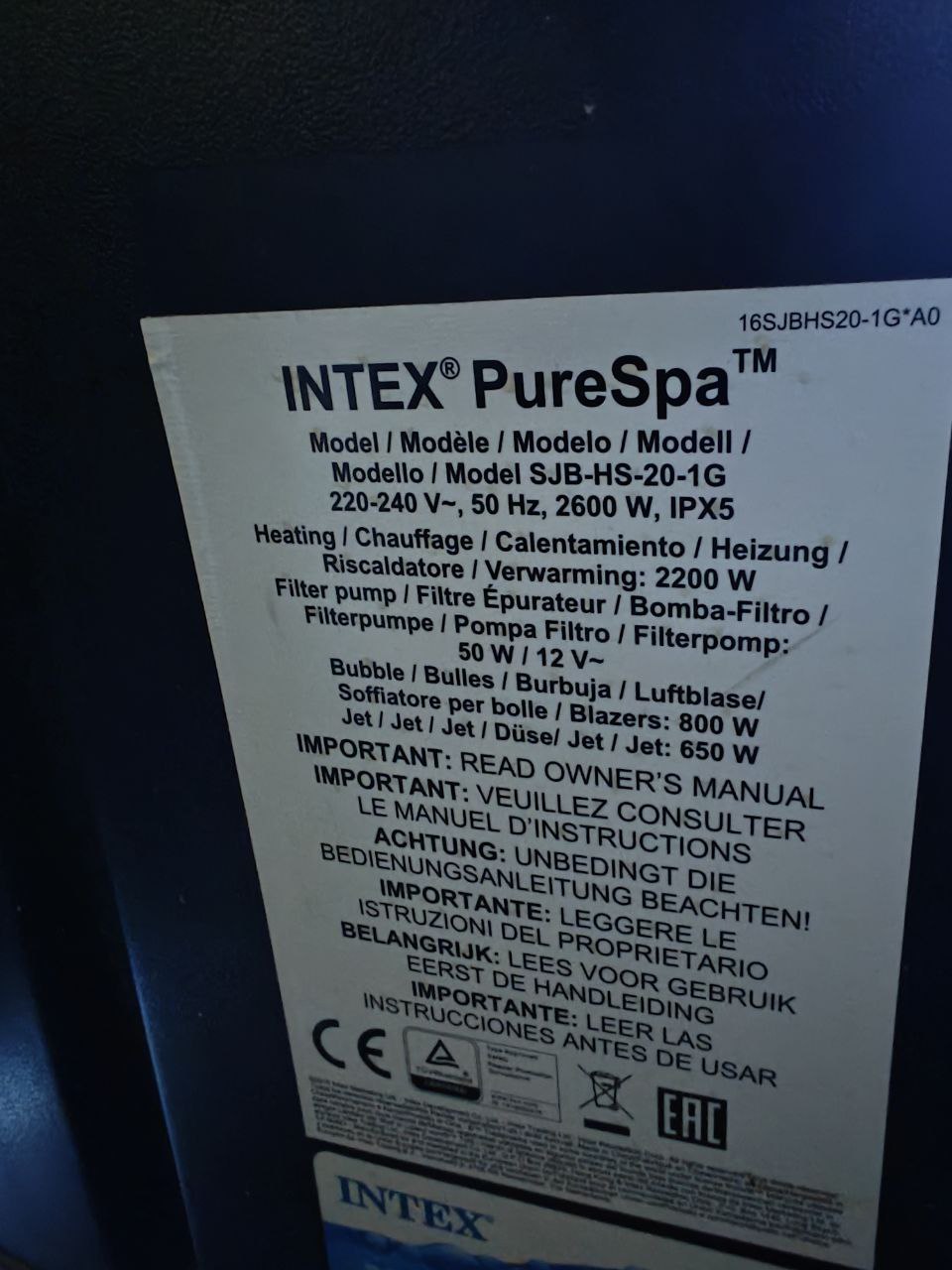

5843886877403367063
5843886877403367063960×1280 141 KB

9

This SPA model is well compatible, even with the letter G, so don’t worry, other users have them too. If you’re using Home Assistant, I’ll send you the details by PM.

10

I’m also interested in buying one of these modules! Please let me know, how to buy it :slight_smile:

11

Hello, I’m interested in your control box.
Spa: Intex 28428
Pump: SB-H20
Domotica: Home Assistant
Could you please check if the module is compatible with this pump.
If yes, let me know how I can place the order.
Thanks in advance.

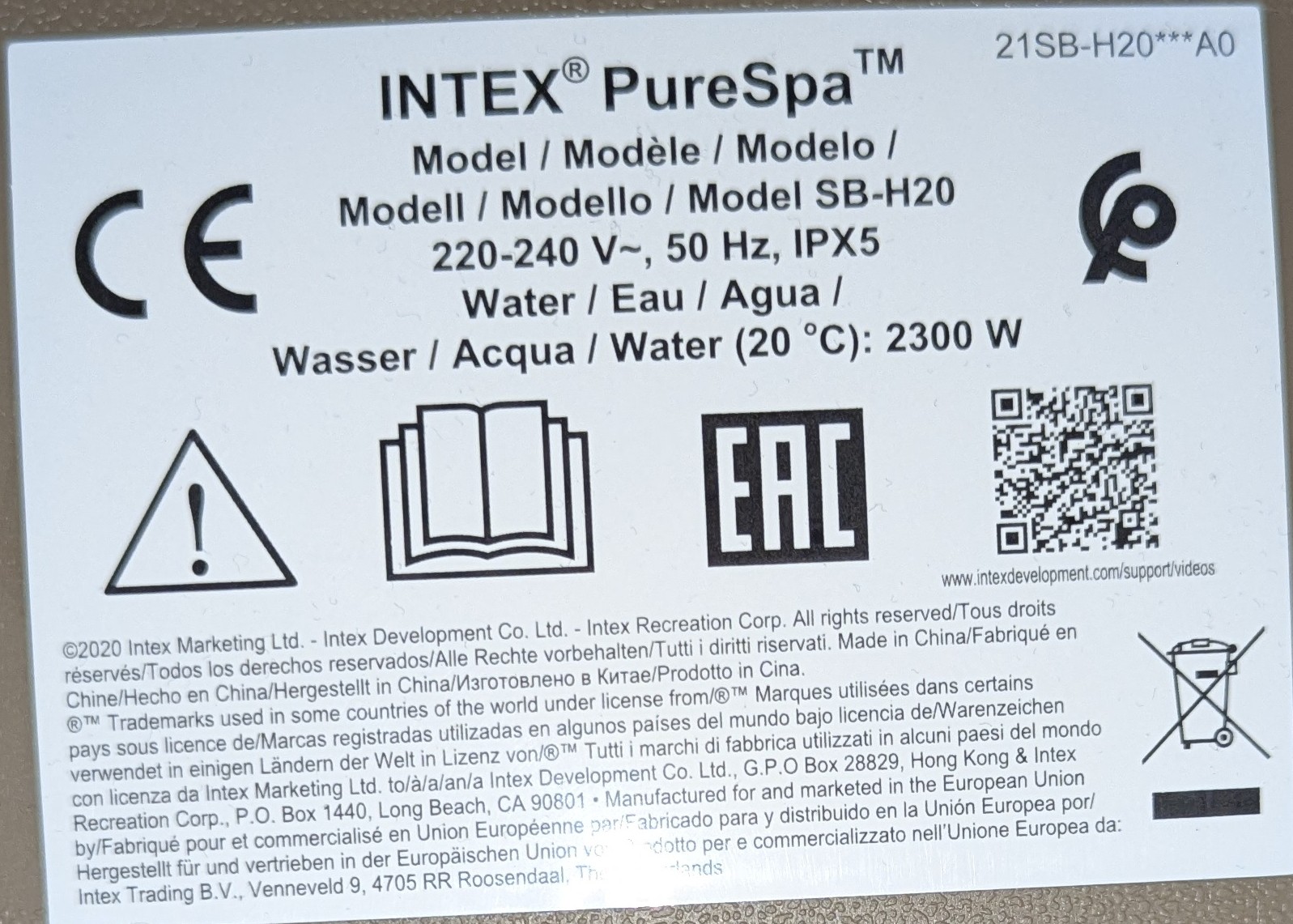

pump
pump1597×1141 402 KB

12

Hello @hso , this spa is compatible I’ll send you the details by PM.

13

Hey!
Any update yet on how to buy these? I replied to this a couple weeks back, but I haven’t gotten any response yet…

14

I’m sorry to reply so late. I’ve been very busy lately. Can you give me the model of your SPA? And if you do have a home assistant?

15

I’m sorry, but my last available system has just been shipped. I expect a new one to be manufactured in 2 months or less.

16

@PaTiTan please put me on the waiting list as well.
Spa Intex SB-H20 and I am using Home Assistant.

17

Okay, I’ll put you on the list

1 Like
18

I would like to purchase one also, can you put me on the list? My model is intex pure spa ssp h 20 1g

19

hi @Coowly
Okay, I’ll put you on the list too

20

Hello,
@PaTiTan Can you put me on the waiting list to?
Spa Intex SB-H20 and using Home Assistant.

Thx

21

ok @copyman :wink:
