[Solved]Please help me how to define multiple pages in nextion display

theniz · June 24, 2019, 3:13pm

Howdy,

These days I am falling in playing with esphome.
I made already 3 sensors with esphome and they worked very smooth.

Now I am trying to make another one which is a monitor for homeassistant.
It consists of 1 nextion display and 1 wemos d1mini. That’s all.

It displays some sensor data from homeassistant and control some fans and switches from homeassistant.

There are 2 pages on nextion display.
Page0 has one image and one text component for example.
Page1 has the same components.
I want that touch on page0 can go to the other page and vice versa.
I made two pages with nextion editor. there is no error.
But I don’t know how to define and code on esphome side.

my first code is as below,

binary_sensor:
  - platform: nextion
    page_id: 0
    component_id: 9
    name: "Goto Page1"
    nextion_id: display_nextion
    on_press:
      then:
        - display.page.show: page1

display:
  - platform: nextion
    id: display_nextion
    pages:
      - id: page0
        lambda: |-
          it.set_component_text("t0",  "This is page 0");
      - id: page1
        lambda: |-
          it.set_component_text("t0",  "This is page 1");

Unfortunately, it didn’t work.
When I compiled, the error showed that nextion display did not have ‘pages’ as an option.
I have tried to find a reference or guide, but I couldn’t.

How can I get this done?

Thanks in advance.

theniz · June 29, 2019, 5:58pm

I solved this by myself. Thanks for reading.

nickrout · June 30, 2019, 4:40am

Well are you going to tell us how you fixed it?

LakeCruiser · July 12, 2019, 3:21am

Well, I guess he aint!

theniz · July 13, 2019, 4:03pm

Sorry for late reply.

I didn’t find a solution from official docs, so I found the way by myself.
I used 2 components, global variable and binary sensor to display multi pages.
I give you some sample codes to you.
I think you could easily understand what I did.

globals:
  - id: nextion_page_id
    type: int
    restore_value: no
    initial_value: '0'

binary_sensor:
  - platform: nextion
    page_id: 0
    component_id: 9
    name: "hamon touch"
    internal: true
    on_press:
      then:
        - lambda: |-
            id(nextion_page_id)=1;
            id(display_nextion).goto_page("hacon");
        - component.update: display_nextion

display:
  - platform: nextion
    id: display_nextion
    lambda: |-
      if (id(nextion_page_id) == 0) {
        it.set_component_text("t31", "This is Page 0");
      } else if (id(nextion_page_id) == 1) {
        it.set_component_text("t31", "This is Page 1");
      }
    update_interval: 3s

In above sample, “hacon” is page’s name.
As you might know, English is not my native, so I am hard to explain deeply.

If you have any question, please feel free to ask me. Thank you.

minsuke · July 13, 2019, 6:35pm

Thx for your knowledge My another name is Minsho : )

pedroborges · August 31, 2019, 8:01pm

good, I am using a wemos d1 mini which is connected to home assisstant through esphome.

wemos d1 mini is also connected to the display

i’m using a nextion 2.4 display, i can’t show the temperature value on the display through the homeassistant

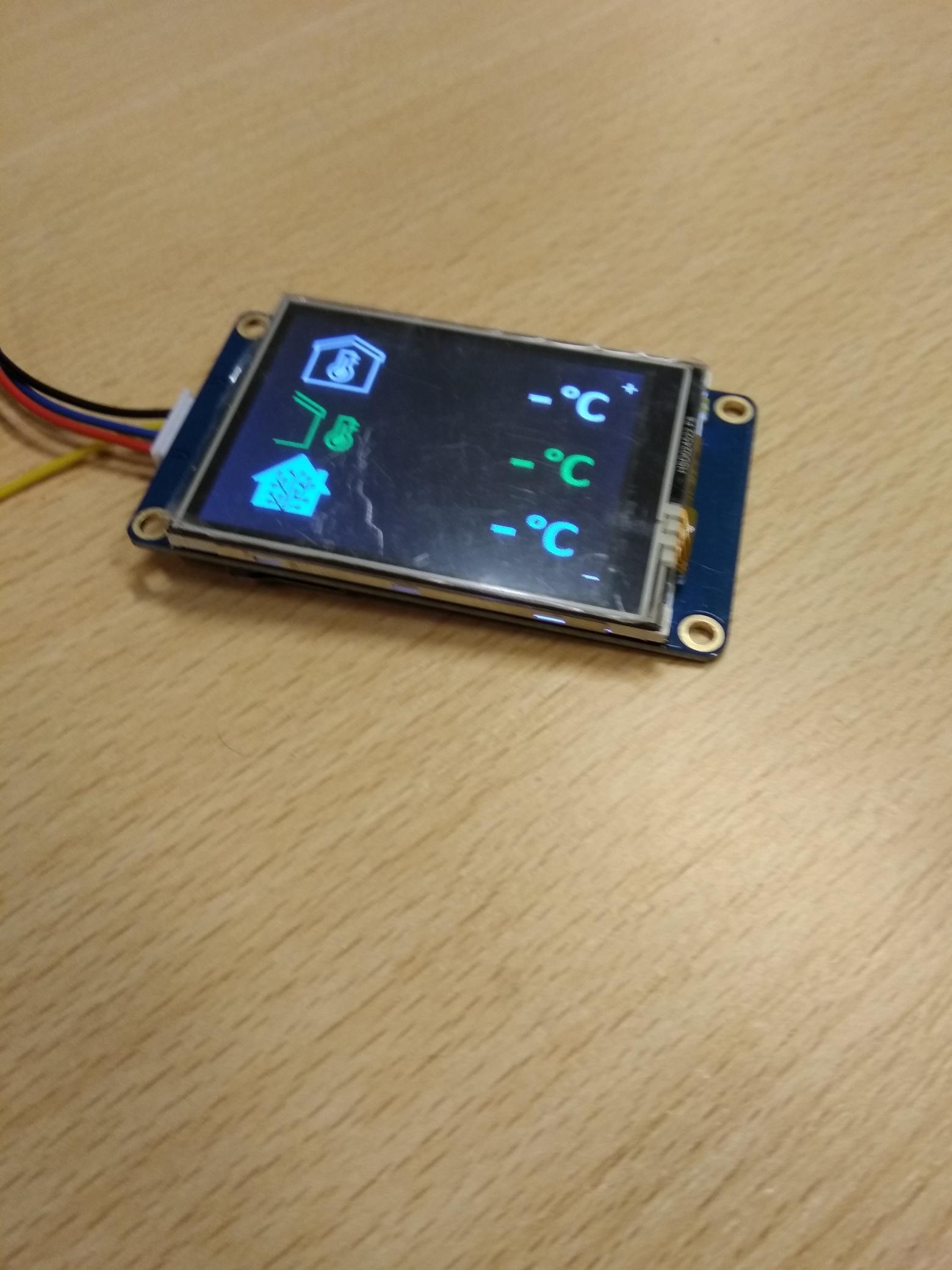

As you can see in the image, the temperature value does not appear on the display.

I am using three temperature sensors that appear on the homeassisstant showing the temperature.
I can’t show the temperature on the nextion display

nickrout · August 31, 2019, 8:43pm

It is impossible to help without seeing your yaml esphome code.

pedroborges · August 31, 2019, 9:01pm

Yeah, but tell me what code you would use to show the temperature on the display.
this link https://we.tl/t-DveHEfeSNw is my yaml file

nickrout · August 31, 2019, 9:42pm

I am not going to some random site to get your yaml. Post it here or pastebin.

pedroborges · August 31, 2019, 10:04pm

esphome:
name: station_lcd
platform: ESP8266
board: d1_mini

wifi:
ssid: meoescritorio
password: pedroescritorio
fast_connect: true

manual_ip:
# Set this to the IP of the ESP
static_ip: 192.168.1.78
# Set this to the IP address of the router.
gateway: 10.0.0.1
# The subnet of the network. 255.255.255.0 works for most home networks.
subnet: 255.255.255.0

api:

ota:

logger:
baud_rate: 0 # Disable UART logging (pins GPIO1/3 are used for Nextion communication)

uart:
rx_pin: D1
tx_pin: D6
baud_rate: 9600

time:

platform: sntp
id: sntp_time

sensor:

platform: homeassistant
id: temperatura1
entity_id: sensor.temperatura1

globals:

id: first_page
type: bool
restore_value: no
id: sensor.tempertatura1
type: int
restore_value: no

platform: homeassistant
id: sensor.temperatura1
entity_id: sensor.temperatura1
platform: homeassistant # Inside temperature
id: temperature_inside

display:

platform: nextion
id: teplomer
update_interval: 5s
lambda: |-

theniz · September 1, 2019, 8:54am

first of all,
you don’t have to use global variable to show temperature in nextion.

instead, you can use this syntax to show temperature.
I assume that you use text component and it’s object name is t1.
also, name of id can not contain .

it.set_component_text_printf(“t1”, “%.1f°C”, (id(temperature1).state));

pedroborges · September 1, 2019, 11:47am

thanks, post here the code that I posted with the changes you would make the code please

pedroborges · September 1, 2019, 11:58am

I didn’t understand very well what you said was the name of object t1

this from name of object t1 is defined in the nextion editor program ?

theniz · September 1, 2019, 4:52pm

could you please post your capture of page you created in nextion editor?
then I will rewrite your yaml code.

pedroborges · September 1, 2019, 5:00pm

thanks, i’ll send you the capture of nexiton editor

pedroborges · September 1, 2019, 5:03pm

theniz · September 1, 2019, 5:53pm

OK.
I rewrite your code as belows.
It should work for “inside”.
If it is OK, then you should add more syntax under lambda for outside and pool.

esphome:
  name: station_lcd
  platform: ESP8266
  board: d1_mini

wifi:
  ssid: meoescritorio
  password: pedroescritorio
  fast_connect: true
  manual_ip:
    static_ip: 192.168.1.78
    gateway: 192.168.1.1
    subnet: 255.255.255.0

api:

ota:

logger:

globals:
  - id: first_page
    type: bool
    restore_value: no

uart:
  rx_pin: D1
  tx_pin: D6
  baud_rate: 9600

time:
  - platform: sntp
    id: sntp_time

sensor:
  - platform: homeassistant
    name: "Temperature Inside"
    id: temperature_inside
    internal: true
    entity_id: sensor.temperatura1

display:
  - platform: nextion
    id: teplomer
    lambda: |-
      it.set_component_text_printf("inside", "%.1f", (id(temperature_inside).state));
    update_interval: 5s

pedroborges · September 2, 2019, 8:51am

I already tried with your code and still does not show the temperature.

I get these warning in the log

theniz · September 2, 2019, 9:07am

logs showed that any sensor data for “inside” didn’t come from homeassistant.
you have to check that sensor.temperatura1.
is sensor.temperatura1 correct? any mis typo?
it might be “sensor.temperature1”
