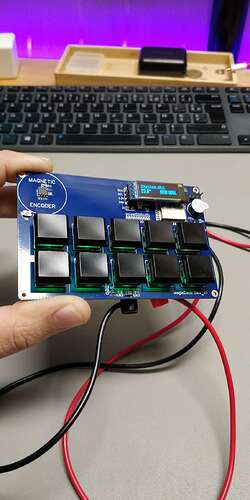

Hey guys in my new project I’m trying to set up a switch to turn the OLED backlight on and off from Home Assistant.
It kindof works, but when I turn on the switch, the screen turns on but the switch switches back after 1s. i.e. to disable I have to enable switch again and disable instantly.
pls Help find the error
switch:
- platform: template
name: "MagicDeckOled"
turn_on_action:
- lambda: id(oled).turn_on();
turn_off_action:
- lambda: id(oled).turn_off();
Full Config
esphome:
name: magicdeck
on_boot:
priority: -100
then:
- lambda: id(oled).turn_off();
esp32:
board: esp32dev
framework:
type: arduino
# Enable logging
logger:
# Enable Home Assistant API
api:
services:
- service: play_rtttl
variables:
song_str: string
then:
- rtttl.play:
rtttl: !lambda 'return song_str;'
# https://esphome.io/components/rtttl.html
# In the developer tools. E.g. for calling rtttl.play select the service droplet_play_rtttl and in service data enter siren:d=8,o=5,b=100:d,e,d,e,d,e,d,e or scale_up:d=32,o=5,b=100:c,c#,d#,e,f#,g#,a#,b
# Integrated BUZZER
rtttl:
output: rtttl_out
on_finished_playback:
- logger.log: 'Song ended!'
ota:
password: "4a1deb370b158c5f26170f72593448ef"
wifi:
ssid: !secret wifi_ssid
password: !secret wifi_password
domain: .lab.lan
# Enable fallback hotspot (captive portal) in case wifi connection fails
ap:
ssid: "Magicdeck Fallback Hotspot"
password: "nCgxK8qkTk8r"
captive_portal:
i2c:
sda: 21
scl: 22
scan: true
font: # Fonts for Display
- file: 'arial.ttf'
id: font1
size: 10
- file: 'arial.ttf'
id: font2
size: 10
- file: 'arial.ttf'
id: font3
size: 19
- file: 'BebasNeue-Regular.ttf'
id: font4
size: 20
display:
- platform: ssd1306_i2c
model: "SSD1306 128x32"
id: oled
address: 0x3C
lambda: |-
it.printf(2, 0, id(font2), TextAlign::TOP_LEFT, "MagicDeck");
it.printf(61, 0, id(font1) ,"%.1f", id(dbm).state);
it.line(0, 12, 87, 12);
it.printf(0, 32, id(font4), TextAlign::BASELINE_LEFT, "%.1f°", id(bedroom1_temperature).state);
it.printf(127, 32, id(font4), TextAlign::BASELINE_RIGHT,"%s", id(hamessage).state.c_str());
text_sensor:
- platform: homeassistant
id: hamessage
entity_id: input_text.magicdeckmessage
# Example configuration entry
apds9960:
address: 0x39
update_interval: 60s
sensor:
- platform: apds9960
type: PROXIMITY
name: "APDS9960 Proximity Sensor"
- platform: homeassistant
id: bedroom1_temperature
entity_id: sensor.bedroom1_temperature
# WIFI #
- platform: wifi_signal
name: "Droplet_WiFi_Signal_Sensor"
id: "dbm"
update_interval: 5s
switch:
- platform: template
name: "MagicDeckOled"
turn_on_action:
- lambda: id(oled).turn_on();
turn_off_action:
- lambda: id(oled).turn_off();
binary_sensor:
- platform: apds9960
direction: UP
name: "APDS960 Left Movement"
id: left
- platform: apds9960
direction: DOWN
name: "APDS960 Right Movement"
id: right
# Repeat for each direction
- platform: gpio
pin: 32
name: "Button 1"
filters:
- delayed_on: 100ms
on_press:
then:
- light.turn_off: backlit
- light.turn_on: led1
- lambda: id(oled).turn_on();
- delay: 30s
- lambda: id(oled).turn_off();
on_release:
then:
- light.turn_off: led1
- light.turn_on:
id: backlit
effect: Rainbow
- platform: gpio
pin: 35
name: "Button 2"
filters:
- delayed_on: 10ms
on_press:
then:
- light.turn_off: backlit
- light.turn_on: led2
- lambda: id(oled).turn_on();
- delay: 30s
- lambda: id(oled).turn_off();
on_release:
then:
- light.turn_off: led2
- light.turn_on:
id: backlit
effect: Rainbow
- platform: gpio
pin: 34
name: "Button 3"
filters:
- delayed_on: 10ms
on_press:
then:
- light.turn_off: backlit
- light.turn_on: led3
- lambda: id(oled).turn_on();
- delay: 30s
- lambda: id(oled).turn_off();
on_release:
then:
- light.turn_off: led3
- light.turn_on:
id: backlit
effect: Rainbow
- platform: gpio
pin: 39
name: "Button 4"
filters:
- delayed_on: 10ms
on_press:
then:
- light.turn_off: backlit
- light.turn_on: led4
- lambda: id(oled).turn_on();
- delay: 30s
- lambda: id(oled).turn_off();
on_release:
then:
- light.turn_off: led4
- light.turn_on:
id: backlit
effect: Rainbow
- platform: gpio
pin: 36
name: "Button 5"
filters:
- delayed_on: 10ms
on_press:
then:
- light.turn_off: backlit
- light.turn_on: led5
- lambda: id(oled).turn_on();
- delay: 30s
- lambda: id(oled).turn_off();
on_release:
then:
- light.turn_off: led5
- light.turn_on:
id: backlit
effect: Rainbow
- platform: gpio
pin: 33
name: "Button 6"
filters:
- delayed_on: 10ms
on_press:
then:
- light.turn_off: backlit
- light.turn_on: led6
- lambda: id(oled).turn_on();
- delay: 30s
- lambda: id(oled).turn_off();
on_release:
then:
- light.turn_off: led6
- light.turn_on:
id: backlit
effect: Rainbow
- platform: gpio
pin: 25
name: "Button 7"
filters:
- delayed_on: 10ms
on_press:
then:
- light.turn_off: backlit
- light.turn_on: led7
- lambda: id(oled).turn_on();
- delay: 30s
- lambda: id(oled).turn_off();
on_release:
then:
- light.turn_off: led7
- light.turn_on:
id: backlit
effect: Rainbow
- platform: gpio
pin: 26
name: "Button 8"
filters:
- delayed_on: 10ms
on_press:
then:
- light.turn_off: backlit
- light.turn_on: led8
- lambda: id(oled).turn_on();
- delay: 30s
- lambda: id(oled).turn_off();
on_release:
then:
- light.turn_off: led8
- light.turn_on:
id: backlit
effect: Rainbow
- platform: gpio
pin: 27
name: "Button 9"
filters:
- delayed_on: 10ms
on_press:
then:
- light.turn_off: backlit
- light.turn_on: led9
- lambda: id(oled).turn_on();
- delay: 30s
- lambda: id(oled).turn_off();
on_release:
then:
- light.turn_off: led9
- light.turn_on:
id: backlit
effect: Rainbow
- platform: gpio
pin: 14
name: "Button 10"
filters:
- delayed_on: 10ms
on_press:
then:
- light.turn_off: backlit
- light.turn_on: led10
- lambda: id(oled).turn_on();
- delay: 30s
- lambda: id(oled).turn_off();
on_release:
then:
- light.turn_off: led10
- light.turn_on:
id: backlit
effect: Rainbow
- platform: status
name: "MagicDeck Status"
light:
- platform: fastled_clockless
chipset: WS2812
id: backlit
pin: GPIO15
num_leds: 10
rgb_order: GRB
name: "MagicDeckLeds"
default_transition_length: 0.1s
effects:
- strobe:
- random:
- addressable_rainbow:
- addressable_rainbow:
name: Rainbow Effect With Custom Values
speed: 10
width: 50
- addressable_color_wipe:
- addressable_color_wipe:
name: Color Wipe Effect With Custom Values
colors:
- red: 100%
green: 100%
blue: 100%
num_leds: 1
- red: 0%
green: 0%
blue: 0%
num_leds: 1
add_led_interval: 100ms
reverse: false
- addressable_scan:
- addressable_scan:
name: Scan Effect With Custom Values
move_interval: 100ms
scan_width: 1
- addressable_twinkle:
- addressable_twinkle:
name: Twinkle Effect With Custom Values
twinkle_probability: 5%
progress_interval: 4ms
- platform: partition
name: "MagicDeckLed 1"
id: led1
segments:
- id: backlit
from: 0
to: 0
effects:
- strobe:
- platform: partition
name: "MagicDeckLed 2"
id: led2
segments:
- id: backlit
from: 1
to: 1
effects:
- strobe:
- platform: partition
name: "MagicDeckLed 3"
id: led3
segments:
- id: backlit
from: 2
to: 2
effects:
- strobe:
- platform: partition
name: "MagicDeckLed 4"
id: led4
segments:
- id: backlit
from: 3
to: 3
effects:
- strobe:
- platform: partition
name: "MagicDeckLed 5"
id: led5
segments:
- id: backlit
from: 4
to: 4
effects:
- strobe:
- platform: partition
name: "MagicDeckLed 6"
id: led6
segments:
- id: backlit
from: 5
to: 5
effects:
- strobe:
- platform: partition
name: "MagicDeckLed 7"
id: led7
segments:
- id: backlit
from: 6
to: 6
effects:
- strobe:
- platform: partition
name: "MagicDeckLed 8"
id: led8
segments:
- id: backlit
from: 7
to: 7
effects:
- strobe:
- platform: partition
name: "MagicDeckLed 9"
id: led9
segments:
- id: backlit
from: 8
to: 8
effects:
- strobe:
- platform: partition
name: "MagicDeckLed 10"
id: led10
segments:
- id: backlit
from: 9
to: 9
effects:
- strobe:
output:
# Integrated BUZZER # https://esphome.io/components/output/ledc.html?highlight=buzzer
- platform: ledc
pin: GPIO19
id: rtttl_out
