These are Tripp-Lite units
1 Like
Posting this kind of thing (especially in the âshare your projectsâ section) is completely useless without the associated code to accomplish it.
is it just the cards in lovelace using pre-existing integrations/entities or do you use a new integration?
Sorry about that.
Itâs just snmp sensors done according to docs. I used a windows program called âmiblle browserâ to figure out what OIDs I was looking for.
I use sensor: !include_dir_merge_list sensors in my config, and so I drop this yaml file into the sensors folder:
- platform: snmp
host: tripplite2.mydomain.net
version: 2c
community: tripplite
baseoid: .1.3.6.1.2.1.33.1.2.7.0
unit_of_measurement: "°C"
name: "UPS2 battery temperature"
- platform: snmp
host: tripplite2.mydomain.net
version: 2c
community: tripplite
baseoid: .1.3.6.1.2.1.33.1.2.7.0
unit_of_measurement: "V"
name: "UPS2 battery Voltage"
- platform: snmp
host: tripplite2.mydomain.net
version: 2c
community: tripplite
baseoid: .1.3.6.1.2.1.33.1.2.4.0
unit_of_measurement: "%"
name: "UPS2 battery charge remaining"
- platform: snmp
host: tripplite2.mydomain.net
version: 2c
community: tripplite
baseoid: .1.3.6.1.2.1.33.1.2.7.0
unit_of_measurement: "degrees"
name: "UPS2 battery temperature"
- platform: snmp
host: tripplite2.mydomain.net
version: 2c
community: tripplite
baseoid: 1.3.6.1.2.1.33.1.2.3.0
unit_of_measurement: "minutes"
name: "UPS2 runtime minutes remaining"
- platform: snmp
host: tripplite2.mydomain.net
version: 2c
community: tripplite
baseoid: .1.3.6.1.2.1.33.1.3.3.1.3.1
unit_of_measurement: "V"
name: "UPS2 AC Input Voltage"
- platform: snmp
host: tripplite2.mydomain.net
version: 2c
community: tripplite
baseoid: .1.3.6.1.2.1.33.1.4.4.1.2.1
unit_of_measurement: "V"
name: "UPS2 output voltage"
- platform: snmp
host: tripplite2.mydomain.net
version: 2c
community: tripplite
baseoid: .1.3.6.1.2.1.33.1.4.4.1.4.1
unit_of_measurement: "W"
name: "UPS2 output load"
- platform: snmp
host: tripplite2.mydomain.net
version: 2c
community: tripplite
baseoid: 1.3.6.1.4.1.850.1.1.3.1.3.1.5.1.2.1.1
unit_of_measurement: "C"
name: "UPS2 Battery Temperature"
value_template: '{{ ((value | int) / 100) | int}}'
- platform: snmp
host: tripplite2.mydomain.net
version: 2c
community: tripplite
baseoid: 1.3.6.1.4.1.850.1.1.3.1.3.1.1.1.1.1
name: "UPS2 battery status"
value_template: >
{% if value | int == 1 %}
unknown
{% elif value | int == 2 %}
Normal
{% elif value | int == 3 %}
BatteryLow
{% elif value | int == 4 %}
BatteryDepleted
{% else %}
commfail
{% endif %}
- platform: snmp
host: tripplite2.mydomain.net
version: 2c
community: tripplite
baseoid: 1.3.6.1.4.1.850.1.1.3.1.3.1.2.1.4.1
name: "UPS2 battery charge detail"
value_template: >
{% if value | int == 0 %}
float
{% elif value | int == 1 %}
charging
{% elif value | int == 2 %}
resting
{% elif value | int == 3 %}
discharging
{% elif value | int == 4 %}
normal
{% elif value | int == 5 %}
standby
{% else %}
commfail
{% endif %}
- platform: snmp
host: tripplite2.mydomain.net
version: 2c
community: tripplite
baseoid: 1.3.6.1.4.1.850.1.1.3.1.3.3.1.1.1.1
name: "UPS2 Source"
value_template: >
{% if value | int == 0 %}
unknown
{% elif value | int == 1 %}
other
{% elif value | int == 2 %}
none
{% elif value | int == 3 %}
AC Input
{% elif value | int == 4 %}
bypass
{% elif value | int == 5 %}
battery
{% elif value | int == 6 %}
boosting
{% elif value | int == 7 %}
reducing
{% elif value | int == 8 %}
second
{% elif value | int == 9 %}
economy
{% else %}
commfail
{% endif %}
The lovelace config for each column looks like this:
type: vertical-stack
title: MAIN RACK UPS 1
cards:
- type: picture-elements
image: /local/images/tripplite.png
elements:
- type: state-label
entity: sensor.ups1_ac_input_voltage
style:
top: 40%
left: 84%
font-size: 18px
font-family: fantasy
background-color: green
padding: none
- type: state-label
entity: sensor.ups1_source
style:
top: 30%
left: 18%
font-size: 18px
font-family: monospace
- type: 'custom:bar-card'
entities:
- entity: sensor.ups1_battery_charge_remaining
direction: right
name: Battery
icon: 'mdi:battery'
color: green
positions:
icon: 'off'
indicator: 'off'
name: inside
value: inside
severity:
- {}
height: 20px
- type: glance
title: Battery Status
entities:
- entity: sensor.ups1_battery_status
name: Health
icon: 'mdi:battery-heart-variant'
- entity: sensor.ups1_runtime_minutes_remaining
name: Minutes
icon: 'mdi:battery-alert-variant-outline'
- entity: sensor.ups1_battery_charge_detail
name: Detail
icon: 'mdi:battery-charging'
- entity: sensor.ups1_battery_temperature
name: Temp
- entity: sensor.ups1_source
name: Source
state_color: false
show_state: true
show_icon: true
show_name: true
- type: horizontal-stack
cards:
- type: gauge
entity: sensor.ups1_battery_charge_remaining
min: 0
max: 100
- type: gauge
entity: sensor.ups1_battery_voltage
min: 10
max: 30
- type: horizontal-stack
cards:
- type: gauge
entity: sensor.ups1_battery_temperature
min: 0
max: 50
- type: gauge
entity: sensor.ups1_ac_input_voltage
min: 100
max: 130
- type: horizontal-stack
cards:
- type: gauge
entity: sensor.ups1_output_voltage
min: 100
max: 130
- type: gauge
entity: sensor.ups1_output_load
min: 0
max: 2000
- type: 'custom:mini-graph-card'
entities:
- entity: sensor.ups1_battery_charge_remaining
name: Charge Remaining (1hr)
show_legend: true
icon: 'mdi:battery-alert'
hours_to_show: 1
points_per_hour: 30
lower_bound: 0
upper_bound: 100
animate: true
show:
labels: true
points: hover
state: false
- type: 'custom:mini-graph-card'
entities:
- entity: sensor.ups1_output_load
name: Output Load (1hr)
show_legend: true
icon: 'mdi:power-plug'
hours_to_show: 1
points_per_hour: 600
line_width: 2
smoothing: false
animate: true
show:
labels: true
points: false
extrema: true
state: false
3 Likes
Thank you for posting this information @VinistoisR !
Tripp Liteâs OID doc can be found at this URL: https://assets.tripplite.com/flyer/supported-snmp-oids-technical-application-bulletin-en.pdf
1 Like
Thanks @VinistoisR, I tried this but no luck as there must be other custom integrations or sensor definitions, since after using your YAML code none of the sensors are available/visible for my SNMP enabled Tripp Lite UPS.
Any chance you can post more detailed instructions and code? Much appreciated.
Hereâs what Iâm using with my TrippLite:
sensor:
- platform: snmp
host: poweralert-061036777249
# host: 10.0.1.7
version: 2c
community: tripplite
baseoid: .1.3.6.1.4.1.850.1.1.3.1.2.1.1.8.1
unit_of_measurement: "°F"
name: "UPS ambient temperature"
value_template: '{{ (value | int) / 10 }}'
- platform: snmp
host: 10.0.1.7
version: 2c
community: tripplite
baseoid: .1.3.6.1.2.1.33.1.4.4.1.4.1
unit_of_measurement: "W"
name: "UPS output power"
- platform: snmp
host: <<replace with your own UPS IP address>>
version: 2c
community: tripplite
baseoid: 1.3.6.1.4.1.850.1.1.3.1.3.3.1.1.1.1
name: "UPS Source"
value_template: >
{% if value | int == 0 %}
unknown
{% elif value | int == 1 %}
other
{% elif value | int == 2 %}
none
{% elif value | int == 3 %}
AC Input
{% elif value | int == 4 %}
bypass
{% elif value | int == 5 %}
battery
{% elif value | int == 6 %}
boosting
{% elif value | int == 7 %}
reducing
{% elif value | int == 8 %}
second
{% elif value | int == 9 %}
economy
{% else %}
commfail
{% endif %}
1 Like
Just an hint:
use this app (as suggested) to discover codes
setup properly the app
import this database of codes
make a query to the device (subtree, top right list) of the entire UPS list.
Grab your values!
To test the connection, use this one : â.1.3.6.1.2.1.1.1.0â who is sysDescr, should work with every device.
Thank you theyâre working great.

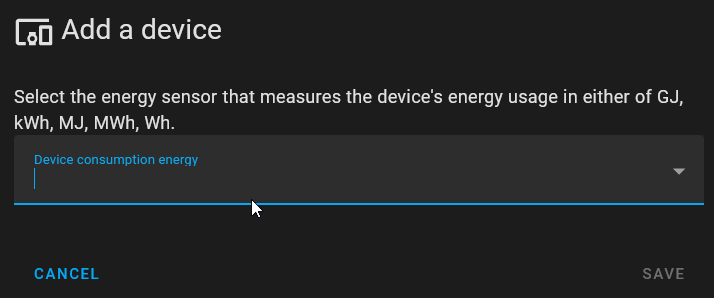

I would like some help to add the total energy consumed by the Tripplite in my Energy dashboard.
I think the sensor that has this information is the sensor.output_load sensor.
Unfortunately it seems like itâs not compatible with the Energy dashboard as it canât be found there.
I think that I must create a Riemann sum integral sensor but I donât know what to put in there.
If anyone could help me on this one it would be very much appreciated.
