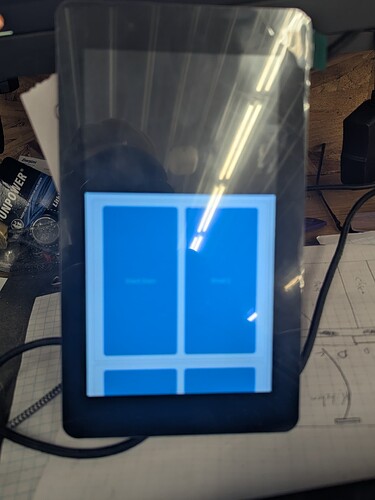

I have for the life of me not been able to turn the screen 90 deg. Here is the yaml I am using. Can anyone point me in the correct direction?
substitutions:
device_internal_name: esphome19
device_wifi_name: esphome-19
device_friendly_name: Test tab
device_ip_address: 192.168.1.19
esphome:
name: wave-7
friendly_name: ${device_friendly_name}
platformio_options:
build_unflags: -Werror=all
board_build.flash_mode: dio
esp32:
board: esp32-s3-devkitc-1
framework:
type: esp-idf
# platform_version: 6.8.1
# version: 5.3.0
sdkconfig_options:
CONFIG_ESP32S3_DEFAULT_CPU_FREQ_240: "y"
CONFIG_ESP32S3_DATA_CACHE_64KB: "y"
CONFIG_SPIRAM_FETCH_INSTRUCTIONS: y
CONFIG_SPIRAM_RODATA: y
api:
reboot_timeout: 0s
encryption:
key: !secret api_encryption_key
logger:
hardware_uart: UART0
wifi:
networks:
- ssid: !secret wifi_ssid
password: !secret wifi_password
switch:
- platform: homeassistant
name: "Shed Switch 1"
id: shed_switch_1
entity_id: switch.shed_switch_1
- platform: homeassistant
name: "Shed Switch 2"
id: shed_switch_2
entity_id: switch.shed_switch_2
- platform: homeassistant
name: "Shed Switch 3"
id: shed_switch_3
entity_id: switch.shed_switch_3_2
- platform: homeassistant
name: "Shed Switch 4"
id: shed_switch_4
entity_id: switch.shed_switch_4_3
ota:
platform: esphome
password: !secret ota_password
ch422g:
psram:
mode: octal
speed: 80MHz
output:
- platform: ledc
id: backlight_output
pin: 13
frequency: 1220Hz
inverted: true
# Note: this requires a hardware modification to work - GPIO 13 must be connected to the backlight PWM pad.
light:
- platform: monochromatic
output: backlight_output
name: LCD Backlight
id: lcd_backlight
restore_mode: ALWAYS_ON
default_transition_length: 0s
gamma_correct: 1.8
effects:
- pulse:
i2c:
sda: 8
scl: 9
frequency: 400kHz
scan: false
id: bus_a
button:
- platform: safe_mode
name: Safe Mode Boot
entity_category: diagnostic
touchscreen:
- platform: gt911
address: 0x5D
id: my_touchscreen
interrupt_pin: 4
reset_pin:
ch422g:
number: 1
display:
- platform: rpi_dpi_rgb
id: rpi_disp
rotation: 90 # <--- set rotation here
auto_clear_enabled: false
color_order: RGB
pclk_frequency: 16MHz
dimensions:
width: 480
height: 800
de_pin: 5
hsync_pin: 46
vsync_pin: 3
pclk_pin: 7
pclk_inverted: true
data_pins:
red: [1, 2, 42, 41, 40]
green: [39, 0, 45, 48, 47, 21]
blue: [14, 38, 18, 17, 10]
# display:
# - platform: rpi_dpi_rgb
# id: rpi_disp
# update_interval: never
# #rotation: 90
# auto_clear_enabled: false
# color_order: RGB
# pclk_frequency: 16MHz
# dimensions:
# width: 480
# height: 800
reset_pin:
ch422g:
number: 3
enable_pin:
ch422g:
number: 2
# de_pin:
# number: 5
# hsync_pin:
# number: 46
# ignore_strapping_warning: true
# vsync_pin:
# number: 3
# ignore_strapping_warning: true
# pclk_pin: 7
# pclk_inverted: true
# # 7" 800x480 params
# hsync_back_porch: 8
# hsync_front_porch: 8
# hsync_pulse_width: 4
# vsync_back_porch: 16
# vsync_front_porch: 16
# vsync_pulse_width: 4
# # 5" 1024x600 params
# # hsync_back_porch: 188
# # hsync_front_porch: 44
# # hsync_pulse_width: 88
# # vsync_back_porch: 16
# # vsync_front_porch: 3
# # vsync_pulse_width: 6
# # 4.3" 800x480 params
# # hsync_back_porch: 8
# # hsync_front_porch: 8
# # hsync_pulse_width: 4
# # vsync_back_porch: 16
# # vsync_front_porch: 16
# # vsync_pulse_width: 4
# data_pins:
# red:
# - 1 #r3
# - 2 #r4
# - 42 #r5
# - 41 #r6
# - 40 #r7
# blue:
# - 14 #b3
# - 38 #b4
# - 18 #b5
# - 17 #b6
# - 10 #b7
# green:
# - 39 #g2
# - 0 #g3
# - 45 #g4
# - 48 #g5
# - 47 #g6
# - 21 #g7
#lvgl:
# widgets:
# - label:
# align: CENTER
# text: 'Hello World!'
#
lvgl:
displays: rpi_disp
pages:
- id: main_page
widgets:
- obj:
# Use the rotated display dimensions here
width: 480
height: 800
layout:
type: FLEX
flex_flow: COLUMN
flex_align_main: SPACE_EVENLY
flex_align_cross: CENTER
widgets:
# Row 1 (top half)
- obj:
width: 100%
height: 50%
layout:
type: FLEX
flex_flow: ROW
flex_align_main: SPACE_EVENLY
flex_align_cross: CENTER
widgets:
- button:
width: 45%
height: 100%
on_click:
- homeassistant.service:
service: cover.toggle
data:
entity_id: cover.shed_door_1_4
widgets:
- label:
text: "Shed Door"
align: CENTER
- button:
width: 45%
height: 100%
on_click:
- homeassistant.service:
service: switch.toggle
data:
entity_id: switch.shed_switch_2
widgets:
- label:
text: "Shed 2"
align: CENTER
# Row 2 (bottom half)
- obj:
width: 100%
height: 50%
layout:
type: FLEX
flex_flow: ROW
flex_align_main: SPACE_EVENLY
flex_align_cross: CENTER
widgets:
- button:
width: 45%
height: 100%
on_click:
- homeassistant.service:
service: switch.toggle
data:
entity_id: switch.shed_switch_3_2
widgets:
- label:
text: "Shed 3"
align: CENTER
- button:
width: 45%
height: 100%
on_click:
- homeassistant.service:
service: switch.toggle
data:
entity_id: switch.shed_switch_4_3
widgets:
- label:
text: "Shed 4"
align: CENTER
