Not officially supported but it works:
Code:
spi:
mosi_pin: GPIO15 # aka SDA
clk_pin: GPIO02 #aka SCL
display:
- platform: waveshare_epaper
model: 2.90inV2
cs_pin: GPIO16
dc_pin: GPIO17
reset_pin: GPIO05
busy_pin: GPIO18
rotation: 270
full_update_every: 60
update_interval: 2s
lambda: |-

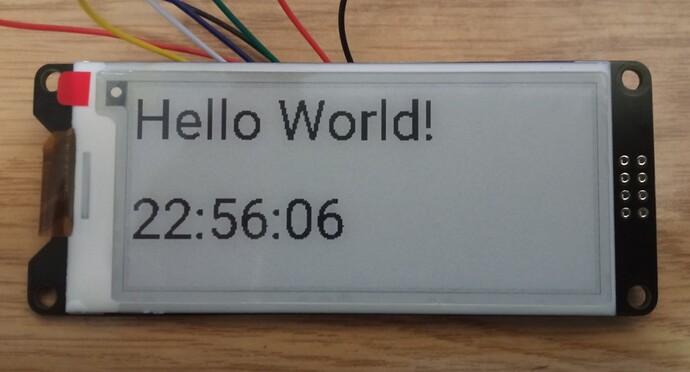

it.print(0, 0, id(font1), "Hello World!");
it.strftime(0, 64, id(font1), "%H:%M:%S", id(esptime).now());
Which board does it work with?
In my case this configuration does not work with en ESP-C3 board and Esphome.
The same screen work fine with the same ESP-C3 board running Arduino code.
I was using a NodeMCU ESP32 V1.1
Code:
esp32:
board: esp32dev
framework:
type: arduino
Did you use the same i/o pins? On your board, you may need to use other i/o pins.
I managed to get it to work after several tries with ESPHome config and Arduino demo file :
**ESP32-C3 pinout:
*ESPHome test
# Setup SPI
spi:
clk_pin: 4
mosi_pin: 6
# Configuration for the display
display:
- platform: waveshare_epaper
model: 2.90inV2
cs_pin: 7
dc_pin: 1
busy_pin: 3
reset_pin: 2
rotation: 270°
id: my_display
lambda: |-
it.printf(125, 6, id(font1), TextAlign::TOP_CENTER, "%s", "Hello World!");
it.strftime(125, 116, id(font1), TextAlign::BOTTOM_CENTER, "%Y-%m-%d %H:%M", id(time_homeassistant).now());
Arduino demo
// base class GxEPD2_GFX can be used to pass references or pointers to the display instance as parameter, uses ~1.2k more code
// enable or disable GxEPD2_GFX base class
#define ENABLE_GxEPD2_GFX 0
#include <GxEPD2_BW.h>
#include <GxEPD2_3C.h>
#include <Fonts/FreeMonoBold9pt7b.h>
// ESP32-C3 SS=7,SCL(SCK)=4,SDA(MOSI)=6,BUSY=3,RST=2,DC=1
// 2.13'' EPD Module
GxEPD2_BW<GxEPD2_213_BN, GxEPD2_213_BN::HEIGHT> display(GxEPD2_213_BN(/*CS=5*/ SS, /*DC=*/ 1, /*RST=*/ 2, /*BUSY=*/ 3)); // DEPG0213BN 122x250, SSD1680
//GxEPD2_3C<GxEPD2_213_Z98c, GxEPD2_213_Z98c::HEIGHT> display(GxEPD2_213_Z98c(/*CS=5*/ SS, /*DC=*/ 1, /*RST=*/ 2, /*BUSY=*/ 3)); // GDEY0213Z98 122x250, SSD1680
// 2.9'' EPD Module
//GxEPD2_BW<GxEPD2_290_BS, GxEPD2_290_BS::HEIGHT> display(GxEPD2_290_BS(/*CS=5*/ SS, /*DC=*/ 1, /*RST=*/ 2, /*BUSY=*/ 3)); // DEPG0290BS 128x296, SSD1680
//GxEPD2_3C<GxEPD2_290_C90c, GxEPD2_290_C90c::HEIGHT> display(GxEPD2_290_C90c(/*CS=5*/ SS, /*DC=*/ 1, /*RST=*/ 2, /*BUSY=*/ 3)); // GDEM029C90 128x296, SSD1680
void setup()
{
pinMode(8, OUTPUT);
digitalWrite(8, HIGH);
display.init(115200,true,50,false);
helloWorld();
helloFullScreenPartialMode();
delay(1000);
if (display.epd2.hasFastPartialUpdate)
{
showPartialUpdate();
delay(1000);
}
display.hibernate();
}
const char HelloWorld[] = "Hello World!";
const char HelloWeACtStudio[] = "WeAct Studio";
void helloWorld()
{
display.setRotation(1);
display.setFont(&FreeMonoBold9pt7b);
display.setTextColor(GxEPD_BLACK);
int16_t tbx, tby; uint16_t tbw, tbh;
display.getTextBounds(HelloWorld, 0, 0, &tbx, &tby, &tbw, &tbh);
// center the bounding box by transposition of the origin:
uint16_t x = ((display.width() - tbw) / 2) - tbx;
uint16_t y = ((display.height() - tbh) / 2) - tby;
display.setFullWindow();
display.firstPage();
do
{
display.fillScreen(GxEPD_WHITE);
display.setCursor(x, y-tbh);
display.print(HelloWorld);
display.setTextColor(display.epd2.hasColor ? GxEPD_RED : GxEPD_BLACK);
display.getTextBounds(HelloWeACtStudio, 0, 0, &tbx, &tby, &tbw, &tbh);
x = ((display.width() - tbw) / 2) - tbx;
display.setCursor(x, y+tbh);
display.print(HelloWeACtStudio);
}
while (display.nextPage());
}
void helloFullScreenPartialMode()
{
//Serial.println("helloFullScreenPartialMode");
const char fullscreen[] = "full screen update";
const char fpm[] = "fast partial mode";
const char spm[] = "slow partial mode";
const char npm[] = "no partial mode";
display.setPartialWindow(0, 0, display.width(), display.height());
display.setRotation(1);
display.setFont(&FreeMonoBold9pt7b);
if (display.epd2.WIDTH < 104) display.setFont(0);
display.setTextColor(GxEPD_BLACK);
const char* updatemode;
if (display.epd2.hasFastPartialUpdate)
{
updatemode = fpm;
}
else if (display.epd2.hasPartialUpdate)
{
updatemode = spm;
}
else
{
updatemode = npm;
}
// do this outside of the loop
int16_t tbx, tby; uint16_t tbw, tbh;
// center update text
display.getTextBounds(fullscreen, 0, 0, &tbx, &tby, &tbw, &tbh);
uint16_t utx = ((display.width() - tbw) / 2) - tbx;
uint16_t uty = ((display.height() / 4) - tbh / 2) - tby;
// center update mode
display.getTextBounds(updatemode, 0, 0, &tbx, &tby, &tbw, &tbh);
uint16_t umx = ((display.width() - tbw) / 2) - tbx;
uint16_t umy = ((display.height() * 3 / 4) - tbh / 2) - tby;
// center HelloWorld
display.getTextBounds(HelloWorld, 0, 0, &tbx, &tby, &tbw, &tbh);
uint16_t hwx = ((display.width() - tbw) / 2) - tbx;
uint16_t hwy = ((display.height() - tbh) / 2) - tby;
display.firstPage();
do
{
display.fillScreen(GxEPD_WHITE);
display.setCursor(hwx, hwy);
display.print(HelloWorld);
display.setCursor(utx, uty);
display.print(fullscreen);
display.setCursor(umx, umy);
display.print(updatemode);
}
while (display.nextPage());
//Serial.println("helloFullScreenPartialMode done");
}
void showPartialUpdate()
{
// some useful background
helloWorld();
// use asymmetric values for test
uint16_t box_x = 10;
uint16_t box_y = 15;
uint16_t box_w = 70;
uint16_t box_h = 20;
uint16_t cursor_y = box_y + box_h - 6;
if (display.epd2.WIDTH < 104) cursor_y = box_y + 6;
float value = 13.95;
uint16_t incr = display.epd2.hasFastPartialUpdate ? 1 : 3;
display.setFont(&FreeMonoBold9pt7b);
if (display.epd2.WIDTH < 104) display.setFont(0);
display.setTextColor(GxEPD_BLACK);
// show where the update box is
for (uint16_t r = 0; r < 4; r++)
{
display.setRotation(r);
display.setPartialWindow(box_x, box_y, box_w, box_h);
display.firstPage();
do
{
display.fillRect(box_x, box_y, box_w, box_h, GxEPD_BLACK);
//display.fillScreen(GxEPD_BLACK);
}
while (display.nextPage());
delay(2000);
display.firstPage();
do
{
display.fillRect(box_x, box_y, box_w, box_h, GxEPD_WHITE);
}
while (display.nextPage());
delay(1000);
}
//return;
// show updates in the update box
for (uint16_t r = 0; r < 4; r++)
{
display.setRotation(r);
display.setPartialWindow(box_x, box_y, box_w, box_h);
for (uint16_t i = 1; i <= 10; i += incr)
{
display.firstPage();
do
{
display.fillRect(box_x, box_y, box_w, box_h, GxEPD_WHITE);
display.setCursor(box_x, cursor_y);
display.print(value * i, 2);
}
while (display.nextPage());
delay(500);
}
delay(1000);
display.firstPage();
do
{
display.fillRect(box_x, box_y, box_w, box_h, GxEPD_WHITE);
}
while (display.nextPage());
delay(1000);
}
}
void loop() {
// put your main code here, to run repeatedly:
digitalWrite(8, HIGH);
delay(1000);
digitalWrite(8, LOW);
delay(1000);
}
Hello,
I’m trying to get a GDEY0213Z98 (2.13" b/w/r) work with esphome (not supported yet)
I was able to make it work with GxEPD2 library and arduino ide.
Did you find a way to mix both ? arduino and esphome ?
How are the ESPhome config and the Arduino demo supposed to be joined together?
Hello,
Thank you for your config file for esphome, but, when I put it in my config, I have an error. Do you have add another line to work well ? (fonts and spi)
You must have a font entry:
font:
hmm can’t get this working with my WeAct 2.9" red/black/white ePaper with ESP32-C3 supermini from AliExpress. It’s just making the display flicker black then white, then static/snow/dithering. I can sometimes see the requested text “Hello Adam2” amongst the constant flickering. The logs complain:
[W][component:237]: Component display took a long time for an operation (230 ms).
I’m pretty sure my soldering is OK and the pins are connected as they should be between ESP32 and epaper display (triple checked) and the Home Assistant YAML config matches the pins. Powered from USB-C.
I tried different “model” but “model: 2.90inV2” does seem to be best.
Here’s my config if anyone can spot what’s wrong?
esphome:
name: adam1
friendly_name: adam1
esp32:
board: esp32-c3-devkitm-1 # Use the specified board
framework:
type: arduino
logger:
level: DEBUG # Set logging level (DEBUG for verbose output)
baud_rate: 115200 # Set the baud rate for logging output
# Enable Home Assistant API
api:
encryption:
key: "1234"
ota:
- platform: esphome
password: "1234"
wifi:
ssid: !secret wifi_ssid
password: !secret wifi_password
# Enable fallback hotspot (captive portal) in case wifi connection fails
ap:
ssid: "Adam1 Fallback Hotspot"
password: "1234"
captive_portal:
font:
- file:
type: gfonts
family: Roboto
weight: 900
id: roboto_16
size: 16
spi:
clk_pin: 4 # SCK (SPI Clock) / SCL on the board - Green
mosi_pin: 6 # MOSI (SPI Data Input) / SDA on the board - Yellow
display:
- platform: waveshare_epaper
cs_pin: 7 # CS (Chip Select) - Blue
dc_pin: 3 # D/C (Data/Command) - White
reset_pin: 8 # RES (Reset) - Orange
busy_pin: 5 # BUSY (Busy signal) - Purple
model: 2.90inv2
rotation: 270
full_update_every: 60
update_interval: 60s # Set this to 10s or longer for testing
id: adam_epaper1
lambda: |-
ESP_LOGD("display", "Filling display with white...");
it.fill(Color::WHITE); // Clear the display
delay(200); // Small delay
ESP_LOGD("display", "Printing: Hello Adam...");
it.printf(125, 6, id(roboto_16), TextAlign::TOP_CENTER, "%s", "Hello Adam2!");
