Which kind of sensor is on this water meter?

Hardware
41

Yep, Esp is 3.3V MCU.

1 Like
42

Before you buy sensors, test it with laser pointer if you have. My theory of break beam is only expectation based on your video.

1 Like
43

Ok with a laser pointer the light beam seems to be blocked by the the black moving part.
But It should be pointer at the very bottom of the cylinder.

44

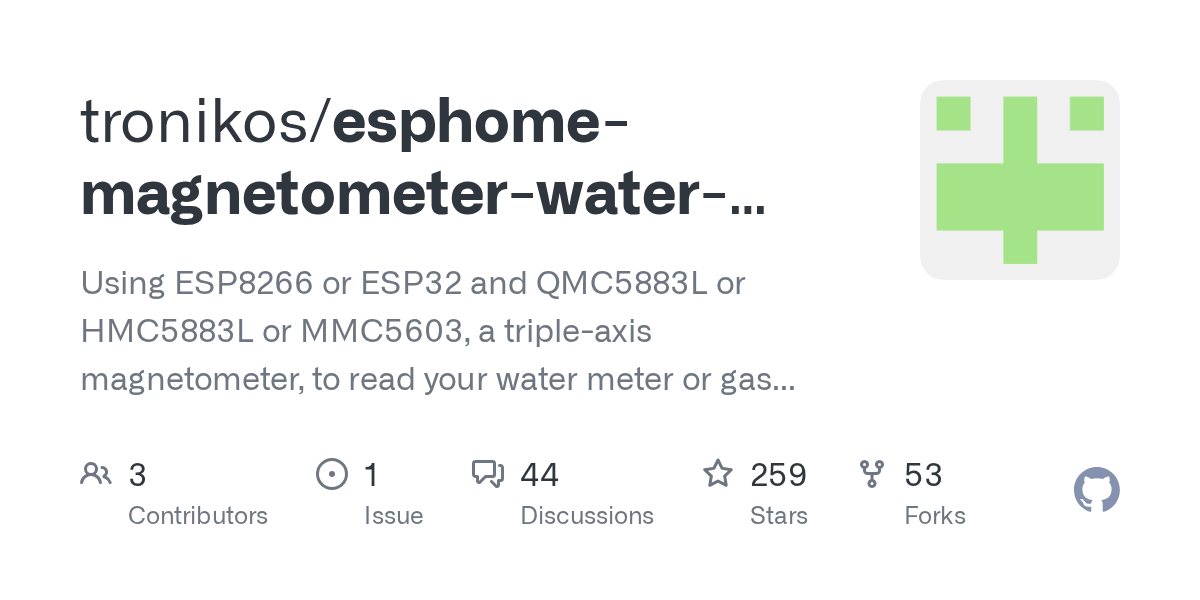

I started using this. Should work on most water meters. ESP32 + $5 magnetic sensor. I have not fully calibrated it yet, but at least I can see when water is running.

45

And the not black part? Are there 2 transparent windows and two “blocked” ones?

46

Yes the light seems to pass through on the non-“black parts” spot.
