Did you get anything out of that “window”?

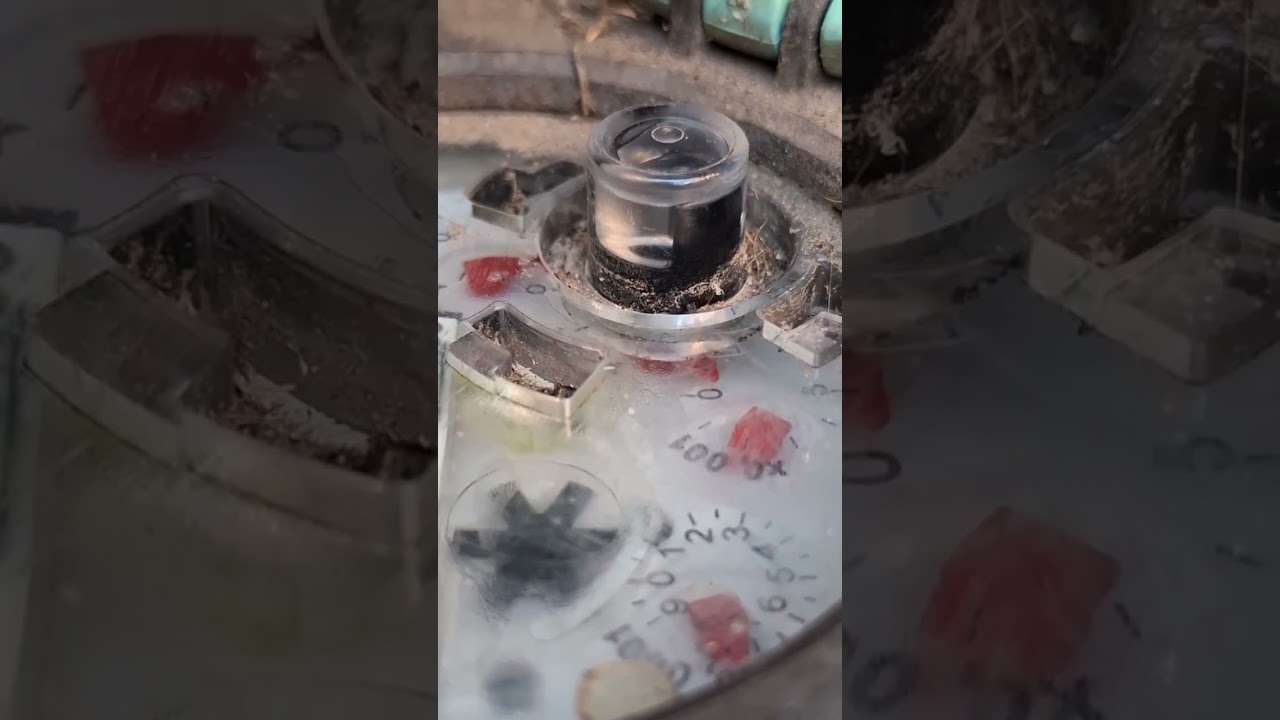

There is apparently something actuallty spinning
The video is 2x as the normal speed.
Well look at a optical sensor that has it’s own light source to pick up the alternating clear/dark as it rotates around. Looks like two changes per rotation.
Then the math part based on the dials readings for the rotation.
Never seen something like that. I wonder if it’s supposed to be detected from side or from top…
Anyway, some analog IR tx/rx like TCRT5000 should be able to read that.
Hi,
I use the home wizard watermeter for a couple of years now. Very accurate.
I think this will work with most meters but not with mine

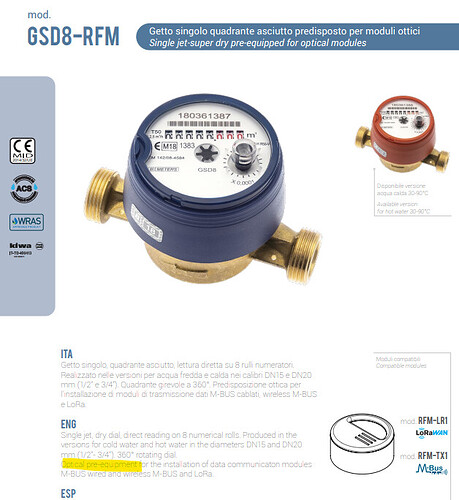

Apparently i found another meter with the same mechanism. And it says it is an optical interface for a communication module.
The modules seems to not produce a pulse output as they communicate via m bus (wired or wireless) or LoRa.
The wired module is mod. RFM-MB1 datasheet

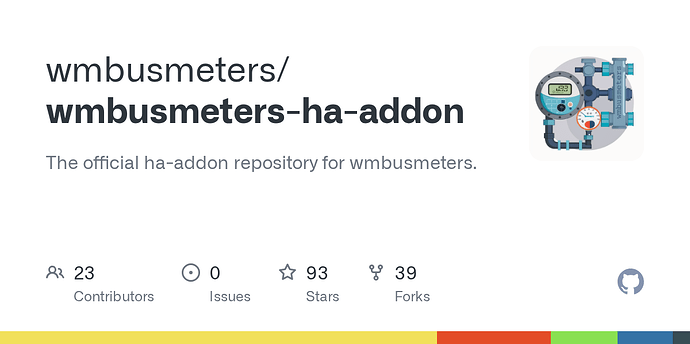

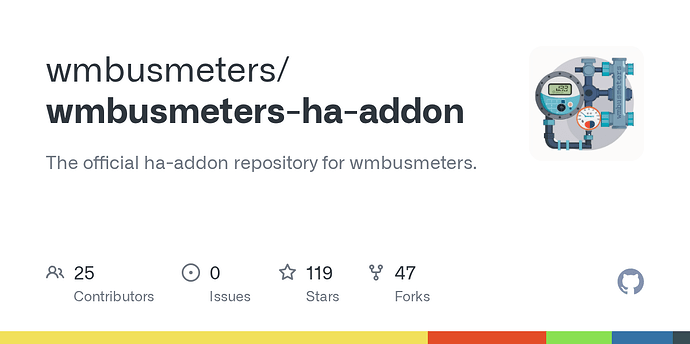

So if you get the M-Bus module you would then use the MBus Integration for Home assistant to get the readings into Home Assistant

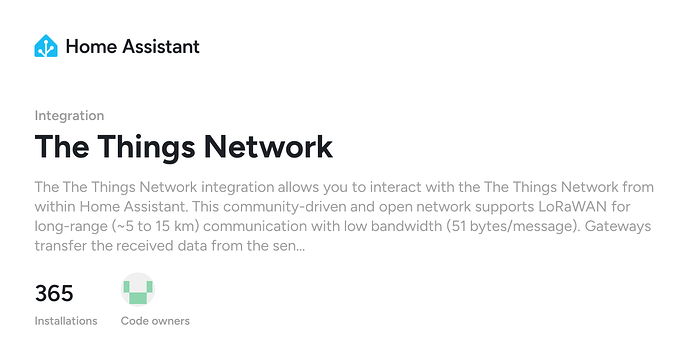

Which is simpler than going with the LORAWAN module
1 Like
i don’t think this is possible as i’m running home assistant in a container on a non-physical machine and in another network.
Even more that “accessory” seems not so easy to purchase at the moment.
I think i’m even more convinced that i need to cut off the pipes somewhere and place another water meter with a pulse output.
If you have ever used Esphome, get $1 reflective sensor and try, according to your video, it should do the job.
aliexpress.com/item/1005006304693304.html
Does this work even of It Is all enclosed in plastic?
Likely yes. Depends on the transparency of the plastic and the distance.
Anyway, I see more questionable the dimensions. Can the sensor module be mounted a way it’s positioned within the window… Just the bare sensor is 6x10mm.
There are much smaller ones available like this, but in any case it’s not plug and play approach…
1 Like

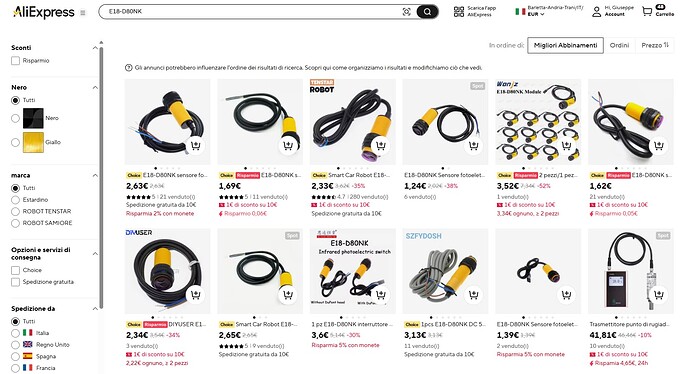

Found this one on AliExpress:
https://it.aliexpress.com/item/1005006090390307.html
Is it a more “weatherproof” solution? Or it is a very different sensor?
It’s too big and it’s tuned for long distance.
1 Like
Actually, it think the proprietary sensor is break beam one.
If you look at the video posted, looks like there are 4 sectors, two transparent and two black. So likely there’s light source on one side and phototransistor on the other. So it passes/blocks the light twice per turn.
But analog reflectance sensor should detect it as well.
1 Like

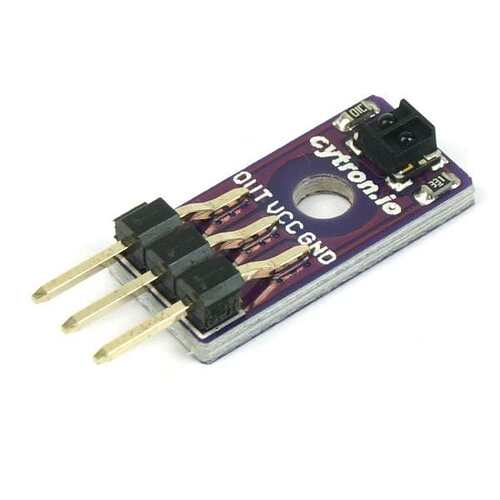

So do you think something like this could work with and esp?
https://a.aliexpress.com/_EGOl9t2
Should work if my interpretation of your video is correct.
Just power the receiver from 3.3V, not 5V.
1 Like
why 3.3v?
i see 5v all around the product page.
If you power the receiver at 5V you need level shifting, Vout has 10k internal pullup to VCC.
1 Like
So on the GPIO pin i have max 3.3v?
