Z-Wave 800 GPIO with RTC and CPU Temp. Control

Share your Projects!
1

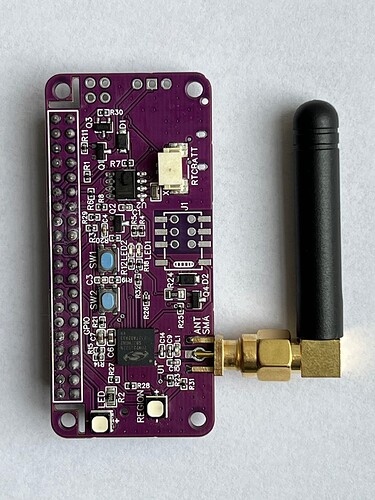

I designed a Z-Wave 800 GPIO board with RTC and CPU temp. Control. It could integrate with Home Assistant. It has external internal.

tempImageQzqeRm
tempImageQzqeRm1920×2560 399 KB

1 Like
2
3

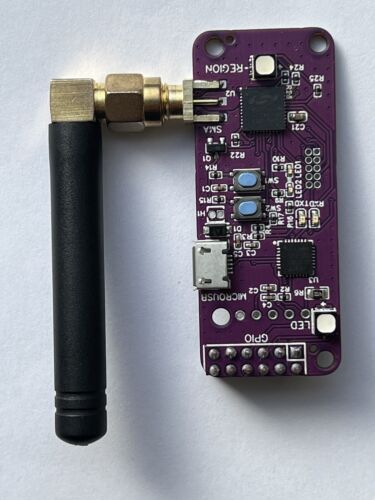

The USB interface. There is color LED for region indicator too.

tempImageG8EjLr
tempImageG8EjLr1920×2560 292 KB

4

tempImagefMwNk6
tempImagefMwNk61920×2560 346 KB

This is GPIO board with region LED and Programming indicator LED
