I’m excited to introduce a blueprint for controlling lights with the Aqara H1 Knob connected via Zigbee2MQTT!
It works with the latest Zigbee2MQTT versions, including 2.0.0 and above.
I’m a newbie, so I’d really appreciate it if you enjoy this!
Supporting
-
Aqara Rotary Knob H1 (wireless) ZNXNKG02LM
-
Supports Zigbee2MQTT versions, including 2.0.0 and later updates. (It is expected to work on lower versions as well.)
Prerequisites
-
Requires at least Home Assistant Core
2024.08version. -
The knob only works when connected via
Zigbee2MQTT. -
The operation mode of the knob must be set to
event. It is unknown whether it works incommandmode. -
The controlled lights can be connected through any platform. (Color temperature adjustment in Kelvin must be supported.)
-

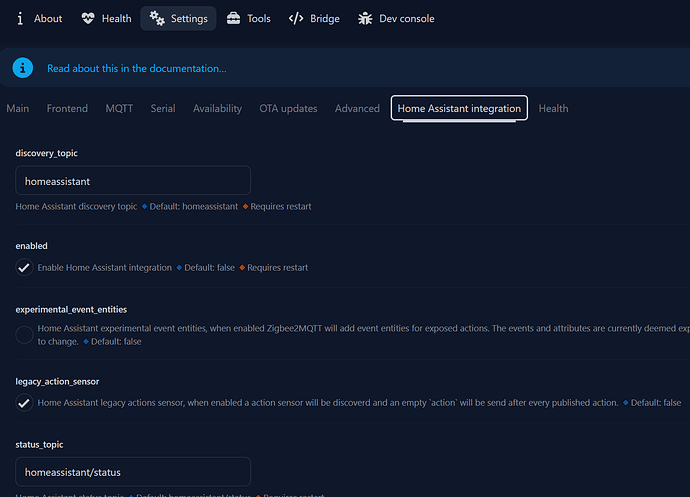

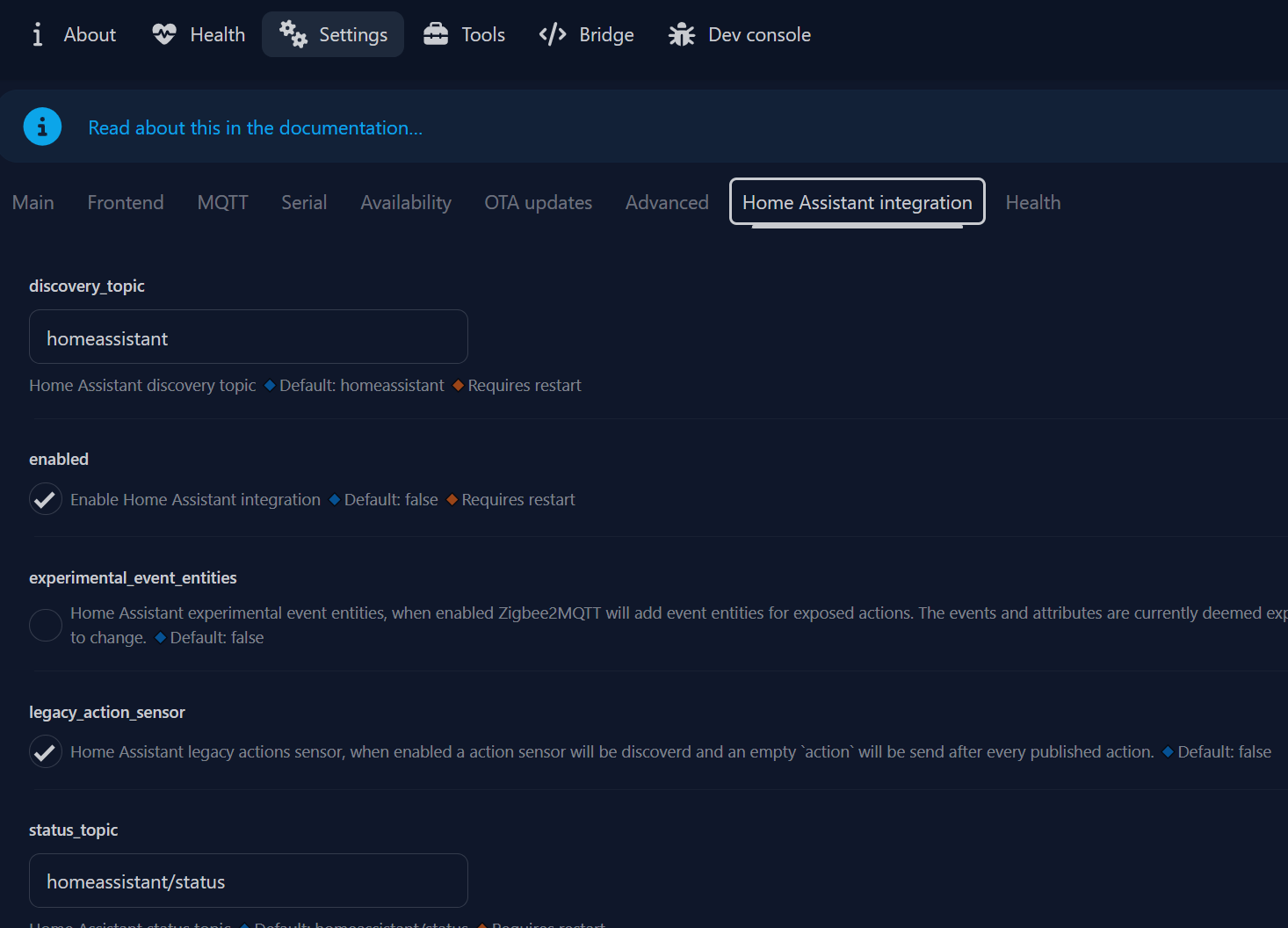

The MQTT integration must be installed in Home Assistant.
-
The default
entity_idof the H1 Knob must not be manually modified.

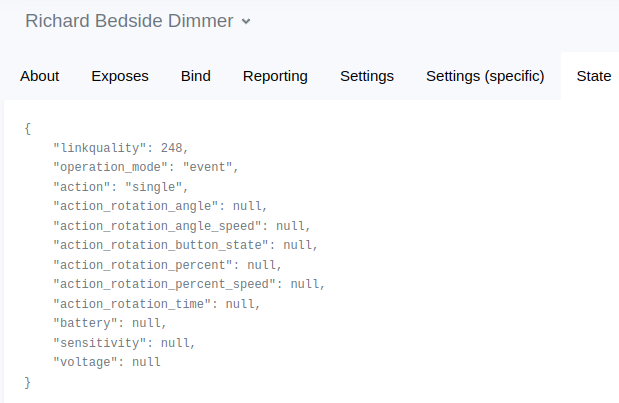

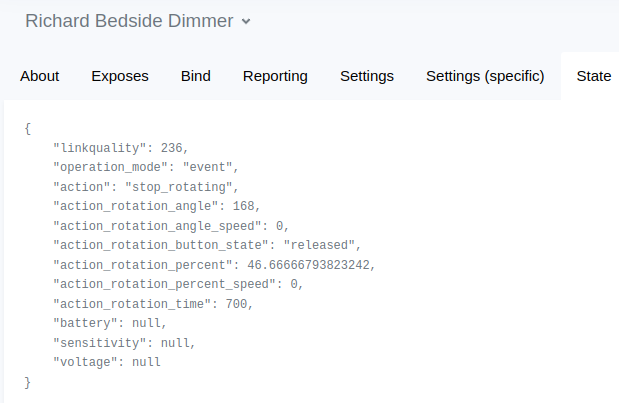

For example, if the friendly name of the H1 Knob in the Zigbee2MQTT UI is “Aqara Knob”, the related entities should remain as:sensor.aqara_knob_action_rotation_button_state sensor.aqara_knob_action_rotation_percent sensor.aqara_knob_action_rotation_angleThese
entity_idmust be preserved for proper functionality.
If you have manually modified theentity_id, this blueprint will NOT WORK.
Please revert them to their original values for proper functional

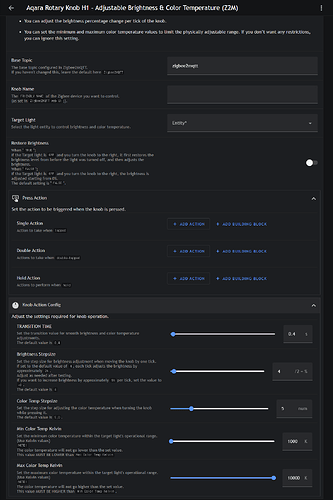

Customizing Options
-
It’s a bit unfortunate to forgo the UI dropdown to support Jinja2 templates, but this allows setting
target_lightdynamically, such as using the state of aninput_selector other flexible configurations.
If you don’t need a template, simply enter theentity_idof the light directly. (Example: light.my_bulb) -
If Restore Brightness is disabled (default), turning the knob
rightto turn on the Target Light will start at theminimum brightnessand increase based on the knob rotation. -
If the Restore Brightness option is enabled, turning the knob
rightto turn on the Target Light while it is off will restore its previous brightness state (if supported by the light). -
You can set the
transition timefor smooth brightness and color temperature adjustments. The default value is0.4s, as it matches the default transition time of my Hue bulbs. -
You can adjust the amount of color temperature change per tick of the knob.
-
You can adjust the brightness percentage change per tick of the knob.
-
You can set the minimum and maximum color temperature values to limit the physically adjustable range. If you don’t want any restrictions, you can ignore this setting.
User Manual
-
If you haven’t changed the topic in Zigbee2MQTT, you don’t need to modify the base topic. Leave it as the
defaultvalue -
Type in the
friendly nameof the knob exactly as it appears in theZigbee2MQTT Web UI
Ensure that uppercase letters, spaces, and underscores match the exact formatting used in Zigbee2MQTT. -
Ensure that all prerequisites are fully met before proceeding.
-
Adjust the Knob Action Config settings according to your needs, following the options listed in Customizing Options.
How It Works
Press Action
Single,Double, andHoldactions can all be customized in the press action section.- The
Releaseaction DOES NOT work in this blueprint.
Knob Action
- Turning the knob right without pressing increases brightness (+), Turning the knob left without pressing decreases brightness (-).
- Turning the knob right while pressing increases the color temperature (cooler), Turning the knob left while pressing decreases the color temperature (warmer).
Blueprint
If something seems off, please check my GitHub. Thank you!
blueprint:
name: Aqara Rotary Knob H1 – Adjustable Brightness & Color Temperature (Z2M)
description: |-
## Supporting
- Aqara Rotary Knob H1 (wireless) [ZNXNKG02LM](https://www.zigbee2mqtt.io/devices/ZNXNKG02LM.html)
- Supports Zigbee2MQTT versions, including 2.0.0 and later updates. (It is expected to work on lower versions as well.)
## Prerequisites
- The knob only works when connected via `Zigbee2MQTT`.
- The operation mode of the knob must be set to `event`. It is unknown whether it works in `command` mode.
- The controlled lights can be connected through any platform. (Color temperature adjustment in Kelvin must be supported.)
- The MQTT integration must be installed in Home Assistant.
- The default `entity_id` of the H1 Knob must not be manually modified.
For example, if the friendly name of the H1 Knob in the Zigbee2MQTT UI is "`Aqara Knob`", the related entities should remain as:
sensor.aqara_knob_action_rotation_button_state
sensor.aqara_knob_action_rotation_percent
sensor.aqara_knob_action_rotation_angle
These `entity_id` must be preserved for proper functionality.
If you have manually modified the `entity_id`, this blueprint will **NOT WORK**.
Please revert them to their original values for proper functional
## Customizing Options
- It's a bit unfortunate to forgo the UI dropdown to support Jinja2 templates, but this allows setting `target_light` dynamically, such as using the state of an `input_select` or other flexible configurations.
If you don't need a template, simply enter the `entity_id` of the light directly. (Example: light.my_bulb)
- If Restore Brightness is disabled (default), turning the knob `right` to turn on the Target Light will start at the `minimum brightness` and increase based on the knob rotation.
- If the Restore Brightness option is enabled, turning the knob `right` to turn on the Target Light while it is off will restore its previous brightness state (if supported by the light).
- You can set the `transition time` for smooth brightness and color temperature adjustments. The default value is `0.4s`, as it matches the default transition time of my Hue bulbs.
- You can adjust the amount of color temperature change per tick of the knob.
- You can adjust the brightness percentage change per tick of the knob.
- You can set the minimum and maximum color temperature values to limit the physically adjustable range. If you don’t want any restrictions, you can ignore this setting.
## User Manual
1. If you haven’t changed the topic in Zigbee2MQTT, you don’t need to modify the base topic. Leave it as the `default` value
2. Type in the `friendly name` of the knob exactly as it appears in the `Zigbee2MQTT Web UI`
Ensure that uppercase letters, spaces, and underscores match the exact formatting used in Zigbee2MQTT.
3. Ensure that all prerequisites are fully met before proceeding.
4. Adjust the Knob Action Config settings according to your needs, following the options listed in Customizing Options.
## How It Works
*Press Action*
- `Single`, `Double`, and `Hold` actions can all be customized in the press action section.
- The `Release` action DOES NOT work in this blueprint.
*Knob Action*
- Turning the knob right without pressing increases brightness (+), Turning the knob left without pressing decreases brightness (-).
- Turning the knob right while pressing increases the color temperature (cooler), Turning the knob left while pressing decreases the color temperature (warmer).
domain: automation
input:
base_topic:
name: Base Topic
description: The base topic configured in Zigbee2MQTT.
<br>If you haven't changed this, leave the default here `Zigbee2MQTT`
default: zigbee2mqtt
knob:
name: Knob Name
description: The `FRIENDLY NAME` of the Zigbee device you want to control.
<br> (as set in `Zigbee2MQTT web UI`;).
selector:
text: {}
target_light:
name: Target Light
description: Select the light entity to control brightness and color temperature.
selector:
template: {}
# Restore Brightness option
restore_brightness:
name: Restore Brightness
description: When "`TRUE`";
<br>If the Target light is `OFF` and you turn the knob to the right, it first restores the brightness level from before the light was turned off, and then adjusts the brightness.
<br>When "`FALSE`";
<br>If the Target light is `OFF` and you turn the knob to the right, the brightness is adjusted starting from 0%.
<br>The default setting is "`FALSE`".
default: false
selector:
boolean:
##### Press Action
press_action:
name: Press Action
description: Set the action to be triggered when the knob is pressed.
icon: mdi:gesture-tap-button
collapsed: false
input:
action_single:
name: Single Action
description: Action to take when `tapped`
default: []
selector:
action: {}
action_double:
name: Double Action
description: Actions to take when `double-tapped`
default: []
selector:
action: {}
action_hold:
name: Hold Action
description: Actions to perform when `hold`
default: []
selector:
action: {}
##### Knob Action
knob_action:
name: Knob Action Config
description: Adjust the settings required for knob operation.
icon: mdi:knob
collapsed: true
input:
transition_time:
name: TRANSITION TIME
description: Set the transition value for smooth brightness and color temperature adjustments.
<br>The default value is `0.4`
default: 0.4
selector:
number:
min: 0.0
max: 20.0
step: 0.1
unit_of_measurement: s
mode: slider
brightness_stepsize:
name: Brightness Stepsize
description: Set the step size for brightness adjustment when moving the knob by one tick.
<br>If set to the default value of `4`, each tick adjusts the brightness by approximately `2%`.
<br>Adjust as needed after testing.
<br>If you want to increase brightness by approximately `1%` per tick, set the value to `+2`.
<br>The default value is `4`
default: 4
selector:
number:
min: 1
max: 100
step: 1
unit_of_measurement: /2 = %
mode: slider
color_temp_stepsize:
name: Color Temp Stepsize
description: Set the step size for adjusting the color temperature when turning the knob while pressing it.
<br>The default value is `5.0`.
default: 5.0
selector:
number:
min: 1
max: 20
step: 0.1
unit_of_measurement: num
mode: slider
color_temp_min:
name: Min Color Temp Kelvin
description: Set the minimum color temperature within the target light's operational range. (Use Kelvin values)
<br>`NOTE!`
<br> The color temperature will not go lower than the set value.
<br> This value MUST BE LOWER than `Max Color Temp Kelvin`
default: 1000
selector:
number:
min: 1000
max: 10000
unit_of_measurement: "K"
color_temp_max:
name: Max Color Temp Kelvin
description: Set the maximum color temperature within the target light's operational range. (Use Kelvin values)
<br>`NOTE!`
<br> The color temperature will not go higher than the set value.
<br> This value MUST BE HIGHER than `Min Color Temp Kelvin`.
default: 10000
selector:
number:
min: 1000
max: 10000
unit_of_measurement: "K"
####################
mode: parallel
max: 100
max_exceeded: silent

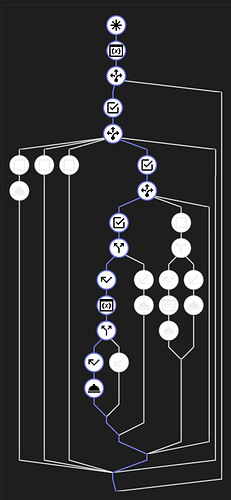

trace:
stored_traces: 20
####################
trigger_variables:
base_topic: !input base_topic
knob: !input knob
trigger:
trigger: mqtt
topic: '{{ base_topic }}/{{ knob }}/action'
action:
- variables:
ACTION: '{{ trigger.payload }}'
DEVICE_LOWER: "{{ knob | lower | regex_replace('[ .,@^-]', '_') }}"
TARGET_LIGHT: !input target_light
SENSOR_PRESSED: "sensor.{{ DEVICE_LOWER }}_action_rotation_button_state"
SENSOR_BRIGHT_SIZE: "sensor.{{ DEVICE_LOWER }}_action_rotation_percent"
SENSOR_TEMP_SIZE: "sensor.{{ DEVICE_LOWER }}_action_rotation_angle"
BRIGHTNESS_STEPSIZE: !input brightness_stepsize
TEMP_STEPSIZE: !input color_temp_stepsize
RESTORE_BRIGHTNESS: !input restore_brightness
STATES_PRESSED: "{{ states(SENSOR_PRESSED) }}"
STATES_BRIGHT_SIZE: "{{ ((states(SENSOR_BRIGHT_SIZE) | float(1) / 3) * BRIGHTNESS_STEPSIZE * 2.54) | round(0) }}"
STATES_TEMP_SIZE: "{{ states(SENSOR_TEMP_SIZE) | float(0) * TEMP_STEPSIZE }}"
TEMP_MIN: !input color_temp_min
TEMP_MAX: !input color_temp_max
TRANSITION_TIME: !input transition_time
- choose:
- conditions: "{{ ACTION != 'stop_rotating' }}"
sequence:
- choose:
- conditions: "{{ ACTION in ['single'] }}"
sequence: !input action_single
- conditions: "{{ ACTION in ['double'] }}"
sequence: !input action_double
- conditions: "{{ ACTION in ['hold'] }}"
sequence: !input action_hold
- conditions: "{{ ACTION in ['start_rotating', 'rotation'] }}"
sequence:
- choose:
- conditions: "{{ STATES_PRESSED == 'released' }}"
sequence:
- if:
- condition: template
value_template: "{{ states(TARGET_LIGHT) == 'off' and RESTORE_BRIGHTNESS and STATES_BRIGHT_SIZE > 0 }}"
then:
- action: light.turn_on
target:
entity_id: "{{ TARGET_LIGHT }}"
data:
transition: "{{ TRANSITION_TIME }}"
else:
- action: light.turn_on
target:
entity_id: "{{ TARGET_LIGHT }}"
data:
transition: "{{ TRANSITION_TIME }}"
brightness_step: "{{ STATES_BRIGHT_SIZE }}"
- conditions: "{{ STATES_PRESSED == 'pressed' }}"
sequence:
- if:
- condition: template
value_template: "{{ states(TARGET_LIGHT) == 'off' and STATES_TEMP_SIZE > 0 }}"
then:
- action: light.turn_on
target:
entity_id: "{{ TARGET_LIGHT }}"
data:
transition: "{{ TRANSITION_TIME }}"
else:
- variables:
CURRENT_TEMP: "{{ state_attr(TARGET_LIGHT, 'color_temp_kelvin') | int }}"
- action: light.turn_on
target:
entity_id: "{{ TARGET_LIGHT }}"
data:
transition: "{{ TRANSITION_TIME }}"
kelvin: >-
{% set COLOR_TEMP_MIN = max(TEMP_MIN, state_attr(TARGET_LIGHT, 'min_color_temp_kelvin')) %}
{% set COLOR_TEMP_MAX = min(TEMP_MAX, state_attr(TARGET_LIGHT, 'max_color_temp_kelvin')) %}
{{ min(COLOR_TEMP_MAX, max(COLOR_TEMP_MIN, CURRENT_TEMP + STATES_TEMP_SIZE)) }}
