Zigbee temperature sensor with wired external probe

Its 2023 and I still cant find a zigbee temperature sensor with wired external probe.
I have made a few diy with aqara sensors and external sht30 probes but I am still looking for something that will work out of the box.

anyone knows why manufacturers doesnt make zigbee temperature sensors with external probes as it looks like in wifi and ble there are many of them out there?

I have have this one. Put it on the fridge with the probe inside. Zigbee does not work inside it as itā€™s a Faraday Cage. Having the unit outside also keeps the battery warm.

https://www.aliexpress.com/item/1005004212085690.html

Nice find. How fast does it update ?

yes I know that one. its pretty expensive and the probe isnt waterproof like the ds18b20.
I was hoping to find another solutionā€¦

I saw this, havenā€™t purchased yet so canā€™t comment on the actual product nor the seller:

3 Likes

I bought this. I have Sonoff Zigbee dongle and using ZHA. Works fine. About the seller (Domadoo)ā€¦ twice sent message to ask something. Never got any answer.

2 Likes

maybe this one?
https://aliexpress.com/item/1005007011406699.html

This one is ā€˜alsoā€™ a switch. Not really clear how it works (like do you need mains power or on batteries) and what the specs are.

I built a couple with ds18b20s and ESP32-c6 minis, it seems like something thst should be easy to commercialize, yet manufacturers donā€™t seem to be interested. I guess they just donā€™t see sufficient demand.

I got this OWON sensor, thanks to @Jay_from_NuZilandā€™s recommendation (above).

I use it to measure the temperature in a window well where I keep some plants in winter. I chose the one with a 2 meter cable, but there are variants with longer cables.

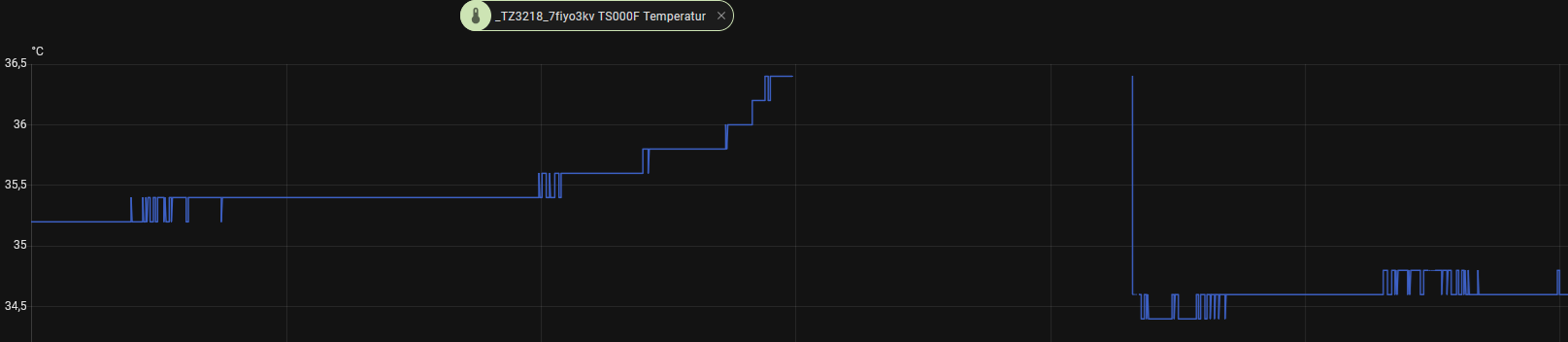

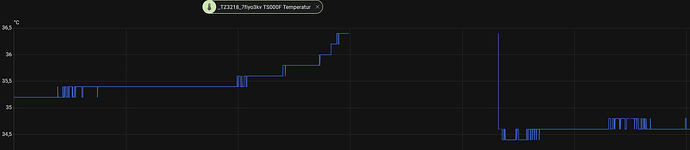

Putting a sensor inside the window well was no option, as the iron grating that covers the light well wonā€™t let any signal through. The case with the chip and batteries is in a dry place, inside a small repurposed plastic kitchen container under the neighboursā€™ balcony. In the same box is an Aqara temperature/humidity sensor to measure outside temperature, so I can get an idea when I need to worry about frost entering the window well. I watch it with a statistic card:


Even though I switched from 5 minute to 1 hour intervalls for the graph, you can still tell that the Owon temperature sensor (blue line) sends updates more frequently than the Aqara. Donā€™t know if itā€™s more accurate or just more ā€œsensitiveā€, or less ā€œdebouncedā€.

Battery seems to last a long time. I use rechargables for about 10 days now, it works flawlessly despite the lower voltage output (1,2V instead of 1,5V for 1 AAA, I think) and they havenā€™t lost one percent of charge according to the battery sensor in the Owon (aqara sensor doesnā€™t send usable battery status). Outside temperatures are between 0 and 10Ā°C at the moment.

I have them connected to my mesh via an Aeotec Range Extender Zi. Both sensors were connected quickly and without problems and stay consistently connected and send data. Distance is about 10 m air line, but itā€™s going through walls / windows and around metal balcony structures, so itā€™s actually a longer distance. Iā€™m very pleased.

@anarchist912 did you have any issues with the Owon THS-317-ET ?

Iā€™ve got two, one refuses to connect to my Sonoff Zigbee 3 on ZHA, and the other one does connect but it is only displaying one entity, and I donā€™t know if this is the inside or outside temperature :man_facepalming:
